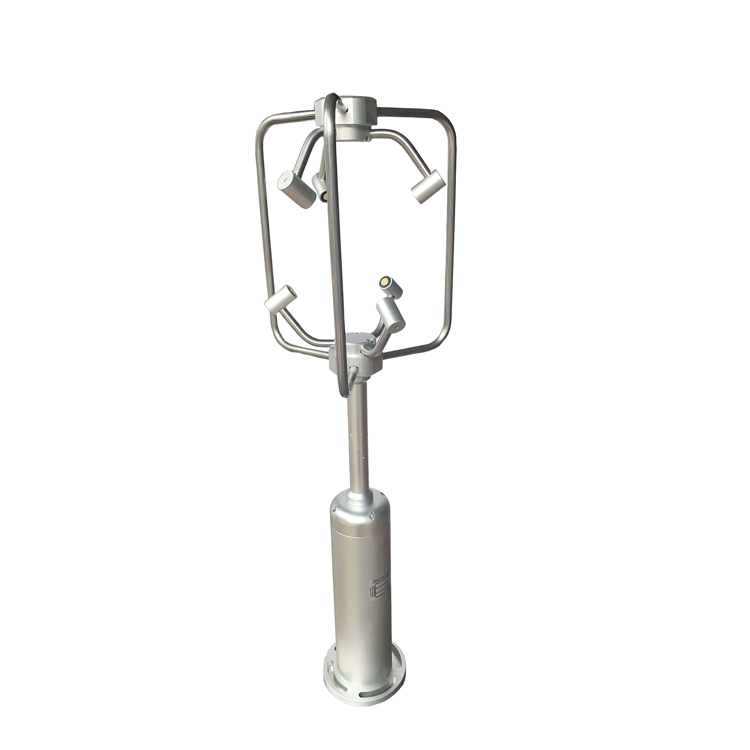

 NiuBoL 3D Ultrasonic Anemometer — Precision 3D Wind Measurement Solution

Overview of the 3D Ultrasonic Anemometer

Since the invention of the cup anemometer in 18th-century Europe, mechanical wind speed and direction sensors have played a key role in meteorological monitoring. However, inherent limitations of mechanical components—such as high startup thresholds, high maintenance costs, and short service life—continue to restrict modern precision monitoring and scientific research needs.

To overcome these constraints, NiuBoL introduces the 3D Ultrasonic Anemometer. Based on the principle that ultrasonic propagation speed varies with airflow, this device eliminates mechanical motion, enabling inertial-free, full 3D wind measurement. It accurately captures breezes and complex airflow dynamics even in zero-wind conditions, providing reliable data support for wind field research, environmental monitoring, and industrial safety.

 3D Ultrasonic Anemometer Working Principle

The 3D ultrasonic anemometer uses the time-of-flight (TOF) method. Six ultrasonic transducers arranged in 3D space emit and receive sound waves, measuring the time difference in propagation through the air. Wind affects wave travel time—faster downwind, slower upwind. The device calculates the complete wind vector from measurements along three axes (X, Y, Z), including:

- Resultant wind speed

- Horizontal wind direction

- Vertical wind direction

- X/Y/Z axis wind speed components

Additionally, it derives virtual temperature (from speed of sound) for comprehensive atmospheric analysis.

 3D Ultrasonic Anemometer Core Functions and Technical Advantages

1. Multi-Parameter Synchronous Acquisition

   Simultaneously collects 3D wind speed, horizontal/vertical direction, and sonic temperature. Full data dimensionality ensures integrity and scientific validity for meteorology, wind power, and research applications.

2. 360° Blind Spot-Free Monitoring

   3D probe layout covers all spatial directions with no dead zones. Unlike mechanical anemometers, it requires no startup wind speed and accurately detects micro-breezes or calm conditions.

3. Long Lifespan & Maintenance-Free

   No moving parts, no friction or wear—maintains accuracy over time. Eliminates frequent on-site calibration or upkeep, significantly reducing O&M costs for long-term continuous monitoring.

4. Robust Environmental Protection

   All-metal housing with anti-corrosion coating resists rain, humidity, salt spray, and UV exposure. Ideal for sustained outdoor, coastal, or industrial deployment.

5. Simple Operation & Easy Installation

No complex calibration required. Mount on a pole, connect wiring—deployment completable by one person in minutes. Perfect for remote or high-altitude sites.

6. High-Precision Measurement

   - Resultant Wind Speed: 0–60 m/s, ±(0.5 + 3% FS), 0.01 m/s resolution

   - Horizontal Direction: 0–359°, ±3°, 1° resolution

   - Vertical Direction: -90–90°, ±3°, 1° resolution

   - X/Y/Z Axis Wind Speed: -60–60 m/s, ±(0.5 + 3% FS), 0.01 m/s resolution

   Suitable for precision wind field studies, urban airflow analysis, wind farm O&M, and industrial environments.

3D Ultrasonic Anemometer Application Fields

- Meteorological Observation: High-accuracy wind field data for weather monitoring and research.

- Wind Power O&M: 3D wind data optimizes turbine layout, energy assessment, and operational efficiency.

- Environmental Monitoring: Analyzes airflow, pollutant dispersion, and urban wind environments.

- Industrial Safety: Monitors high-altitude winds and airflow changes to prevent risks in wind-sensitive facilities.

- Transportation: Wind condition monitoring at airports, ports, and shipping routes for operational safety.

- Scientific Research & Education: Laboratory, university research, and teaching demonstrations with precise data.

 3D Ultrasonic Anemometer Technical Specifications

Monitoring elements synthetic wind speed, horizontal wind direction, vertical wind direction, X/Y/Z axis vector wind speed

Management Platform & Data Applications

The 3D ultrasonic anemometer integrates with the NiuBoL Cloud Platform, offering:

- Real-time display (wind speed, direction, sonic temperature, X/Y/Z vector components)

- Historical trend analysis and data export

- Anomaly alerts and early warnings

- API interface for third-party system integration

Users can rapidly assess wind field conditions, optimize turbine placement, support urban wind environment analysis, or preempt industrial risks.

 Frequently Asked Questions (FAQ)

1. How does the 3D ultrasonic anemometer differ from traditional mechanical ones?

   Mechanical sensors rely on cups or vanes, suffering high startup speed, wear, and frequent maintenance. The ultrasonic version has no moving parts, starts at zero wind speed, offers higher accuracy, and is maintenance-free.

2. Is it suitable for long-term outdoor use?

   Yes—full metal housing with corrosion-resistant treatment withstands rain, humidity, salt spray, and UV for all-weather operation.

3. How is 3D wind vector data obtained?

   Three pairs of ultrasonic transducers measure X/Y/Z axis components; vector synthesis computes total speed and horizontal/vertical directions.

4. Is installation complex? Does it require professionals?

   Simple: secure to a pole and connect wiring. No welding or advanced setup—non-experts can deploy quickly.

5. What data transmission and interfaces are supported?

   RS485 output with standard MODBUS protocol (9600 bps), compatible with common data acquisition systems.

6. Does it require frequent calibration?

   No—motionless design ensures long-term stability without routine calibration.

7. Can it be used for research and education?

   Absolutely—provides high-precision wind data for wind field studies, environmental analysis, and lab teaching.

8. What scenarios is it suitable for?

   Meteorology, wind power O&M, urban wind environments, industrial safety, transportation, and research/education requiring precise wind data.

9. Is data reliable at zero wind speed?

   Yes—it operates stably in calm conditions, accurately capturing micro-breezes—avoiding data gaps common in mechanical sensors.

10. What is the expected lifespan?

    No mechanical wear ensures stable accuracy for years of continuous use with minimal O&M costs.

 Summary

The NiuBoL 3D Ultrasonic Anemometer leverages innovative ultrasonic principles to deliver zero startup wind speed, no mechanical wear, and full 3D wind vector measurement, dramatically enhancing monitoring accuracy and reliability. Rugged, maintenance-free, and easy to install, it excels in meteorological observation, wind farm operations, environmental monitoring, industrial safety, and scientific research.

With high precision, multi-parameter, and omnidirectional sensing, NiuBoL sets a new benchmark in modern anemometry—driving wind monitoring toward intelligence, precision, and cost-efficiency while providing a solid data foundation for research, industry, and operational decisions.
