NBL-BOD-406 Online BOD Sensor for Industrial, Wastewater Treatment Plants, Rivers and Lakes

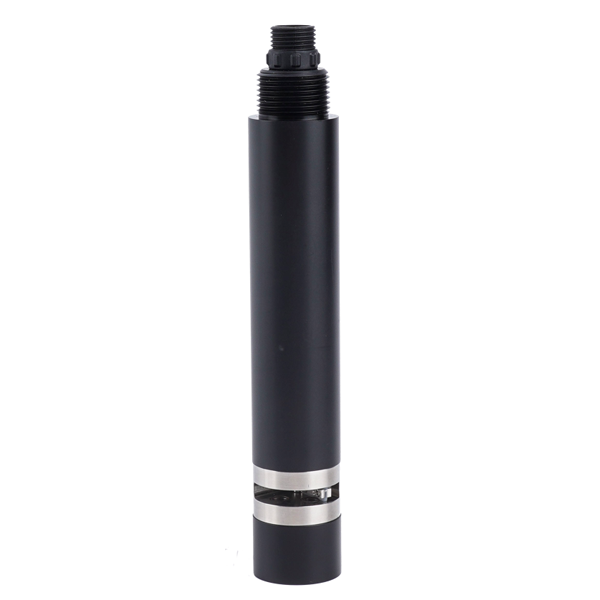

NBL-BOD-406 Online Water Quality Monitoring BOD Sensor

In online water quality monitoring projects, traditional BOD measurement relies on laboratory incubation methods, which have long cycles, frequent maintenance, and are easily interfered by turbidity and particulate matter, resulting in data lag and insufficient system stability. The NiuBoL NBL-BOD-406 online BOD sensor adopts the dual-wavelength fluorescence method for direct immersion measurement. Without reagents, it can output BOD, turbidity and temperature parameters in real time and continuously, significantly reducing operating costs and improving data reliability.

Core Advantages

• Reagent-free, pollution-free: Avoids chemical reagent consumption and secondary pollution, meeting environmental protection and economic requirements.

• Anti-interference, high stability: Reference light compensates for turbidity interference, and a dedicated algorithm eliminates the influence of particulate matter, with small long-term drift.

• Easy integration, maintenance-free: RS-485 Modbus/RTU digital output, low power consumption design, built-in self-cleaning brush, IP68 full immersion protection, suitable for unattended scenarios.

The NiuBoL NBL-BOD-406 online BOD sensor is specially designed for industrial water treatment, environmental monitoring and municipal engineering. It provides a high-precision, strong anti-interference solution for monitoring dissolved organic matter. The sensor utilizes the characteristic that dissolved organic matter in water absorbs ultraviolet light and excites fluorescence. Through dual light sources (ultraviolet measurement light + reference light), it accurately quantifies BOD content. It also integrates turbidity compensation and temperature monitoring, providing multiple parameters in one device and simplifying system integration complexity.

This sensor is particularly suitable for engineering projects with high requirements for real-time performance and stability. Without complex pretreatment or frequent calibration, it can achieve continuous online monitoring, helping system integrators and engineering contractors build efficient and reliable water quality monitoring networks to meet environmental discharge standards and process optimization needs.

Main Technical Advantages of NBL-BOD-406 Online Water Quality Monitoring BOD Sensor

NiuBoL NBL-BOD-406 adopts a mature dual-wavelength fluorescence measurement principle. One ultraviolet light excites organic matter fluorescence to quantify BOD, and the other reference light simultaneously monitors water turbidity. Through a dedicated algorithm, it compensates for light path attenuation and particulate suspension interference in real time, ensuring that the measured values maintain high accuracy and repeatability in complex water quality environments.

Hardware Reliability Design:

• The shell material is a combination of POM engineering plastic and 316L stainless steel, which is corrosion-resistant and anti-biological attachment.

• Protection level IP68, supports full immersion installation, working pressure <0.1 MPa, adapts to 0～45℃ on-site environment.

• Built-in self-cleaning brush, effectively prevents biofilm and dirt from attaching to the measurement window and extends the maintenance cycle.

Algorithm and Signal Optimization:

• Automatic turbidity interference compensation, reducing the influence of suspended particles on the fluorescence signal.

• Digital signal processing, low-power electronic circuit (0.2W@12V), anti-electromagnetic interference design.

• Small drift, fast response, and excellent stability maintained during long-term continuous monitoring.

Integration Friendliness:

• Standard RS-485 interface, Modbus/RTU protocol, easy to seamlessly connect with PLC, DCS, SCADA and other host systems.

• Two-point calibration method (zero point + slope), simple operation, stable calibration data.

• Standard cable length 5 meters, customizable, supports long-term underwater or exposed environment wiring (waterproof and anti-corrosion treatment required).

These features make NBL-BOD-406 the preferred solution for system integrators in sewage treatment, river management and industrial park monitoring projects, significantly reducing on-site maintenance workload and overall ownership cost.

NBL-BOD-406 Online Water Quality Monitoring BOD Sensor Technical Specifications

Note: In actual applications, please select the model reasonably according to the on-site water quality characteristics and perform regular verification.

NBL-BOD-406 Online Water Quality Monitoring BOD Sensor Application Scenarios

NiuBoL NBL-BOD-406 online BOD sensor is widely used in engineering projects that require real-time organic pollution monitoring. The following are typical scenarios:

1. Municipal Wastewater Treatment Plants: Continuous BOD monitoring at inlet, aeration tank and outlet to optimize biochemical treatment processes and ensure discharge compliance.

2. Industrial Wastewater Treatment: Wastewater monitoring in chemical, pharmaceutical, food processing and other industries to grasp organic load changes in real time, support process adjustment and over-standard early warning.

3. River and Lake Environmental Monitoring: Organic pollution assessment of surface water and drinking water sources, combined with multi-parameter water quality stations to achieve dynamic management of ecological water quality.

4. Industrial Parks and Smart Water Platforms: Online monitoring of centralized sewage collection systems to provide reliable data support for environmental protection supervision platforms.

5. Aquaculture and Agricultural Irrigation Water Sources: Monitor organic matter accumulation in water bodies, prevent water quality deterioration, and ensure aquaculture safety and irrigation water quality.

In these scenarios, the sensor greatly reduces manual intervention with its reagent-free design and self-cleaning function, and is particularly suitable for remote, unattended long-term deployment.

Installation and Wiring Instructions

Installation Precautions:

• Adopt immersion installation. It is recommended to place the sensor horizontally with the measurement window facing the water flow direction to avoid water flow impacting walls or facilities.

• The installation depth shall not exceed 2 meters below the water surface and shall be at least 30 cm below the lowest water level.

• Choose a position with no bubbles and steady water flow; fix the sensor when the water flow is strong.

• It is recommended to add a protective sleeve outside the cable to enhance durability in long-term immersion or exposed environments.

Electrical Wiring:

The sensor adopts 4-core shielded twisted pair cable. The wire sequence is defined as follows:

• Red wire: Power positive pole (12～24 VDC)

• Black wire: Ground (GND)

• Blue wire: RS-485 A

• White wire: RS-485 B

Before wiring, be sure to check the wire sequence to avoid reverse connection and damage to the equipment. All wiring points must be strictly waterproofed, and the cable should have certain corrosion resistance to adapt to long-term immersion or humid environments.

FAQ

Q1. Does the NBL-BOD-406 require frequent addition of reagents?

No reagents are required. The sensor adopts the optical fluorescence method to directly measure the fluorescence intensity of dissolved organic matter in water, avoiding reagent consumption and secondary pollution caused by chemical methods.

Q2. Does turbidity affect BOD measurement? How is it handled?

The sensor has a built-in reference light path and a dedicated algorithm, which can automatically compensate for turbidity interference, significantly reducing the impact of suspended particulate matter on the measurement results and ensuring stable and reliable data.

Q3. What is the maintenance cycle of the self-cleaning brush?

It is recommended to check and maintain the self-cleaning brush every 18 months. The actual frequency can be adjusted according to the degree of dirt in the on-site water quality. Under normal use, it can effectively extend the cleaning interval of the window.

Q4. How to calibrate the sensor?

Two-point calibration method is adopted: calibrate the temperature first, then the turbidity, and finally the BOD. Use low-concentration standard solution for zero point and 100 mg/L standard solution for slope. The operation is simple and the calibration data is stable.

Q5. Does the RS-485 Modbus/RTU protocol support multiple host systems?

Yes. The standard Modbus/RTU protocol is compatible with most PLC, data collectors and SCADA systems, making it convenient for system integrators to quickly access existing monitoring platforms.

Q6. Is the sensor suitable for high-turbidity or oily wastewater?

It is suitable for conventional industrial and municipal wastewater. For extremely high turbidity or special component water quality, it is recommended to conduct on-site testing first; the self-cleaning brush can alleviate a certain degree of biological attachment problems.

Q7. Are there special requirements for installation depth and installation direction?

It is recommended that the installation depth does not exceed 2 meters below the water surface. The sensor should be fixed horizontally with the measurement area facing the water flow to avoid bubble accumulation and mechanical impact.

Q8. How is the product warranty and after-sales service guaranteed?

NiuBoL provides standardized quality inspection and factory aging testing. One-year after-sales service is provided for non-human damage; for long-term use (18 months), it is recommended to return to the factory to replace the dynamic sealing device.

Summary and Cooperation Invitation

The NiuBoL NBL-BOD-406 online BOD sensor takes the dual-wavelength fluorescence method as the core, combined with automatic turbidity compensation, self-cleaning design and industrial-grade protection, providing a stable, efficient and low-maintenance solution for online water quality monitoring projects. Its RS-485 Modbus output and multi-parameter integration features make it particularly suitable for system integrators and engineering contractors to build reliable smart water systems.

If you are planning sewage treatment, river management or industrial park water quality monitoring projects, please feel free to contact the NiuBoL technical team. We can provide detailed model selection guidance, on-site testing support and customized integration solutions to jointly create highly reliable water environment monitoring solutions.
