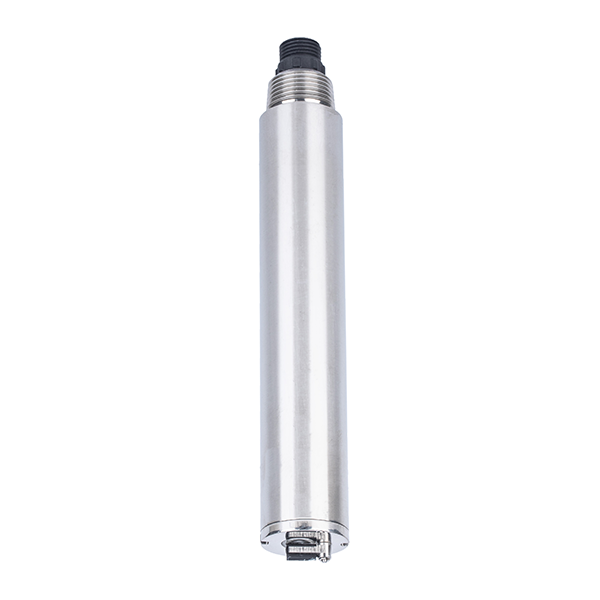

NBL-MLSS-408-S Self-Cleaning Online Sludge Concentration Sensor: Online Suspended Solids Analyzer

In-depth Precise Monitoring: NiuBoL NBL-MLSS-408-S Self-Cleaning Online Sludge Concentration Sensor

— High-precision Scattered Light Technology, the Stable Choice for Harsh Industrial Environments

In wastewater treatment processes (such as the activated sludge method), real-time and accurate sludge concentration (MLSS) monitoring is the core of ensuring stable operation of the biochemical system. However, traditional sensors often cause data distortion due to biofilm attachment on the window, optical interference, and frequent maintenance.

The NiuBoL NBL-MLSS-408-S is an industrial-grade sensor that integrates scattered light detection technology and intelligent self-cleaning function. We not only provide a measurement tool, but also provide system integrators and engineering contractors with a maintenance-free, long-life, and easy-to-integrate digital water quality solution.

Intelligent Self-Cleaning: Standard mechanical cleaning brush completely solves the problem of optical window scaling and biological attachment.

Industrial-grade Corrosion Resistance: Uses 316L stainless steel housing and pure quartz optical path, adapting to various complex water qualities.

Digital Integration: Standard Modbus RTU protocol seamlessly connects to PLC, DCS and various cloud IoT platforms.

NBL-MLSS-408-S Online Sludge Concentration Sensor Core Overview

The NiuBoL NBL-MLSS-408-S online sludge concentration sensor represents the industrial standard of contemporary water quality monitoring. Based on the infrared 90° scattered light principle, the sensor can effectively filter the influence of water sample color on measurement results. Its integrated structure design highly integrates the optical transmitter, receiver, signal processing, temperature compensation and data conversion modules, directly outputting standard RS485 digital signals or 4-20mA analog signals.

For engineering contractors, the value of the NBL-MLSS-408-S lies in its "install-and-run" engineering convenience. It can be directly connected to the central control system without expensive controller secondary conversion, significantly reducing the overall system cost (TCO) and later operation & maintenance labor expenses.

Core Technical Advantages

1. Excellent Optical Anti-interference and Stability
   The sensor uses an 860nm infrared LED light source. Compared with visible light sources, infrared light has stronger penetration in complex water samples and can effectively avoid interference from ambient visible light on measurement readings. Combined with pure quartz optical path design, it ensures that the optical path does not yellow or deteriorate during long-term operation, and measurement accuracy remains consistent.

2. Patented Automatic Cleaning Technology, Solving Operation & Maintenance Pain Points

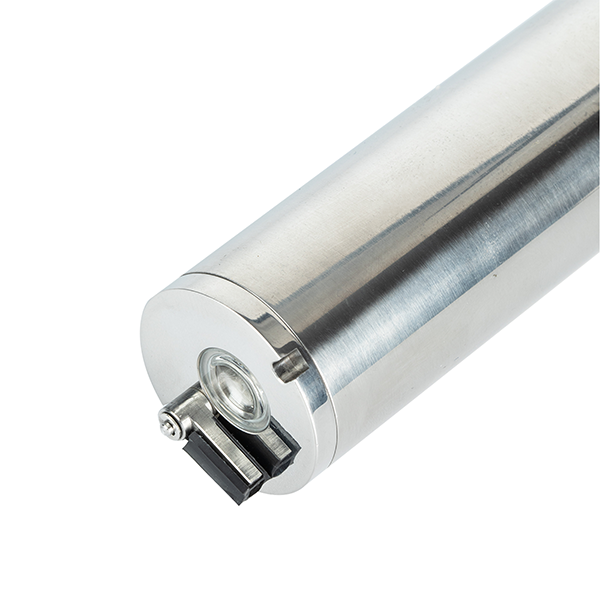

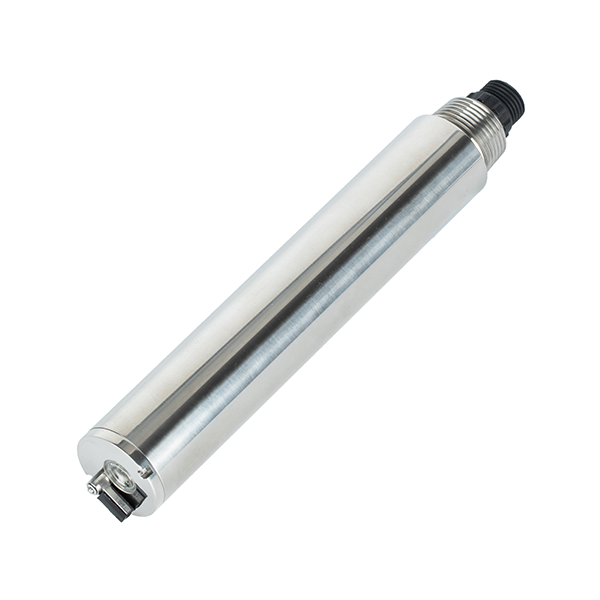

   In scenarios such as return sludge monitoring in sewage plants, the sensor surface is very prone to biofilm growth. NiuBoL has configured a built-in powered cleaning brush for this purpose. Users can customize the cleaning frequency, and the mechanical brush regularly removes attachments from the optical window. This design raises the manual cleaning cycle from "once a week" to "inspection once every six months", greatly optimizing manpower allocation.

3. Precise Algorithm Processing and Temperature Compensation
   The sensor integrates a high-performance microprocessor inside, supporting two-point calibration and linearization algorithm processing. It provides good linear response for large differences in sludge homogeneity. At the same time, the built-in Pt1000 automatic temperature compensation system eliminates fluid refractive index changes caused by water temperature fluctuations, ensuring data stability and reliability within the 0～60℃ range.

4. Ultimate Industrial Protection Standards
   The sensor is made of 316L stainless steel with precision machining and has an IP68 protection rating. The special encapsulation process enables it to work stably for a long time at a water depth of 20 meters, fearless of high-humidity and highly corrosive pump room or aeration tank environments.

5. Flexible Communication Protocol and Seamless Integration
   It supports the standard Modbus RTU (RS485) protocol. For system integrators, this means extremely low development costs. The sensor supports 12～24V DC wide voltage power supply and can easily adapt to solar-powered systems or factory power supplies.

NBL-MLSS-408-S Online Sludge Concentration Sensor Technical Performance Specifications

NBL-MLSS-408-S Online Sludge Concentration Sensor Typical Application Scenarios

• Municipal Wastewater Treatment Plants: Used for sludge concentration monitoring in aeration tanks, return sludge concentration control in secondary sedimentation tanks, and total suspended solids monitoring at outlets.

• Industrial Wastewater Treatment: In high-concentration wastewater treatment processes such as papermaking, printing and dyeing, and leather, real-time monitoring of chemical dosing to optimize sludge dewatering efficiency.

• River and Lake Monitoring: As part of environmental monitoring buoys or shore-based stations, real-time capture of sudden changes in water turbidity and suspended solids.

• Tap Water and Reclaimed Water Reuse: Monitoring sludge concentration during filter backwashing and pretreatment quality of reclaimed water to prevent pollution of downstream membrane modules.

NBL-MLSS-408-S Online Sludge Concentration Sensor Installation and Electrical Connection

Engineering Installation Recommendations

• Spatial Layout: To ensure the measurement field is not interfered with by wall reflection, please ensure that the sensor measurement end is >5cm away from the pool side wall and >10cm away from the bottom.

• Installation Form: It is recommended to use a 3/4 NPT bracket for submerged installation. The sensor should be vertically downward or at a certain angle to the flow direction to avoid air bubbles staying on the measurement window.

Wiring Instructions

NiuBoL sensors use 5-core high-quality shielded wire with the following wiring definition:

• Red wire: Power positive (12～24V DC)

• Black wire: Power negative (GND)

• Blue wire: RS485-A

• White wire: RS485-B

• Yellow wire: Current output (4-20mA, dedicated for optional accessories)

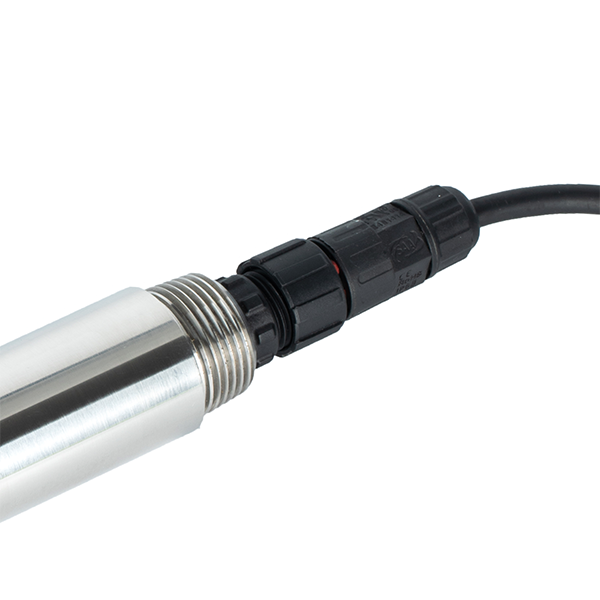

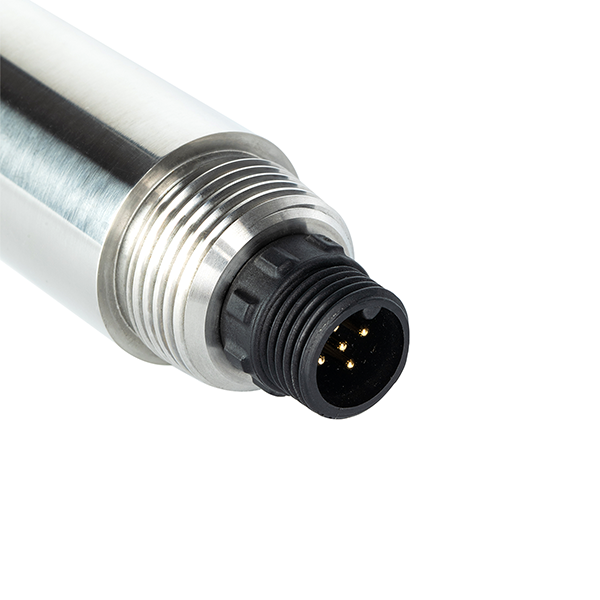

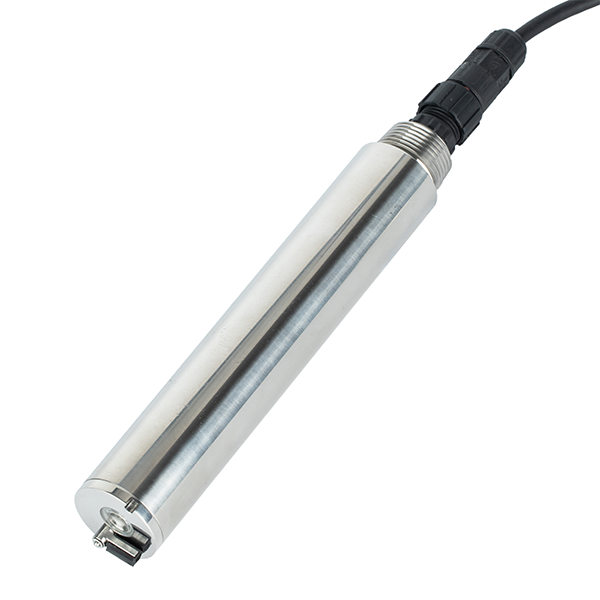

Expert Tip: The sensor interface uses an M16 waterproof connector. During outdoor construction, all on-site wiring points must undergo secondary waterproof sealing (such as using waterproof junction boxes or heat shrink tubing) to prevent moisture from siphoning into the device along the cable.

FAQ

Q1: Can the cleaning brush of NBL-MLSS-408-S be manually controlled?

A: Yes. Through Modbus commands, users can change the interval time of automatic cleaning or send specific commands to perform a single forced cleaning, allowing flexible operation under special working conditions.

Q2: Is the 316L material suitable for strong acid and strong alkali environments?

A: 316L has excellent general corrosion resistance and is suitable for municipal sewage and most industrial wastewater. If it involves extremely high concentrations of strong acids or strong oxidants (such as strong acid cleaning wastewater), please contact the NiuBoL technical team to consult customized titanium alloy or all-plastic housing solutions.

Q3: What to do if the concentration value displayed by the sensor differs from the laboratory drying method?

A: Sludge concentration measurement is affected by particle shape, color, and homogeneity. It is recommended to take samples at the installation site and use laboratory data as a standard sample to perform "slope calibration" on the sensor to achieve a high degree of consistency.

Q4: Can 4-20mA and RS485 be used simultaneously?

A: The NBL-MLSS-408-S supports RS485 output. 4-20mA is an optional module. If you need to output both signals simultaneously, please specify when ordering.

Q5: What to do if the sensor measurement window is scratched?

A: Our window uses high-hardness pure quartz glass. Under normal use, the cleaning brush will not cause scratches. If severely scratched by external force and affecting light transmittance, the optical component needs to be returned to the factory for replacement.

Q6: What is the maximum cable extension length?

A: In RS485 communication mode, with shielded twisted pair, the transmission distance can reach more than 1000 meters. However, when transmitting over long distances, pay attention to power supply voltage drop. It is recommended to add power supply at the remote end for distances over 200 meters.

Q7: Why choose infrared light instead of blue light or white light?

A: Wastewater usually has color (such as printing and dyeing water). Infrared light has extremely low sensitivity to color, ensuring that the measurement is of particle concentration rather than water color depth, resulting in higher stability.

Q8: Will the device freeze and break in outdoor use in northern winter?

A: As long as the sensor head is submerged in water (water does not freeze), its working temperature range is 0～60℃ and it can operate normally. However, after shutdown or disassembly, it should be stored in an environment of -5～65℃ to prevent internal circuits from being affected by extreme low temperatures.

Conclusion: Why Experienced Integrators Choose NiuBoL?

In the industrial IoT chain, the accuracy of data originates from the perception power of the underlying sensors. The NiuBoL NBL-MLSS-408-S is not just a measuring instrument — it is the crystallization of our years of deep cultivation in the environmental protection industry. Through durable hardware, intelligent self-cleaning algorithms, and open integration protocols, it helps your projects truly achieve intelligent upgrading.

Are you looking for a cost-effective and high-performance MLSS solution for a certain wastewater treatment bidding project? Contact NiuBoL professional engineering consultants immediately to obtain detailed protocol manuals and project solution quotations.

NBL-MLSS-408-S Self-Cleaning Online Sludge Concentration Sensor Data Sheet

NBL-MLSS-408-S Self-Cleaning Online Sludge Concentration Sensor.pdf
