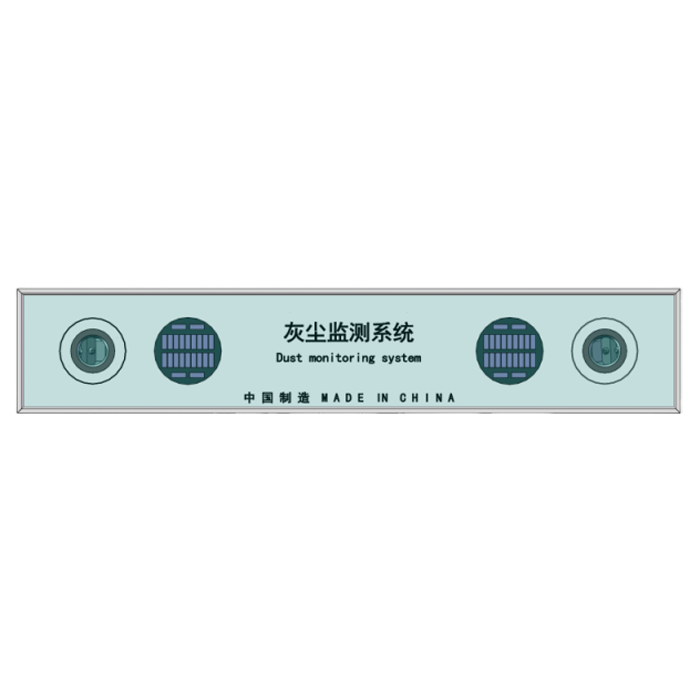

Dust Sensor for Solar Panel

Dust Sensor Product Introduction

Dust and other pollutants on the glass surface of solar panels are one of the key factors affecting the power generation efficiency of photovoltaic (PV) power plants, leading to a decrease in energy output and cost-effectiveness. The Dust Sensor for Solar Panel is specially designed for monitoring the impact of dust and pollutants on the power generation efficiency of solar panels. Utilizing innovative blue light pollution measurement technology, this device is easy to install on both newly built and existing PV arrays, seamlessly integrating into the plant management system. The sensor continuously measures the surface pollution ratio (SR) of the panel glass, real-time calculating the reduction in sunlight reaching the PV module. This enables maintenance personnel to stay informed about the accumulation of pollutants, optimize cleaning schedules, and ensure efficient plant operation.

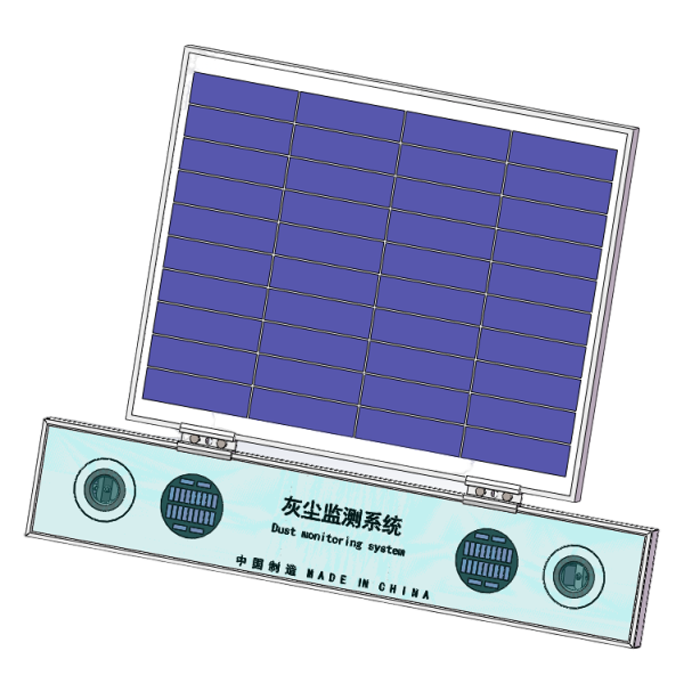

The device is installed on the frame of the PV panel, continuously measuring the pollution ratio on the glass surface to calculate the reduction of sunlight reaching the solar module. By measuring the pollution ratio (SR), the device can provide real-time data on the loss of power generation. This allows maintenance personnel to clearly identify when pollutants reach a critical threshold and trigger cleaning procedures promptly. The product requires no maintenance, and only needs cleaning of the sensor in the same way as cleaning the surrounding components.

Dust Sensor Technical Parameters

 Dust Sensor Usage and Precautions

To ensure the accuracy and reliability of the Dust Sensor for Solar Panels, please follow the steps below:

1. Install the Device: Use dedicated clamps to install the sensor on the top or side of the PV panel, ensuring that it is level with the panel surface.

2. Connect the Cables: Once installed, connect the RS485 communication cable and the DC 12V power cable.

3. Calibrate the Device: Perform calibration between 12:00 and 14:00 on a sunny day. Wipe the sensor's lens clean, press and hold the calibration button for 10 seconds, and release it to complete the calibration.

4. Cleaning Maintenance: Clean the two sensor probes of the monitoring device every time you clean the PV modules to maintain measurement accuracy.

Precautions:

- Ensure that the device is installed flush with the PV panel surface to avoid measurement deviation.

- Use soft, lint-free cloth when calibrating and cleaning to avoid scratching the sensor lens.

- Regularly check cable connections to ensure stable communication and power supply.

Why Do You Need the Dust Sensor for Solar Panels?

Dust, sand, and other pollutants on the surface of solar panels block sunlight, significantly reducing the power generation efficiency of PV systems, especially in arid or dusty areas. Studies show that dust accumulation can lead to energy losses of 15%–30% per month, severely affecting the plant's profitability. The Dust Sensor for Solar Panels provides real-time monitoring of the pollution ratio (SR), accurately quantifying the power generation loss and helping maintenance personnel develop a cleaning schedule, avoiding unnecessary cleaning costs, and maximizing energy output.

After the panel surface is covered by dust, the amount of sunlight reaching the solar module decreases, and the photoelectric conversion efficiency drops. Over time, as the pollution level increases, energy loss may exceed 10%. By installing the dust sensor, maintenance personnel can:

- Real-time track the pollution level of the panels.

- Quantify the power generation loss caused by pollution.

- Determine when cleaning is needed.

- Avoid unnecessary cleaning, reducing maintenance costs.

- Improve the overall efficiency and economic benefit of the system.

Function and Value of the Dust Sensor for Solar Panels

- Improve Power Generation Efficiency: Real-time monitoring of dust accumulation triggers cleaning promptly to ensure the PV panels maintain optimal light absorption.

- Optimize Maintenance Costs: Accurate data avoids over or under cleaning, saving water, labor, and maintenance costs.

- Seamless Integration: Supports RS485 output and MODBUS protocol, easily integrating into plant management systems for smart operation.

- Adapt to Various Environments: The rugged and durable design is suitable for high temperatures, low temperatures, and dusty environments, ensuring long-term stable operation.

- Environmental Benefits: By enhancing the efficiency of solar systems, the reliance on fossil fuels is reduced, contributing to sustainable development goals.

Applications of the Dust Sensor for Solar Panels

- Large ground-mounted PV power plants

- Projects in desert, arid, and high-pollution areas

- Commercial and industrial rooftop distributed power stations

- Automated cleaning system integration solutions

- Input terminal for smart operation and maintenance platforms

Summary

Our Dust Sensor for Solar Panels is a highly efficient and reliable device that effectively monitors the dust pollution on solar panels, helping users to take timely cleaning actions to maintain high power generation performance. With its high-precision blue light measurement technology, easy integration design, and low maintenance requirements, this device provides real-time, reliable data support for maintenance personnel, optimizing cleaning decisions and significantly improving power generation efficiency and economic benefits. Choosing our dust sensor means investing in a more efficient, energy-saving future for your photovoltaic system. We welcome global customers to cooperate with us for integration. For more parameters, samples, or purchasing information, please feel free to contact our international sales team.

NBL-W-PSS Soiling Sensor Data Sheet

NBL-W-PSS Soiling Sensor Photovoltaic Dust Monitoring Instrument Data Sheet.pdf
