Soil temperature and humidity sensor manufacturer in Indonesia for water-saving irrigation and greenhouse agriculture

The soil temperature and humidity sensor is a high-precision, high-sensitivity soil moisture measuring instrument. The electromagnetic wave pulse emitted by the sensor is transmitted to the probe through the coaxial cable, and then enters the soil medium to measure the apparent dielectric constant of the soil, thereby obtaining the real water content of the soil. The influence of metal ions, etc. This instrument can be widely used in soil moisture monitoring, water-saving irrigation, greenhouses, grassland pastures, soil speed measurement and other fields.

Technical parameters of soil temperature and humidity sensor

Measuring range: soil moisture 0~100%, soil temperature -50~100℃

Power supply mode: DC 12-24V

Resolution: soil moisture 0.1%, temperature 0.1℃

Accuracy: soil moisture ±3%, temperature ±0.5℃

Output form: RS485, current 4～20mA (RL≤250Ω), voltage 0-5V (RL≥1KΩ)

Product power consumption: about 0.3W

Operating environment: -40℃～80℃

Protection class: IP68

The sensor adopts the FDR principle, and reflects the soil water content by measuring the dielectric constant of the soil. The measured soil value is the soil moisture volume percentage, which is the current standard soil moisture measurement method.

Soil temperature and humidity sensors are composed of two sensors, a soil moisture sensor and a soil temperature sensor.

Soil temperature and humidity are related to the growth of crops and are the basis of farming operations. The soil temperature sensor is a soil temperature sensor that can monitor the temperature of soil, atmosphere and also water for experiments and scientific research.

Soil temperature is an important environmental factor in agricultural production, as it is closely related to the growth and development of crops, the decomposition of fertilizers and the accumulation of organic matter.

Soil temperature is also an extremely important factor in the formation of microclimate, so the measurement and study of soil temperature is an important element in microclimate observation and agrometeorological observation.

Soil moisture sensor is also known as: soil moisture sensor, soil moisture sensor, soil water content sensor. It is mainly used to measure soil volume water content, do soil moisture monitoring and agricultural irrigation and forestry protection.

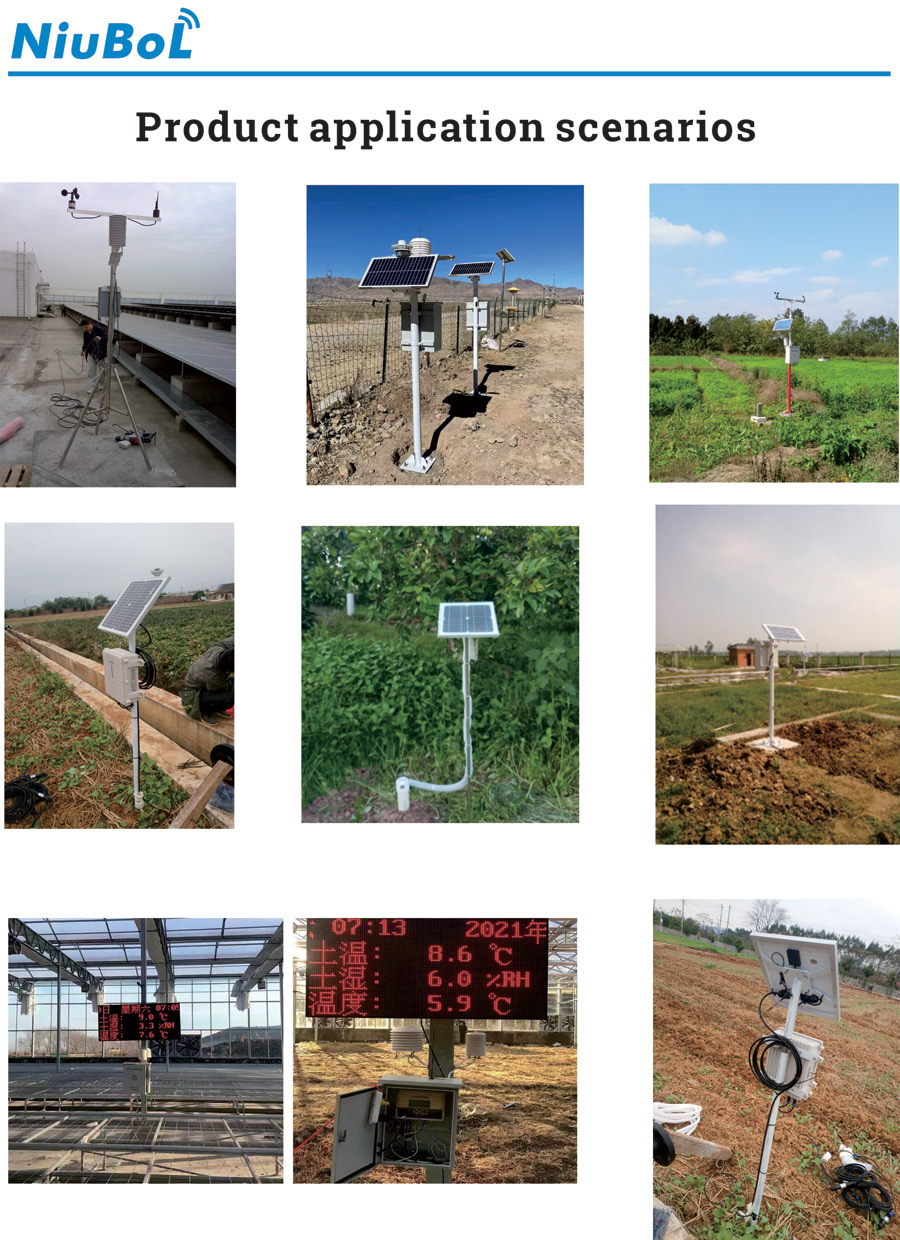

With the country's attention to agriculture, soil temperature and humidity will be further adopted to serve agriculture, the sensor is widely used in scientific experiments, water-saving irrigation, greenhouse greenhouses, flowers and vegetables, grass pastures, soil quick measurement, plant culture, sewage treatment, food storage and a variety of particulate matter water content and temperature measurement, soil temperature and humidity will use its own excellent performance to serve agricultural production.
