Smart Greenhouse Construction Budget: Scope and Schedule Dependencies

Time:2025-05-07 21:27:19 Popularity:4073

Quick Answer

A smart greenhouse construction budget must separate the building and utilities from sensing, data acquisition and automatic control. The installation schedule depends on when foundations, electrical supplies, cable routes and the greenhouse environment are ready. NiuBoL can help specify environmental monitoring equipment; a sensor quotation alone does not price or schedule an entire greenhouse.

Greenhouse growing beds beneath a covered frame

Define the smart greenhouse construction budget boundary

A greenhouse contractor, grower and controls integrator can use the same phrase, smart greenhouse, while pricing different work. One may include the frame and covering, another a monitoring cabinet, and another motorized ventilation and irrigation. Their totals cannot be compared until these boundaries are visible.

Split the project into the greenhouse structure, water and drainage, electrical services, environmental equipment, monitoring and control. Identify who designs and supplies each part. Include the interfaces between contractors: an instrument bracket needs an approved fixing point, and a controller needs the correct motor starter or valve interface rather than an unspecified spare output.

Budget sectionItems to identifyFrequent omission
Structure and site worksFrame, covering, foundations, access and drainageInstrument supports or cable routes not included in the building work
Utilities and environmental equipmentElectrical distribution, water supply, ventilation, shading and heating where requiredMonitoring power confused with power for motors or heaters
MonitoringMeasurement points, instruments, acquisition, records and displaysOnly one representative sensor priced for several independent zones
Automatic controlController, equipment interfaces, feedback, protection and operating logicA sensor package assumed to include actuator installation
Installation and serviceWiring, configuration, testing, training and agreed supportRecurring communication or software services omitted from the comparison

Price the growing zones before counting instruments

A single covered structure may contain beds with different irrigation schedules, compartments with independent screens or separate crop trials. Count the measurements needed for these decisions. Do not multiply a generic sensor list by floor area without considering which zones actually operate independently.

The NBL-W-THPLC combines air temperature, humidity, pressure, illuminance and CO2. A combined instrument reduces the number of separate housings at one point, but it does not measure every compartment or replace a root-zone probe. Its illuminance channel is not a direct measurement of plant photon flux.

Environmental sensor assembly above greenhouse plants

Choose between an integrated instrument and separate sensors according to location. If CO2 must be measured in one compartment and light above a different crop area, forcing both onto one mounting point can save hardware while weakening the observations. A zone drawing is therefore useful quotation information, not just an installation document.

Monitoring componentRelevant specificationBudget consequence
NBL-W-THPLCFive parameters; CO2 range 0-2000 ppm; illuminance range 0-200000 lux; RS485 outputConfirm quantity, location and the protocol for the ordered version
NBL-W-LBTH digital versionAir temperature, humidity and pressure; DC 12-24 V; RS485 Modbus RTUDoes not include the THPLC CO2 or illuminance channels
TG462 acquisition gatewayThree RS485 ports; Ethernet; cellular configuration availableSpecify field interfaces and the required receiving application separately

Build the schedule around work that must finish first

There is no reliable universal construction duration for a small or medium greenhouse. Foundation readiness, imported equipment, electrical work, local approvals and site access can govern completion before sensor installation begins. Ask each contractor for its required inputs and the work that cannot start until another party finishes.

A practical sequence is to agree the zone and equipment drawings, release long-delivery items, complete structural and utility work, install field equipment, then test measurements and control. Some activities can overlap, but fragile instruments should not be installed where welding, spraying or unfinished construction will damage them.

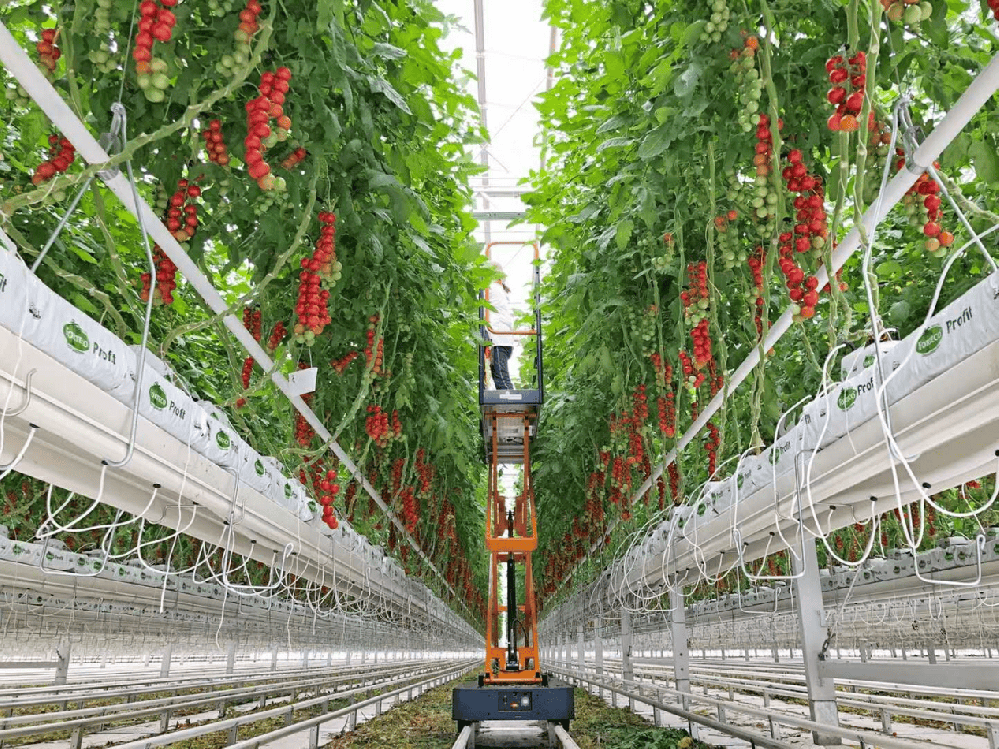

Greenhouse crop rows and irrigation distribution

Plan testing around accessible conditions. A screen must be available to move before its position feedback can be checked. Irrigation response cannot be assessed without water and the installed distribution system. Missing utilities should remain recorded as incomplete work rather than being hidden behind a functioning dashboard.

For an existing growing house, identify which tasks need a crop-free area, temporary shutdown or access above the crop. These constraints may matter more than the number of sensors. Agree temporary operation arrangements before disconnecting a system already used by the grower.

Keep expansion work separate from unfinished essentials

A first stage can provide dependable temperature and humidity records while later stages add root-zone observations or selected control functions. It should still include the mounting, protection, usable records and training needed to operate that first stage. Deferring these essentials does not create a usable monitoring system.

Provide capacity for a defined next step: additional cable routes, cabinet space, input types or a spare communication port. Do not pay for unspecified expansion features without checking the compatibility of the intended future instrument. RS485 wiring alone does not guarantee that a PLC or data logger can decode a sensor.

Greenhouse environmental instruments and cabinet

Turn the estimate into comparable quotations

Send suppliers the same zone drawing and equipment responsibilities. Request separate totals for equipment, installation, configuration and ongoing services. If a quote excludes electrical installation, network access or control programming, carry those items into the project budget rather than assuming they are free.

For a NiuBoL monitoring quotation, provide crop compartments, measurement points, required variables, available power and the intended data destination. For controls work, include the existing controller and actuator interfaces. Delivery and installation dates should be confirmed against the selected configuration and site readiness; neither a fixed online price nor a generic week count can establish them.

Environmental sensing point mounted inside a greenhouse

Project Decision FAQ

Q1. Does the monitoring quotation include the greenhouse frame?

Only if explicitly itemized. Separate structural construction from instruments, acquisition and controls so the building contractor and monitoring supplier do not leave an interface unpriced.

Q2. Can one sensor assembly cover several compartments?

It measures its own location. Independently operated compartments may need separate points, especially where ventilation, irrigation or CO2 conditions differ.

Q3. Is automatic irrigation included with a soil sensor?

No. Irrigation also needs a compatible controller, valves or pumps, electrical interfaces and tested operating logic. The probe supplies a measurement, not the complete irrigation installation.

Q4. What usually prevents a firm completion date?

Unresolved drawings, unavailable utilities, unconfirmed equipment versions and access restrictions leave dependencies open. Resolve these before relying on a contractor's provisional schedule.

Q5. Can an existing greenhouse be upgraded in stages?

Yes, when each stage has a usable purpose and planned interfaces. Confirm crop access, shutdown needs and compatibility with equipment that remains in service.

Q6. What information makes a budget request useful?

Provide the site and zone layout, required measurements, control scope, utilities, data destination and division of installation responsibility. These details allow an equipment estimate to be distinguished from a complete construction price.

Summary

A useful smart greenhouse construction budget connects each cost to a defined part of the building, growing environment or monitoring system. Establish responsibilities and site dependencies before comparing totals or dates. NiuBoL environmental sensors and acquisition equipment can then be specified as an identifiable part of the project rather than an undefined promise of whole-greenhouse automation.
