Weather Stations

Atmospheric Temperature Humidity air pressure Sensor for weather station RS485
Atmospheric Temperature Humidity air pressure Sensor for weather station RS485

Atmospheric Temperature Humidity air pressure Sensor for weather station RS485

NBL-W-LBTH temperature, humidity and barometric pressure sensor is a fully digital detection, is integrated by high-precision temperature, humidity and barometric pressure sensors, the output mode RS485 or 4-20mA, high-strength structural design can be accurately detected in harsh climatic environments, and can be widely used in the fields of meteorology, marine, environment, airports, harbours, laboratories, industry, agriculture and transportation.

Inquiry

Tel/WhatsApp:+8615367865107

Email:Arvin@niubol.com +Nearly 100 partner companies in more than 75 countries. We are committed to providing high-quality, practical products to meet your needs and help you solve problems. Our products comply with international standards and are certified with ISO, CE and RoHS.

Product Details

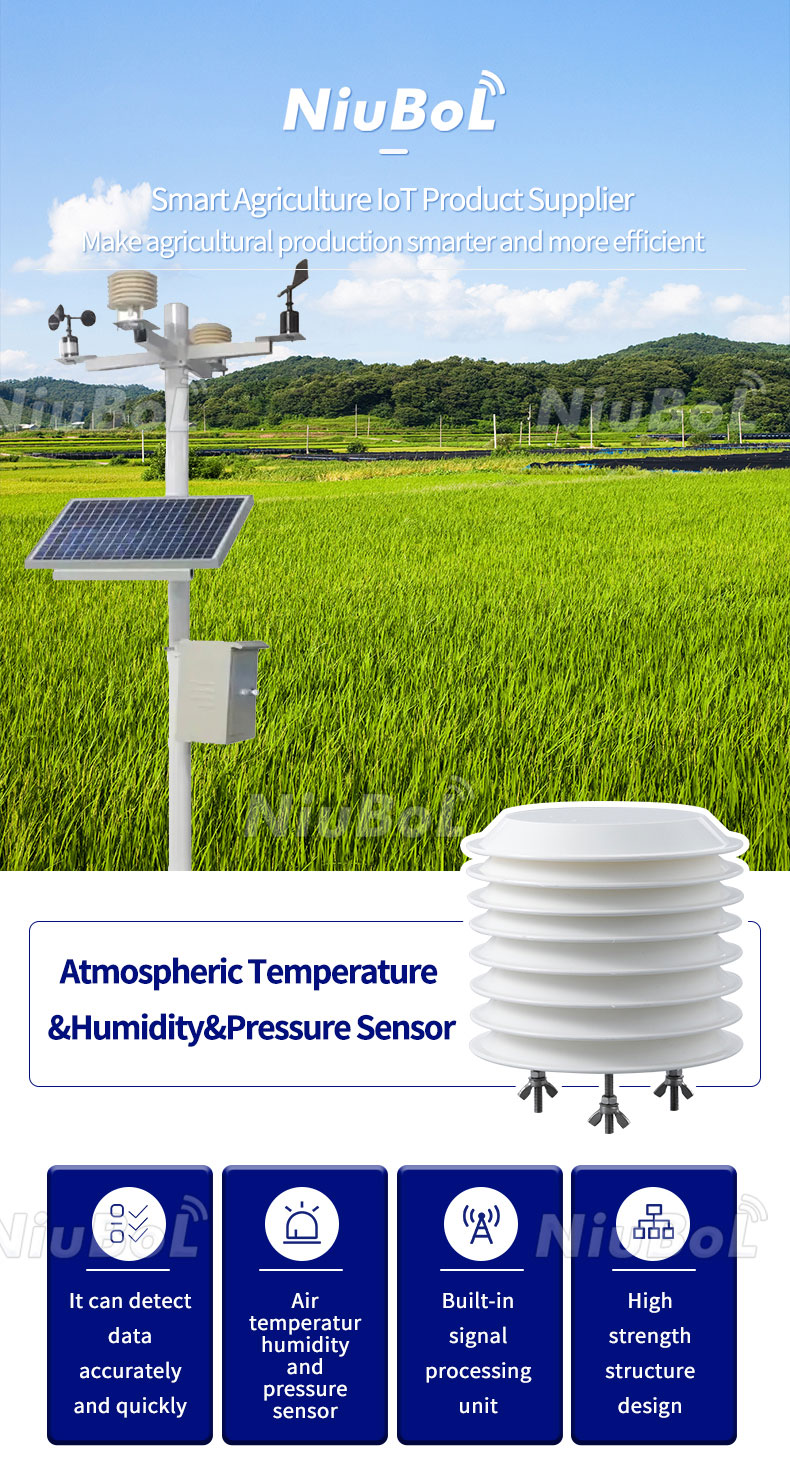

NBL-W-LBTH Air Temperature, Humidity & Barometric Pressure Sensor

The NiuBoL NBL-W-LBTH Air Temperature, Humidity & Barometric Pressure Sensor is a 3-in-1 environmental sensor designed to measure atmospheric temperature, relative humidity and barometric pressure from one compact weather-protected unit.

The sensor is designed for automatic weather stations, agricultural monitoring, greenhouses, environmental monitoring, ports, airports, research stations and industrial IoT systems. Its multi-plate radiation shield helps protect the internal temperature and humidity sensing elements from direct solar radiation while allowing natural airflow around the sensors.

The NBL-W-LBTH supports RS485 Modbus RTU for digital monitoring systems and is also available with 4–20 mA output for compatible industrial controllers and data-acquisition equipment.

NBL-W-LBTH air temperature humidity and barometric pressure sensor for automatic weather stations

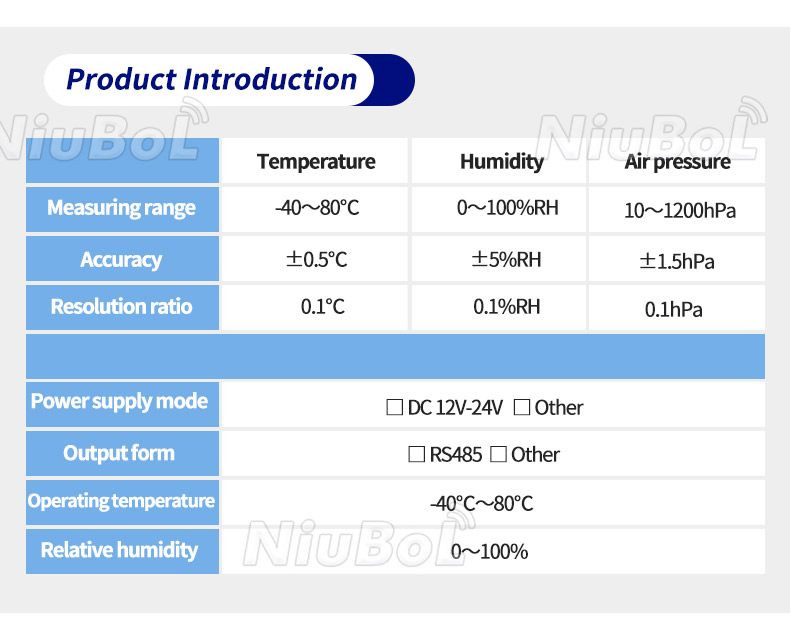

NBL-W-LBTH Air Temperature, Humidity & Barometric Pressure Sensor Technical Specifications

ParameterMeasurement RangeAccuracyResolution
Air Temperature-40 to 80°C±0.5°C0.1°C
Relative Humidity0–100%RH±5%RH0.1%RH
Barometric Pressure10–1200 hPa±1.5 hPa0.1 hPa
ModelNBL-W-LBTH
Product Type3-in-1 Air Temperature, Humidity & Barometric Pressure Sensor
Power SupplyDC 12–24 V
Output OptionsRS485 / 4–20 mA
Digital ProtocolModbus RTU
Default Baud Rate9600 bps
Communication IntervalAt least 1000 ms
Operating Temperature-40 to 80°C
Operating Humidity0–100%RH
Standard CableSupplied according to selected configuration; custom cable lengths available

NBL-W-LBTH temperature humidity pressure sensor measurement ranges accuracy and resolution

Three Atmospheric Parameters in One Sensor

ParameterWhat It MeasuresTypical Monitoring Value
Air TemperatureThermal condition of the surrounding atmosphereWeather monitoring, greenhouse climate, environmental research and industrial monitoring
Relative HumidityAmount of water vapor in the air relative to saturation at the current temperatureCrop environment, condensation risk, storage and atmospheric monitoring
Barometric PressureAtmospheric pressure at the sensor locationMeteorological observation, pressure trends and environmental monitoring

Why Use an Integrated Temperature, Humidity and Pressure Sensor?

3 Parameters, 1 DeviceTemperature, humidity and barometric pressure are measured from one compact sensor assembly.
Fewer CablesAn integrated sensor can reduce wiring compared with three separate sensing devices.
One RS485 AddressThe RS485 version returns temperature, humidity and pressure data through one communication interface.
Compact Weather Station IntegrationSuitable for modular automatic weather stations where wind, rainfall and radiation sensors are installed separately.

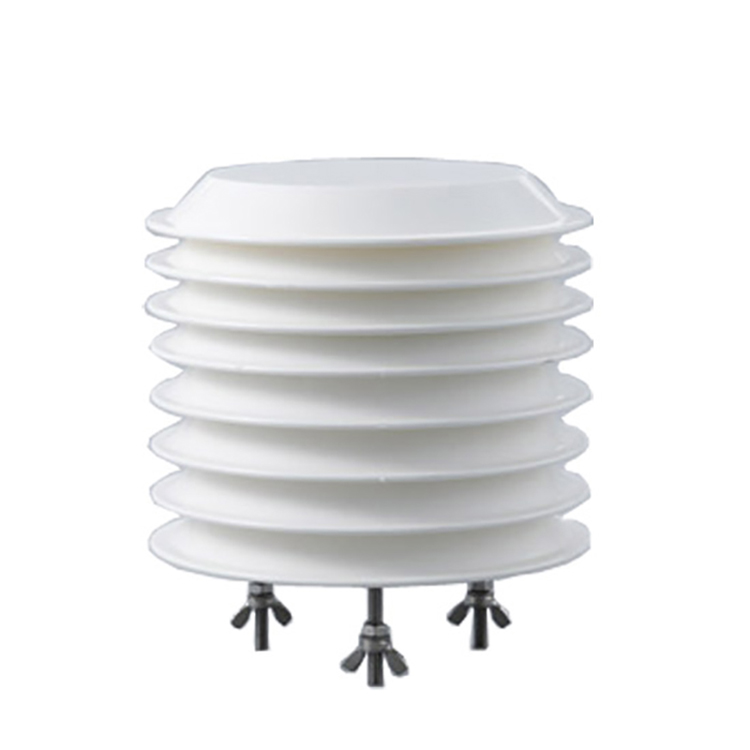

Radiation ShieldThe louvered enclosure reduces direct solar exposure while allowing natural airflow around the internal sensors.

Why Does an Outdoor Temperature and Humidity Sensor Need a Radiation Shield?

A temperature and humidity sensor installed outdoors should measure the surrounding air rather than the temperature of a sensor body heated directly by sunlight.

The multi-plate louvered enclosure helps shade the internal sensing elements from direct solar radiation while allowing ambient air to circulate naturally through the shield.

Solar ProtectionReduces direct heating of the temperature and humidity sensing elements.
Natural VentilationOpen gaps between the plates allow surrounding air to flow through the enclosure.
Weather ExposureThe structure provides physical protection while keeping the sensor exposed to representative atmospheric conditions.

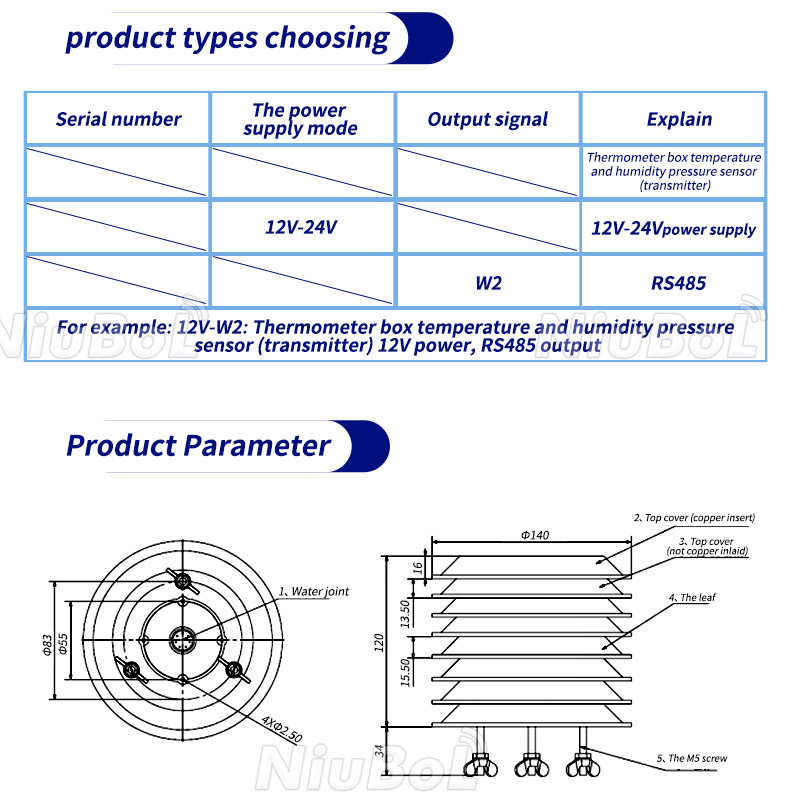

NBL-W-LBTH radiation shield dimensions for air temperature humidity and pressure sensor

RS485 Modbus Data Output

The RS485 version returns all three atmospheric parameters in one Modbus RTU data frame. This simplifies integration with weather station data loggers, PLCs, RTUs and third-party IoT gateways.

ProtocolModbus RTU
Default Baud Rate9600 bps
Data Bits8
ParityNone
Stop Bits1 or 2
Read Function03
Device Address0–255 configurable
Minimum Polling Interval1000 ms

Actual Modbus Example

For a sensor with device address 01, the documented read command is:

01 03 00 00 00 03 05 CB

Example response:

01 03 06 00 B4 01 10 27 80 8B 06

ParameterHEXDecimalActual Value
Temperature00 B418018.0°C
Humidity01 1027227.2%RH
Barometric Pressure27 80101121011.2 hPa

Temperature, humidity and pressure values in this data format use a scale factor of 0.1, so the decoded integer value is divided by 10 to obtain the engineering value.

RS485 Wiring

Wire ColorFunction
RedPower +
BlackPower - / GND
YellowRS485 A+
BlueRS485 B-

Wiring note: Confirm the cable identification supplied with the sensor before wiring, especially when customized cables or output versions are ordered.

RS485 or 4–20 mA: Which Version Should You Choose?

OutputTypical EquipmentRecommended Use
RS485 ModbusWeather station logger, PLC, RTU, IoT gatewayDigital systems requiring all three parameters through one communication interface
4–20 mAIndustrial analog input moduleIndustrial control and conventional analog acquisition systems

RS485 air temperature humidity pressure sensor integrated with weather station data logger and cloud platform

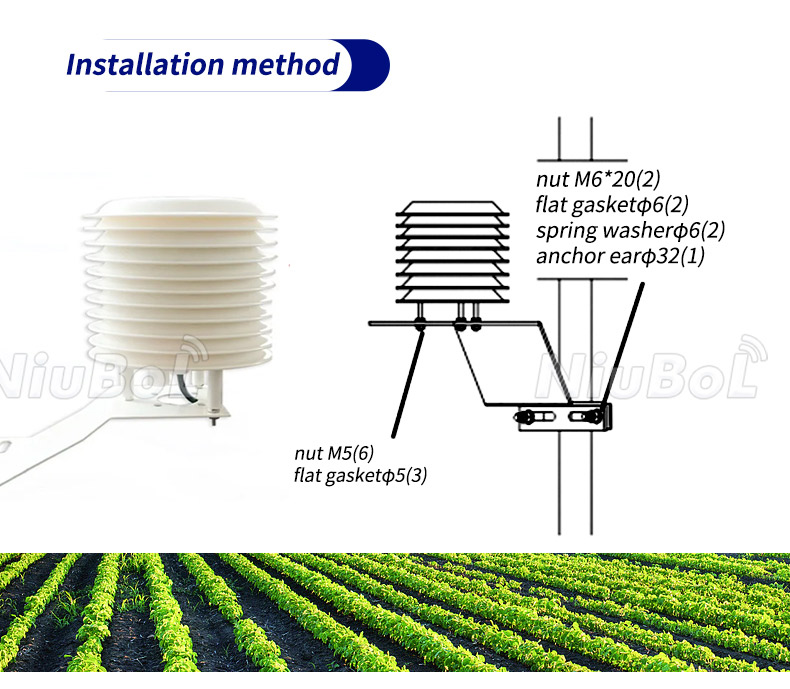

Installation Method

The NBL-W-LBTH can be mounted on a weather station mast using the matching bracket and U-bolt hardware. The sensor should be installed where surrounding air can circulate freely through the radiation shield.

AirflowInstall in a location with representative ambient airflow around the radiation shield.
Solar ExposureKeep the internal sensing elements inside the supplied radiation shield rather than exposing them directly to sunlight.
Heat SourcesAvoid installation immediately beside exhaust outlets, heated walls, machinery or other artificial heat sources.
Water SprayAvoid positions where irrigation sprinklers or other equipment continuously spray water directly into the radiation shield.
Mast MountingSecure the bracket firmly to reduce movement and keep the radiation shield properly positioned.

NBL-W-LBTH air temperature humidity pressure sensor mounting bracket installation

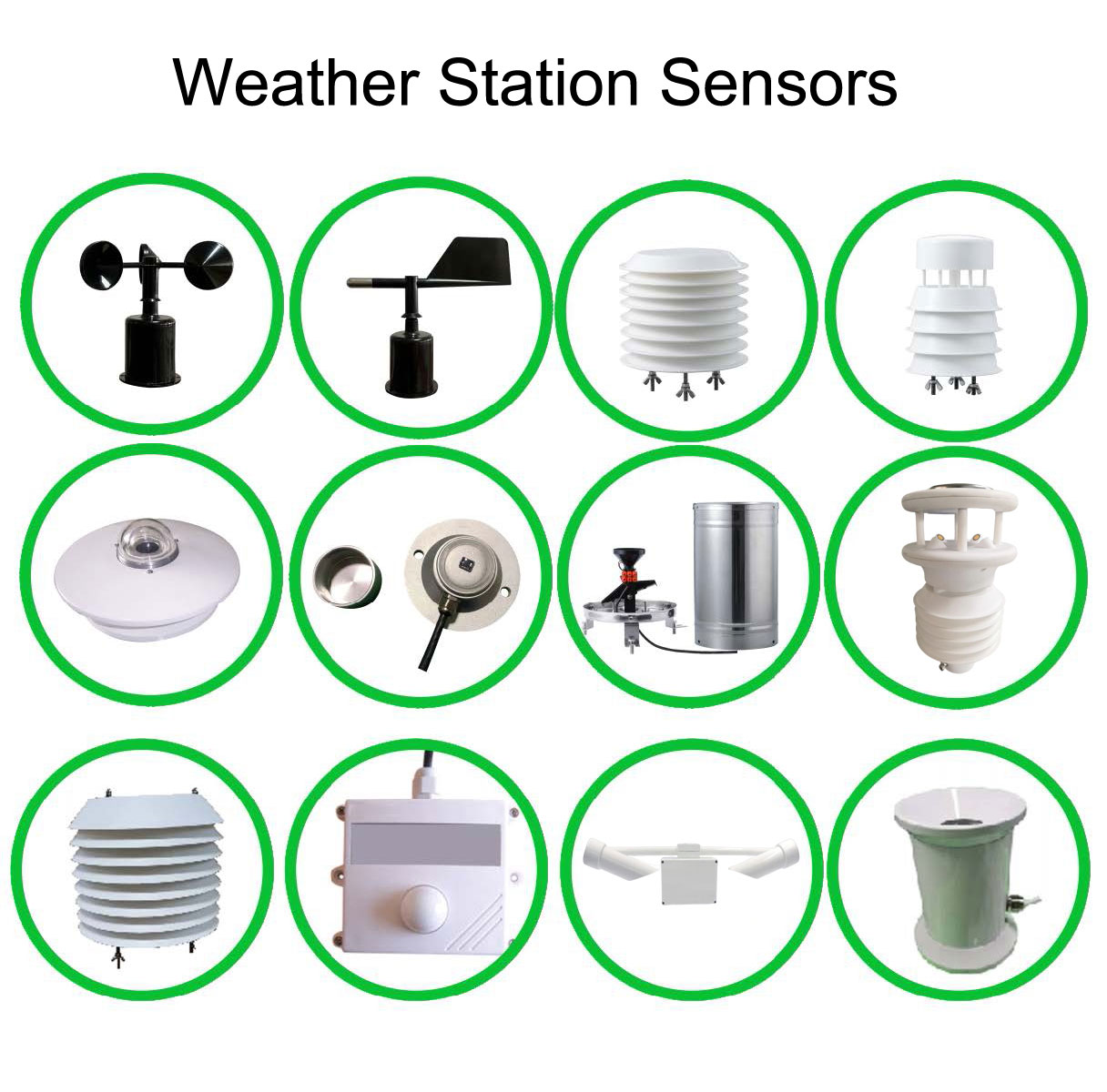

Using NBL-W-LBTH in an Automatic Weather Station

Temperature, relative humidity and barometric pressure are three core atmospheric measurements in a modular automatic weather station. The NBL-W-LBTH combines these parameters in one device while other sensors can be added according to the project.

Weather Station SensorMeasurement
NBL-W-LBTHAir temperature + relative humidity + barometric pressure
NBL-W-SSWind speed
NBL-W-DSWind direction
Tipping Bucket Rain GaugeRainfall
PyranometerSolar radiation
Data Logger / GatewayData acquisition, storage and remote transmission

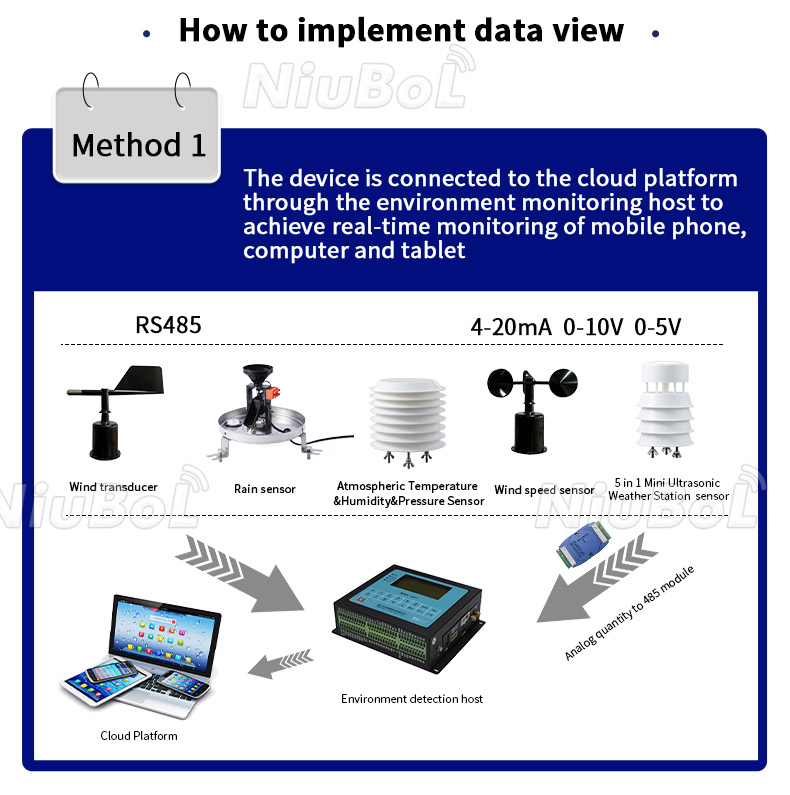

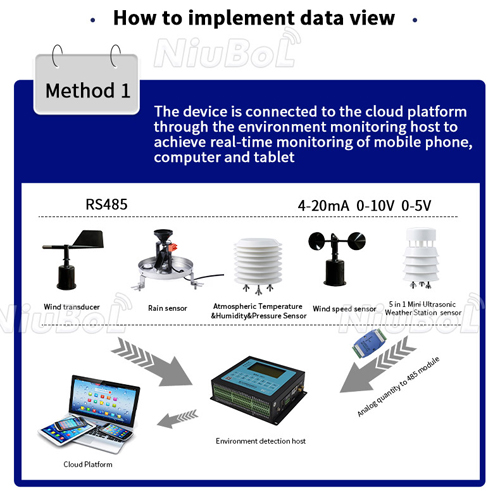

NBL-W-LBTH → RS485 Modbus → Weather Station Data Logger → 4G / Ethernet / LoRaWAN → Cloud or Private Server

Direct Digital Display or Remote Monitoring

The sensor data can be used locally or remotely depending on the project architecture.

Monitoring MethodTypical Architecture

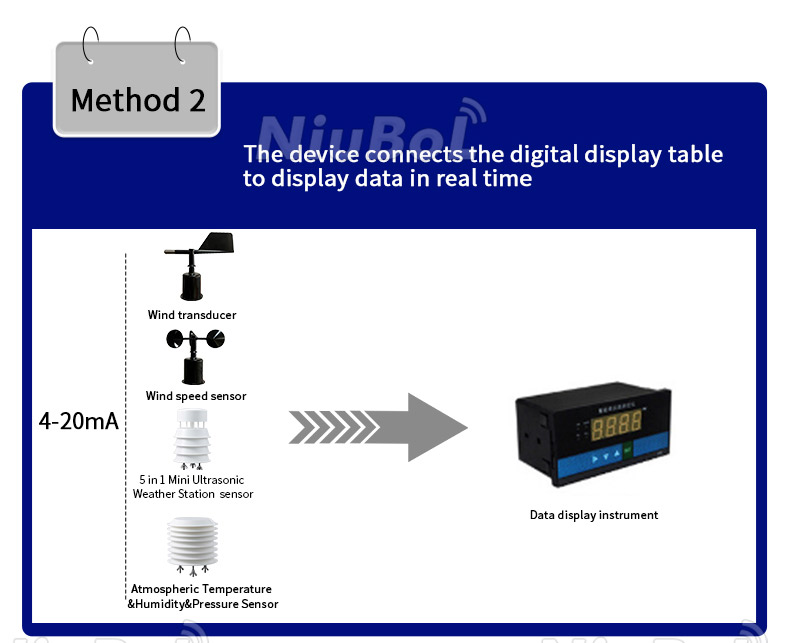

Local Digital MonitoringSensor → compatible controller / display → local temperature, humidity and pressure display
Weather StationSensor → data logger → local storage and combined meteorological records
Remote IoT MonitoringSensor → gateway → 4G / Ethernet / LoRaWAN → cloud or private server

NBL-W-LBTH temperature humidity pressure sensor connected to local digital display

Typical Applications

Automatic Weather StationsAgricultural MonitoringGreenhouses
Environmental MonitoringPorts & HarborsAirports
Marine MonitoringIndustrial SitesScientific Research

NBL-W-LBTH temperature humidity pressure sensor applications in meteorology airports ports agriculture and environmental monitoring

Air Temperature & Humidity Sensor vs Soil Temperature & Moisture Sensor

ComparisonNBL-W-LBTHSoil Temperature & Moisture Sensor
Measured MediumAtmospheric airSoil
Humidity / MoistureRelative humidity (%RH)Volumetric soil moisture (%)
TemperatureAir temperatureSoil temperature
PressureBarometric pressure includedNot normally included
InstallationAbove ground in free airProbe inserted or buried in soil

Important Measurement Considerations

FactorPossible Influence
Direct Solar RadiationCan heat an improperly exposed sensor and increase the reported air-temperature value.
Poor AirflowCan make the measured conditions less representative of the surrounding atmosphere.
Nearby Heat SourcesBuildings, exhausts and machinery can create localized temperature differences.
CondensationPersistent condensation can temporarily influence humidity response and should be considered when interpreting data near saturation.
Installation HeightTemperature, humidity and pressure data should be compared using consistent installation conditions where possible.

NBL-W-LBTH FAQ

Q1. What does the NBL-W-LBTH measure?

A1. It measures air temperature, relative humidity and barometric pressure from one integrated sensor.

Q2. What are the measurement ranges?

A2. Temperature is -40 to 80°C, relative humidity is 0–100%RH and barometric pressure is 10–1200 hPa.

Q3. Does the sensor support RS485 Modbus?

A3. Yes. The RS485 version uses Modbus RTU and has a default baud rate of 9600 bps.

Q4. Is a 4–20 mA version available?

A4. Yes. RS485 and 4–20 mA configurations are available. The required output should be confirmed when ordering.

Q5. Why is the sensor installed inside a radiation shield?

A5. The louvered radiation shield reduces direct solar heating while allowing ambient air to circulate around the temperature and humidity sensing elements.

Q6. Does the sensor measure soil temperature and moisture?

A6. No. The NBL-W-LBTH measures atmospheric air conditions. A dedicated soil sensor is required for soil temperature and volumetric moisture measurement.

Q7. Can it be used in a greenhouse?

A7. Yes. It can monitor greenhouse air temperature, humidity and pressure. Automatic ventilation, heating or humidification requires the sensor to be connected to a compatible controller or control system.

Q8. Does barometric pressure measurement allow the sensor to predict the weather by itself?

A8. No. The sensor measures local atmospheric pressure. Pressure trends can contribute to meteorological analysis, but weather forecasting requires additional observations, historical data and forecasting methods.

Q9. Can multiple NBL-W-LBTH sensors share one RS485 network?

A9. Yes. Each sensor should use a unique device address and the RS485 wiring, power supply and polling interval should be designed correctly.

Q10. Can the data be uploaded to our own server?

A10. Yes. A compatible data logger or IoT gateway can collect RS485 data and transmit temperature, humidity and pressure measurements to a cloud platform or private server using supported communication protocols.

NBL-W-LBTH Air Temperature, Humidity & Barometric Pressure Sensor Datasheet

PDFNBL-W-LBTH-Atmosphere-temperature-humidity-and-pressure-sensor-instruction-manual-V4.0.pdf

NBL-W-LBTH Air Temperature, Humidity & Barometric Pressure Sensor for Weather Station and IoT Integration

The NBL-W-LBTH Air Temperature, Humidity & Barometric Pressure Sensor provides three core atmospheric measurements through one compact sensor assembly. RS485 Modbus and 4–20 mA output options make it suitable for weather stations, agricultural systems, environmental monitoring networks and industrial data-acquisition systems.

For quotation and model selection, specify the required output signal, power supply, cable length, quantity and the data logger, PLC, RTU or IoT gateway that will receive the sensor measurements.
