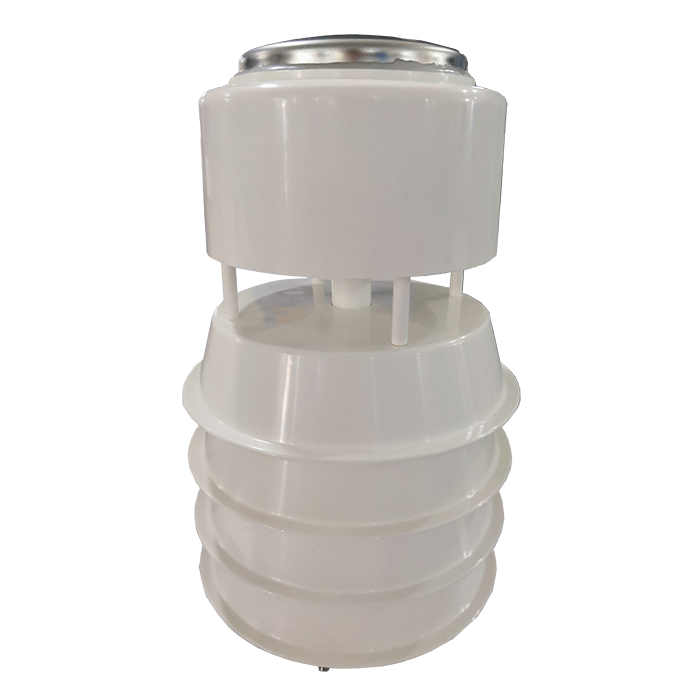

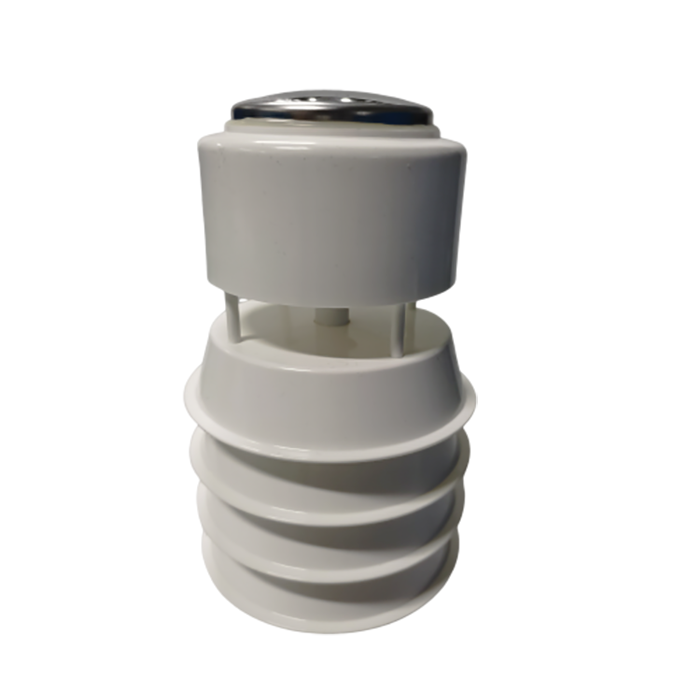

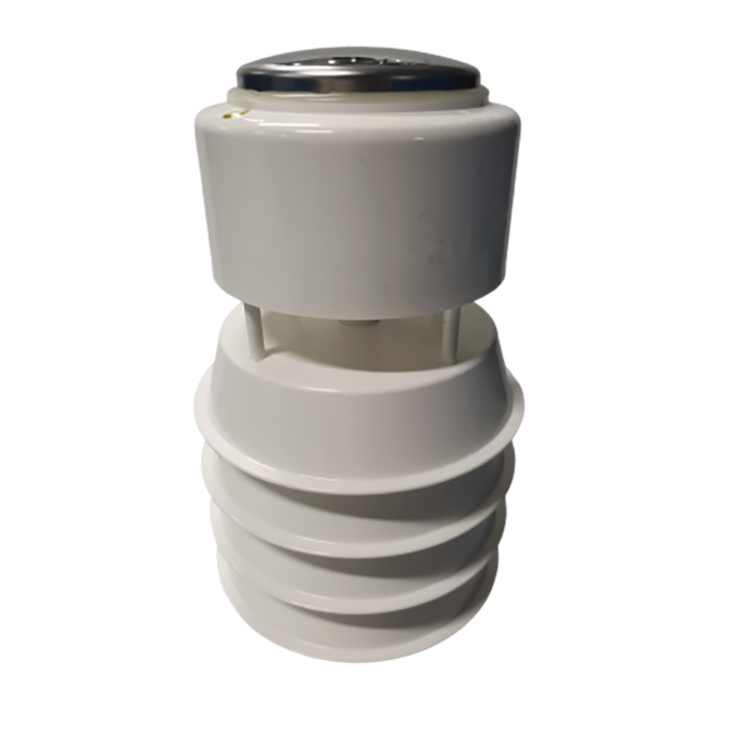

NBL-W-61MUWS 6-in-1 Ultrasonic Weather Station Sensor with Rainfall

The NBL-W-61MUWS 6-in-1 ultrasonic weather station sensor integrates wind speed, wind direction, air temperature, relative humidity, barometric pressure and rainfall measurement in one compact outdoor sensor.

Wind speed and wind direction are measured using ultrasonic transit-time technology, while rainfall is detected using a piezoelectric kinetic rainfall sensor. Temperature, humidity and atmospheric pressure are measured simultaneously, allowing six meteorological parameters to be collected from a single installation point.

With RS485 Modbus RTU communication, the sensor can connect to compatible weather station data loggers, PLCs and IoT gateways. It is suitable for agricultural weather stations, environmental monitoring, ports, transportation, industrial sites and distributed meteorological monitoring systems.

6-in-1 Ultrasonic Weather Station Sensor Specifications

Six Weather Parameters in One Sensor

The NBL-W-61MUWS is a wind speed direction temperature humidity pressure rainfall sensor designed for projects that require six core meteorological measurements from one compact monitoring point.

Wind Speed

Measures wind velocity from 0 to 40 m/s using ultrasonic transit-time technology.

Wind Direction

Measures wind direction from 0 to 359° without a conventional mechanical wind vane.

Air Temperature

Provides ambient air temperature data for weather and environmental monitoring.

Relative Humidity

Measures atmospheric moisture conditions from 0 to 100% RH.

Barometric Pressure

Provides atmospheric pressure measurements for meteorological monitoring systems.

Rainfall

Uses piezoelectric impact detection to measure rainfall without a conventional tipping bucket mechanism.

Ultrasonic Wind and Piezoelectric Rainfall Measurement

Ultrasonic Wind Measurement

Wind speed and direction are calculated by comparing the transit time of ultrasonic signals traveling between opposing transducers. Airflow changes the ultrasonic travel time in different directions, allowing the sensor to calculate wind velocity and direction without rotating wind cups or a mechanical vane.

Piezoelectric Rainfall Measurement

The integrated rainfall channel uses piezoelectric ceramic kinetic detection. When raindrops strike the sensing surface, the sensor detects the impact generated by the droplets and uses this information to calculate rainfall.

Unlike a traditional tipping bucket rain gauge, piezoelectric rainfall measurement does not require a mechanical tipping mechanism. This makes it useful where a compact integrated weather sensor is preferred.

Ultrasonic Weather Sensor Key Features

6-in-1 Measurement

Six meteorological parameters are integrated into one compact outdoor sensor.

Ultrasonic Wind Measurement

Wind speed and direction are measured without conventional rotating wind cups or vanes.

Piezoelectric Rainfall

Rainfall is detected from raindrop impact using piezoelectric kinetic measurement.

RS485 Modbus RTU

Provides digital integration with compatible PLCs, weather data loggers and IoT gateways.

Low Power Consumption

Low average power demand is suitable for distributed weather monitoring systems.

IP65 Protection

Designed for outdoor meteorological and environmental monitoring installations.

RS485 Modbus RTU Integration

The ultrasonic weather sensor with RS485 Modbus can connect to compatible PLCs, data loggers and IoT gateways. The sensor provides digital meteorological data that can then be stored locally or transmitted to a cloud platform or private server by the connected communication equipment.

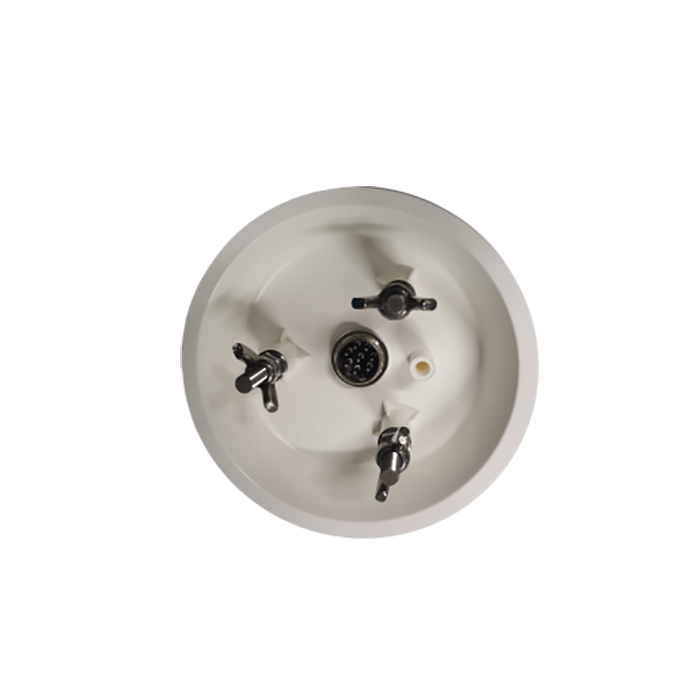

Wiring

Confirm the cable label and wiring before applying power. When several Modbus devices share one RS485 bus, each sensor should use a unique communication address.

Typical Weather Monitoring System

NBL-W-61MUWS → RS485 Modbus RTU → Data Logger / PLC / IoT Gateway → Cloud Platform or Private Server

The NBL-W-61MUWS itself provides weather measurement data through RS485. Remote communication through 4G, Ethernet, Wi-Fi or LoRaWAN requires a compatible data logger or IoT gateway with the required communication function.

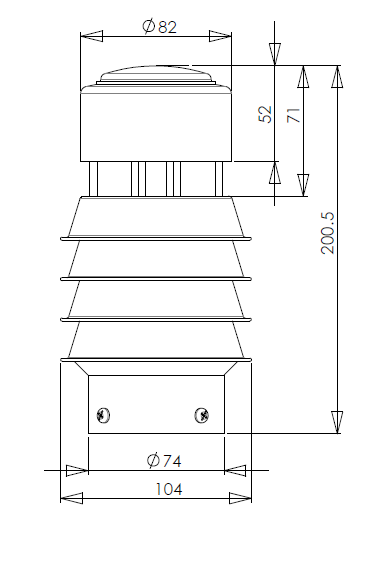

Sensor Dimensions

Installation Recommendations

Agricultural, Environmental and Weather Station Applications

The NBL-W-61MUWS is suitable as an agricultural weather station sensor or compact multi-parameter weather sensor where wind, air temperature, humidity, pressure and rainfall need to be collected from one installation point.

Automatic Weather Stations

Agricultural Monitoring

Environmental Monitoring

Ports & Harbors

Transportation Monitoring

Industrial Sites

Research Stations

Distributed IoT Monitoring

5-in-1 vs 6-in-1 Ultrasonic Weather Sensor

Piezoelectric Rain Sensor vs Tipping Bucket Rain Gauge

The appropriate rainfall sensor should be selected according to the project's required measurement method, accuracy, maintenance conditions and applicable meteorological standards.

How to Select the Right Weather Sensor

FAQ

Q1. What does the NBL-W-61MUWS 6-in-1 ultrasonic weather station sensor measure?

A1. It measures wind speed, wind direction, air temperature, relative humidity, barometric pressure and rainfall.

Q2. How is rainfall measured?

A2. Rainfall is measured using piezoelectric ceramic kinetic detection. Raindrop impacts on the sensing surface are detected and used to calculate rainfall.

Q3. Is the rainfall sensor a tipping bucket rain gauge?

A3. No. The integrated rainfall channel uses piezoelectric impact detection rather than a mechanical tipping bucket.

Q4. Does the NBL-W-61MUWS support RS485 Modbus?

A4. Yes. The sensor provides RS485 communication using Modbus RTU at 9600 bps.

Q5. Can it connect directly to a PLC or weather station data logger?

A5. Yes. A compatible PLC, data logger or IoT gateway with an RS485 Modbus RTU interface can acquire the sensor data.

Q6. Does the sensor require north alignment?

A6. Yes. The north reference point should be aligned with geographic north during installation for correct wind direction measurement.

Q7. Can the NBL-W-61MUWS be used for agricultural weather monitoring?

A7. Yes. It provides six meteorological parameters useful for agricultural weather monitoring. Soil moisture, soil temperature, solar radiation, PAR and other agricultural parameters require additional sensors when needed.

Q8. Does the sensor automatically provide rainfall warnings?

A8. The sensor provides rainfall measurement data. Alarm or warning functions require a compatible controller, data logger or software platform configured with the required alarm thresholds.

Q9. Does the NBL-W-61MUWS include 4G, Wi-Fi or LoRaWAN?

A9. No. The sensor provides RS485 data. Remote communication requires a compatible data logger or IoT gateway with the required 4G, Wi-Fi, Ethernet or LoRaWAN communication function.

Q10. What is the main difference between the NBL-W-51MUWS and NBL-W-61MUWS?

A10. The NBL-W-51MUWS measures five parameters: wind speed, wind direction, temperature, humidity and pressure. The NBL-W-61MUWS adds integrated piezoelectric rainfall measurement as the sixth parameter.

NBL-W-61MUWS Ultrasonic Weather Sensor Instruction Manual

NBL-W-61MUWS-Ultrasonic-Weather-Station-Instruction-Manual.pdf

Quotation and Model Selection

For quotation and model selection, specify the required quantity, power supply, cable length, installation environment and the PLC, data logger or IoT gateway that will receive the RS485 Modbus data. If the project also requires solar radiation, illuminance, PAR, soil sensors, dedicated rainfall measurement, remote communication or a complete automatic weather station, include these requirements with the inquiry.
