Tipping Bucket Rain Gage: The Ideal Choice for Precise Precipitation Monitoring

The Tipping Bucket Rain Gage is a professional precipitation measurement device widely used in meteorology, hydrology, and agriculture. It is designed to remotely measure liquid precipitation, rainfall intensity, and the start and end times of rainfall events. Renowned for its high precision, reliability, and durability, this instrument is the preferred choice for hydrological automatic reporting systems, remote field stations, and applications such as flood prevention, water supply management, and reservoir operations. This article provides an in-depth exploration of the Tipping Bucket Rain Gage, covering its definition, working principle, technical specifications, application scenarios, and installation guidelines, with a special focus on its unique operational mechanism to help readers fully understand its value.

What is a Tipping Bucket Rain Gage?

A Tipping Bucket Rain Gage is a mechanical precipitation measurement instrument that captures and quantifies rainfall using an internal tipping bucket mechanism. Its core component is a small bucket that tips when a specific volume of rainwater is collected, triggering a signal to record precipitation data. Due to its simple structure, high accuracy, and suitability for long-term outdoor use, the Tipping Bucket Rain Gage is widely deployed in meteorological stations, hydrological stations, agricultural monitoring, and flood warning systems.

This device adheres to international and national standards, including SL61-2003 (Hydrological Automatic Reporting System Specification), GB11831-89 (Telemetering Rain Gage for Hydrological Reporting), and GB11832-89 (Tipping Bucket Rain Gage). These standards ensure reliable data output across various climatic conditions. Whether for heavy rainfall monitoring or long-term precipitation trend analysis, the Tipping Bucket Rain Gage meets professional requirements.

Working Principle of the Tipping Bucket Rain Gage

The Tipping Bucket Rain Gage operates on the principle of precise mechanical measurement using a tipping bucket, combined with electronic signal output to ensure real-time recording of precipitation data. Below is a detailed breakdown of its working process:

1. Rainwater Collection
Rainwater enters the sensor through a 200mm-diameter collection funnel, designed with precision calibration to ensure uniform water flow and prevent splashing or clogging.

2. Tipping Bucket Measurement

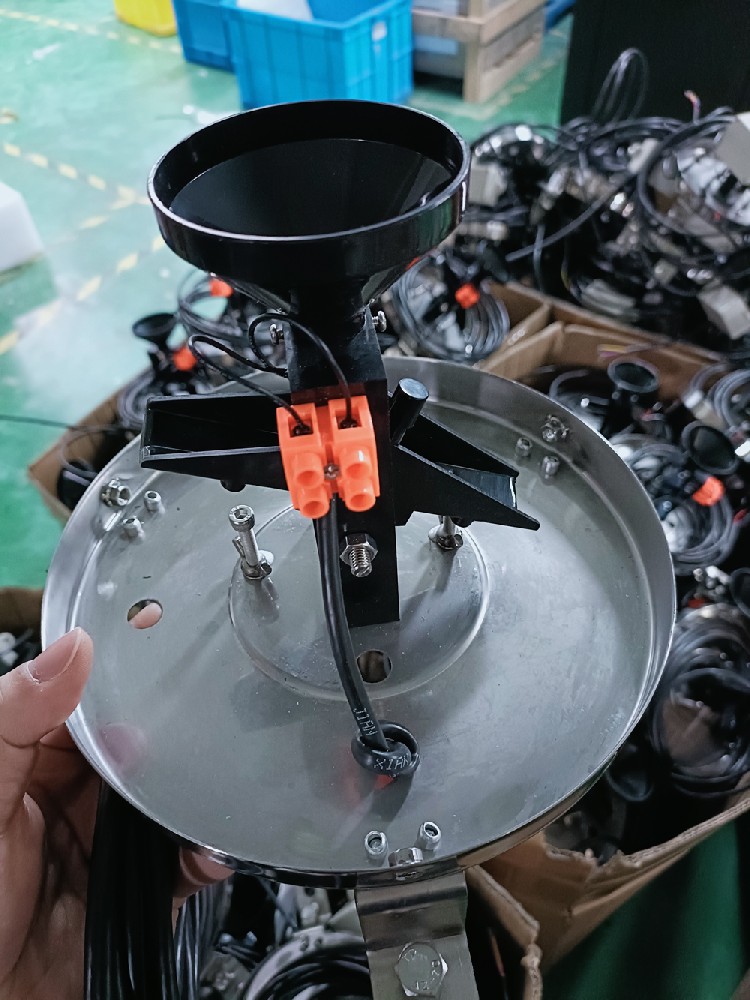

The collected rainwater flows into a dual-sided tipping bucket, which consists of two equal-volume compartments (each corresponding to 0.2mm of precipitation, or approximately 6.28ml). When one compartment fills with rainwater, gravity causes the bucket to tip, emptying the water while the other compartment begins to collect water.

3. Signal Triggering
Each tip of the bucket activates a reed switch, generating an electrical pulse signal. This signal is transmitted to a data acquisition system, recorded as a single 0.2mm precipitation event. By counting the number of tips, the system calculates the total precipitation amount.

4. Data Output
The sensor supports multiple output formats, including reed switch signals, RS485, 4-20mA, and 0-2.5V/0-5V voltage signals, enabling seamless integration with weather stations, data loggers, or remote monitoring systems. Users can select the output format based on their needs.

5. Rainfall Intensity and Timing
By analyzing the frequency of bucket tips, the system calculates rainfall intensity (mm/min). Additionally, timestamps for each tip are recorded to determine the start and end times of rainfall events.

Technical Advantages:

• High Precision: The tipping bucket design ensures each tip corresponds to a fixed precipitation amount, minimizing measurement errors.

• Interference Resistance: The mechanical structure is unaffected by temperature or humidity fluctuations, making it suitable for harsh environments.

• Low Maintenance: The simple design reduces failure points, requiring minimal calibration for long-term operation.

Tipping Bucket Rain Gage Technical Specifications:

Tipping Bucket Rain Gage Application Scenarios

The Tipping Bucket Rain Gage is highly valued for its accuracy and reliability, making it suitable for a variety of applications:

• Meteorological Monitoring
  Weather stations use the Tipping Bucket Rain Gage to record precipitation amounts and intensity, providing data for weather forecasting, climate research, and disaster warnings. For example, heavy rainfall data can help predict flood risks.

• Hydrological Management
  Hydrological stations deploy the device to monitor precipitation inputs for rivers, lakes, and reservoirs, supporting flood control and water resource management. Its remote data transmission capability is ideal for remote areas.

• Agriculture and Forestry
  Farmers and forestry managers use precipitation data to optimize irrigation plans, preventing crop damage due to over- or under-watering. Rainfall intensity data also aids in assessing soil erosion risks.

• Infrastructure
  Urban planners use rain gages to monitor precipitation impacts on infrastructure such as roads and bridges, ensuring safety and operational efficiency.

• Field Research
  Ecologists and environmental scientists employ Tipping Bucket Rain Gages to study the effects of precipitation on ecosystems, vegetation, and soil, particularly in remote or extreme environments for long-term monitoring.

Tipping Bucket Rain Gage Installation Guidelines

Proper installation is critical to ensuring the Tipping Bucket Rain Gage operates accurately. Follow these detailed steps:

1. Select Installation Location

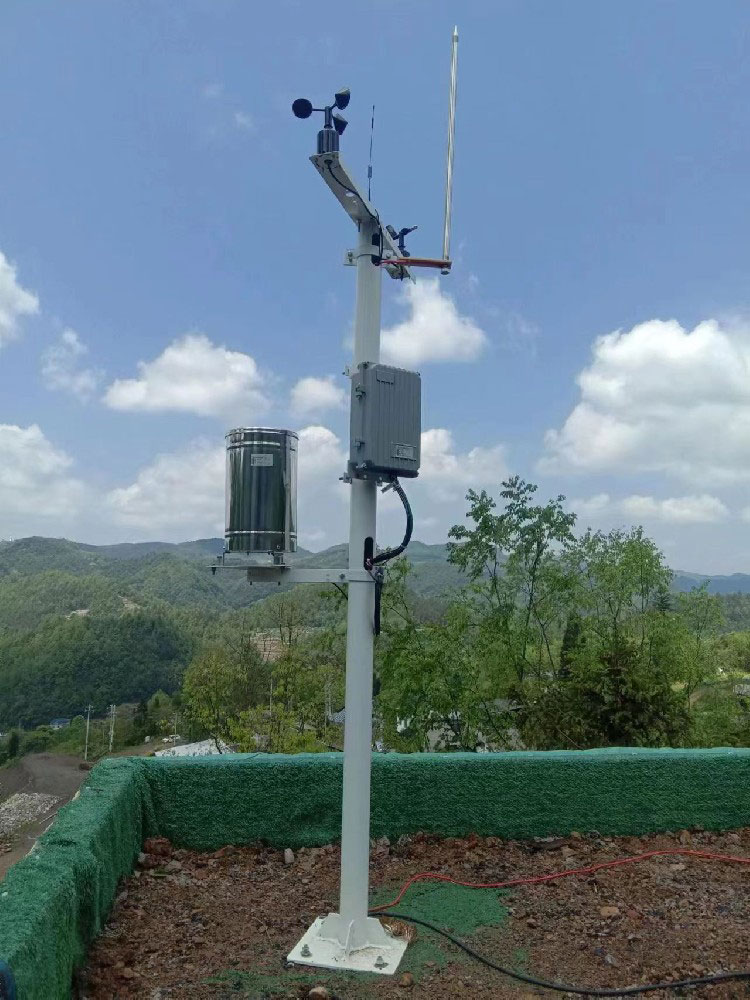

   Choose an appropriate site based on requirements, such as the ground, a metal pole flange, or a rooftop. Ensure no tall obstacles (e.g., trees or buildings) block rainwater from entering the funnel.

2. Level Adjustment
   Use the three leveling screws on the base to adjust the sensor until the built-in bubble level is centered (bubble stays within the circle). Secure the base with three M8×80 expansion screws. If the level shifts, readjust as needed.

3. Assembly and Fixing
   Assemble the sensor according to the manual, ensuring the funnel, tipping bucket, and signal cables are properly connected. Verify that all components are securely fixed.

4. Function Testing

• Open the rain gage and cut the nylon tie on the funnel.

• Slowly pour clean water into the sensor, observing whether the tipping bucket operates correctly and checking if the data acquisition system receives signals.

• Inject a known volume of water (60-70mm) and verify that the recorded precipitation matches the injected amount. If discrepancies occur, calibrate or repair the device.

5. Precautions

• Avoid disassembling internal sensor components during installation to prevent accuracy issues.

• Regularly clear the funnel to prevent blockages from leaves or debris.

Tipping Bucket Rain Gage Maintenance and Calibration

To ensure long-term accuracy, follow these maintenance recommendations:

• Regular Cleaning: Clean the funnel and tipping bucket every 3-6 months to remove dust, leaves, or insects.

• Tipping Bucket Inspection: Ensure the bucket moves freely without sticking; lubricate or replace parts if necessary.

• Calibration: Conduct an annual static calibration by injecting a known water volume to verify measurement accuracy.

• Cable Inspection: Check power and signal cables for aging or damage to maintain stable connections.




Why Choose a Tipping Bucket Rain Gage?

• High Precision and Stability: 0.2mm resolution and ±4% accuracy, ideal for professional monitoring.

• Multiple Output Options: Supports various signal outputs, compatible with diverse data systems.

• Durable Design: Operates reliably in 0℃ to 50℃ environments, adaptable to various climates.

• Easy Installation and Maintenance: Simple structure reduces deployment and upkeep costs.

• Standards Compliance: Meets international and national hydrological reporting standards for dependable data.

Conclusion

The Tipping Bucket Rain Gage, with its unique working principle and high-precision measurement, is a reliable choice for precipitation monitoring. From long-term data collection at weather stations to real-time flood warnings in hydrological management, this device delivers critical data support. Its robust yet simple design, flexible output options, and wide-ranging applications make it an essential tool for professionals. If you’re seeking an efficient precipitation monitoring solution, the Tipping Bucket Rain Gage is the ideal choice.
