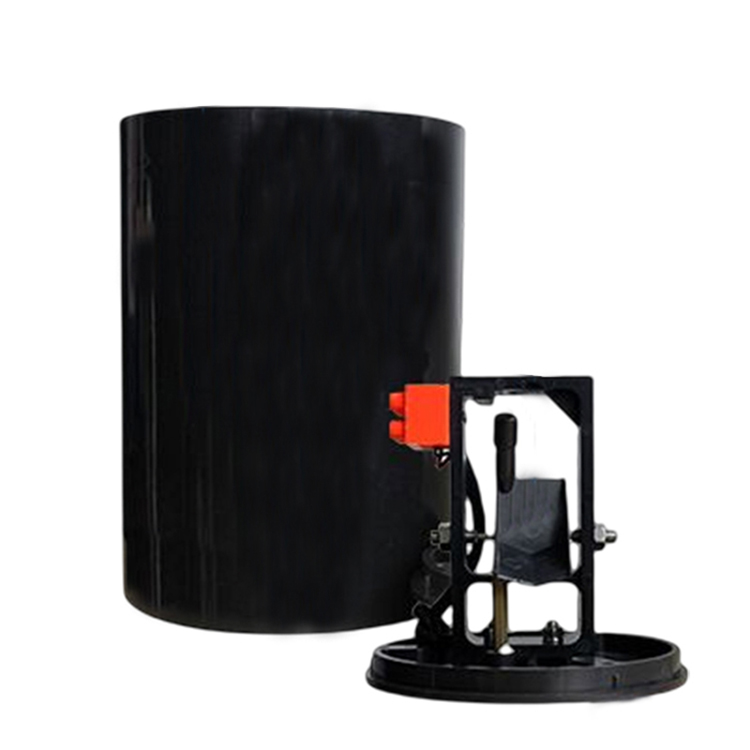

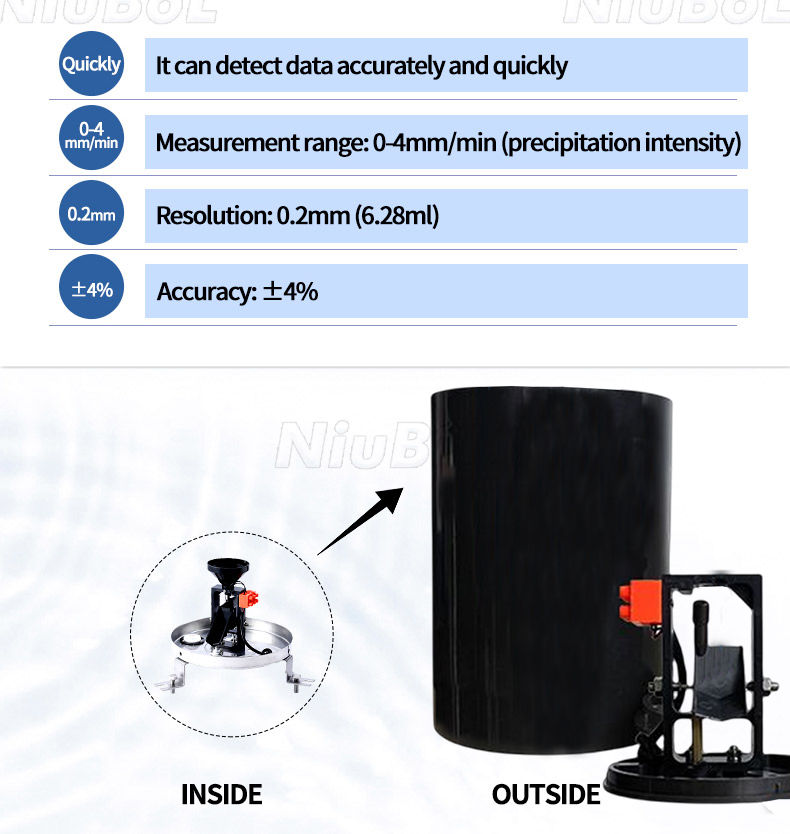

Tipping bucket rain gauge sensor RS485 output ABS material high -precision rainfall meter

Rain gauge (also known as a rain barrel) is an instrument used to measure precipitation. One common type of rain gauge is the tipping bucket rain gauge.

Stainless steel tipping bucket rain gauge is a commonly used precipitation observation device, which measures precipitation through a simple but reliable mechanical principle. Rain sensor (Rain Gauge) is suitable for meteorological stations  (stations), hydrological stations, agriculture, forestry, national defense and  other relevant departments, used for remote measurement of liquid  precipitation, precipitation intensity, precipitation start and end time  It can be used for automatic hydrological monitoring and reporting  systems and automatic fifield monitoring and reporting stations for the  purposes of flflood control, water supply scheduling, power station and  reservoir water management, etc.

ABS tipping bucket rain gauge is a common rain measurement device, which uses mechanical principle to measure precipitation. The following is an introduction to the working principle, application scenarios, useful value and installation requirements of ABS tipping bucket rain gauge:

ABS tipping bucket rain gauge working principle:

1. the funnel collects rainwater: rainwater firstly enters into the container of the rain gauge through the funnel on the top of the device.

2. Tipping bucket record: when rainwater accumulates to a certain level, the tipping bucket inside the device will turn over and pour the accumulated water into another container.

3. Accumulation Record: The number of times each tipping bucket is recorded to calculate the total precipitation over a period of time.

ABS tipping bucket rain gauge application scenarios and role value:

- Meteorological observation: ABS tipping bucket rain gauge is widely used in meteorological stations, agrometeorological observation, hydrological observation and other fields for measuring precipitation and monitoring rainfall.

- Environmental monitoring: In the field of environmental monitoring and natural resources management, these rain gauges are also used to monitor precipitation and provide data support for scientific research and decision-making.

-Water Resource Management: In hydrology and water resource management, accurate precipitation data is essential for hydrological modelling and water resource planning, and the ABS tipping bucket rain gauge is one of the main devices to provide this data.

ABS tipping bucket rain gauge installation requirements:

- Horizontal and stable: the installation needs to ensure that the equipment is horizontal and stable to avoid errors caused by unstable installation.

- Ventilation and light transmission: The installation location should have good ventilation and light transmission conditions to ensure the accuracy of the measurement.

- Regular inspection: After installation, regular inspection and maintenance are required to clean the funnel and hopper to ensure the normal operation of the equipment.

The tipping bucket rain gauge has the following advantages:

High accuracy: due to its simple and stable mechanical structure, it is able to provide more accurate precipitation data.

Automation: Tipping bucket rain gauges are usually equipped with a digital recorder, which can automatically record and store precipitation data without human intervention.

Durable: Tipping bucket rain gauges are usually made of durable materials and are able to operate for long periods of time in harsh climatic conditions.

Overall, the tipping bucket rain gauge is a reliable and widely used type of rain gauge, as a simple and reliable precipitation observation device, the ABS tipping bucket rain gauge plays an important role in a variety of meteorological, hydrological, environmental and agricultural applications, providing valuable data support and scientific basis for various industries.It is used for flood control, water supply scheduling, and the water supply management of the reservoir of the power station as the purpose of the hydrological automatic reporting system and the automatic field measurement station to measure the sensor for precipitation.

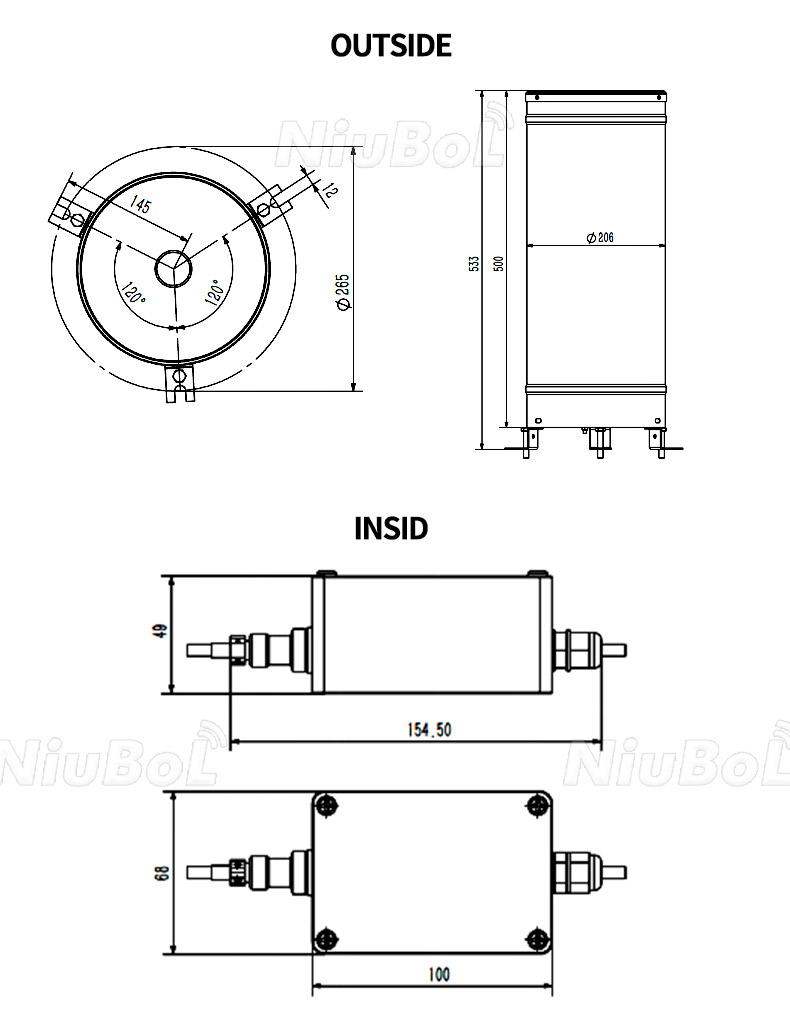

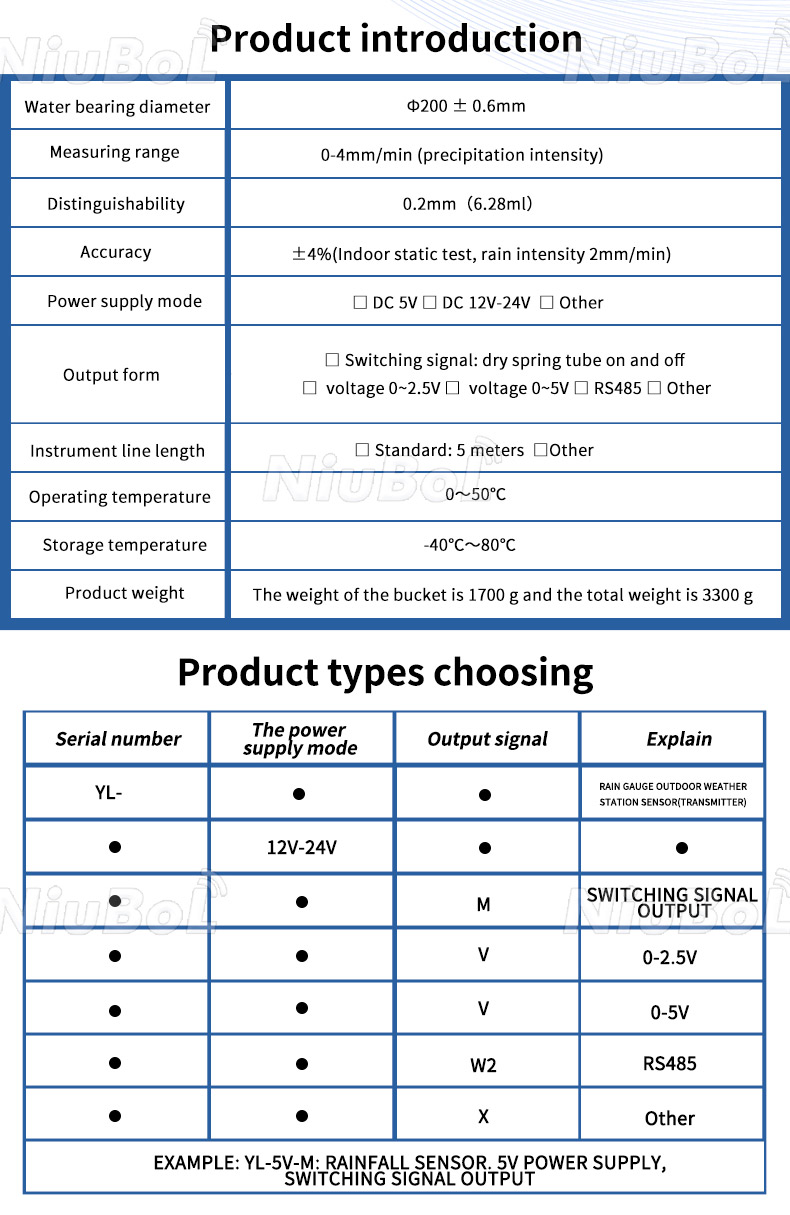

Tipping bucket rain gauge data sheet

NBL-W-ARS-Tipping-bucket-rain-gauge-instruction-manual.pdf

NBL-W-RS-Rain-sensors-instruction-manual-V4.0.pdf
