What is the temperature sensor for PV module?

Introduction to Temperature Sensors for PV Modules and Their Application Value

What is a PV Module Temperature Sensor?

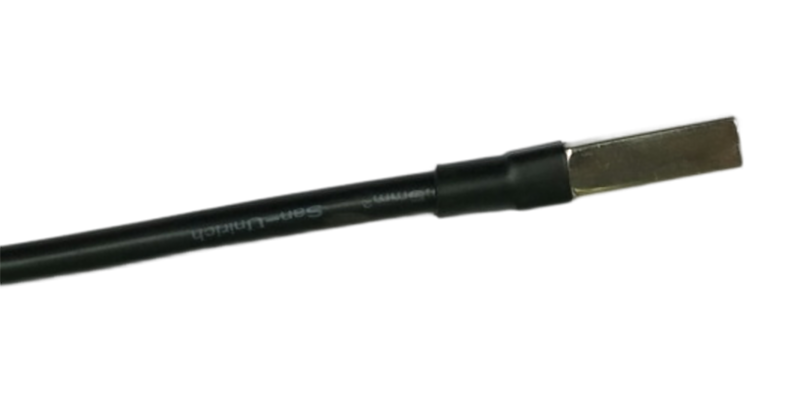

A PV Module Temperature Sensor, such as the NBL-W-PPT model, is a high-precision temperature measurement device specifically designed for solar power systems. It uses high-precision thermistors as sensing elements, capable of accurately measuring the temperature variations on the surface or inside of solar panels and converting this data into voltage or current signals for monitoring and control purposes.

This sensor is widely used in fields such as meteorology, marine environments, environmental monitoring, photovoltaic power stations, and laboratories, with particular importance in photovoltaic power generation systems.

Why is a PV Module Temperature Sensor Needed in Solar Systems?

Although solar panels depend on sunlight to generate power, their efficiency is closely related to their operating temperature. As the temperature increases, the output power of photovoltaic modules decreases, which affects the overall energy generation efficiency. Therefore, real-time monitoring of the temperature of photovoltaic modules is crucial for optimizing system performance and improving energy conversion efficiency.

Additionally, prolonged high-temperature operation can accelerate the aging of the modules, shortening their lifespan. By installing temperature sensors, remote monitoring of the module's operating conditions can be achieved, allowing for early detection of abnormal temperature increases, preventing potential failures, and ensuring stable system operation.

How to Use a PV Module Temperature Sensor

Here are the installation steps for the NBL-W-PPT temperature sensor on a PV module:

1. Locating the Adhesion Area: Install the sensor at the center on the back of the solar panel, as this location best reflects the actual operating temperature of the module.

2. Applying Thermal Conductive Gel: Use the provided thermal conductive gel and apply it to a 22×12mm area along the bracket direction to ensure good thermal conductivity.

3. Fixing the Sensor: Quickly attach the temperature sensor to the applied area and keep it in place for 5–10 minutes to ensure a firm attachment.

4. Wiring and Securing: After the sensor is securely fixed, attach the sensor’s leads along the panel's wiring direction, ensuring that they are fixed to the bracket to prevent damage from wind.

5. Adjusting According to the Environment: Users can adjust the installation method based on the specific environment to ensure the sensor operates stably and reliably.

Technical Specifications of the PV Module Temperature Sensor

Value Analysis of the PV Module Temperature Sensor

1. Improving System Efficiency

   By monitoring the temperature of the photovoltaic modules in real-time and combining it with inverter and other control systems, the working state can be dynamically adjusted to maximize power generation efficiency.

2. Extending Module Lifespan

   High operating temperatures can lead to accelerated material aging of the modules. Temperature monitoring allows for timely cooling measures, extending the lifespan of the modules.

3. Remote Monitoring and Intelligent Operation & Maintenance

   The sensor's electrical signal can be integrated into remote monitoring platforms via PLC or SCADA systems, enabling automated management and improving operation and maintenance efficiency.

4. Suitable for Various Environments

   Whether in deserts, plateaus, coastal areas, or urban rooftops, this sensor can operate stably in complex environments and is highly adaptable.

Options for PV Module Temperature Sensors and Their Installation Applications

1. Selecting the Right Sensor

   - Accuracy and Stability: Choose the appropriate temperature range and accuracy based on the project's specific needs. For example, in high-temperature, volatile environments, a sensor with a higher temperature range and better stability may be required.

   - Output Signal Type: Different systems may require different types of output signals (e.g., 4–20mA, 0–5V, or RS485). Selecting the sensor type that matches the current monitoring system is critical.

2. Choosing the Installation Location

   - While it is typically recommended to install the sensor at the center on the back of the solar panel, in some cases, to better reflect the actual operating temperature, it may be necessary to install it near the battery cells or at multiple locations to obtain an average temperature.

3. Maintenance and Calibration

   - Regularly check the sensor's working condition to ensure it is securely adhered and undamaged. Calibration may be necessary to maintain accurate measurement data.

   - Clean the sensor’s surface to avoid dust and dirt from affecting thermal conductivity.

4. Integration with Other Devices

   - The temperature sensor data can be integrated with weather stations, inverters, and other devices for analysis, providing valuable insights for optimizing the operation of the entire photovoltaic power station.

   - Using IoT (Internet of Things) technology, remote real-time monitoring of multiple distributed solar sites can be implemented, improving management efficiency.

Conclusion

The PV Module Temperature Sensor is an indispensable component in modern solar power systems. It not only helps us accurately monitor system operation but also provides strong data support for scientific operation and energy-saving improvements. As the photovoltaic industry continues to develop, these sensors will play an increasingly important role in intelligent energy systems.
