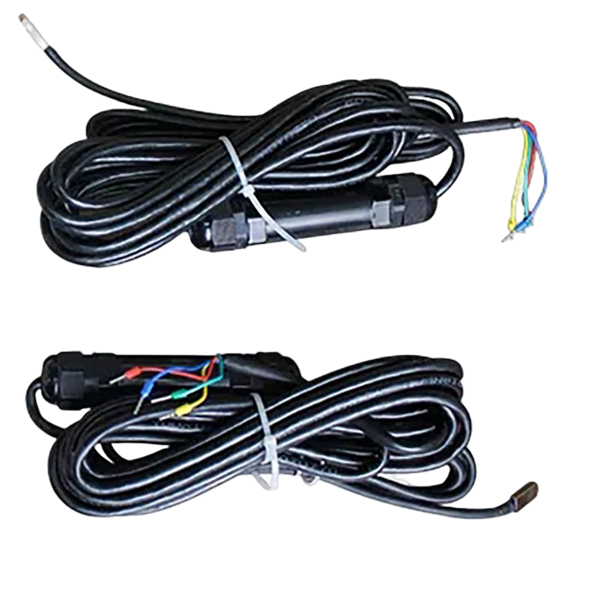

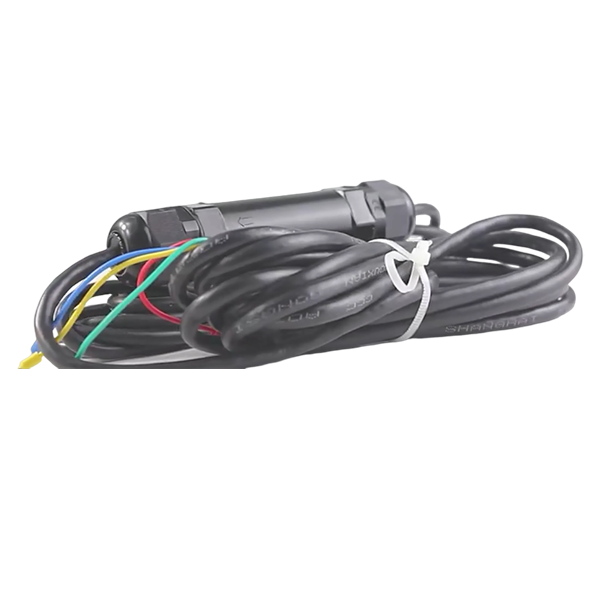

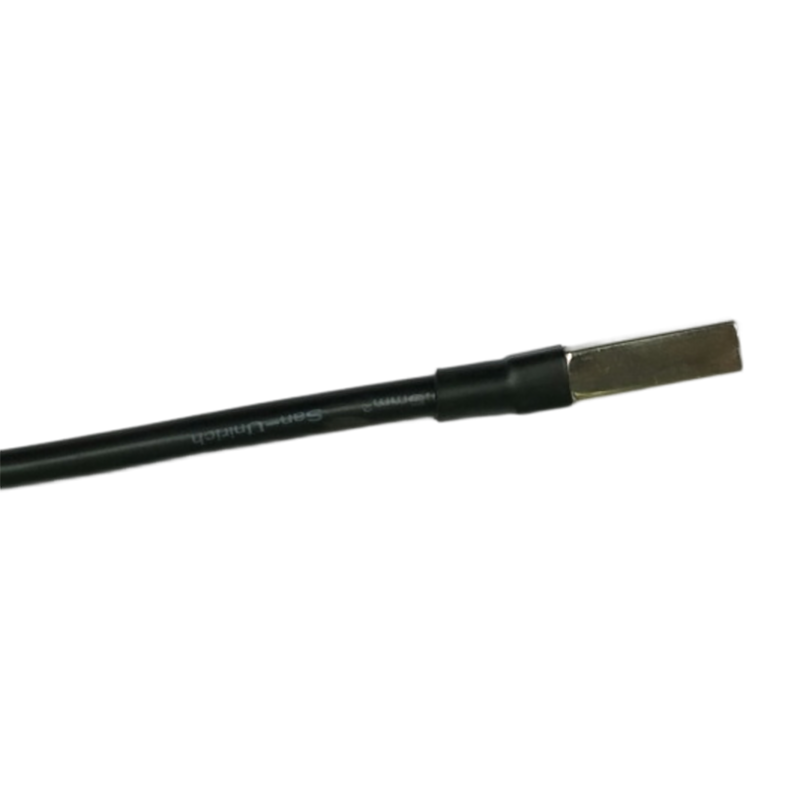

Solar Panel Temp Sensor SMD Probe Temperature gathering for Photovoltaic Weather Station

The Solar Panel Temp Sensor uses a high-precision thermistor as the sensing component, featuring high measurement accuracy and stability, etc. The Solar Panel Temp Sensor uses an advanced circuit integration module that converts temperature into a corresponding voltage or current signal according to the user's different needs.

The Solar Panel Temp Sensor instrument is compact, easy to install and portable, with reliable performance.

The proprietary circuitry provides good linearity, high load capacity, long transmission distance and high immunity to interference.

The Solar Panel Temp Sensor can be used for a wide range of temperature measurement applications in meteorology, marine, environment, airports, ports, laboratories, industry, Photovoltaic solar energy,agriculture and transport.

Solar Panel Temp Sensor Technical Parameters：

Range: -50 to 100°C Optional -20 to 50°C

Accuracy: ±0.5℃

Power supply: DC 5V/DC 12V / DC 24V

Output type: 4～20mA /0～2.5V/0～5V /RS485

Instrument cable length: 5m

Load resistance: Voltage type: RL≥1K

Current type: RL≤250Ω

Operating temperature: -50℃～100℃

Relative humidity: 0～100%RH

Product weight: Probe 125 g

Product power consumption: 0.15W

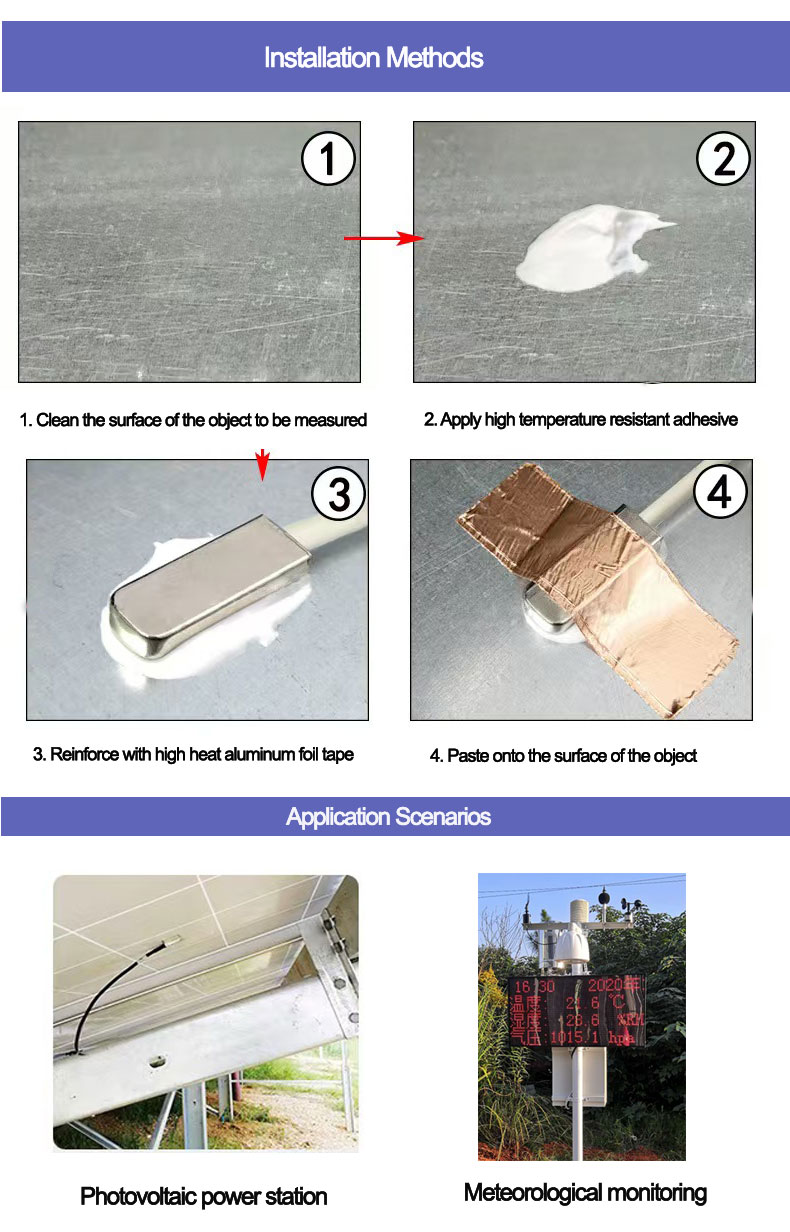

Solar Panel Temp Sensor Instructions for use ：

1、At the centre of the back of the solar panel, use the heat-conductive silica gel sent with the package to coat an area with a size of approximately 22*12mm along the direction of the solar panel support.

2. Immediately after application, stick the Solar Panel Temp Sensor in the direction of the application and leave it fixed for about 5 to 10 minutes.

3. When the sensor is completely fixed on the back of the solar panel, first fix the Solar Panel Temp Sensor wire to the solar bracket along the solar panel alignment direction before proceeding with the normal alignment.

4. Users can fix the Solar Panel Temp Sensor according to the above method according to the actual usage environment.
