NBL-S-NPK RS485 Soil NPK Sensor

The NiuBoL NBL-S-NPK is an RS485 soil NPK sensor designed for rapid field monitoring of nitrogen (N), phosphorus (P) and potassium (K) reference values. It is used in smart agriculture, greenhouse monitoring, irrigation, soil research and IoT soil-monitoring systems.

The sensor provides three NPK data channels through RS485 Modbus RTU and supports long-term buried installation with an IP68 sealed probe. It can connect to PLCs, data loggers, RTUs and IoT gateways for continuous soil-condition monitoring.

Important: The NBL-S-NPK is intended for field reference and trend monitoring. Its NPK readings are related to soil electrical characteristics and empirical conversion relationships. They should not be treated as a replacement for laboratory chemical analysis when accurate nutrient concentration or fertilizer formulation is required.

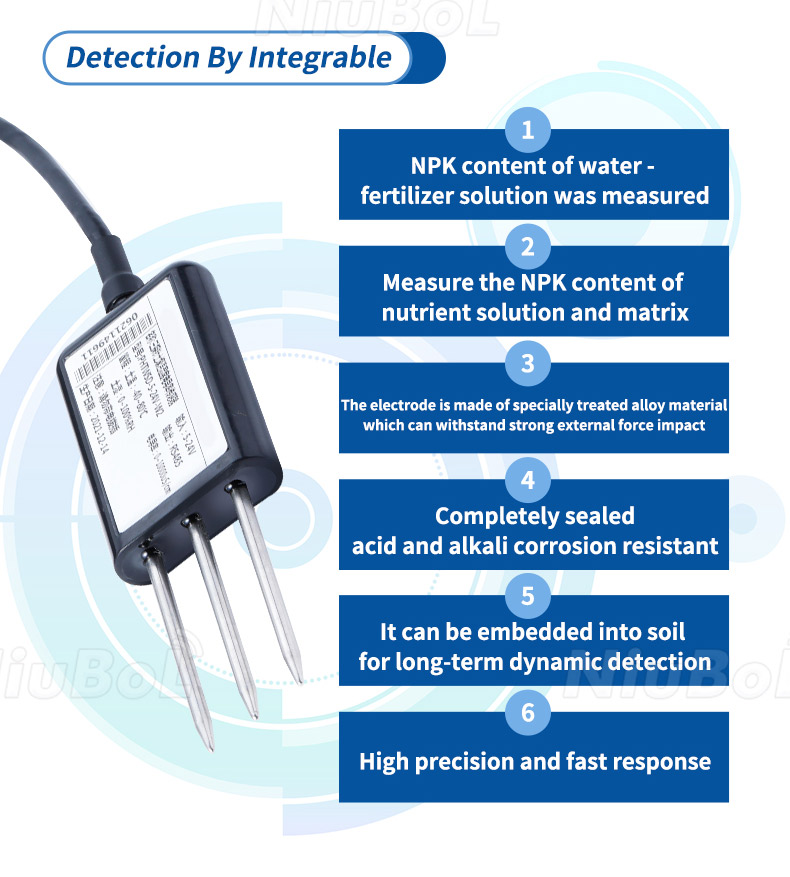

NBL-S-NPK Key Features

• Simultaneous N, P and K reference-value output

• RS485 Modbus RTU digital communication

• 12–24 V DC power supply

• IP68 sealed construction

• Suitable for long-term buried monitoring

• 0–2000 mg/kg output range for each NPK channel

• 1 mg/kg resolution

• Configurable Modbus device address

• Suitable for PLC, RTU, data logger and IoT integration

• Designed for agriculture, greenhouse, irrigation and soil research

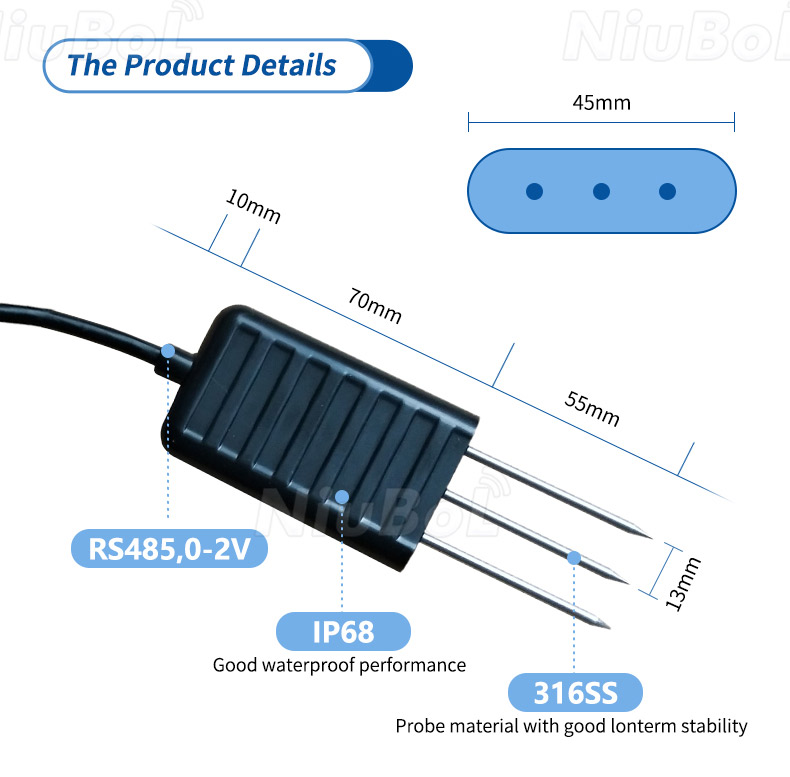

Soil NPK Sensor Technical Specifications

Note: The specified ±2% F.S. refers to sensor output performance under defined test/calibration conditions. It does not mean ±2% agreement with laboratory-measured actual soil N, P and K concentrations.

How Does the NBL-S-NPK Sensor Work?

The NBL-S-NPK provides field NPK reference values by responding to soil electrical characteristics and applying calibrated empirical relationships to produce corresponding nitrogen, phosphorus and potassium outputs.

Because soil electrical characteristics are also influenced by water content, dissolved salts, fertilizer concentration, soil texture and electrode contact, NPK readings can change when measurement conditions change.

For this reason, the sensor is most useful for:

• Comparing changes at the same monitoring point over time

• Comparing multiple locations using the same measurement method

• Continuous trend monitoring

• Smart agriculture and IoT data acquisition

• Field experiments where rapid repeated measurements are required

For a detailed explanation of the measurement principle and limitations, see:Soil NPK Sensor Working Principle, Accuracy and Limitations.

NPK Sensor vs Laboratory Soil Analysis

How to Install the Soil NPK Sensor

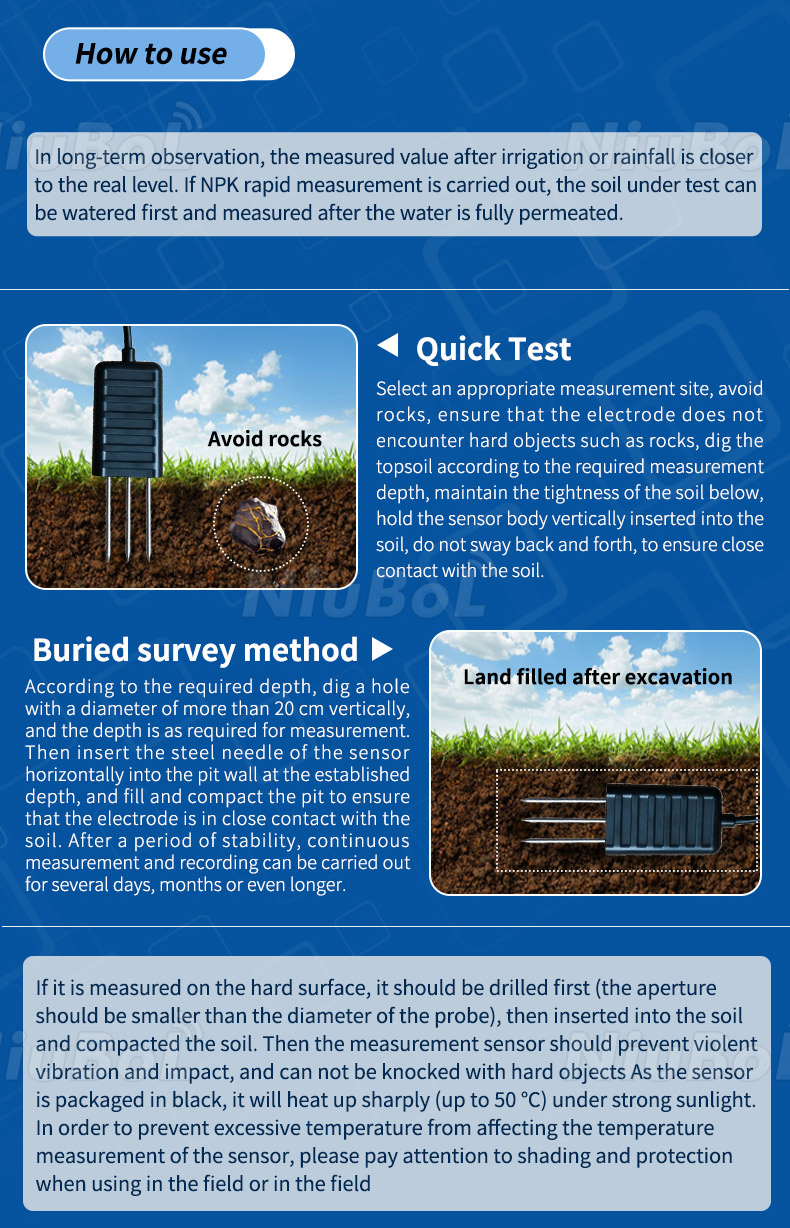

Quick Soil Measurement

Choose a representative measurement location and avoid stones or other hard objects. Insert the probe vertically into the soil and make sure all electrodes maintain close contact with the surrounding soil.

Do not repeatedly shake the sensor from side to side during insertion because this can create air gaps and change the contact conditions around the electrodes.

For small-area comparison, take several measurements at representative locations and compare or average the readings.

Long-Term Buried Monitoring

For long-term observations, dig a pit to the required monitoring depth and insert the probe horizontally into the undisturbed soil wall. Backfill and compact the soil so the electrodes maintain close contact with the surrounding soil.

After installation and stabilization, measurements can be collected continuously for days, months or longer through the RS485 monitoring system.

Measurement Conditions and Data Interpretation

For repeatable field monitoring, measurement conditions should be kept as consistent as practical.

• Maintain good contact between the soil and electrodes.

• Avoid very dry soil with poor electrical contact.

• Compare measurements taken under similar soil-moisture conditions.

• Avoid direct contact with stones or large air gaps.

• Use similar insertion depths when comparing monitoring points.

• Consider recent fertilizer application, irrigation and rainfall when interpreting changes.

The current instruction manual recommends maintaining close probe-to-soil contact and notes that measurements after rainfall or irrigation can provide more stable electrical contact for rapid field testing.:contentReference[oaicite:1]{index=1}

RS485 Modbus Communication

The NBL-S-NPK uses RS485 Modbus RTU and can connect directly to compatible PLCs, RTUs, data loggers and IoT gateways.

NBL-S-NPK → RS485 Modbus → PLC / Data Logger → 4G / Ethernet / LoRaWAN Gateway → MQTT / HTTP → Cloud or Customer Server

The manual specifies red for positive power, black for negative power, yellow for RS485+ and blue for RS485-. The standard communication configuration is 9600 baud, 8 data bits and no parity.:contentReference[oaicite:2]{index=2}

Multiple NPK Sensors on One RS485 Bus

Multiple NBL-S-NPK sensors can be connected to the same RS485 communication bus when each sensor has a unique Modbus address.

For multi-sensor projects:

• Use unique Modbus addresses for each sensor.

• Use twisted-pair cable for RS485 A/B communication.

• Use a suitable centralized DC power supply.

• Consider voltage drop for long cable runs.

• Use daisy-chain topology where practical.

• Add RS485 termination according to cable length and network conditions.

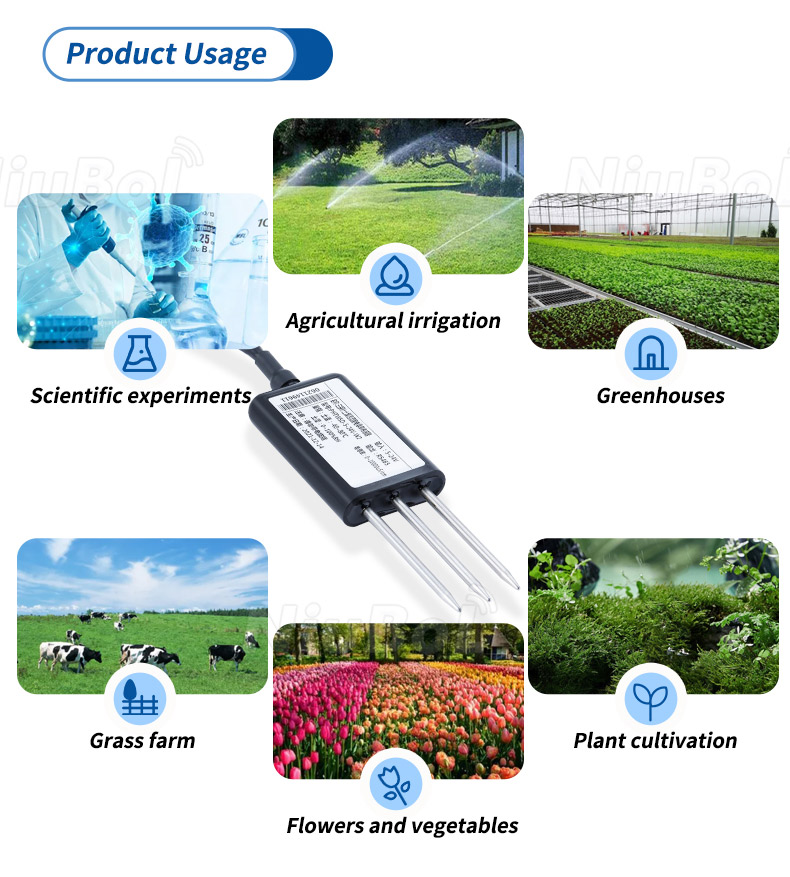

Typical Applications

The NBL-S-NPK can be used where rapid nutrient-related reference data and continuous digital monitoring are required.

• Precision agriculture

• Smart irrigation

• Greenhouse cultivation

• Scientific field experiments

• Soil monitoring networks

• Plant cultivation

• Grassland and pasture monitoring

• IoT agricultural monitoring systems

When Should You Choose a Multi-Parameter Soil Sensor?

For many projects, NPK data should be interpreted together with soil moisture, temperature and EC because these parameters can influence electrical measurement conditions.

If several soil parameters are required at the same monitoring point, an integrated sensor may reduce wiring and installation complexity.

Soil NPK Sensor FAQ

Q1. Does the NBL-S-NPK directly measure laboratory-accurate N, P and K?

A1. No. It is a field-monitoring sensor intended to provide NPK reference and trend values. Laboratory analysis should be used where actual nutrient concentration and high analytical accuracy are required.

Q2. What is the NPK measurement range?

A2. The sensor outputs 0–2000 mg/kg for each nitrogen, phosphorus and potassium channel, with 1 mg/kg resolution.:contentReference[oaicite:3]{index=3}

Q3. Can the sensor remain buried in soil?

A3. Yes. The sensor has an IP68 sealed structure and the manual describes a buried installation method for long-term monitoring. Correct probe-to-soil contact is important.:contentReference[oaicite:4]{index=4}

Q4. Can the sensor connect directly to a PLC?

A4. Yes. The NBL-S-NPK uses RS485 Modbus RTU and can connect to compatible PLCs, RTUs and data loggers.

Q5. Can several NPK sensors share one RS485 bus?

A5. Yes. Each sensor should use a unique Modbus address, and the RS485 power supply, wiring and termination should be designed for the total network.

Q6. Why does the reading change after irrigation?

A6. Water content changes the electrical characteristics of the soil and the contact between soil and electrodes. For trend comparison, measurements should therefore be made under reasonably consistent conditions.

Q7. Can the NPK sensor be used for automatic fertilizer recommendations?

A7. The sensor can provide reference and trend information, but it should not be the only basis for fertilizer dosage. Accurate fertilizer recommendations should also consider laboratory soil analysis, crop requirements, growth stage and agronomic conditions.

Q8. Can the sensor data be uploaded to a private server?

A8. Yes. The RS485 sensor can connect to a compatible data logger or IoT gateway, which can then transmit data through 4G, Ethernet or other networks using supported protocols such as MQTT or HTTP.

NBL-S-NPK Datasheet

The instruction manual contains specifications, wiring, installation instructions, Modbus commands and register information.

Download NBL-S-NPK Soil NPK Sensor Instruction Manual →

Request a Soil NPK Sensor Quotation

For quotation and system selection, provide the required quantity, cable length, number of monitoring points, installation depth and whether the sensor will connect directly to a PLC, data logger, LoRaWAN node or other IoT system.

For larger projects, also provide the approximate distance between monitoring points, available power supply and whether data must be uploaded to a cloud platform or private server.

View NBL-S-NPK Soil NPK Sensor →
