Capacitive Multi-Layer Soil Moisture Sensor

NBL-S-TMSMS Sensor integrates capacitive soil moisture measurement with high-precision digital temperature sensing. By detecting frequency changes of electromagnetic waves in media with varying dielectric constants, it accurately measures soil volumetric water content while a built-in high-precision temperature sensor records soil temperature. The sensor supports multi-depth monitoring, with standard configurations measuring soil parameters at depths of 10cm, 20cm, 30cm, and ···

Inquiry

Tel/WhatsApp:+8615367865107

Email:Arvin@niubol.com +Nearly 100 partner company in more than 68 countries. We are committed to providing high-quality, practical products to meet your needs and help you solve problems.

Product Details

NBL-S-TMSMS Capacitive Multi-Layer Soil Moisture Sensor - Precision Monitoring for Smart Agriculture

In modern agriculture, precise monitoring of soil moisture and temperature is critical for achieving water-saving irrigation, optimizing crop growth, and increasing yields. The NBL-S-TMSMS Capacitive Multi-Layer Soil Moisture Sensor is a high-precision, reliable device designed for measuring soil moisture and temperature, tailored for agricultural production, scientific research, and environmental monitoring. Utilizing advanced FDR (Frequency Domain Reflectometry) technology and capacitive principles, this sensor provides real-time monitoring of multi-layer soil moisture and temperature, offering farmers, agricultural researchers, and greenhouse managers a scientific basis for decision-making.

  Multi depth soil moisture sensor.png

 Multi-Layer Soil Moisture Sensor Product Overview

The NBL-S-TMSMS Sensor integrates capacitive soil moisture measurement with high-precision digital temperature sensing. By detecting frequency changes of electromagnetic waves in media with varying dielectric constants, it accurately measures soil volumetric water content while a built-in high-precision temperature sensor records soil temperature. The sensor supports multi-depth monitoring, with standard configurations measuring soil parameters at depths of 10cm, 20cm, 30cm, and 40cm, and can be customized for up to 10 layers to meet diverse agricultural needs.

Known for its low power consumption, easy installation, durability, and IP68 protection rating, this sensor is ideal for harsh environments. Whether used for water-saving irrigation, greenhouse management, pasture monitoring, or scientific research, the NBL-S-TMSMS delivers reliable data support.

 Multi depth soil moisture sensor.jpg

 Core Features of the NBL-S-TMSMS Capacitive Multi-Layer Soil Moisture Sensor

1. Multi-Layer Soil Monitoring

   Supports moisture and temperature measurements at multiple depths (standard: 10cm, 20cm, 30cm, 40cm; customizable up to 10 layers). Real-time data collection provides comprehensive insights into soil moisture dynamics.

2. High-Precision Measurement

   - Soil Volumetric Water Content:

     - Range: Dry soil to saturated soil

     - Accuracy: ±3% (laboratory conditions)

     - Resolution: 0.1%

   - Soil Temperature:

     - Range: -40°C to 80°C

     - Accuracy: ±0.5°C

     - Resolution: 0.1°C

3. Durable Design

   - Made of high-quality plastic tubing, resistant to aging and soil acid-alkali-salt corrosion.

   - Sealed with epoxy resin, suitable for long-term submersion in water, with an IP68 rating for underground components and IP67 for above-ground parts.

   - Operates reliably in extreme conditions: -40°C to 80°C, 0-100% RH.

4. Low Power Consumption and Flexible Power Supply

   - Supports DC12V or solar power, with power consumption below 1mA in sleep mode and 70mA during sampling, ideal for long-term field deployment.

   - Solar power option reduces maintenance costs, suitable for remote areas.

5. Intelligent Features

   - Supports RS485 MODBUS protocol for seamless integration with agricultural management systems.

   - Optional GPS positioning (accuracy within 10m), tilt measurement (angle resolution 0.005°), and vibration alarm functions enhance device security and data reliability.

   - Power and signal lines feature multi-directional anti-misconnection protection to reduce installation errors.

6. Easy Installation and Maintenance

   - Compact size (diameter 63mm, standard length ~1000mm) and simple installation without complex tools.

   - Modular design facilitates maintenance, requiring minimal calibration for long-term operation.

 Multi depth soil moisture sensor.png

 Application Scenarios

The NBL-S-TMSMS Sensor is widely used in the following areas, providing precise data support for agriculture and research:

1. Water-Saving Agricultural Irrigation

   Multi-layer soil moisture monitoring optimizes irrigation timing and volume, reducing water waste. For example, it helps orchard managers precisely control irrigation at root depths, improving water and fertilizer efficiency.

2. Greenhouse Management

   Real-time monitoring of soil moisture and temperature ensures optimal growth conditions for vegetables, flowers, and other crops. High-precision data supports greenhouse automation systems, enhancing yield and quality.

3. Grassland and Pasture Management

   Monitors soil moisture to optimize pasture growth cycles, enabling informed grazing and irrigation decisions to prevent soil degradation.

4. Rapid Soil Testing and Scientific Research

   Provides high-precision soil data for researchers studying soil moisture dynamics, crop growth models, and climate change. Multi-layer monitoring suits complex soil profile analysis.

5. Plant Cultivation and Horticulture

   Monitors root zone conditions in floriculture and plant cultivation, ensuring healthy growth and minimizing losses due to under- or over-watering.

Multi-Layer Soil Moisture Sensor (1).jpg

 Multi-Layer Soil Moisture Sensor Technical Specifications

Power SupplyDC12V or solar power
Output Format: RS485 MODBUS protocol
Soil Volumetric Water Content:

  - Range: Dry soil to saturated soil

  - Accuracy: ±3% (laboratory conditions)

  - Resolution: 0.1%

Soil Temperature:

  - Range: -40°C to 80°C

  - Accuracy: ±0.5°C

  - Resolution: 0.1°C

GPS Positioning (Optional): Accuracy within 10m
Tilt Measurement (Optional): 3-axis tilt sensor, angle resolution 0.005°
Vibration Alarm (Optional): Reports GPS data upon vibration trigger
Dimensions: Diameter 63mm, length ~1000mm (varies with number of monitoring nodes)
Power Consumption: Sleep mode <1mA, sampling <70mA
Operating Environment: -40°C to 80°C, 0-100% RH
Protection Rating: Above-ground: IP67, Underground: IP68

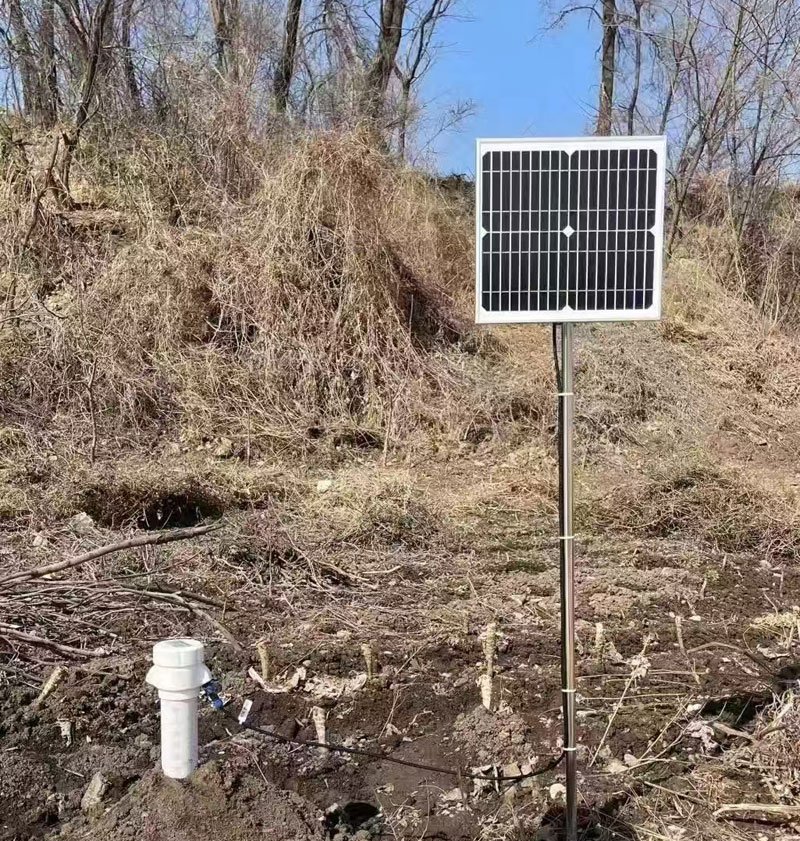

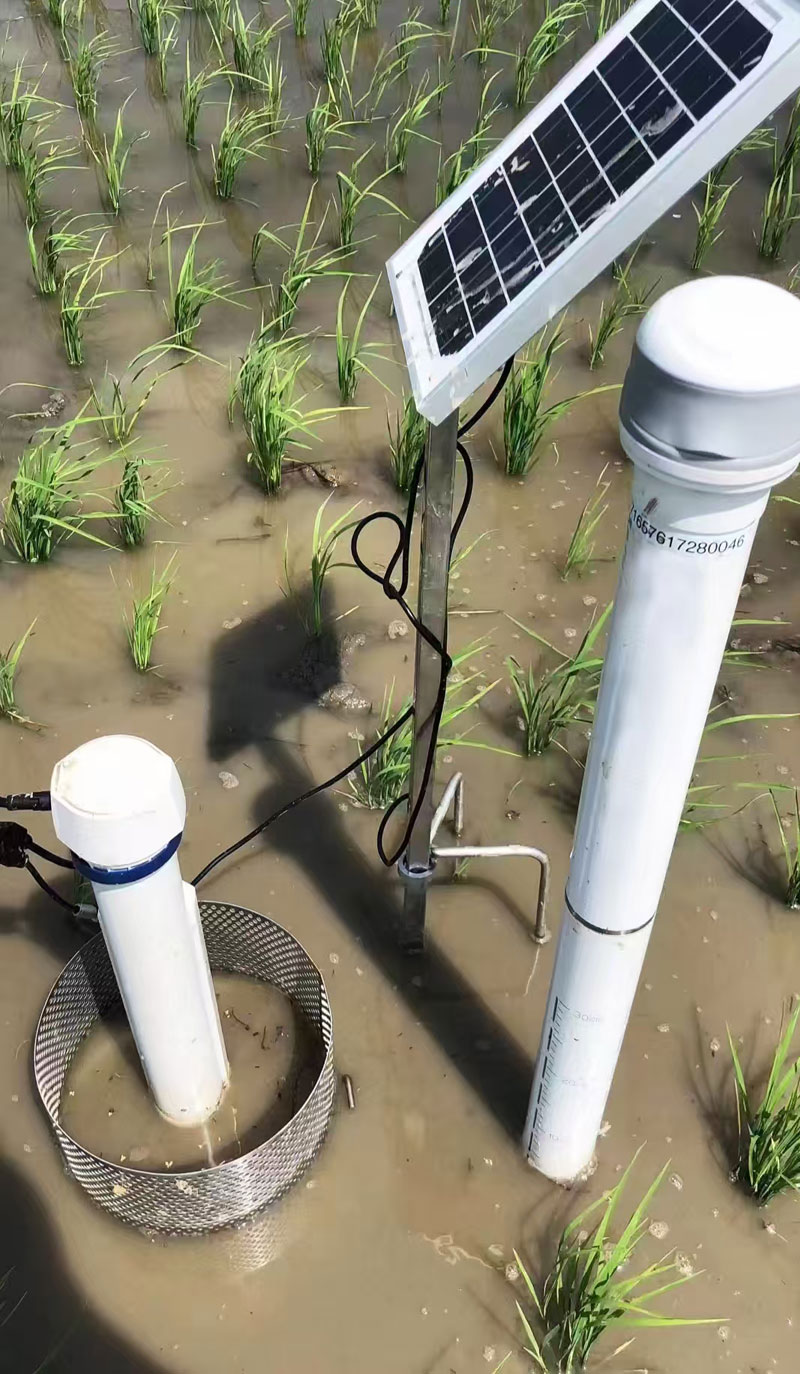

 Installation and Deployment Recommendations

To ensure representative and accurate data, careful selection of installation locations is essential. Below are key recommendations:

 1. Choose Representative Plots

   Monitoring points should be located in areas with dominant crops and typical soil types, reflecting regional soil and planting conditions. Prioritize plots with the largest crop coverage and minimal soil or terrain variation.

2. Terrain and Distance Requirements

   - Place monitoring points ~20m from plot edges or roads, avoiding low-lying areas prone to water accumulation.

   - Maintain a distance of >50m from ditches or water channels to prevent seepage-related measurement errors.

   - In hilly areas, select plots >1 acre with gentle slopes, avoiding gully bottoms or steep inclines.

   - In flat plains, choose plots >10 acres that are level and not prone to waterlogging.

3. Stability and Continuity

   Once selected, monitoring locations should remain fixed to ensure data consistency and comparability over time.

4. Installation Steps

   - Use specialized tools to vertically insert the sensor into the soil, ensuring monitoring nodes align with target depths.

   - Connect power and signal lines, verifying anti-misconnection protection.

   - Configure RS485 output or optional features (e.g., GPS, tilt measurement) and validate data transmission via provided software or platforms.

 Multi depth soil moisture sensor.png

 Unique Advantages of the NBL-S-TMSMS Sensor

1. Multi-Layer Monitoring Capability

   Supports up to 10 layers of soil parameter monitoring, covering various root depths for comprehensive data in complex agricultural scenarios.

2. High Protection Rating

   Underground IP68 rating ensures resistance to prolonged water submersion and soil corrosion, guaranteeing long-term stability in harsh environments.

3. Optional Intelligent Features

   GPS positioning, tilt measurement, and vibration alarms enhance security and data reliability, ideal for unattended field deployments.

4. Flexible Integration

   RS485 MODBUS protocol enables seamless integration with mainstream agricultural management systems for data analysis and automation.

5. User-Friendly Design

   Low power consumption, solar power options, and simple installation reduce operational and maintenance costs, suitable for farms and research projects of all scales.

 Multi-Layer Soil Moisture Sensor (2).jpg

 How to Purchase?

1. Contact Us

   Reach out via email (sales@niubol.com) or our website (www.niubol.com) to learn about product details and customization options.

2. Customize Sensor Configuration

   Select appropriate monitoring depths and optional features (e.g., GPS or tilt measurement) based on your crop type, soil conditions, and monitoring needs.

3. Installation and Setup

   Follow the provided installation guide to deploy the device, connect to a data platform, and begin real-time soil moisture monitoring.

4. Data Analysis and Optimization

   Use provided software or integrate with existing agricultural management systems to analyze soil data and optimize irrigation and planting strategies.

FAQ:

Q: Is this sensor suitable for small farms?

A: Yes, the NBL-S-TMSMS is flexible and suitable for small farms, greenhouses, and large agricultural projects. Users can select monitoring depths and features based on their needs.

Q: Does the sensor require regular calibration?

A: The sensor is pre-calibrated at the factory and does not require frequent recalibration for long-term use. Annual checks are recommended to ensure optimal performance.

Q: How can it be used in areas without cellular networks?

A: The sensor supports RS485 output, allowing data storage via local data loggers. Contact us to explore alternative wireless solutions.

Q: Is solar power reliable?

A: The solar power system is optimized for reliability, even on cloudy days, with a built-in battery to support continuous operation in field conditions.

 Take Action Now to Optimize Soil Management!

The NBL-S-TMSMS Capacitive Multi-Layer Soil Moisture Sensor is the ideal choice for precision agriculture. With its high accuracy, multi-layer monitoring, and durable design, it helps you optimize irrigation, boost yields, and reduce resource waste.

Let the NBL-S-TMSMS sensor become your smart field assistant, driving bountiful harvests every season!
