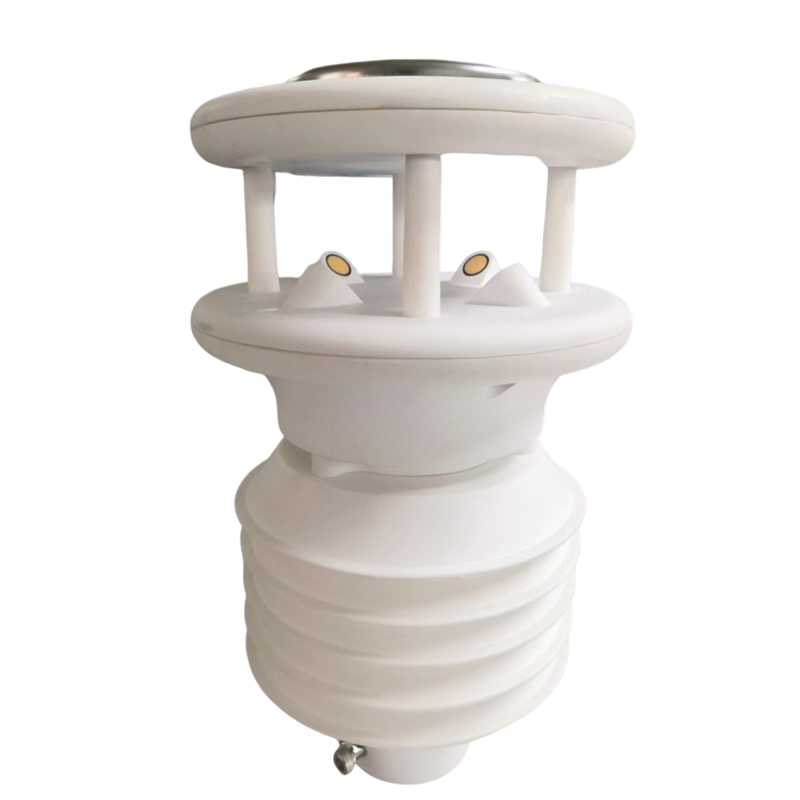

Ultrasonic Weather Station Sensor

All-in-One Ultrasonic Weather Station sensor is a fully digital detection, high-precision sensors, can quickly and accurately detect the wind speed, wind direction, atmospheric temperature, atmospheric humidity, atmospheric pressure, the built-in signal processing unit can be output according to the user's needs of the corresponding signals, can be optionally integrated with the PM2.5, PM10, noise, radiation, rain and other elements. High-strength structural design can work reliably in the harsh climate environment, high integration, rugged. Widely used in meteorology, environment, airports, harbours, laboratories, industry and agriculture, and transport.

All-in-One Ultrasonic Weather Station sensor Technical parameter：

Weather Stations Technical parameter：

Ultrasonic weather station sensors are devices that use ultrasonic waves to measure various meteorological parameters such as wind speed, wind direction, air temperature, humidity, and so on. These sensors are commonly used in weather stations and meteorological applications to collect data on atmospheric conditions. Following are some of the key features and functions of ultrasonic weather station sensors.

1. Wind Speed and Direction:Ultrasonic sensors can accurately measure wind speed and direction by emitting ultrasonic pulses and calculating the time required for the pulses to travel in different directions. This method provides accurate and reliable measurements of wind characteristics. 2.

2. Temperature: Some ultrasonic weather station sensors are equipped with temperature sensors that measure the air temperature, providing valuable data for weather monitoring and analysis.

3. Humidity: Ultrasonic sensors can also measure relative humidity by detecting changes in the speed of sound in the air that are affected by the moisture content.

4. Precipitation: In some cases, ultrasonic sensors can detect precipitation by analysing the effect of raindrops on the ultrasonic signal.

5. Maintenance free:Ultrasonic sensors are known for their low maintenance requirements as they have no moving parts that are prone to wear and tear. This makes them a reliable choice for long-term weather monitoring.

6. All-in-one solution:Some ultrasonic weather station sensors combine multiple sensors in a single unit, providing a comprehensive solution for measuring various weather parameters in a single device.

7. Accuracy:Ultrasonic sensors are known for their high accuracy, providing reliable measurements.

8. Ease of use:Many models are designed to be user-friendly, with clear displays and easy-to-understand interfaces.

Ultrasonic weather stations are valuable tools for anyone interested in monitoring local weather conditions, from amateurs to professionals. They are also used for environmental monitoring, urban planning and research purposes. With the rise of the Internet of Things (IoT), many ultrasonic weather station sensors can be integrated into larger systems, allowing for remote monitoring and data analysis.

Overall, ultrasonic weather station sensors provide accurate, reliable and efficient measurement capabilities for a range of weather parameters, making them an invaluable tool for weather monitoring, research and forecasting applications.

All-in-One Ultrasonic Weather Station Installation Methods

Installation methods are as follows:

Positioning: generally the unit is mounted on a vertical mounting tube to ensure that measurements are taken on the same horizontal plane;

Alignment: the detector should be installed with the pointing point pointing north before fixing.

Note: It is ideal to use a standard compass to determine the geographic north pole direction during installation and to keep the instrument pointing north in the same direction as the compass;

Installation: The mounting tube requires 3 equally spaced holes, tapping M5 screws, positioned 7.5mm from the top of the tube, and passing the cable through the mounting tube;

NOTE: The user must properly strain relief the cable. The plug can be connected to the unit's plug by rotating the plug and gently pushing inwards. Once the plug is attached, the plug can be locked in place by turning the outer sleeve clockwise. The device can be fixed to the mounting tube using 3 stainless steel screws. The customer must ensure that the unit is installed in an open area so that surrounding buildings do not obstruct the airflow or cause flocculation. Do not install the unit next to radar or radio transmitters.

All-in-One Ultrasonic Weather Station sensor data sheet

All-in-One-Ultrasonic-Weather-Sensor-Instruction-Manual.pdf
