Solar Panel Soiling Measurement

Efficient Operation and Maintenance of Photovoltaic Power Plants: A Comprehensive Analysis of Solar Panel Soiling Monitoring System

As the global demand for renewable energy continues to grow, the power generation efficiency of photovoltaic (PV) power plants has become a focal point in the industry. However, contaminants on the surface of solar panels, such as dust, bird droppings, or pollen, can significantly reduce the power generation efficiency, directly impacting the revenue of the plant. To address this challenge, the Solar Panel Soiling Monitoring System (Soiling Measurement System) has been developed. This article will provide an in-depth introduction to the system’s functionality, technical specifications, operating principles, and usage methods, assisting PV plant operators in optimizing operation and maintenance decisions and improving economic benefits.

Why is a Soiling Monitoring System Needed?

The cleanliness of solar panels directly affects the power generation capacity of photovoltaic power plants. Studies show that surface contamination can lead to a loss of up to 20% or more in power output, especially in arid, dusty, or highly polluted regions, where this problem is particularly prominent. Traditional cleaning strategies often rely on fixed schedules or manual inspections, making it difficult to precisely determine when cleaning is necessary. This can result in either excessive cleaning that increases costs or delayed cleaning, causing power generation losses.

The soiling monitoring system measures the percentage of contamination on the solar panel surface in real-time (Soiling Ratio, SR), accurately calculating the impact of contamination on power generation. Operators can use the data to determine the optimal cleaning time, avoiding unnecessary maintenance costs while ensuring efficient operation of the power plant.

Core Advantages of the Soiling Monitoring System

This system utilizes innovative blue light pollutant optical closed-loop measurement technology and offers the following significant advantages:

- Easy Installation: Suitable for both new and existing PV arrays, it can be directly mounted on the solar panel frame and seamlessly integrated with the plant management system.

- Accurate Measurement: Continuously monitors the contamination ratio and converts it into data on power generation loss, helping operators make quick decisions.

- Maintenance-Free Design: No additional maintenance required, only needing to wipe the sensor during solar panel cleaning.

- High Adaptability: Supports the standard MODBUS protocol, making it compatible with various plant management systems, ideal for global photovoltaic projects.

Soiling Monitoring System Sensor Technical Specifications：

- Power Supply Voltage: DC 12V

- Signal Output: RS485

- Communication Protocol: Standard MODBUS Protocol

- Baud Rate: 9600 bps

- Average Power Consumption: Only 1W, energy-efficient

- Contamination Measurement Range: 50%–100%

- Measurement Accuracy:

  - ±1% (90%–100% range)

  - ±3% (80%–90% range)

  - ±5% (50%–80% range)

- Temperature Measurement (Optional): -50°C to +100°C, accuracy ±0.5°C (at 25°C)

These parameters ensure that the system provides reliable data support in various environmental conditions.

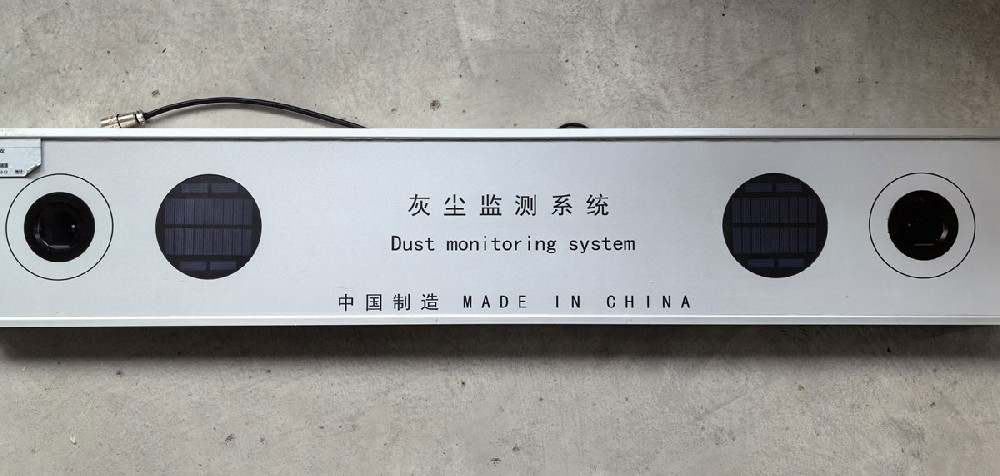

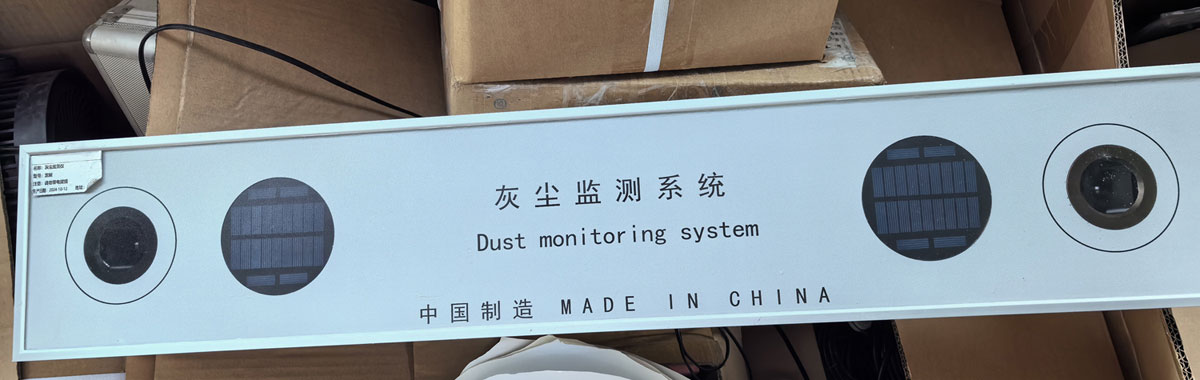

Working Principle of the Soiling Sensor: Optical Technology for Precise Monitoring

The core of the soiling monitoring system lies in its optical infrared photodiode technology. The sensor emits light and detects the reflected signals from the surface of the solar panel, analyzing the relationship between the reflection intensity and surface cleanliness. The specific workflow is as follows:

1. Light Signal Detection: The optical infrared photodiode continuously captures the reflected light from the surface of the solar panel.

2. Data Processing: The microcontroller receives and processes the light signal data, calculating the cleanliness based on a pre-set calibration model.

3. Contamination Ratio Output: The reflected light intensity is converted into the contamination ratio (SR), which is further used to estimate power generation loss.

This technology ensures high-precision soiling monitoring, making it suitable for various climates and pollution types.

Installation Method for the Soiling Sensor

1. Install the Equipment:

   - Use special clamps to fix the sensor at the top or side of the solar panel, ensuring it is on the same level as the panel.

   - Ensure the sensor's mirror surface faces the panel to accurately detect surface contamination.

2. Connect the Wires:

   - Connect the RS485 communication line and DC 12V power supply line.

   - If only AC power is available on-site, an outdoor AC-to-DC 12V power converter can be used.

3. Calibrate the Equipment:

   - Perform calibration between 12:00 PM and 2:00 PM on a clear, sunny day.

   - Clean the sensor’s mirror surface, then press and hold the calibration button for 10 seconds and release it to complete the calibration.

4. Routine Cleaning:

   - During each cleaning of the solar panels, wipe the sensor probe to ensure accurate measurements.

5. Precautions:

   - Calibration Environment: Calibration should be done under strong sunlight, with no cloud cover, to ensure accurate data.

   - Regular Cleaning: The sensor probe must be cleaned along with the solar panel to avoid data discrepancies due to probe contamination.

   - Power Stability: Ensure a stable DC 12V power supply to avoid voltage fluctuations that may affect the device’s operation.

Why Choose Our Soiling Monitoring System?

In the increasingly competitive global photovoltaic market, plant managers need smarter tools to optimize operating costs and power generation efficiency. Our soiling monitoring system, with its high accuracy, ease of use, and low maintenance costs, perfectly meets this demand. Whether for large PV power plants in desert areas or small rooftop systems in cities, this product offers reliable support.

Furthermore, the system supports the standard MODBUS protocol, making it easy to integrate with existing plant management systems, providing users with real-time data and remote monitoring capabilities. This not only enhances operational efficiency but also ensures the long-term profitability of the power plant.

Conclusion

The solar panel soiling monitoring system is an important step toward the intelligent operation and maintenance of photovoltaic power plants. By continuously monitoring the contamination ratio, operators can make scientific decisions about when to clean, minimize power generation losses, and reduce unnecessary maintenance costs. With advanced optical technology and user-friendly design, this system is an ideal choice for photovoltaic plant managers worldwide.

If you wish to improve the efficiency and profitability of your photovoltaic power plant, consider integrating our soiling monitoring system. Contact us today for more technical support and customized solutions!
