NBL-S-TMC-7/ 7-in-1 Soil Integrated Sensor Data Sheet

Time:2024-03-09 15:43:40 Popularity:7276

The NBL-S-TMC-7 7-in-1 Soil Integrated Sensor combines seven reported soil parameters in one probe: soil temperature, volumetric moisture, electrical conductivity (EC), pH, nitrogen (N), phosphorus (P) and potassium (K).

The sensor uses dielectric-based soil moisture measurement and provides an RS485 communication interface for compatible data loggers, PLCs and agricultural monitoring systems. It is intended for applications such as irrigation monitoring, greenhouses, crop cultivation and field soil-condition observation.

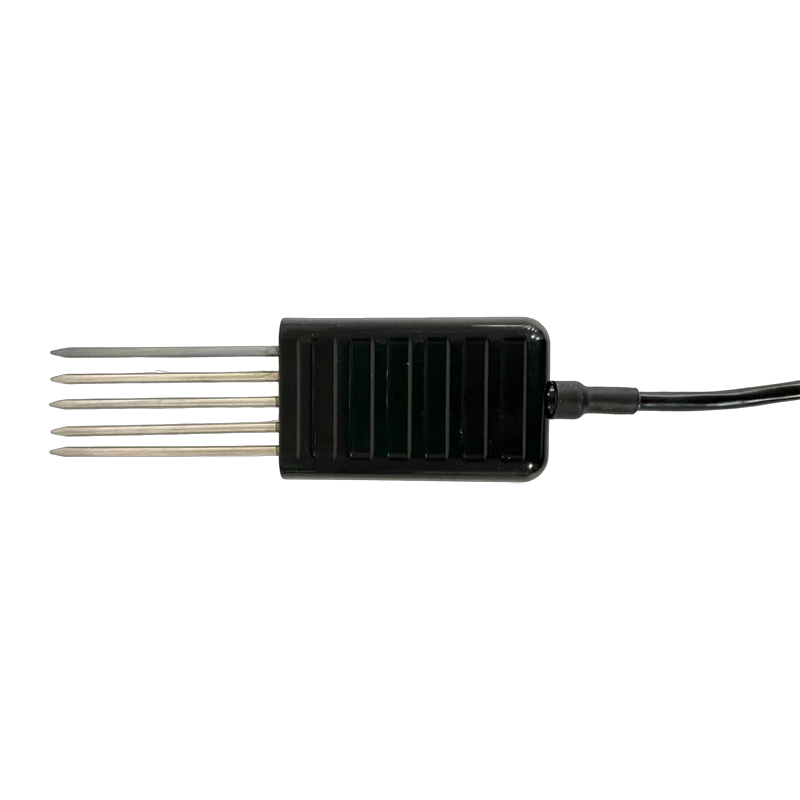

7-in-1 Soil Integrated Sensor.png

Measurement Parameters

ParameterPublished Specification
Soil Temperature-40 to +80°C
Soil Moisture0–100%
Electrical Conductivity0–10,000 μS/cm
Soil pH0–10 pH (indicative measurement)
N, P and K Indicators0–2,000 mg/kg displayed range
Power SupplyDC 5–24V
OutputRS485
Published Baud Rate9,600 bps

Important Notes on Soil NPK and pH Measurements

Soil NPK: The nitrogen, phosphorus and potassium values are empirical estimates derived from electrical conductivity-related measurements and conversion factors. They are not independent chemical measurements of actual soil nutrient concentrations and should not be treated as equivalent to laboratory soil analysis.

Soil pH: The integrated electrode-based pH measurement is intended as an indicative field reading. Measurement stability and accuracy can vary with soil conditions. For applications requiring more accurate pH determination, a suitable glass-electrode measurement method is recommended.

Soil type, moisture, salinity, temperature and probe contact may affect field readings. Agricultural nutrient-management decisions requiring quantitative NPK concentrations should be supported by appropriate laboratory analysis and local agronomic guidance.

Download the Instruction Manual

PDF 7-in-1-Soil-Composite-Sensor-Manual.pdf

The manual includes product specifications, wiring information, installation methods and communication instructions. For the current product configuration, see the 7-in-1 Soil Integrated Sensor product page.
