Professional Soil Moisture Meter

Product Introduction: Professional Soil Moisture Meter

The Professional Soil Moisture Meter is a portable multi-parameter soil testing device specifically developed for agricultural, forestry, geological exploration, environmental research, and other applications. The device integrates soil temperature and humidity sensors and can measure various parameters such as pH, salinity, and electrical conductivity (EC) by simply adding the corresponding sensors. It supports real-time data display, storage, and export.

The instrument adopts high-precision agricultural environmental sensors and transmitters developed by the company, paired with a handheld main unit and interchangeable probes. This allows for versatile use and flexible functional expansion, making it an ideal tool for agricultural soil monitoring and scientific research.

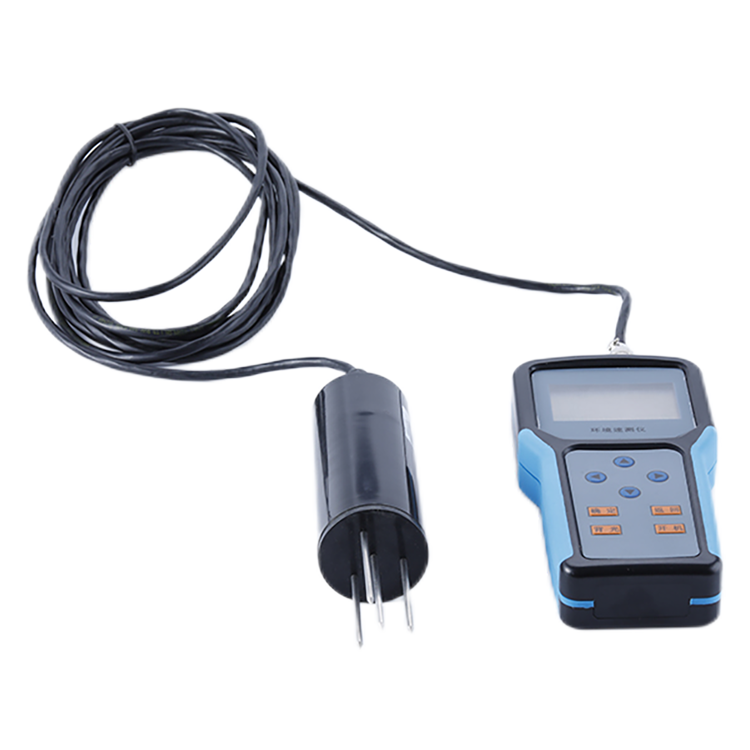

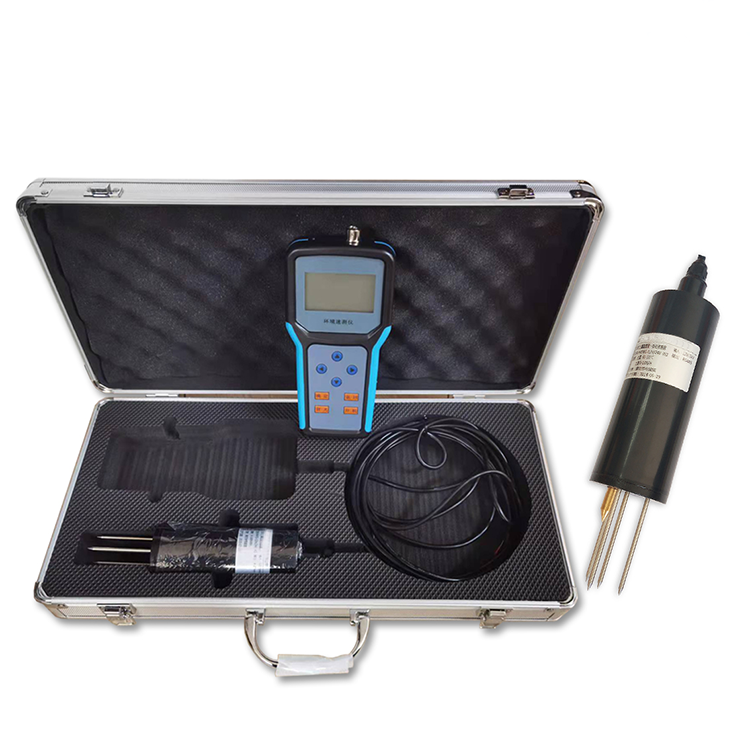

Components of the Professional Soil Moisture Meter:

- Handheld main unit (with large LCD display)

- Soil temperature and humidity sensor

- USB data cable

- Portable carrying case

- Companion computer software (for data export and analysis)

Features of the Professional Soil Moisture Meter:

1. Compact and portable: Touch-button design for simple operation.

2. Large LCD dot matrix display: Multi-parameter display for clear and intuitive reading.

3. Automatic sensor recognition: No need to set parameters when changing probes.

4. Compatible with multiple sensors: Allows adding parameters as needed by purchasing additional sensors.

5. Large data storage: Built-in memory supports up to 20,000 data records.

6. Multiple data sampling modes: Supports manual recording and timed automatic sampling.

7. Power-off data protection: Records are not lost even in case of power failure.

8. Built-in high-precision GPS module: Automatically records latitude and longitude information with an error margin of <5 meters.

9. Convenient data export: One-click export to Excel for easy analysis and storage.

Applications of the Professional Soil Moisture Meter:

- Agricultural planting and water-saving irrigation monitoring

- Agricultural soil moisture monitoring

- Forestry soil quality assessment

- Grassland and pasture environmental testing

- Geological exploration and soil classification

- Greenhouse planting and research experiments

- Environmental soil pollution monitoring

- Storage and outdoor soil status analysis

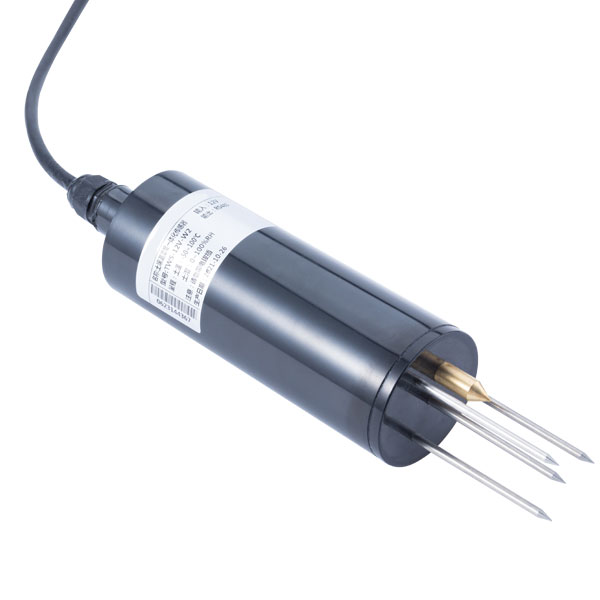

Soil Temperature and Moisture Sensor Technical Parameters:

- Soil moisture range: 0–100% (volume water content)

- Soil temperature range: -50 to 100°C

- Resolution: Moisture 0.1%, Temperature 0.1°C

- Measurement accuracy: Moisture ±3%, Temperature ±0.5°C

- Power supply voltage: DC 12V–24V

- Probe protection level: IP68 (fully waterproof)

- Response time: <1 second

This sensor uses electromagnetic wave pulse principles, accurately measuring moisture based on changes in soil dielectric constant, unaffected by metal ions or fertilizer components in the soil, ensuring data reliability.

Data Management and Software Functions of the Professional Soil Moisture Meter:

- The collector supports connection to a computer via USB data cable.

- Dedicated software supports real-time data viewing, historical data export, and chart generation.

- Data format is Excel, making it easy for users to process, analyze, or store data long-term.

Summary:

The Professional Soil Moisture Meter is a high-precision, multi-functional, portable, and expandable professional-grade agricultural soil measurement tool. It is suitable for daily agricultural management and also meets higher-level monitoring needs for scientific research, teaching, and environmental assessment. Its excellent compatibility and data management capabilities make it highly valuable in modern smart agriculture and environmental science fields.

Handheld Tester PC Software Installation Kit and Configuration File

https://www.niubol.com/Instruction-Manual/Handheld-Tester-PC-Software.html
