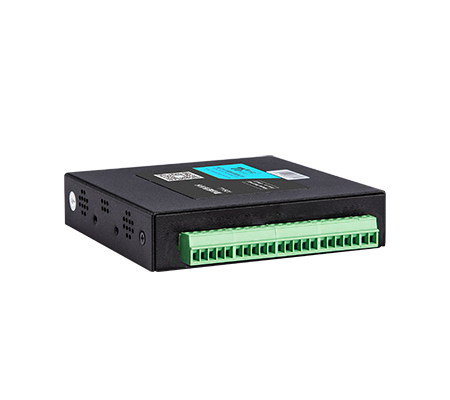

TG501 Industrial Remote Measurement and Control Terminal Technical Specifications

TG501 series RTU is an industrial remote measurement and control terminal integrating data acquisition and 4G data transmission functions. It adopts a minimalist design to meet the key industrial data acquisition requirements, with analog input, switch input, multiple RS232 and RS485 interfaces, and the system adopts safety isolation technology, which is applicable to the collection, storage and transmission of on-site monitoring data of industrial-level applications, such as energy monitoring, heating network, intelligent gas, intelligent environmental protection, intelligent water conservancy, intelligent agriculture, and so on. It is suitable for collecting, storing and transmitting on-site monitoring data for energy monitoring, heating network, intelligent gas, intelligent environmental protection, intelligent water conservancy, intelligent agriculture and other industrial-level applications.

RTU Product interface design:

 2 RS232 interfaces (1 as debug port), 1 RS485 interface (can be expanded to 2)

 3 analog input interfaces (16-bit AD, support 4-20mA current or 0-5V voltage signal)

 2 switch inputs and 2 switch outputs (optional)

 Compatible with all kinds of flow meters, pressure, water quality analyzers, liquid level, industrial serial cameras, PLCs, intelligent serial screens and other instruments.

 can support utility or solar power supply

 Support a variety of serial data acquisition, such as flow, pressure, liquid level and other data acquisition

 Supports analog and switch data acquisition and relay output control.

 Support Modbus TCP/Modbus RTU protocol, MQTT protocol, etc.

 Integrated design of acquisition and transmission, stable communication, cost saving, integrated data acquisition and 4G/2G DTU function.

 Support 4G wireless cellular network, RS232/RS485, optional NB-IOT, Beidou and other communication modes.

Other functions:

◆ Long-term preservation of setting parameters and historical data, providing 16MB of data storage space, which can store more than 10 years of collection data.

◆ Support battery voltage and other state reporting function.

◆ Support picture capture function (can be connected to up to 4 cameras)

◆ Low power consumption design: support a variety of working modes (including self-reporting, query, compatible, etc.), minimize power consumption.

Supports serial port configuration, remote configuration and other configuration modes.

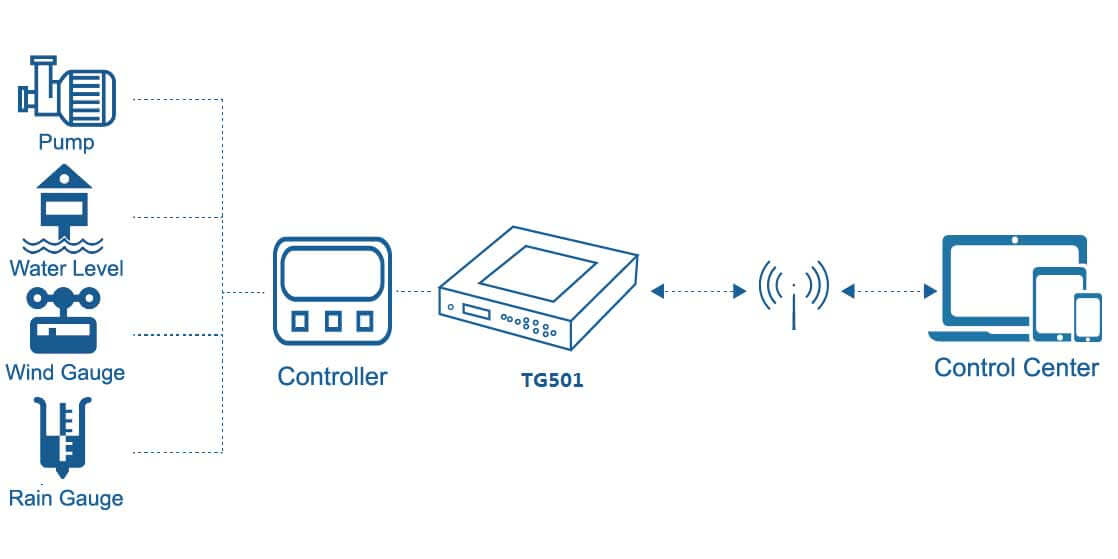

RTU application areas

TG501 miniature industrial RTU is suitable for collecting, storing and transmitting on-site monitoring data of energy monitoring, heating pipe network, intelligent gas, intelligent environmental protection, intelligent water conservancy, intelligent agriculture and other industrial applications.
