LoRaWAN Gateway
With its excellent performance and flexible networking form, LoRa technology is increasingly used in various industries and has a broad prospect. What is a LoRa gateway? A LoRa gateway is a bridge connecting LoRa devices and the Internet.
Tel/WhatsApp:+8615367865107
Email:Arvin@niubol.com +Nearly 100 partner companies in more than 68 countries. We are committed to providing high-quality, practical products to meet your needs and help you solve problems. Our products comply with international standards and are certified with ISO, CE and RoHS.Product Details

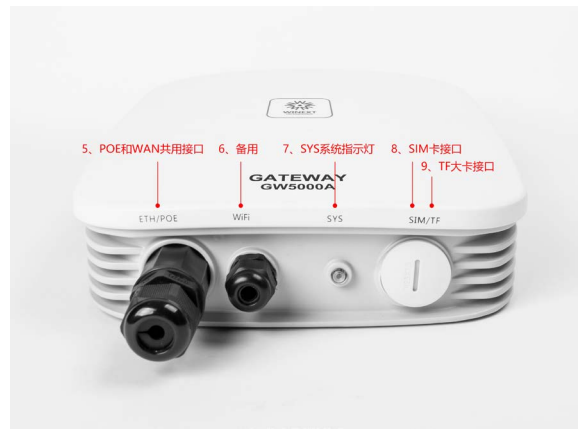

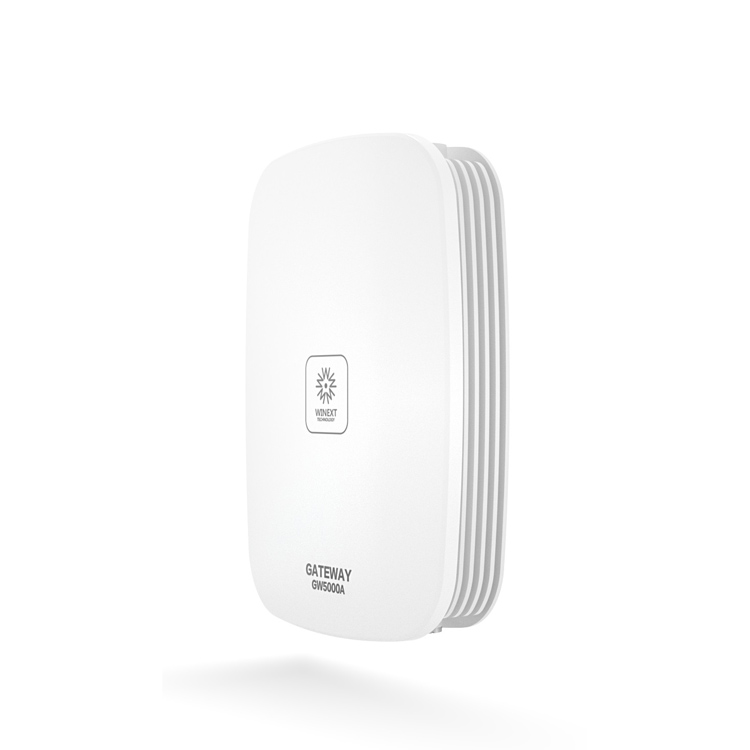

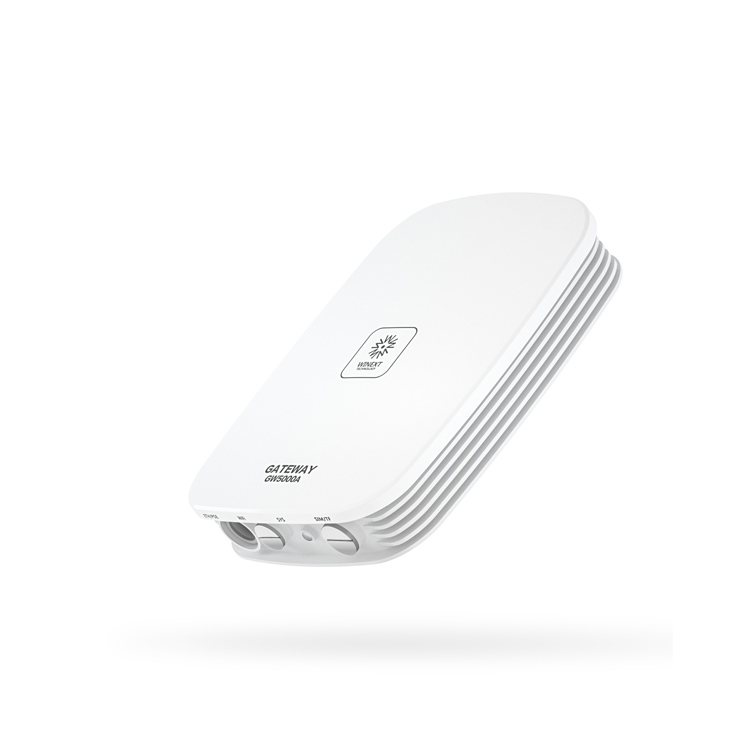

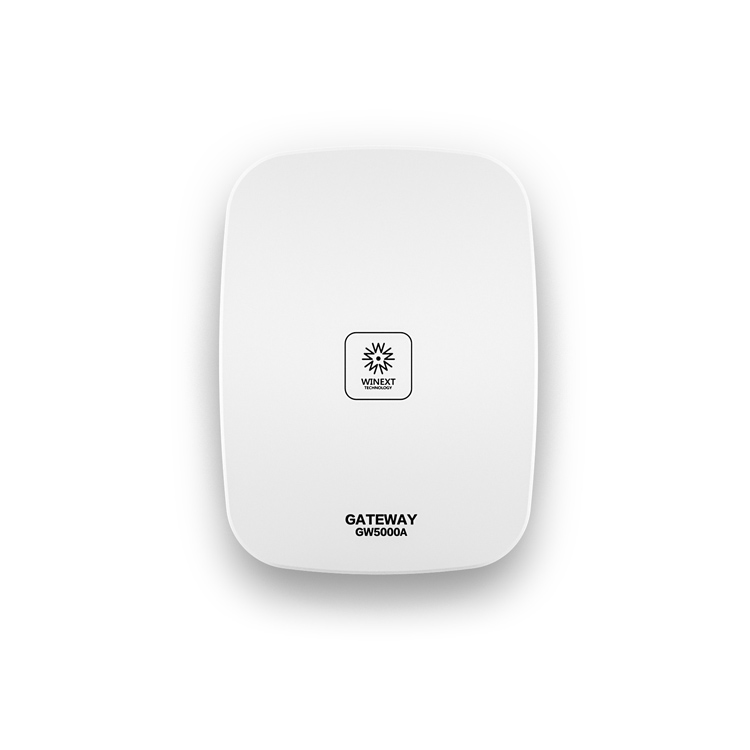

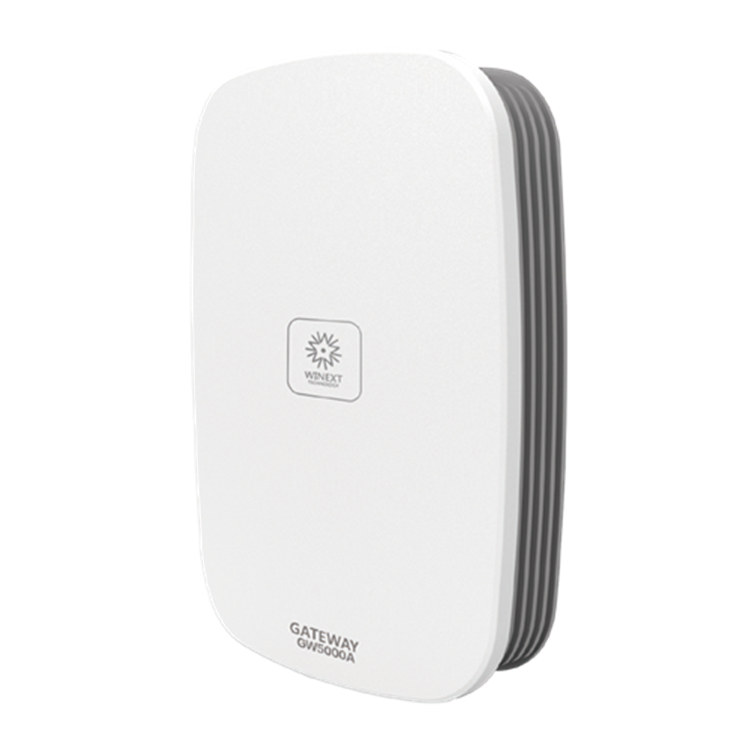

GW5000A is an enterprise-grade LoRaWAN® gateway that delivers low-power, bidirectional connectivity to thousands of sensors across a single deployment. By combining an 8-channel LoRa concentrator (Semtech SX130x) with 2G/3G/4G, Wi-Fi and GPS radios, the unit forms a plug-and-play bridge between field devices and any standard IoT cloud.
Star architecture lets battery-powered end-nodes reach the gateway in a single 15 km* hop, while an on-board Linux computer translates LoRaWAN packets into IP traffic for immediate ingestion by public or private servers.
*Line-of-sight; actual range depends on environment and antenna.
- Global band support – CN470, EU868, US915, AS923, AU915, KR920, IN865 (user-selectable)
- 8 simultaneous uplink channels, full- or half-duplex operation
- Built-in network-server option (iot-vision) or seamless hand-off to, TTN, ChirpStack, AWS IoT Core, LinkWAN, etc.
- IPv6 & Modbus-TCP ready for SCADA and IT integration
- IP67 aluminium enclosure, –40 °C to +85 °C, PoE+ or 12 V DC supply
- CE & FCC certified for worldwide shipment
Smart parking | Fire & safety monitoring | Livestock & asset tracking | Power-cable temperature sensing | Street-light control | Precision agriculture | Environmental monitoring
| Technical parameter | CPU | Industrial Grade CPU operating at 400MHZ |
| Memory | 64M DDR2 RAM, 16M SPI FLASH | |
| System | Linux-3.18.27 (32-bit system,128kB L2 cache) | |
| Wireless parameter | LoRa data rate | 292bps～5.4Kbps |
| Ethernet communication rate | 100Mbps | |
| LTE communication rate | 50Mbps | |
| Working frequency | CN470~510MHz EU863~870MHz US902~928MHz AS920~925MHz AU915~928MHz KR920~923MHz RU864~870MHz IN865~867MHz | |
| Max transmission power | 26dBm | |
| Rx sensitivity | -142dBm@SF12 (half-duplex) / -138dBm@SF12 (full-duplex) | |
| Channels | 8 Data Channels, 1 Control Channel | |

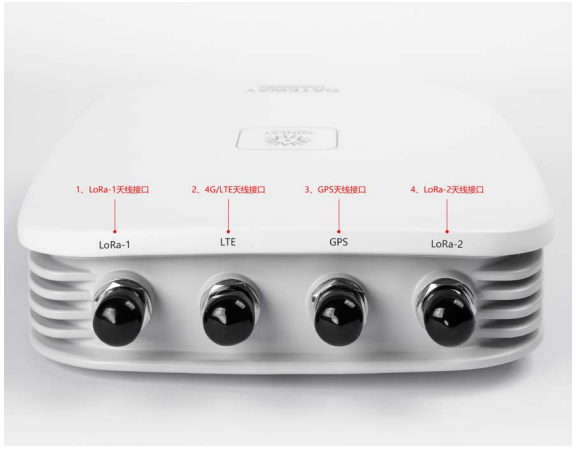

| Communication interface | 1*LAN, 1*WAN, 1*WIFI, 1*LTE module | |
| Electrical specification | Input | POE power supply with 48V input (24~48V) |
| Power Consumption | 7W | |
| Working temperature | -40℃～80℃ | |
| Working humidity | 5%～95% (no condensing) | |
| Physical parameter | Ingress Protection | IP67 |

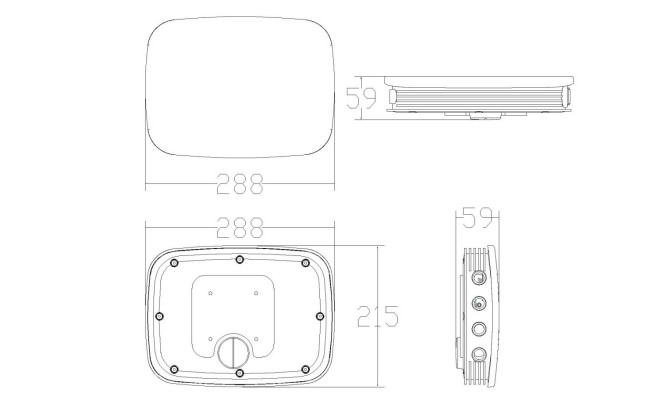

| Dimension | 288mm × 215mm × 59mm | |

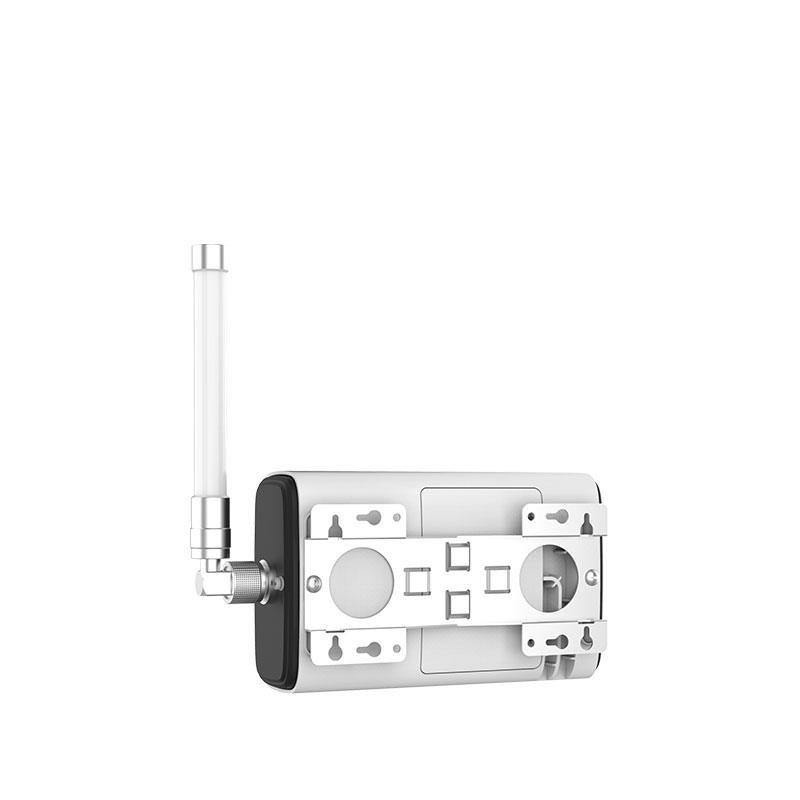

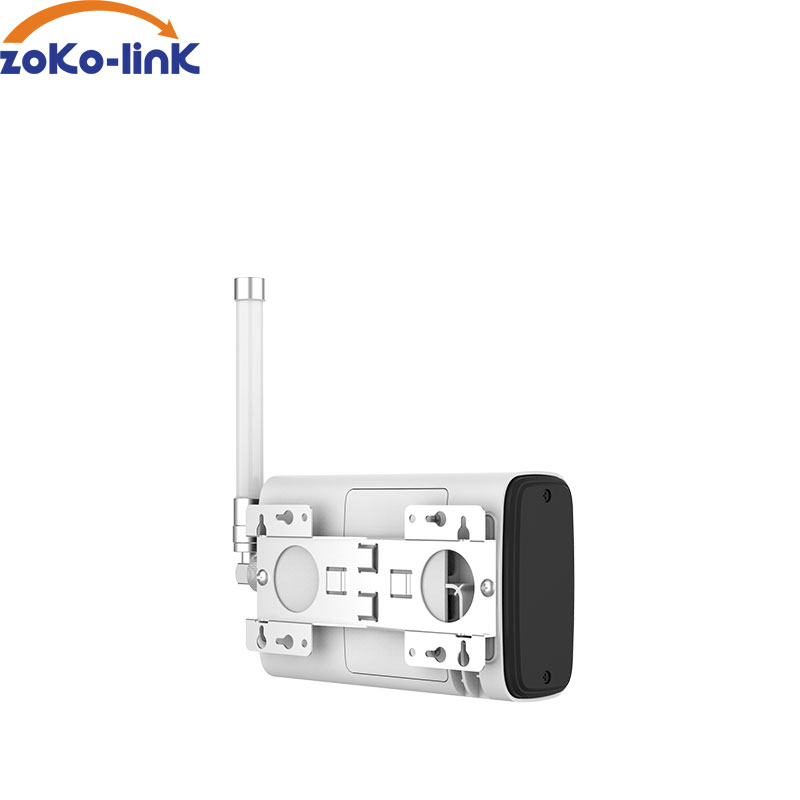

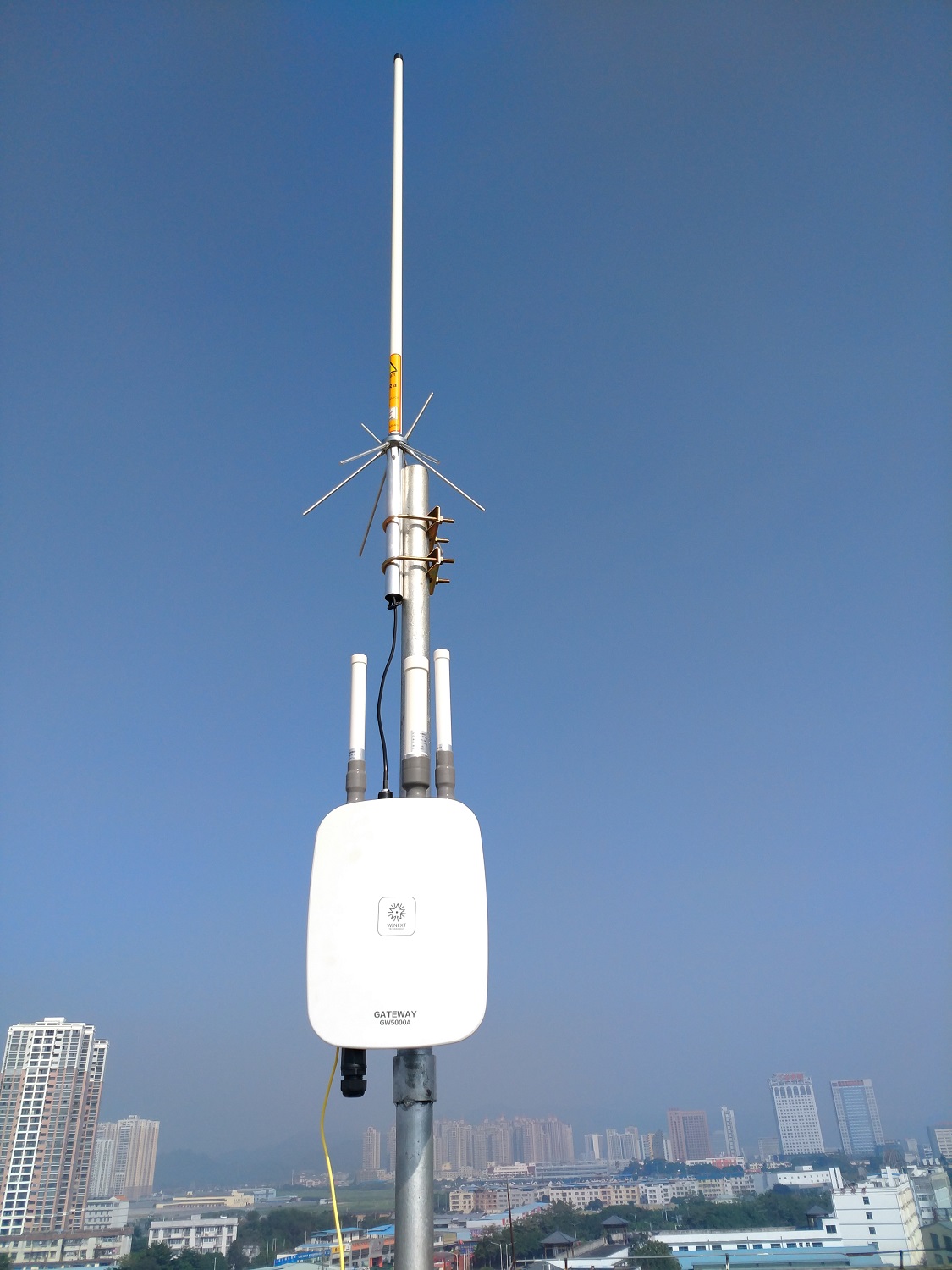

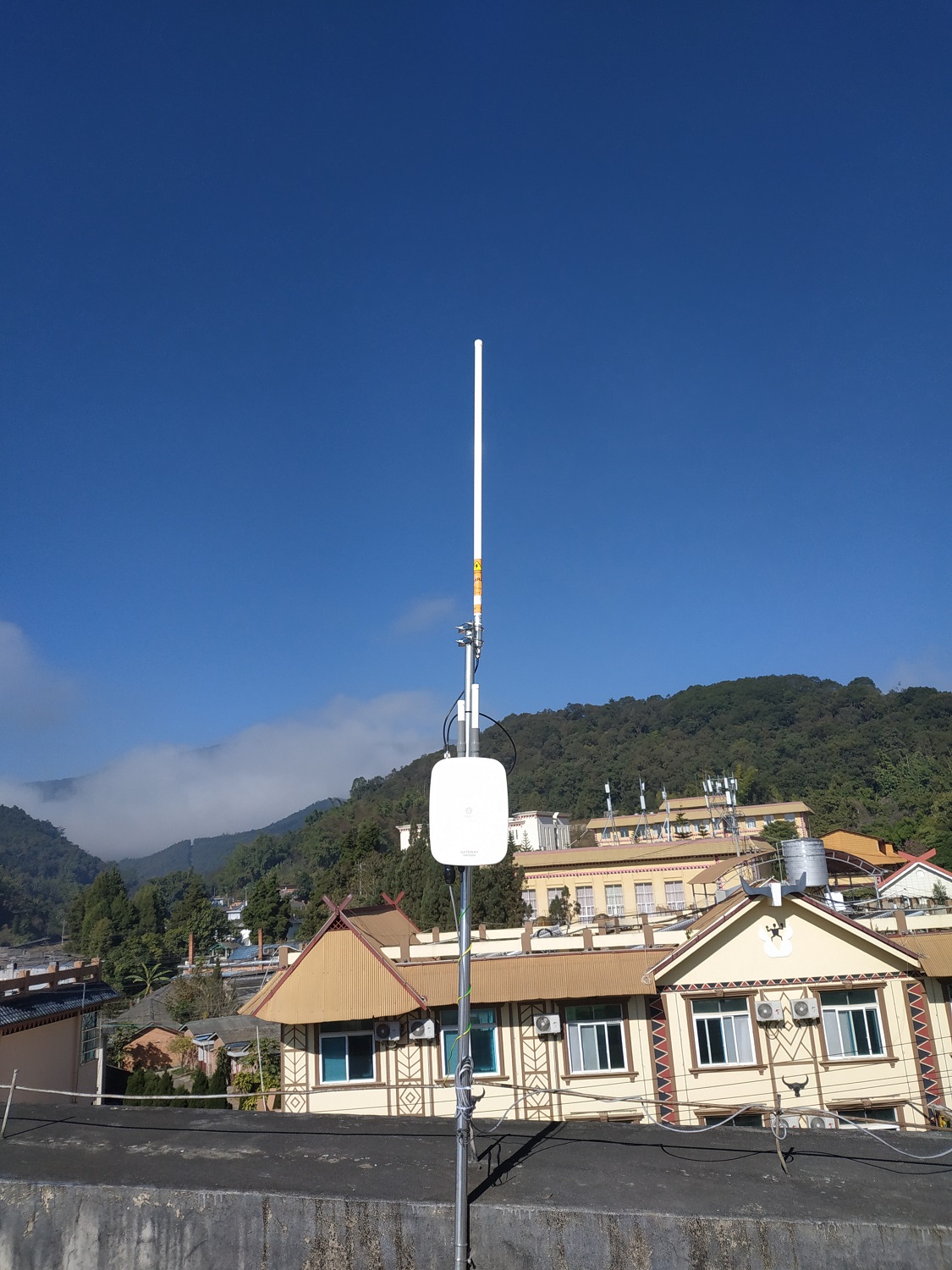

| Installation | Wall-mounted or Pole-mounted | |
| Certificate | CE / FCC | |
| Thunder protection | Optional |
Prev：no more
Sensors & Weather Stations Catalog
Agriculture Sensors and Weather Stations Catalog-NiuBoL.pdf
Weather Stations Catalog-NiuBoL.pdf
Agriculture Sensors Catalog-NiuBoL.pdf
Related recommendations

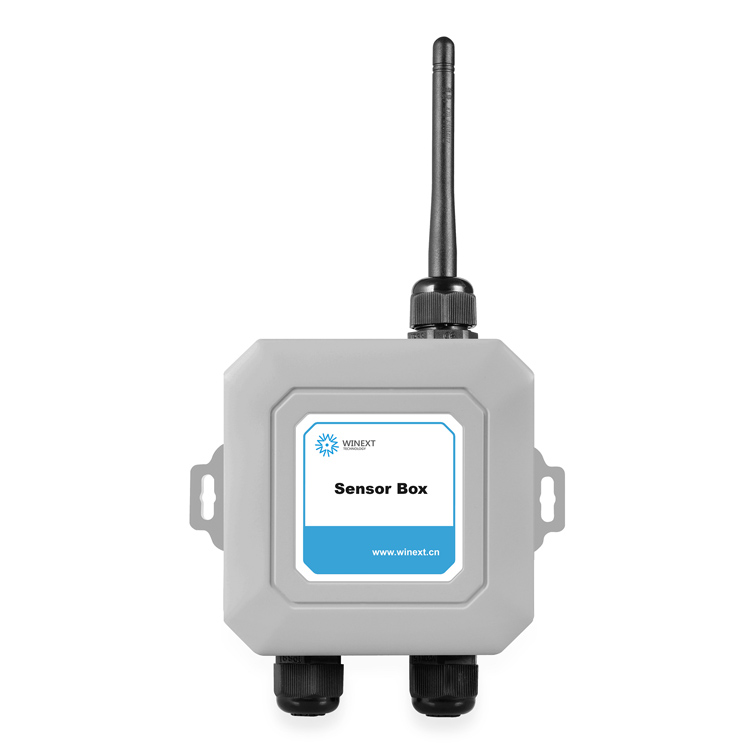

Modbus RS485 to LoRaWAN Data Acquisition Module LoRaWAN Sensor Box AN-201A
