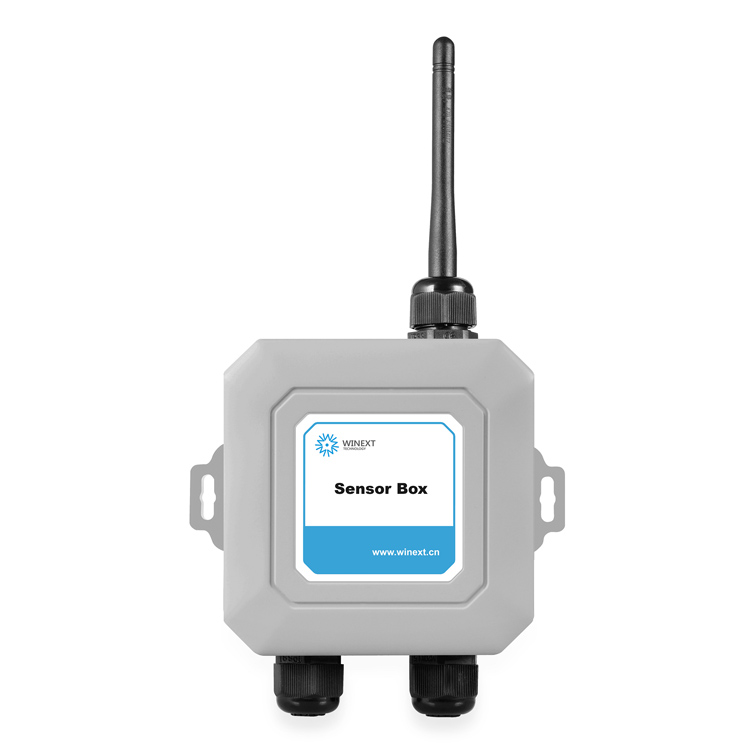

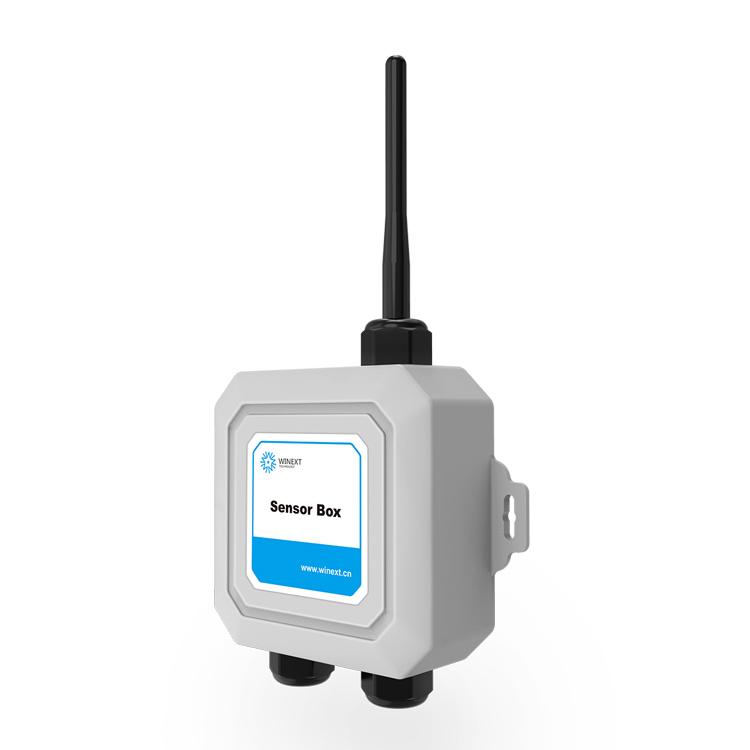

AN-201A LoRaWAN Sensor Box

Description

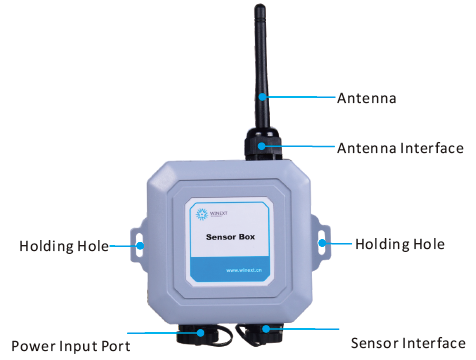

AN-201A Sensor Box is a wireless data gathering device, compliant with LoRaWAN. It has been integrated with multiple communication ports for a variety of sensors. Its high-gain omni-directional external antenna expands the communication distance. External power supply and battery power supply are optional. With battery capacity Up to 19000mAh, it enables a long lifespan, reduces cost of battery replacement. It has a rugged enclosure with IP65 ingress protection rate. It can be fixed by pole-mounted and wall-mounted method, installed on pole, walls of the building, roof and etc.

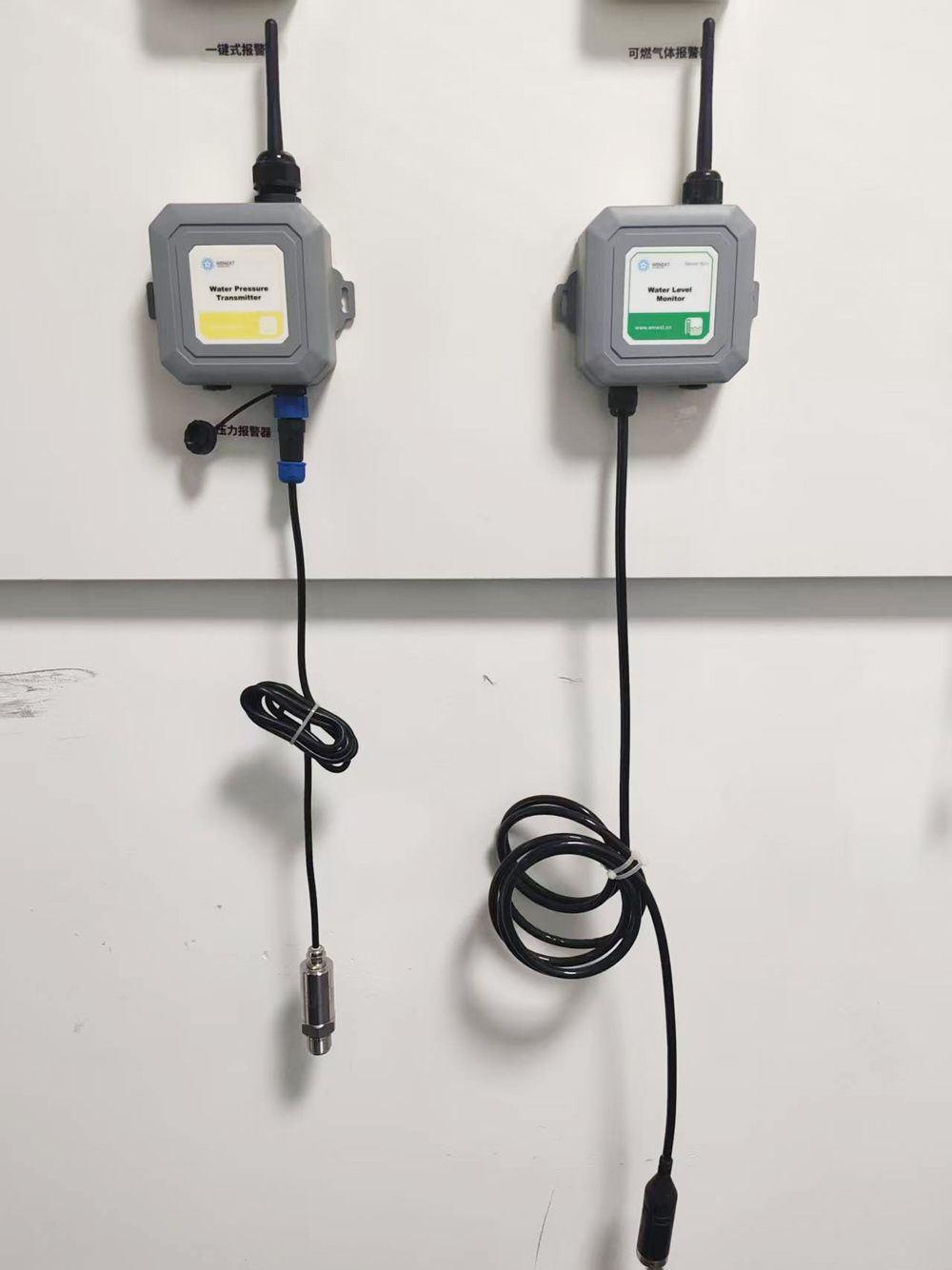

Suitable for workshop, warehouse, agricultural greenhouse, docking within scenarios such as rooms, hydrological monitoring sensors, e.g.: hydraulic pressure sensors, liquid level sensor, liquid flow sensor, water sensor, temperature sensor, humidity sensor, light sensor, PM2.5 sensor, angle sensor, wind speed sensor, etc.

LoRaWAN Data Acquisition Module Features

Ø Supports LoRaWAN protocol;

Ø Frequency Bands: CN470-510/EU863-870/US902-928/AS923~925/AU915~928/CT850 Mhz etc.

Ø Integrates multiple communication interfaces: SPI, UART, ADC, GPIO, I2C,etc.

Ø Ingress Protection Rate:IP65

Ø Low power consumption,external power supply and built-in battery optional

Ø Battery power supply mode uses a large capacity battery of 19000mAh

Ø Supports multiple voltage outputs:3.3V, 5V, 9V, 12V, etc.

Ø supports wired and wireless parameter configuration and firmware upgrades; supports remote configuration

Ø Supports low battery alarm

Ø Supports heartbeat package reporting, heartbeat interval is configurable

Ø Operating temperature: -20℃～+70℃

Technical Parameters

Modbus RS485 to LoRaWAN Data Acquisition Module LoRaWAN Sensor Box Data Sheet

Modbus RS485 to LoRaWAN Data Acquisition Module LoRaWAN Sensor Box.pdf
