LoRaWAN Gateway

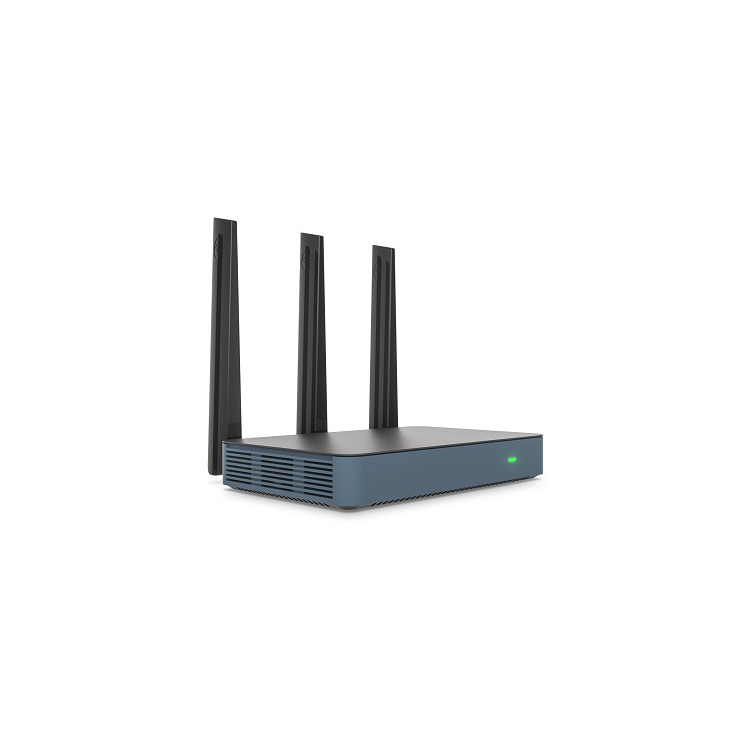

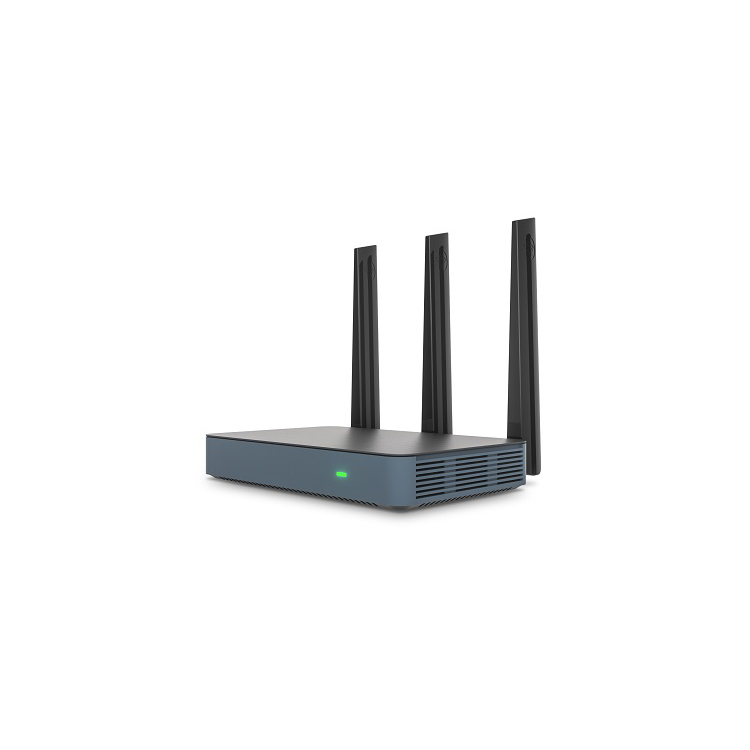

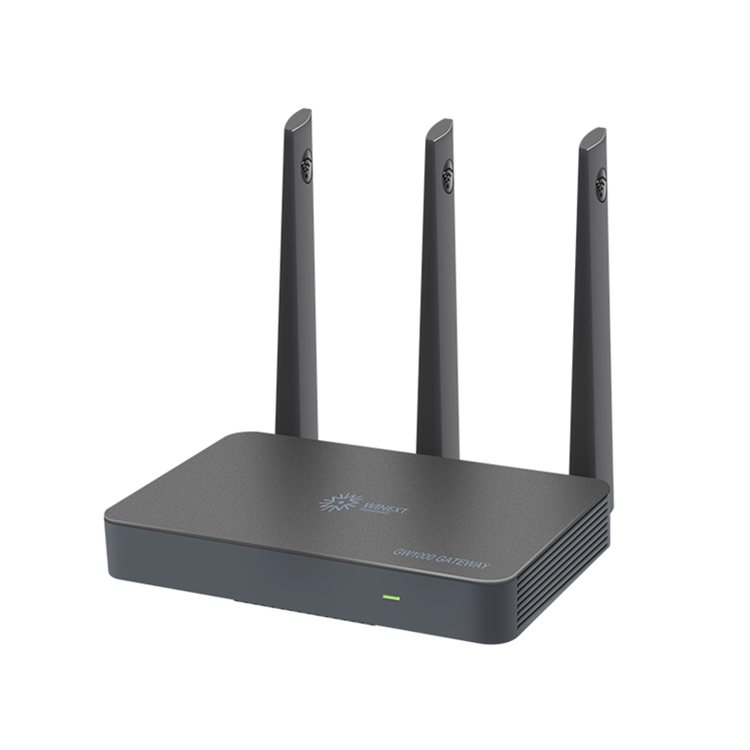

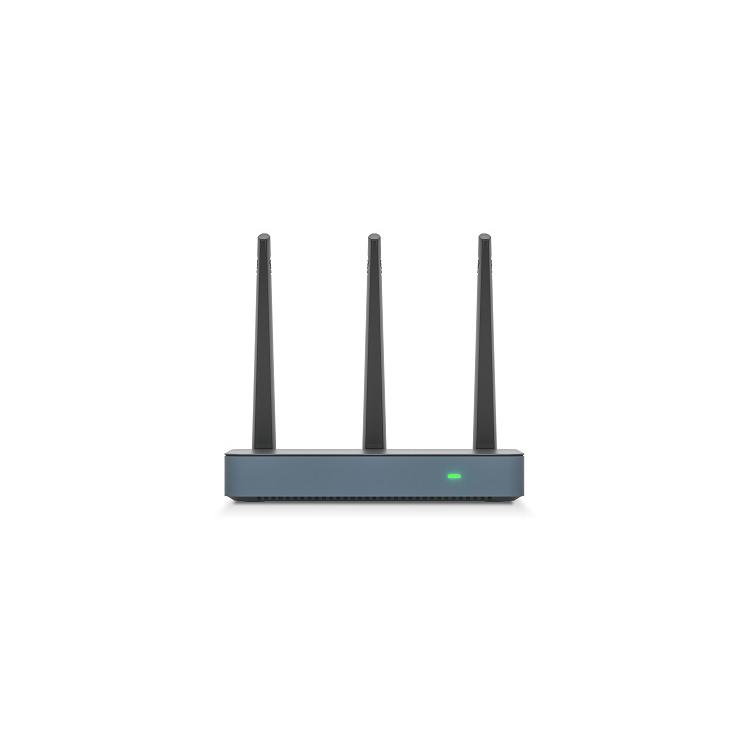

Indoor LoRaWAN Gateway for LoRa Device Sensors

The GW1000 is an Internet of Things (IoT) gateway built on the low-power, wide-area LoRaWAN protocol. It boasts exceptional signal coverage and penetrating capabilities, offering a convenient solution for bidirectional data transmission in IoT applications. The gateway is equipped with a high-performance transceiver chip from Semtech, capable of simultaneously receiving signals from up to 8 LoRa wireless channels. It can transparently transmit wireless data to an external LoR···

Inquiry

Tel/WhatsApp:+8615367865107

Email:Arvin@niubol.com +Nearly 100 partner company in more than 68 countries. We are committed to providing high-quality, practical products to meet your needs and help you solve problems.

Product Details

Indoor LoRaWAN Gateway

Description

The GW1000 is an Internet of Things (IoT) gateway built on the low-power, wide-area LoRaWAN protocol. It boasts exceptional signal coverage and penetrating capabilities, offering a convenient solution for bidirectional data transmission in IoT applications. The gateway is equipped with a high-performance transceiver chip from Semtech, capable of simultaneously receiving signals from up to 8 LoRa wireless channels. It can transparently transmit wireless data to an external LoRaWAN Network Server (NS) via Ethernet or 4G, or be configured to use an embedded NS for direct integration with customer application platforms.

The GW1000 is widely applicable in various scenarios such as communities and industrial parks, providing a secure and stable LoRa network service for network coverage.

 Indoor LoRaWAN Gateway.jpg

Features

Ø   Supports standard LoRaWAN protocol V1.0.X (V1.0.2, 1.0.3, 1.0.4), V1.1;

Ø   Supports device types Class A and Class C;

Ø   8 uplinks channel, 1 downlink channel;

Ø   Supports UDP packet_forwarder protocol, Basics Station CUPS, and LNS protocol;

Ø   Can switch between embedded NS or external NS server as needed;

Ø   Embedded NS supports MQTT and HTTP to push and parse data, and Ethernet Modbus-TCP to query node data;

Ø   Embedded NS MQTT protocol supports data transmission to the platform for nodes even when the network is disconnected;

Ø   Supports WiFi connection to the gateway for viewing gateway status, modifying gateway configuration, and viewing real-time node data;

Ø   Supports firewall protection, SYN-flood defense, and DNS rebinding protection;

Ø   Support remote OTA upgrade, self-diagnosis and repair;

Ø   Support TF card log storage;

Ø   Two external RJ45 ports, one for WAN and one for LAN;

Ø   Supports IPV6, uses 4G for networking, and provides IPV6 public network IP addresses for LAN and WiFi;

Ø   Supports intelligent switching between WAN and 4G interfaces, prioritizing the WAN port and automatically switching to 4G if the WAN port is abnormal;

Ø    LTE supports three module options, including for China, Europe, and the United States, with full network coverage in China.

Hardware:

DescriptionSpecifications
Master ControlQualcomm QCA9531, 128MB RAM, 16MB Flash
Power SupplyDC 12V
LoRa FrequencyCN470-510 / EU863-870 / US902-928 / AS923 / AU915-928 / KR920-923 (optional)
LoRa Data Rate292bps – 5.4kbps, supports SF7–SF12
LoRa Tx Power17dBm, max. 20dBm (at antenna)
LoRa Rx Sensitivity-141dBm @ SF12
LoRa Antenna2dBi, Omni-directional
Channel8 uplinks, 1 downlink
LoRa ModeHalf-duplex
Base StationNetwork mode
LTE ModuleEurope/Korea/Thailand/India: FDD LTE B1/B3/B5/B8/B20; TDD LTE B38/B40/B41; WCDMA B1/B5/B8; GSM B3/B8

North America: FDD LTE B2/B4/B5/B12/B13/B14/B66/B71; WCDMA B2/B4/B5

 Latin America/Australia/New Zealand: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28; LTE-TDD B40; WCDMA B1/B2/B5/B8; GSM/EDGE B2/B3/B5/B8

 Global Band: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28; LTE-TDD B38/B39/B40/B41; WCDMA B1/B2/B4/B5/B6/B8/B19; GSM B2/B3/B5/B8
WiFi2.4GHz, AP mode, max. 18dBm
Data Backhaul10/100M Ethernet, 3G/4G
Debug InterfaceWiFi / LAN / Serial port
Operating Temperature-10℃ ~ +50℃
Humidity5% – 95% (non-condensing)
Power Consumption7W

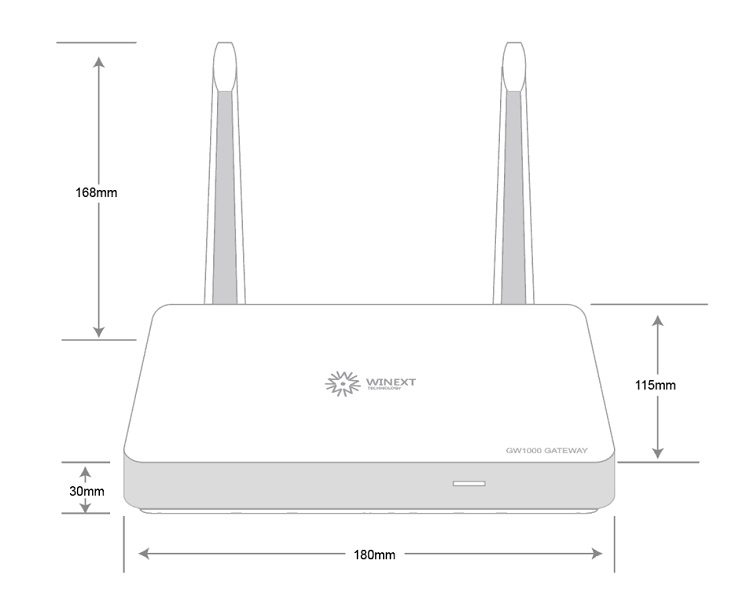

Dimensions180 × 115 × 30 mm (excluding antenna)

Software:


DescriptionSpecifications
Operating SystemLinux 4.14.88
LoRa ProtocolLoRaWAN v1.1, GWMP, Class A/C
Packet ForwardingSupports UDP (GWMP), MQTT (GWMP), Built-in NS, WSS (Basic Station)
Built-in Network ServerSupports up to 100 terminals, MQTT/HTTP push, decryption & parsing
Modbus TCPUp to 5 clients, function code 03 for reading temperature, humidity, voltage, etc.
User InterfaceWeb interface
Language & BrandingChinese / English, logo or neutral version
3G/4G NetworkingSupports Qualcomm QMI dial-up
IPv6Supported on 4G, LAN, WiFi (relay)
Time SyncNTP client, configurable time zones
WAN ProtocolsStatic IP, DHCP client, PPPoE
Firmware UpgradeWeb upload, OTA remote upgrade
WiFi Connectivity2.4GHz, 802.11 b/g/n, WPA2-PSK, STA+AP supported
FirewallIPTables v1.8.2, custom rules, SYN-flood protection
Network Load BalancingWAN + 4G failover, WAN priority
Gateway IDGenerated from WiFi MAC address
Local LogStored in TF card, auto overwrite when full
Self-diagnosisSystem self-check, self-healing, error reporting
Remote ManagementSupported
