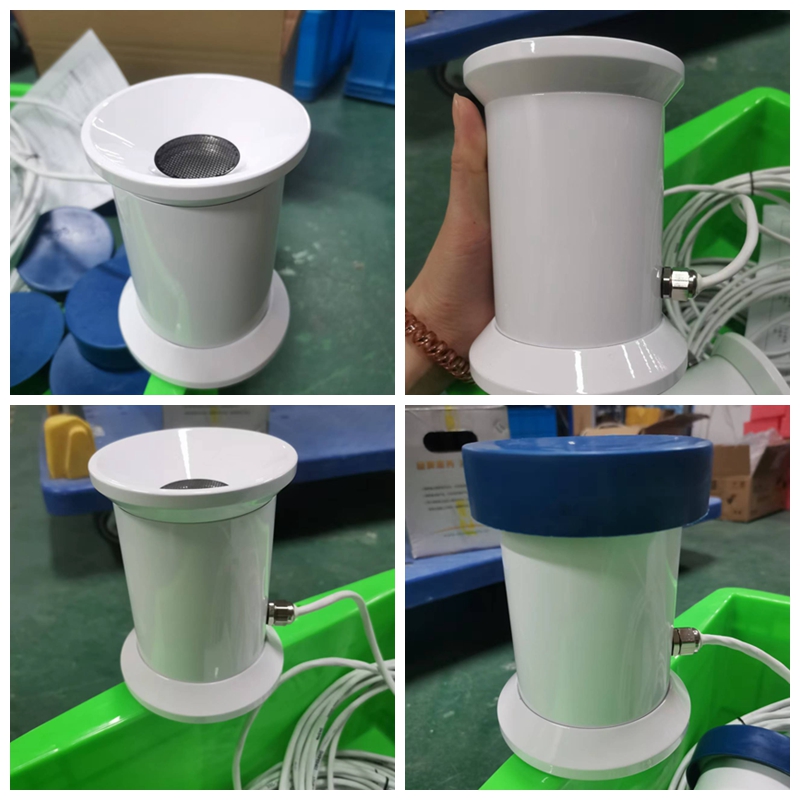

Ultrasonic Snow Depth Detector Sensor

An ultrasonic snow depth detector sensor should be selected around the measuring surface, winter access and data use. The sensor does not touch the snow surface, so it is suitable where manual measurement is difficult, but its result still depends on a stable reference point and correct mounting height.

What the sensor actually measures

The sensor measures distance change between the detector and the snow surface. The project must define the zero reference before installation; otherwise the system may report a number but not a defensible snow depth. Uneven ground, drifting snow and vegetation under the beam can all change the reading.

For roads, hydrology stations and mountain monitoring, the measuring spot should stay clear, flat and reachable for inspection. NiuBoL snow depth sensors should be specified with the required output and receiving equipment before procurement.

Selection and installation checks

Where it fits and where it does not

Ultrasonic snow depth monitoring fits unattended winter sites, traffic warning points, watershed observation and meteorological stations. It is less suitable where the snow surface is regularly disturbed by vehicles, people or plows unless the project can protect the measuring area.

If the buyer only needs occasional manual records, a fixed sensor may be unnecessary. If automatic alarm or continuous winter records are needed, a sensor connected to a logger or platform is more appropriate.

For procurement, the quotation should also state whether the snow depth sensor is supplied alone or with bracket, logger, solar power and communication equipment. Winter projects often fail because the sensor is specified but the mounting structure, cable protection and access plan are left to the installer. If the site is remote, ask how data will be stored when transmission is interrupted.

If the snow data is used for alarms, the project should define alarm delay, data interval and how operators confirm abnormal values during blowing snow. This avoids treating every short fluctuation as a site emergency.

Project FAQ

Q1: What is the main advantage of an ultrasonic snow depth sensor?
It measures without touching the snow surface, which supports automatic records in locations that are hard to inspect daily.

Q2: What must be confirmed before installation?
Confirm the reference surface, mounting height, expected snow condition, power supply, output signal and data receiving device.

Q3: Can it connect to an existing monitoring platform?
Yes, when the project confirms a compatible interface such as RS485 or Modbus RTU and maps the data correctly.

Q4: What causes wrong snow depth readings?
Uneven ground, drifting snow, ice, vegetation, wrong zero setting and sensor obstruction are common causes.

Q5: What should be included in acceptance?
Include installation photos, zero reference record, live data check, upload verification and maintenance access notes.

Summary

An ultrasonic snow depth detector sensor is useful when continuous winter measurement is required. The buyer should treat reference surface, mounting height, protocol compatibility and inspection access as core procurement conditions.
