Ultrasonic Anemometer (Wind Speed and Direction Sensor)

Ultrasonic Anemometer (Wind Speed and Direction Sensor) Product Overview：

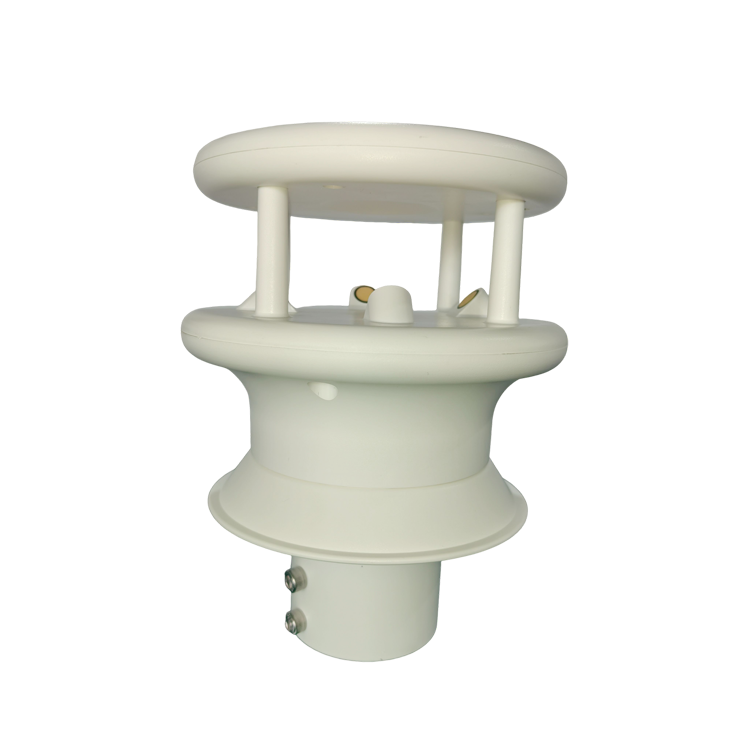

The 2-in-1 Ultrasonic Anemometer is a fully digital, high-precision meteorological monitoring device designed specifically for fast and accurate measurement of wind speed and direction. The sensor uses ultrasonic technology with an integrated signal processing unit and supports RS485 output with standard Modbus protocol. It offers flexible signal output options according to user needs and features no mechanical moving parts, quick response time, long service life, and maintenance-free operation. Additionally, it can optionally measure various environmental factors such as temperature, humidity, atmospheric pressure, PM2.5, PM10, noise, radiation, and rainfall. Its high-strength design and IP65 protection level ensure reliable operation in harsh environmental conditions. The sensor is highly integrated, durable, and widely used in meteorology, environment, airports, ports, laboratories, industries, and transportation sectors.

Working Principle of the 2-in-1 Ultrasonic Anemometer

The ultrasonic wind speed and direction sensor calculates wind speed and direction by measuring the time difference of ultrasonic wave transmission through air. The sensor utilizes ultrasonic probes in four directions (North, South, East, West) and measures the transmission time of ultrasonic waves from North to South, South to North, West to East, and East to West. For example, when the wind blows from the North, the transmission time from North to South will be shorter than from South to North, while the transmission times from West to East and East to West will be the same. By calculating these time differences, the sensor can accurately determine wind speed and direction, with results unaffected by environmental factors such as temperature. This design with no moving parts increases reliability and durability, making it particularly suitable for long-term outdoor use.

Features and Advantages of the 2-in-1 Ultrasonic Anemometer

- High Precision Measurement: Wind speed accuracy ±(0.3+3%FS), resolution 0.01m/s; Wind direction accuracy ±3°, resolution 1°, providing reliable data.

- No Moving Parts: Utilizes ultrasonic technology with no mechanical parts, reducing wear and tear, extending lifespan, and suitable for harsh environments.

- Multi-functional Integration: Optional sensors for temperature, humidity, atmospheric pressure, PM2.5, PM10, noise, radiation, rainfall, etc., to meet diverse monitoring needs.

- Flexible Output: Supports RS485 interface and standard Modbus protocol, with baud rate of 9600 bps, easy to integrate with PLCs, data collectors, and IoT systems.

- Low Power Design: Average power consumption is 0.4W (without dust sensor) or 1W (with dust sensor), ideal for solar power supply and long-term unmanned operation.

- Strong Environmental Adaptability: Operating temperature from -40°C to 80°C, humidity from 0 to 95%RH, IP65 protection level, resistant to wind, rain, and dust.

- Easy Installation: Standard installation method with a built-in compass alignment function to ensure measurement accuracy and facilitate quick deployment in various scenarios.

Technical Specifications of the 2-in-1 Ultrasonic Anemometer

Installation Method for the Ultrasonic Anemometer

1. Positioning: Mount the device on a vertical pipe, ensuring the sensor is on the same horizontal plane for accurate measurements.

2. Alignment: Use a standard compass to determine the true north direction, align the sensor’s north point with the compass direction, and fix it.

3. Installation:

  - The mounting pipe should have 3 evenly spaced M5 screw holes, 7.5mm from the top of the pipe.

  - Pass the cable through the mounting pipe and connect it to the sensor’s plug, then lock the outer sleeve of the plug.

  - Secure the sensor to the mounting pipe using 3 stainless steel screws.

4. Important Notes:

  - Properly relieve stress on the cables to avoid damage from tension.

  - Ensure the installation location is open, avoiding interference from buildings or obstacles to airflow.

  - Avoid installation near radar or radio transmission devices to prevent signal interference.

Applications and Value of the Ultrasonic Anemometer

Applications:

1. Meteorological Observation:

  - Function: Real-time monitoring of wind speed and direction, providing data for weather forecasting, storm warnings, and climate research.

  - Value: Supports accurate weather predictions, disaster warnings, and protects public safety and agricultural production.

2. Environmental Monitoring:

  - Function: Along with optional sensors for PM2.5, PM10, and noise, it helps analyze the impact of wind direction on pollutant dispersion.

  - Value: Provides data for pollution control and environmental protection, promoting green development.

3. Aviation and Airports:

  - Function: Provides precise wind speed and direction data to assist aircraft takeoffs and landings, as well as runway management.

  - Value: Enhances flight safety, optimizes airport operational efficiency, and reduces weather-related risks.

4. Ports and Marine:

  - Function: Monitors wind conditions to support vessel navigation and port operations.

  - Value: Improves maritime operational safety and efficiency, reducing operational disruptions caused by adverse weather.

5. Agriculture and Industry:

  - Function: Monitors wind speed and direction to optimize agricultural spraying, greenhouse ventilation, and industrial wind-driven equipment operation.

  - Value: Increases crop yields, reduces pesticide waste, and optimizes industrial production efficiency.

6. Laboratory Research:

  - Function: Provides high-precision wind speed and direction data for meteorology, environmental, and wind engineering research.

  - Value: Advances scientific research and technological innovation, offering reliable experimental data.

7. Traffic Management:

  - Function: Monitors wind speed and direction to evaluate the impact on highways, railways, and bridges.

  - Value: Optimizes traffic scheduling, reduces the risk of accidents caused by strong winds, and enhances transport efficiency.

Benefits and Value of the Ultrasonic Anemometer

- High Precision and Reliability: Ultrasonic technology ensures high-precision measurements, while the IP65 protection level and wide temperature and humidity range guarantee stable operation in harsh environments.

- Multi-functionality: Supports various environmental parameters to meet diverse needs in meteorology, environment, and industry.

- Data Integration: RS485 and Modbus protocols facilitate seamless connection to industrial automation and IoT systems, improving data utilization efficiency.

- Low Maintenance Cost: The no-moving-parts design reduces wear and tear, and the low-power characteristics make it ideal for long-term, unmanned monitoring.

- Disaster Warning: Real-time wind speed and direction data support storm and strong wind warnings, reducing personnel and property losses.

- Wide Applicability: From meteorological stations to agriculture, aviation, ports, and research, the sensor meets the needs of multiple industries, improving efficiency and safety.

Why Choose Our Ultrasonic Anemometer?

Our ultrasonic wind speed and direction sensor, with its high accuracy, no-moving-parts design, and strong environmental adaptability, is the ideal choice for meteorology, environment, aviation, ports, and agriculture. It supports RS485 and Modbus protocols for easy integration into existing systems, offers multi-parameter integration to meet diverse needs, and ensures long-term stable operation with its IP65 protection and low-power design. Whether optimizing agricultural production, ensuring aviation safety, or supporting scientific research and smart city development, this sensor provides reliable, real-time wind speed and direction data to help users achieve efficient, safe, and sustainable development goals.

Contact us now for a customized wind speed and direction monitoring solution and experience the outstanding performance of ultrasonic sensors!
