Back of Module Temperature Sensor

Back of Module Temperature Sensor Product Overview:

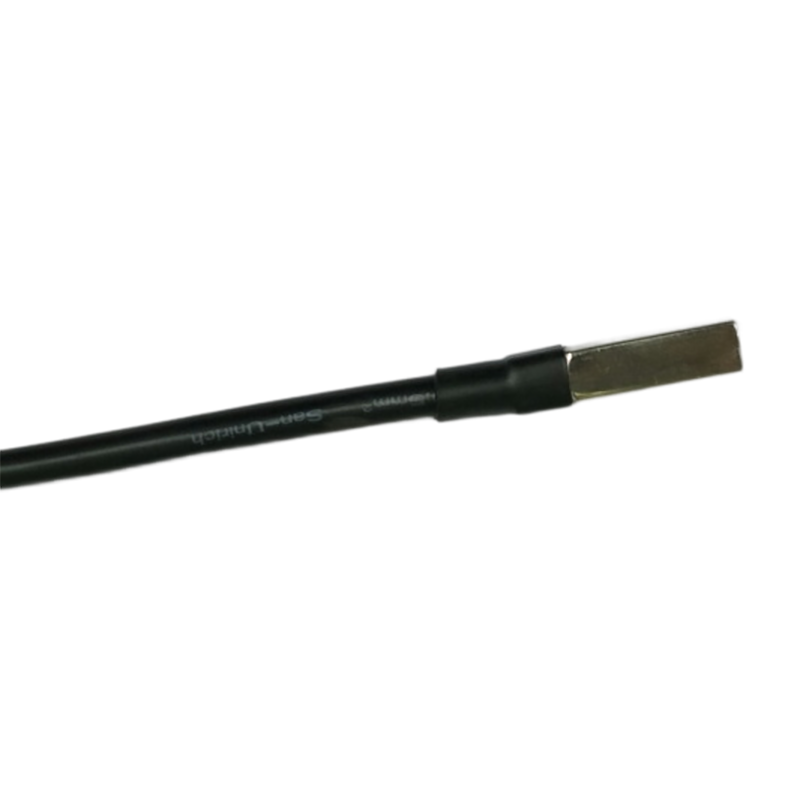

The Back of Module Temperature Sensor (NBL-W-PPT) is a high-precision, surface-mount temperature sensor designed specifically for solar energy systems. It is widely used in fields such as meteorology, oceanography, environmental monitoring, airports, ports, laboratories, industrial and agricultural applications, and transportation. This sensor uses a high-sensitivity thermistor as the core sensing element, offering advantages such as high measurement accuracy, fast response speed, and strong stability.

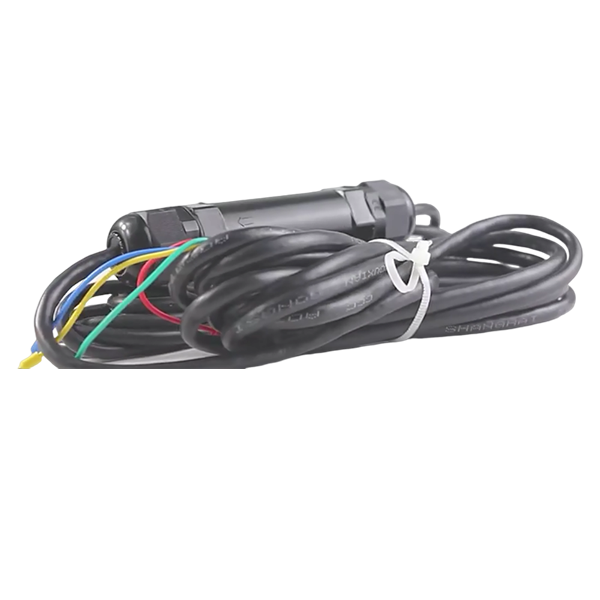

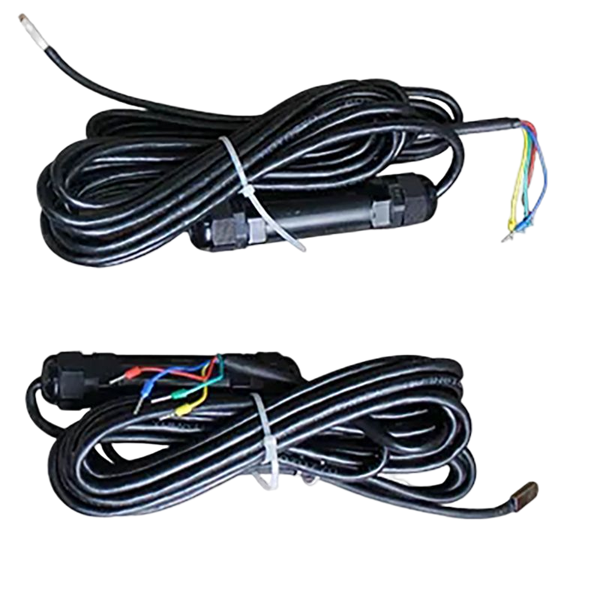

The accompanying signal transmitter can convert the temperature data into standard voltage or current signals based on user requirements, meeting the needs for various remote monitoring and automation control systems. The compact structure design makes installation easy, while its excellent anti-interference ability ensures stable long-term operation in complex environments.

Main Features of the Module Temperature Sensor:

- High-precision thermistor with ±0.5°C measurement error

- Multiple power supply options: DC 5V / 12V / 24V

- Diverse output forms: 4~20mA / 0~2.5V / 0~5V / RS485

- Good linearity, strong load capacity, long transmission distance

- Full temperature range support: -50°C ~ +100°C

- Easy to install, suitable for adhesive mounting on the back of solar panels

- Strong humidity resistance, supports 0%~100% RH relative humidity environment

Technical Specifications of the Back of Module Temperature Sensor:

 Installation Guide for Back of Module Temperature Sensor:

To ensure the sensor accurately reflects the operating temperature of the solar module, please follow the installation steps below:

Installation Preparation:

1. Apply the included thermal conductive silicone to the center area on the back of the solar panel.

2. The application area should be approximately 22mm × 12mm and evenly spread along the direction of the solar panel's frame.

Sensor Fixing:

3. Quickly attach the Back of Module Temperature Sensor to the applied area, ensuring alignment with the panel.

4. Secure the sensor for 5-10 minutes to ensure full adhesion of the thermal conductive silicone.

Wiring and Routing:

5. Once the sensor is firmly attached, route the signal cable along the direction of the solar panel frame.

6. Choose an appropriate wiring path based on the site environment to avoid mechanical stress or pulling.

> Tip: If using in different environments, adjust the installation location as mentioned above to achieve the best measurement results.

Application Scenarios for the Back of Module Temperature Sensor:

The Back of Module Temperature Sensor is particularly suitable for accurately monitoring the surface temperature of solar modules, such as:

- Photovoltaic power station temperature monitoring

- Meteorological station environmental data analysis

- Precision temperature control systems in laboratories

- Industrial process control

- Climate management in greenhouse systems

- Smart city infrastructure monitoring

Why Choose Us?

- Precise and Reliable: ±0.5°C high-precision temperature measurement, able to withstand extreme environmental challenges

- Flexible Configuration: Multiple power and output options to fit various control systems

- Easy Installation: Designed specifically for solar applications, quick deployment with no difficulty

- Durability: Manufactured with weather-resistant materials for long-term outdoor use

- Global Compatibility: Meets international standards to cater to diverse overseas customer needs

Additional Features and Advantages:

- Real-time Monitoring: Supports MODBUS RTU protocol via RS485 interface, allowing for real-time temperature data transmission and remote monitoring.

- Environmental Adaptability: The sensor housing features waterproof and dustproof design (IP67 rating), ensuring stable operation even in harsh environments.

- Easy Maintenance: Equipped with a quick-connector design for easy on-site installation and maintenance, reducing downtime.

After-Sales Service Commitment:

- Quality Guarantee: Provides a 12-month warranty period. During this period, any non-human-caused damage can be repaired or replaced free of charge.

- Technical Support: A dedicated technical support team is available to provide online consultation services, answering questions about product use, troubleshooting, etc.

- Training Services: Product usage and technical training can be provided based on customer needs, helping clients better understand and utilize the Back of Module Temperature Sensor.

Make temperature monitoring smarter and more efficient — Back of Module Temperature Sensor, your professional choice.
