Temperature Sensor for Solar PV Module

Solar PV Module Temperature Sensor - High Precision Temperature Monitoring Solution

In the operation and maintenance of solar power plants, the working temperature of solar panels directly impacts power generation efficiency and service life. The NiuBoL NBL-W-PPT SMD Temperature Sensor (Solar PV Module Temperature Sensor) is specifically designed for photovoltaic modules, utilizing high-precision thermistors and advanced circuit integration technology to provide reliable and accurate temperature monitoring. Whether in extreme weather conditions or complex environments, this sensor offers real-time data support for solar power plant managers, optimizing system performance and ensuring long-term returns.

 Solar PV Module Temperature Sensor Product Overview

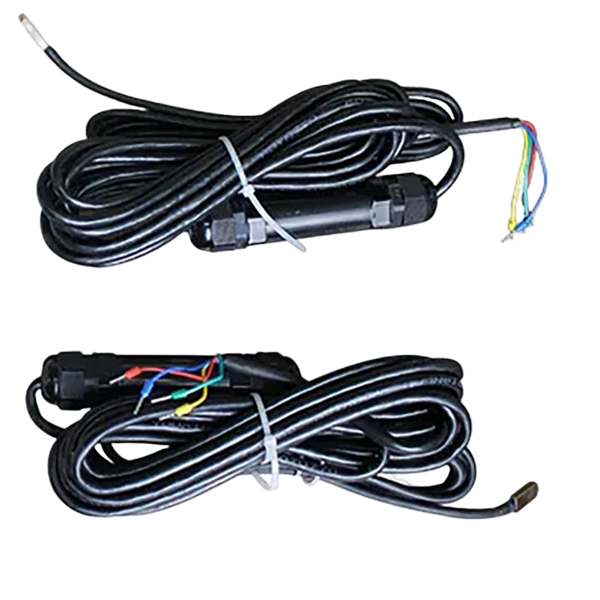

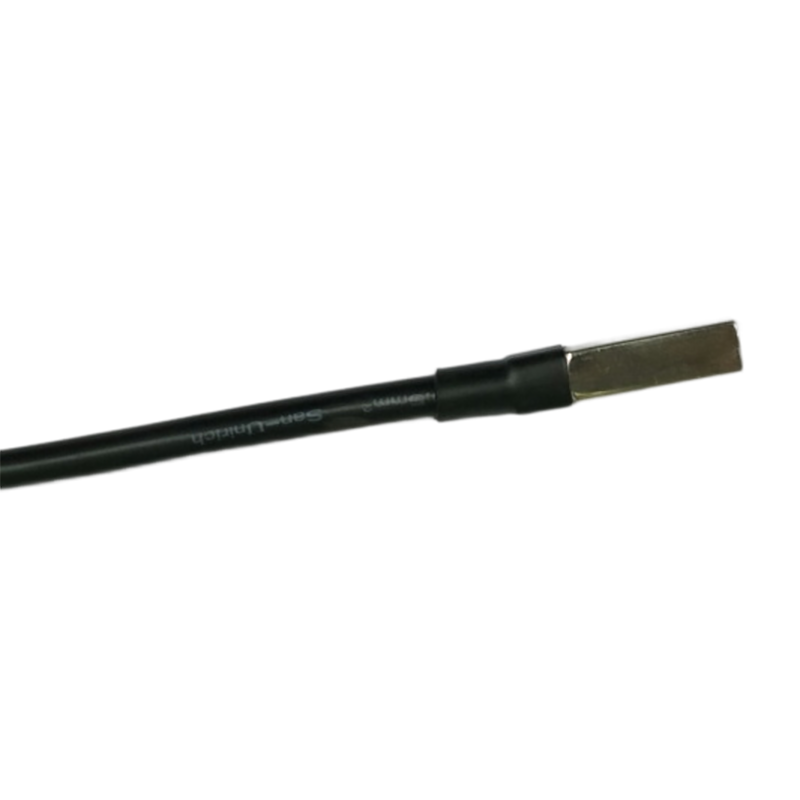

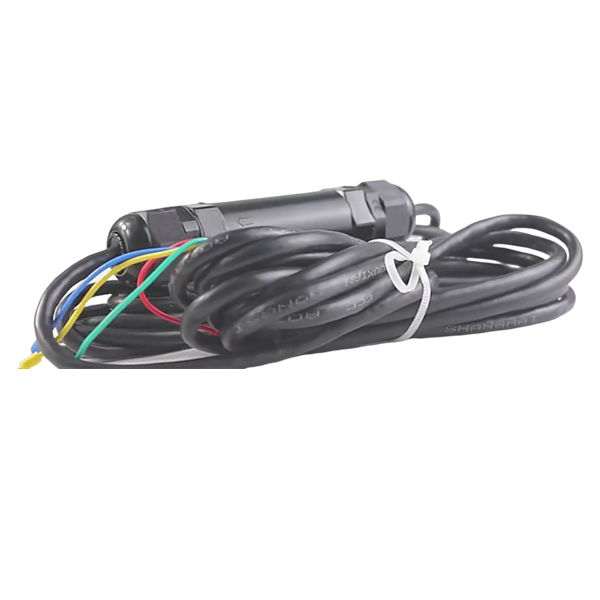

The NiuBoL NBL-W-PPT SMD Temperature Sensor is a compact and portable temperature measurement device designed for monitoring the back temperature of solar panels. Its high-precision thermistor sensing element, combined with proprietary circuit modules, ensures stable and excellent linearity of measurement results. The sensor supports multiple output forms (current, voltage, RS485), making it compatible with various plant management systems, and is widely used in fields such as meteorology, environmental monitoring, industry, agriculture, and transportation.

 Core Advantages of Temperature Sensor for Solar PV Module

- High Precision Measurement: ±0.5°C measurement accuracy ensures reliable data.

- Flexible Adaptation: Supports multiple power supply options (DC 5V/12V/24V) and output signals (4-20mA, 0-2.5V, 0-5V, RS485).

- Durable Design: Working temperature range from -50°C to 100°C, suitable for extreme environments, with strong anti-interference capability.

- Easy Installation: Compact size, quick fixation with thermal conductive silicone, standard 5-meter cable length for easy wiring.

- Long-Distance Transmission: Strong load capacity and stable signal transmission, suitable for large-scale photovoltaic arrays.

 Solar PV Module Temperature Sensor Technical Parameters:

These parameters allow the sensor to flexibly meet the needs of photovoltaic projects of different scales and environments.

 Solar PV Module Temperature Sensor Features

1. High Precision and Stability: Utilizes high-precision thermistors combined with advanced circuit design to ensure data consistency during long-term operation.

2. Multi-Scenario Compatibility: Supports multiple output and power supply options, easily integrated into existing plant management systems.

3. Strong Anti-Interference Ability: Proprietary circuit design ensures stable signal transmission, suitable for complex electromagnetic environments.

4. Portable and Durable: Compact SMD design, resistant to extreme temperatures and humidity, ideal for long-term outdoor use.

5. Easy Installation: Quick fixation with thermal conductive silicone, standard 5-meter cable length for flexible wiring.

 Solar PV Module Temperature Sensor Installation and Usage Instructions

To ensure the measurement accuracy and long-term stability of the Solar PV Module Temperature Sensor, please follow the steps below for installation:

1. Select Installation Location:

   - Choose a flat area on the back of the solar panel near the center, along the direction of the bracket.

   - Ensure the installation area is unobstructed to allow the sensor to tightly adhere to the panel.

2. Apply Thermal Conductive Silicone:

   - Use the provided thermal conductive silicone to apply an even thin layer of about 22×12mm in the selected area.

   - Proceed to the next step immediately after applying, to avoid the silicone from curing.

3. Fix the Sensor:

   - Attach the sensor to the silicone area according to the applied direction, gently press and hold for 5-10 minutes to ensure secure adhesion.

   - Confirm the sensor is firmly fixed without looseness.

4. Wiring and Connection:

   - Secure the sensor cable along the direction of the solar panel bracket to prevent slack or stress.

   - Connect to the DC 5V/12V/24V power supply and corresponding signal input ports (4-20mA, 0-2.5V, 0-5V, or RS485) according to system requirements.

5. Environmental Adaptation:

   - Ensure cable fixing is firm based on actual environmental conditions (e.g., high temperature or humidity regions) to avoid long-term exposure that may cause aging.

   - Regularly check the sensor’s fixed position to ensure it remains tight.

 Precautions

- Installation Environment: Avoid installation in rainy or high-humidity environments to ensure effective adhesion of thermal conductive silicone.

- Cable Protection: During wiring, avoid excessive bending or stress on the cable to prevent signal interruption.

- Regular Inspection: It is recommended to check the sensor’s fixed position and cable integrity every six months.

 Solar PV Module Temperature Sensor Application Scenarios

The Solar PV Module Temperature Sensor is widely applicable in the following fields:

- Solar Power Plants: Monitors the temperature of solar panels to optimize power generation efficiency and extend module lifespan.

- Meteorological and Environmental Monitoring: Provides accurate temperature data for climate research.

- Industry and Agriculture: Used in greenhouses, factories, or other environments requiring temperature monitoring.

- Transportation and Ports: Monitors equipment operating temperature in extreme environments to ensure system stability.

Whether managing a small rooftop solar system or a large ground-mounted plant, this sensor provides reliable temperature data support.

 Why Choose NiuBoL Solar PV Module Temperature Sensor?

In the rapidly developing global photovoltaic industry, precise temperature monitoring is crucial for enhancing plant efficiency and reliability. The NiuBoL Solar PV Module Temperature Sensor stands out for the following reasons:

- Technological Advantage: High-precision thermistors and advanced circuit design ensure reliable measurement results.

- User-Friendly: Simple installation, strong compatibility, and reduced operational complexity.

- Durable: Suitable for extreme environments, reducing maintenance costs.

- Globally Applicable: Meets international standards, catering to photovoltaic project needs across different regions.

By monitoring the temperature of solar panels in real-time, you can detect abnormalities promptly, optimize system operation, and maximize power generation returns.

 Act Now

The Solar PV Module Temperature Sensor is the ideal choice for intelligent operation and maintenance of photovoltaic power plants. Whether you are a plant manager, system integrator, or environmental monitoring professional, this product offers an efficient and reliable temperature monitoring solution. Contact us now to learn more about customization options and technical support to help your photovoltaic project succeed!

PV Module Temperature Sensor data sheet

NBL-W-PPT-SMD-Solar-Panel-Temperature-Sensors.pdf
