Temperature Sensors for PV Plant

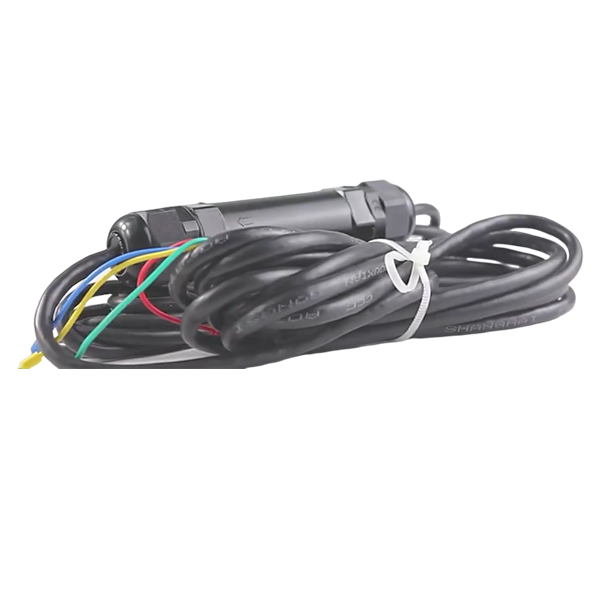

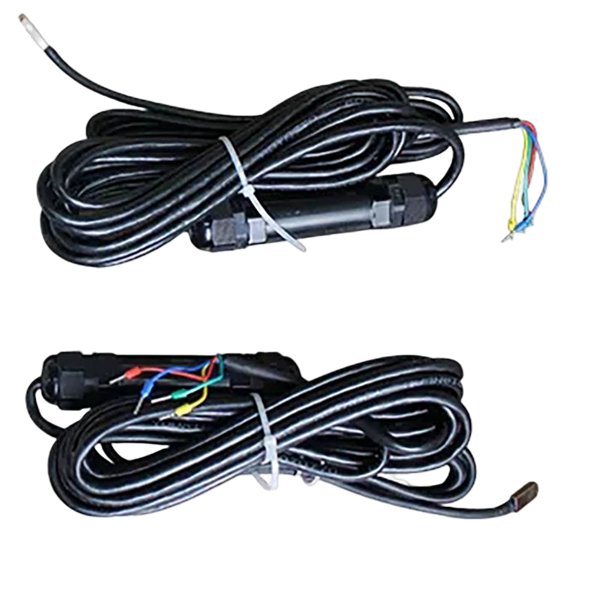

NBL-W-PPT Photovoltaic Plant Module Temperature Sensor Product Introduction:

The NBL-W-PPT Photovoltaic Plant Module Temperature Sensor (transmitter) uses high-precision thermistors as the sensing element, offering high measurement accuracy and excellent stability. The sensor is equipped with an advanced circuit integration module that can convert temperature data into voltage or current signals as per user requirements. It is compact, easy to install, reliable in performance, and has excellent anti-interference capability and strong load-bearing capacity. It is widely used in photovoltaic plants, meteorology, marine, environmental monitoring, laboratories, and other fields for temperature measurement.

Main Features of PV Plant Temperature Sensors:

- High-Precision Measurement: The temperature measurement accuracy is high, with an error of only ±0.5°C, ensuring the accuracy of the data.

- Strong Stability: Using high-performance thermistors and advanced circuit design, it runs stably over long periods, ensuring continuous and reliable data collection.

- Easy Installation: Its compact size makes it easy to install and carry, with a quick and straightforward installation process.

- Remote Transmission: The sensor can output data via voltage signals, 4-20mA current signals, or RS485 signals, supporting long-distance data transmission.

- Strong Anti-Interference Capability: With proprietary circuitry, it ensures the stability of data transmission and resistance to interference.

- Durable Design: It is designed to adapt to harsh environments, with a wide operating temperature range, making it suitable for various extreme weather conditions.

Technical Parameters of PV Plant Temperature Sensors:

Core Advantages and Technical Highlights of the Photovoltaic Plant Module Temperature Sensor:

- High Accuracy and Stability: The NBL-W-PPT temperature sensor uses precise thermistor elements to ensure extremely high measurement accuracy and superior stability, with no drift during long-term operation.

- Excellent Anti-Interference Capability: Proprietary circuit design and materials enable it to work stably even in environments with strong electromagnetic interference, ensuring accurate data transmission.

- Long-Distance Transmission: Whether using current signals, voltage signals, or the RS485 protocol, the sensor can transmit data effectively over long distances, reducing wiring challenges, making it ideal for large-scale photovoltaic plant deployment.

- Low Power Consumption: The power consumption is only 0.15W, ensuring energy efficiency even during long periods of operation without generating excessive energy consumption.

Compatibility and Expandability:

- Flexible Power Supply Options: The sensor offers various power supply options such as DC 5V, 12V, and 24V, allowing flexible selection based on different grid and battery configurations to meet the needs of various photovoltaic plants.

- Multiple Output Options: It supports multiple output forms, including 4-20mA current, 0-2.5V, 0-5V, and RS485, making it compatible with most monitoring systems in the market and easy to integrate.

Ensuring System Stability:

- Real-Time Data Feedback: The temperature monitoring data is fed back to the control system in real-time, providing early warnings of abnormal temperature conditions in the panels, preventing damage or efficiency loss due to excessive temperatures.

- Smart Management: Compatible with existing Energy Management Systems (EMS), the sensor helps optimize the operation and maintenance of the photovoltaic plant, improving overall generation efficiency and economic benefits.

Application Scenarios of Photovoltaic Plant Module Temperature Sensors:

- Photovoltaic Plants: Ideal for monitoring module temperatures in photovoltaic plants, helping maintenance personnel track the temperature of photovoltaic panels in real time and optimize plant performance.

- Meteorological Monitoring: Widely used in meteorological stations and equipment for monitoring temperature changes, aiding in meteorological research and data analysis.

- Marine and Environmental Monitoring: Used in marine monitoring and environmental protection projects, continuously tracking temperature changes and ensuring the accuracy of environmental data.

- Laboratory Measurement: Suitable for temperature detection in laboratories to ensure the accuracy of experimental data.

- Photovoltaic Plant Operation and Maintenance: Accurate temperature monitoring of solar panels helps detect abnormalities in power generation modules early, preventing damage or downtime due to overheating.

- Roof Solar Systems: For small or home photovoltaic systems, the NBL-W-PPT sensor helps users monitor and optimize system performance, ensuring energy efficiency.

Applicable Environments for PV Plant Temperature Sensors:

- Outdoor Harsh Environments: The sensor has high resistance to environmental changes, operating stably in high, low, humid, and windy conditions, making it especially suitable for photovoltaic plants located in remote or extreme climates.

- Wide Range of Applications: In addition to photovoltaic plants, the NBL-W-PPT temperature sensor is also suitable for meteorological monitoring, environmental protection projects, marine research, and laboratory studies.

Installation Guide for Photovoltaic Plant Module Temperature Sensor:

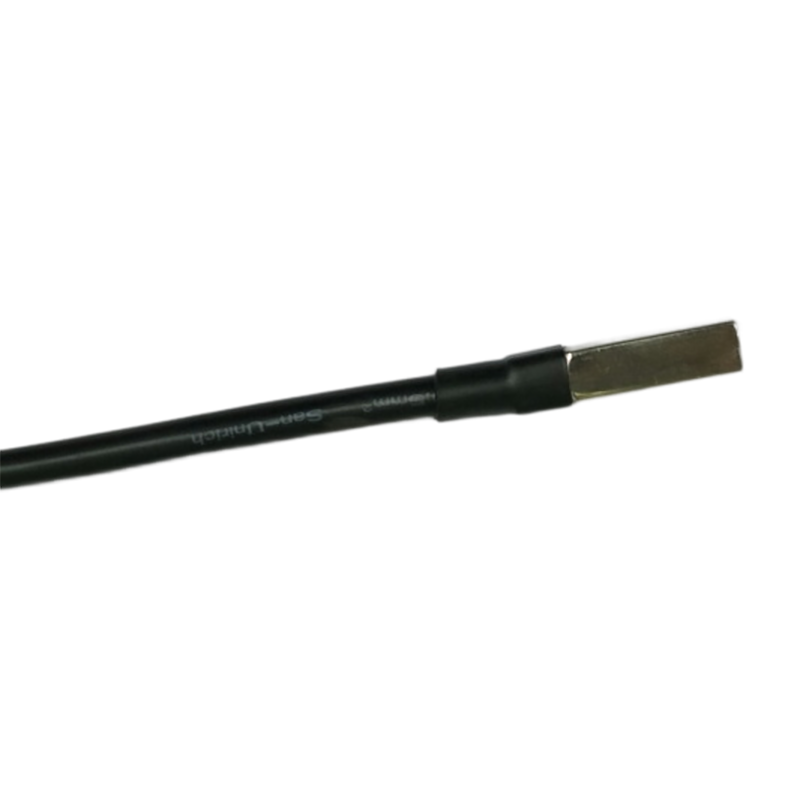

1. Preparation: Apply thermal conductive silicone to an area of approximately 22mm x 12mm on the center of the back of the solar panel.

2. Install the Sensor: After applying the silicone, immediately fix the temperature sensor in place according to the application direction and hold it for 5-10 minutes to ensure firm adhesion.

3. Wiring: After securing the sensor, route the sensor cables along the solar panel’s bracket and complete the normal wiring.

4. Flexible Application: Depending on the actual environment, users can follow the above steps to install and fix the sensor.

Why Photovoltaic Plants Need to Use This Temperature Sensor:

In photovoltaic plants, the temperature of solar panels significantly impacts their efficiency and lifespan. Excessive temperatures can lead to panel damage or reduced power generation efficiency. Therefore, real-time monitoring of panel temperatures is crucial. The NBL-W-PPT module temperature sensor provides precise temperature measurements, capturing temperature fluctuations promptly and offering reliable temperature data, helping maintenance personnel make timely adjustments and ensuring the normal operation of the photovoltaic plant.

Warranty and After-Sales Service:

- Warranty Period: We offer a 1-year quality warranty for the NBL-W-PPT temperature sensor, ensuring the product’s reliability and durability under normal usage conditions.

- Professional After-Sales Service: We provide professional technical support and after-sales services, ensuring the smooth installation and operation of the product. Whether for pre-installation consultation or post-maintenance, we offer comprehensive customer service.

By choosing the NBL-W-PPT Photovoltaic Plant Module Temperature Sensor, you will gain more efficient, stable, and reliable temperature monitoring, providing precise performance support for your photovoltaic plant.

PV Module Temperature Sensor data sheet

NBL-W-PPT-SMD-Solar-Panel-Temperature-Sensors.pdf
