Environmental Sensors for Poultry Houses: Placement, Gas Ranges and Control

Time:2025-09-26 14:16:05 Popularity:1769

Quick Answer

Environmental sensors for poultry houses should be selected for the flock type, housing layout, concentration ranges and controller inputs. Temperature, humidity, CO2 and any ammonia measurement have different sensing and service requirements. Use representative observations to support the house controller, while retaining independent checks of fans, inlets, heating and power. A remote dashboard is not a ventilation safeguard.

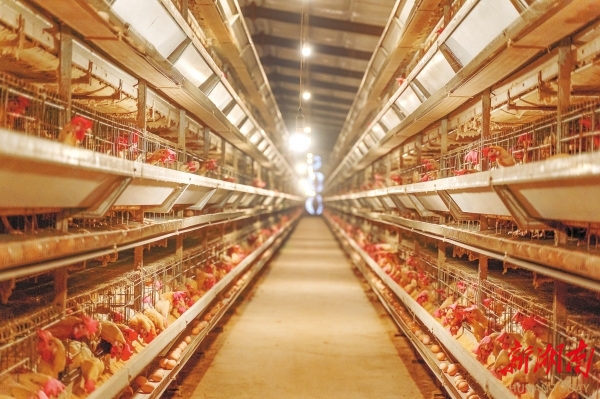

Interior of a multi-tier poultry housing installation

Measure the zones the birds actually occupy

A long house can have different conditions near inlets, heaters, wet litter and extraction fans. A convenient sensor beside the control cabinet may not describe the occupied zone. In a multi-tier layer installation, one height may also miss differences between levels. Map the areas relevant to the flock and compare them before deciding how many permanent monitoring points are needed.

Keep the representative control measurement separate from a diagnostic point beside a suspected problem. Both are useful, but an inlet draft or heater plume should not silently become the reference for the entire house. Record location and height, and reassess them when equipment, stocking arrangement or the birds' occupied zone changes.

Select the measured gas, not a general air-quality label

ChannelWhat it providesWhat needs separate assessment
Temperature and relative humidityConditions in the air reaching the sensorSpatial differences, heater influence, litter condition and local airflow
CO2Carbon dioxide concentration in ppmOxygen concentration, ammonia and other gases are not measured by this channel.
NH3 gasAmmonia concentration from a suitable gas-specific instrumentRange, cross-sensitivity, exposure limits of the instrument and calibration method
Differential pressure or airflowA selected pressure difference or local air movementActual fan operation, inlet position and performance of the complete ventilation system

A water-quality ammonia-nitrogen probe is not an air-ammonia detector for a poultry house. Likewise, atmospheric pressure from a weather sensor does not replace a low-range differential-pressure instrument used to assess a ventilation system. Specify the measured medium and quantity explicitly in the purchase request.

Check the CO2 range before setting up the controller

The NiuBoL NBL-W-CO2 is available in 0-2000 ppm and 0-5000 ppm versions. Select against the highest concentration that the project needs to observe, including investigation of poor operating conditions. A transmitter that reaches its range limit cannot report a larger concentration just because the dashboard scale has been extended.

NBL-W-CO2 itemSpecificationIntegration check
2000 ppm version0-2000 ppm; accuracy +/-(40 ppm + 2% FS)Use only where the required observation stays within this range.
5000 ppm version0-5000 ppm; accuracy +/-(50 ppm + 3% of reading)Different range and accuracy expression; not a 10000 ppm instrument.
Supply and outputDC 12-24 V; RS485 Modbus RTU or 4-20 mAOrder the version that matches the controller's actual inputs.
Environment-10 to 50 C operating temperature; approximately 0.2 WAssess installed temperature, dust, condensation and cleaning exposure.

The sensor supplies the measurement, not a poultry-management setpoint. Setpoints and operating curves depend on the production system and should come from the responsible farm and ventilation team. CO2 readings do not establish an oxygen concentration, and one gas channel should not be used as a substitute for a separately required gas measurement.

Illustration of remote poultry environmental monitoring

Plan around dust, humidity and house cleaning

Air must reach the sensing element, so an instrument cannot simply be sealed inside an ordinary electrical box to protect it from dust. A protective filter or cover must suit the instrument and permit the required response. Inspect whether accumulated dust changes airflow or creates an unrepresentative pocket around the probe.

The NBL-W-LBTH provides air temperature and humidity, with temperature accuracy of +/-0.5 C and humidity accuracy of +/-5% RH. Review whether its size and naturally ventilated housing suit the intended indoor point. A radiation shield is not a guarantee of resistance to disinfectant, high-pressure washdown or persistent condensation.

Provide a cleaning arrangement before installation: how instruments are protected or removed, who restores them and what checks occur before the next flock. Confirm chemical compatibility and exposure limits for the actual products supplied. Choose inspection and calibration intervals from instrument requirements and operating evidence, not one monthly or quarterly rule for every channel.

Commission measurements and ventilation response separately

First verify the measurement at the final controller: units, register type and scaling for RS485 Modbus RTU, or correct range mapping for an analog input. Compare representative points with a suitable instrument or check method. A channel that responds to polling may still have the wrong decimal scale, location label or concentration range.

Then test the controller and equipment under an agreed commissioning procedure. Confirm commanded versus actual fan operation and inlet movement, and check the response to a disconnected or stale measurement. Select acquisition and control timing for the system dynamics; a five- or fifteen-minute remote upload interval is not automatically an adequate local control interval.

Keep local operation and the agreed fault response available if the internet connection fails. Any required independent ventilation or power-failure alarm needs its own design and test. Environmental transmitters should not be represented as certified personnel gas-safety devices or as a complete emergency system without the applicable evidence.

Use trends to direct an inspection

A repeated CO2 increase at a particular time can justify checking ventilation schedules, occupancy and heater operation. A humidity difference between zones can prompt checks of airflow, water leakage and litter. The trend does not identify the cause on its own, and it is not a diagnosis of flock health.

Retain house and zone identifiers, flock stage, relevant equipment events and service records with the measurements. Compare similar periods and production arrangements when evaluating changes. Claims about mortality, feed conversion or payback need suitable production and cost records; they cannot be inferred from the presence of sensors.

For a quotation, send house dimensions and tiers, flock type, monitoring locations, expected ranges, cleaning procedure and controller details. Identify any ammonia-gas channel, pressure instrument or independent alarm requirement separately. NiuBoL can review the temperature, humidity and CO2 measurement configuration without treating every illustrated monitoring function as part of one supplied package.

General livestock air monitoring concept with gas symbols

Project Decision FAQ

Q1. How many sensor points should a poultry house have?

Choose from occupied zones, tiers, inlet and extraction layout, and observed differences. Compare locations before fixing the count. Two or three nodes may suit one layout but cannot be assumed adequate for every house.

Q2. Which NBL-W-CO2 range should be ordered?

Match the range to the concentration that must be observed, including abnormal-condition investigation. Standard versions are 0-2000 ppm and 0-5000 ppm. Confirm a different configuration if the requirement exceeds those limits.

Q3. Can the CO2 channel replace an ammonia or oxygen detector?

No. It measures carbon dioxide only. Ammonia and oxygen require suitable separate instruments. A water ammonia-nitrogen probe is also unsuitable as a substitute for an NH3 gas detector.

Q4. Can a weather-sensor pressure channel assess house static pressure?

Not as a direct substitute. Ventilation assessment may need a low-range differential-pressure instrument with suitable pressure ports and range. Specify the pressure difference and required performance rather than using a general atmospheric-pressure channel.

Q5. Will remote monitoring operate the fans automatically?

Only where a separately configured controller and rated equipment implement that function. Test actual equipment response, invalid measurements and connection failure. A remote display or upload service alone does not provide the local control and fault arrangement.

Q6. What should acceptance include after installation?

Check representative placement, range, scaling and comparison readings, then test controller and equipment response. Include cleaning protection, restoration checks and any independent alarm. Keep the settings and service responsibilities with the handover record.

Summary

Environmental sensors for poultry houses are useful when each channel has a representative location, suitable range and workable cleaning procedure. NiuBoL temperature, humidity and CO2 instruments can supply selected measurements. Keep gas-specific requirements, controller behavior and independent ventilation protection clearly defined before ordering.
