Specialized AWS
10-in-1 Compact Weather Sensor integrates temperature, humidity, atmospheric pressure, light intensity, rainfall, wind speed, wind direction, PM2.5, PM10 and CO2 monitoring in one IP66-rated device. Supports RS485 Modbus RTU and SDI-12 communication for smart city, environmental monitoring, agriculture and industrial applications.
Tel/WhatsApp:+8615367865107
Email:Arvin@niubol.com +Nearly 100 partner companies in more than 75 countries. We are committed to providing high-quality, practical products to meet your needs and help you solve problems. Our products comply with international standards and are certified with ISO, CE and RoHS.Product Details
Integrated Weather, Air Quality and CO2 Monitoring Sensor for Smart Cities, Environmental Monitoring, Agriculture and Industrial Applications

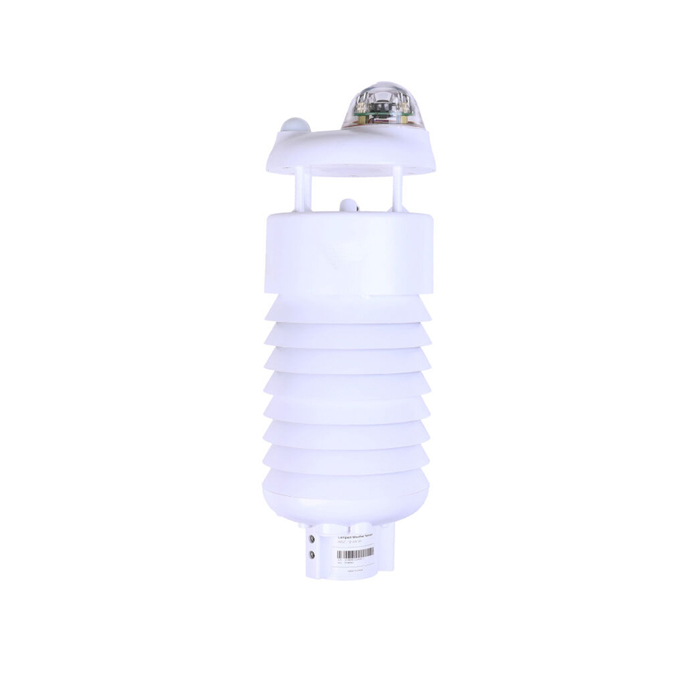

The 10-in-1 Compact Weather Sensor is an integrated environmental monitoring device that combines weather monitoring, air quality monitoring and carbon dioxide monitoring into one compact housing.
It measures air temperature, relative humidity, atmospheric pressure, light intensity, rainfall intensity, wind speed, wind direction, PM2.5, PM10 and CO2 concentration in real time.
The sensor is widely used in smart city infrastructure, environmental monitoring networks, precision agriculture, greenhouse monitoring, industrial parks, carbon monitoring projects and automatic weather stations.
Traditional environmental monitoring projects often require multiple independent devices for weather monitoring, particulate matter monitoring and CO2 monitoring. This increases installation complexity, wiring requirements and maintenance costs.
The 10-in-1 Compact Weather Sensor integrates all critical environmental monitoring parameters into one compact device, simplifying deployment while reducing hardware and operational costs.
The sensor utilizes ultrasonic technology for wind measurement, optical technology for rainfall monitoring and integrated sensing technology for PM2.5, PM10 and CO2 monitoring. Its compact design makes it suitable for both standalone monitoring stations and large-scale environmental monitoring networks.
The sensor combines weather monitoring, particulate matter monitoring and CO2 monitoring into one compact device, reducing installation complexity and overall project costs.
Real-time PM2.5, PM10 and CO2 monitoring supports urban environmental monitoring, air quality observation, environmental compliance and sustainable city development.
CO2 concentration monitoring provides valuable data for greenhouse management, environmental assessment, carbon monitoring projects and climate-related applications.
Temperature, humidity, rainfall, light intensity and CO2 monitoring help growers optimize crop growth conditions, greenhouse environments and resource management.
One integrated sensor replaces multiple independent environmental sensors, reducing installation labor, maintenance requirements and long-term operating costs.
The IP66-rated enclosure and -40°C to +85°C operating temperature range support long-term outdoor deployment in demanding environments.
10 environmental parameters integrated into one compact sensor.
Temperature, humidity and atmospheric pressure monitoring.
Ultrasonic wind speed and wind direction measurement.
PM2.5 and PM10 air quality monitoring.
CO2 concentration monitoring.
Optical rainfall intensity measurement.
Light intensity monitoring up to 200,000 Lux.
RS485 Modbus RTU and SDI-12 communication.
IP66-rated enclosure for outdoor deployment.
Suitable for smart city, agriculture and environmental monitoring projects.
Low maintenance design.
Easy integration with PLC, RTU, SCADA and IoT platforms.
| Category | Parameter | Specification |
|---|---|---|
| General Specifications | Measured Parameters | Temperature, Humidity, Pressure, Light Intensity, Rainfall, Wind Speed, Wind Direction, PM2.5, PM10, CO2 |
| Communication Protocol | RS485 Modbus RTU / SDI-12 | |
| Power Supply | 12V~24V DC / 24V Heating Power | |
| Cable Length | 3 m | |
| Operating Environment | -40°C ~ +85°C, 0~100%RH | |
| Protection Rating | IP66 | |
| Weight | Approx. 2 kg | |
| Rainfall Measurement | Optical Rainfall Measurement | |
| Air Temperature | Range | -40°C ~ +85°C |
| Accuracy | ±0.1°C | |
| Resolution | 0.01°C | |
| Relative Humidity | Range | 0~100%RH |
| Accuracy | ±1.5%RH | |
| Resolution | 0.01%RH | |
| Atmospheric Pressure | Range | 300~1250 hPa |
| Accuracy | ±50 Pa | |
| Resolution | 10 Pa | |
| Wind Speed | Range | 0~60 m/s Standard, 0~75 m/s Extended, Maximum 80 m/s |
| Accuracy | ±0.3 m/s (≤10 m/s), ±3% (10~50 m/s), ±5% (>50 m/s) | |
| Resolution | 0.1 m/s | |
| Wind Direction | Range | 0~360° |
| Accuracy | ±3° | |
| Resolution | 0.1° | |
| Light Intensity | Range | 0~200,000 Lux |
| Accuracy | ±5% Reading | |
| Resolution | 5 Lux | |
| Rainfall Intensity | Range | 0~200 mm/h |
| Accuracy | ±10% | |
| Resolution | 0.2 mm/h | |
| PM2.5 | Range | 0~1000 μg/m³ |
| Accuracy | ±10 μg/m³ (0~100 μg/m³), ±10% (100~1000 μg/m³) | |
| Resolution | 1 μg/m³ | |
| PM10 | Range | 0~1000 μg/m³ |
| Accuracy | ±15 μg/m³ (0~100 μg/m³), ±15% (100~1000 μg/m³) | |
| Resolution | 1 μg/m³ | |
| CO2 | Range | 400~10000 ppm |
| Accuracy | ±(30 ppm + 3% Reading) (400~5000 ppm) ±10% Reading (5000~10000 ppm) | |
| Resolution | 1 ppm |
Smart City Monitoring Networks
Urban Air Quality Monitoring Stations
Carbon Monitoring Projects
Environmental Monitoring Stations
Agricultural Weather Monitoring
Greenhouse Environmental Monitoring
Industrial Park Monitoring
Construction Site Monitoring
Campus Environmental Monitoring
Government Environmental Monitoring Programs
| Traditional Solution | 10-in-1 Compact Weather Sensor |
|---|---|
| Multiple separate monitoring devices required | One integrated environmental monitoring solution |
| Independent weather, PM and CO2 monitoring systems | Weather, PM2.5, PM10 and CO2 monitoring in one device |
| Complex installation and wiring | Simplified deployment and reduced installation cost |
| Higher maintenance workload | Lower maintenance requirements |
| Higher hardware investment | Reduced equipment and infrastructure cost |
| Longer project deployment time | Faster installation and commissioning |
Environmental Monitoring Companies
Smart City Integrators
Agricultural Technology Companies
Greenhouse Operators
Government Environmental Projects
Industrial Park Operators
Air Quality Monitoring Providers
Carbon Monitoring Projects
System Integrators
OEM and Private Label Distributors
CO2 concentration is an important environmental indicator used in greenhouse management, carbon monitoring programs, environmental assessment and climate-related projects.
Combining weather and air quality monitoring helps reduce equipment quantity, installation complexity and maintenance requirements while providing a more complete picture of environmental conditions.
CO2 concentration directly affects plant photosynthesis. Monitoring CO2 helps optimize greenhouse conditions and improve crop productivity.
PM2.5 and PM10 are key indicators of airborne particulate pollution and are widely used in environmental monitoring and public health assessments.
Yes. This integrated sensor combines weather monitoring, particulate matter monitoring, CO2 monitoring and environmental monitoring into one compact device.
Yes. It is specifically designed for smart city infrastructure, urban air quality monitoring and environmental observation networks.
Yes. The sensor supports RS485 Modbus RTU and SDI-12 communication and can be integrated with PLCs, RTUs, data loggers and SCADA systems.
Yes. OEM branding, private label services and project-based customization are available for distributors and system integrators.
Whether you are building a smart city monitoring network, environmental monitoring station, greenhouse monitoring system or carbon monitoring project, the 10-in-1 Compact Weather Sensor provides reliable weather, air quality and CO2 monitoring in one compact device.
Contact us today for datasheets, pricing, OEM solutions and project support.
