Specialized AWS

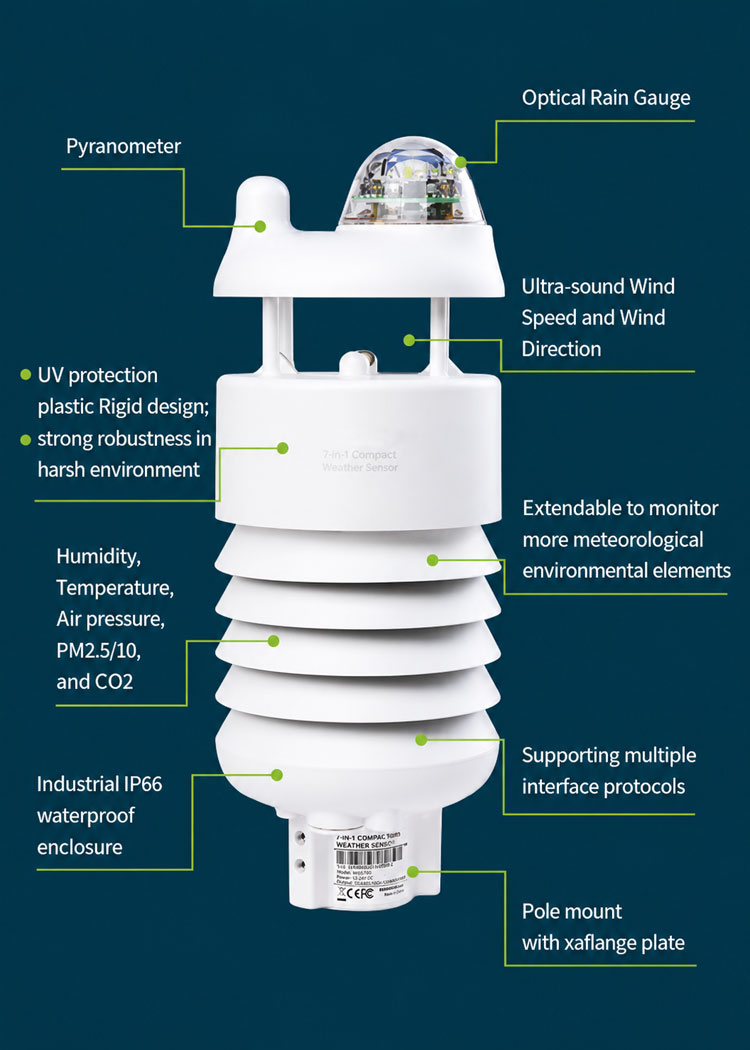

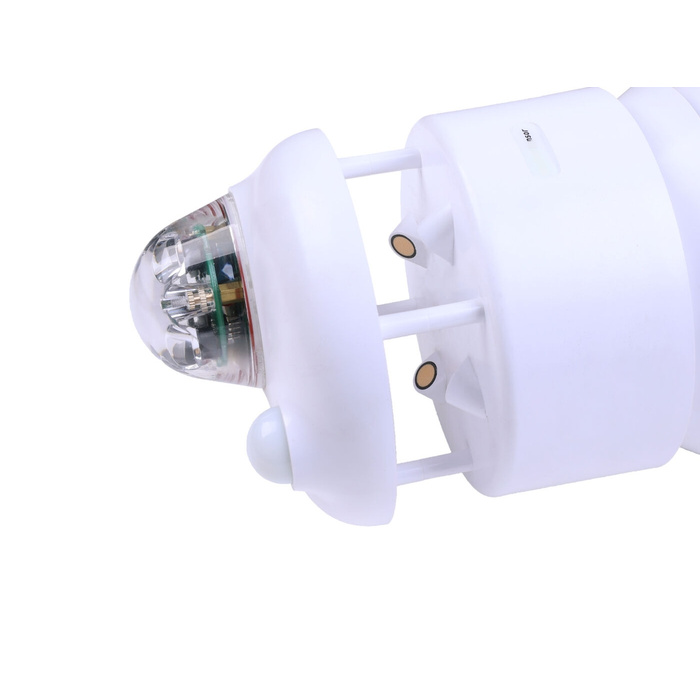

7-in-1 Compact Weather Sensor integrates temperature, humidity, atmospheric pressure, solar radiation, sunshine duration, rainfall intensity, ultrasonic wind speed and wind direction in one IP66-rated device. Supports RS485 Modbus RTU, SDI-12 and ASCII for agriculture, solar energy, weather stations and environmental monitoring projects.
Tel/WhatsApp:+8615367865107
Email:Arvin@niubol.com +Nearly 100 partner companies in more than 75 countries. We are committed to providing high-quality, practical products to meet your needs and help you solve problems. Our products comply with international standards and are certified with ISO, CE and RoHS.Product Details
Integrated Ultrasonic Weather Sensor for Agriculture, Solar Energy, Environmental Monitoring and Industrial IoT Projects
A 7-in-1 Compact Weather Sensor is an integrated meteorological monitoring device designed to measure multiple weather parameters in one compact housing, including air temperature, relative humidity, atmospheric pressure, solar radiation, sunshine duration, rainfall intensity, wind speed and wind direction. It is widely used in automatic weather stations, smart agriculture, photovoltaic power plants, environmental monitoring systems and industrial IoT applications.
The 7-in-1 Compact Weather Sensor provides comprehensive weather data from a single device. It integrates temperature, humidity, pressure, solar radiation, sunshine duration, rainfall intensity, ultrasonic wind speed and ultrasonic wind direction monitoring, helping users reduce installation complexity and improve project deployment efficiency.
The sensor adopts ultrasonic technology for wind speed and wind direction measurement, with no moving mechanical parts. Compared with traditional mechanical wind sensors, it helps reduce maintenance requirements, avoid bearing wear and improve long-term reliability in outdoor environments.
With an IP66-rated enclosure, M12 connector, 12V~24V power supply and support for RS485 Modbus RTU, SDI-12 and ASCII communication protocols, this sensor is suitable for system integrators, weather station manufacturers, EPC contractors, agricultural technology companies and environmental monitoring projects.
This sensor integrates multiple meteorological parameters into one compact device, reducing the need for separate temperature, humidity, pressure, wind, rainfall and solar radiation sensors.
Solar radiation and sunshine duration data are important for photovoltaic performance monitoring, solar resource assessment, power generation analysis and renewable energy operation management.
Temperature, humidity, rainfall, wind and solar radiation data help support irrigation control, crop growth monitoring, greenhouse management and field microclimate analysis.
One integrated sensor reduces mounting structures, cable quantity, installation time and maintenance workload, making it suitable for both small projects and large-scale monitoring networks.
The sensor measures wind speed and wind direction using ultrasonic technology. There are no rotating cups, wind vanes or bearings, which helps reduce mechanical failure and long-term maintenance costs.
The IP66 protection rating, -40°C to +85°C operating temperature range and 0~100%RH humidity range make the sensor suitable for long-term outdoor deployment.
Integrated measurement of temperature, humidity, pressure, solar radiation, sunshine duration, rainfall intensity, wind speed and wind direction.
Ultrasonic wind speed and wind direction measurement with no moving parts.
Solar radiation and sunshine duration monitoring for PV and agriculture applications.
Rainfall intensity monitoring for weather and hydrological projects.
RS485 Modbus RTU, SDI-12 and ASCII communication support.

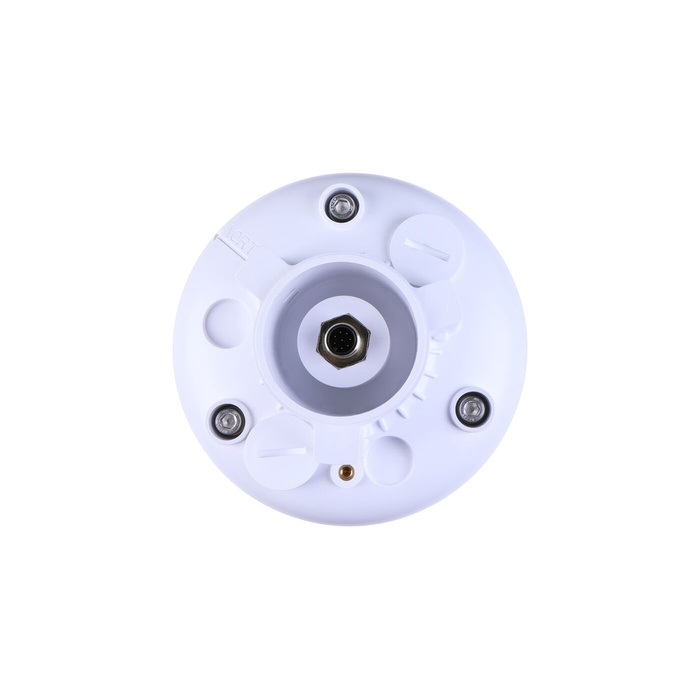

M12 connector for reliable field installation.
IP66-rated enclosure for outdoor applications.
12V~24V DC power supply.
Optional heating module support for cold environments.
Suitable for automatic weather stations, solar farms, agriculture and environmental monitoring networks.
| Category | Parameter | Specification |
|---|---|---|
| General Specifications | Measured Parameters | Air Temperature, Relative Humidity, Atmospheric Pressure, Solar Radiation, Sunshine Duration, Rainfall Intensity, Wind Speed, Wind Direction |

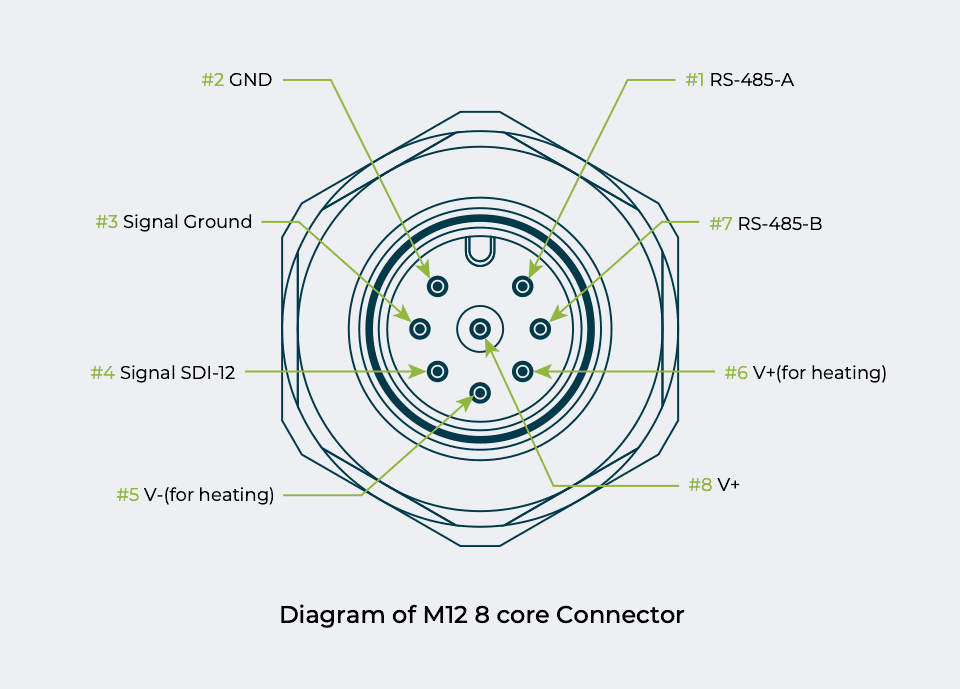

| Connector | M12 Connector | |
| Communication Protocol | RS485 Modbus RTU / SDI-12 / ASCII | |
| Power Supply | 12V~24V DC / 24V for Heating Module | |
| Power Consumption | 0.6W / 21W with Heating Module | |
| Cable Length | 3 m | |
| Protection Rating | IP66 | |
| Measurement Technology | Ultrasonic Wind Measurement, Optical Rainfall and Solar Radiation Measurement | |
| Air Temperature | Measuring Range | -40°C ~ +85°C |
| Accuracy | ±0.1°C | |
| Resolution | 0.01°C | |
| Relative Humidity | Measuring Range | 0 ~ 100%RH |
| Accuracy | ±1.5%RH | |
| Resolution | 0.01%RH | |
| Atmospheric Pressure | Measuring Range | 300 ~ 1250 hPa |
| Accuracy | ±50 Pa | |
| Resolution | 10 Pa | |
| Rainfall Intensity | Measuring Range | 0 ~ 200 mm/h |
| Accuracy | ±10% | |
| Resolution | 0.2 mm/h | |
| Wind Speed | Measuring Range | 0 ~ 60 m/s Standard Range, 0 ~ 75 m/s Extended Range, Maximum 80 m/s |
| Accuracy | ±0.3 m/s (≤10 m/s), ±3% (10~50 m/s), ±5% (>50 m/s) | |
| Resolution | 0.1 m/s | |
| Wind Direction | Measuring Range | 0 ~ 360° |
| Accuracy | ±3.0° | |
| Resolution | 0.1° | |
| Solar Radiation | Measuring Range | 0 ~ 2000 W/m² |
| Accuracy | ±3% | |
| Resolution | 1 W/m² | |
| Spectral Range | 300 ~ 1100 nm | |
| Response Time | ≤1 s | |
| Sunshine Duration | Measuring Range | 0 ~ 6553.5 h |
| Accuracy | ±3% | |
| Resolution | 0.1 h | |
| Spectral Range | 300 ~ 1100 nm | |
| Response Time | ≤1 s | |
| Environmental Conditions | Operating Temperature | -40°C ~ +85°C |
| Humidity Range | 0 ~ 100%RH, Non-condensing | |
| Mechanical Specifications | Dimensions | 140 × 140 × 350 mm |
| Weight | 1580 g |
| Parameter | Unit | Typical Use |
|---|---|---|
| Air Temperature | °C | Climate monitoring, agriculture, environmental analysis |
| Relative Humidity | %RH | Greenhouse control, comfort monitoring, crop disease prevention |
| Atmospheric Pressure | hPa / Pa | Weather trend analysis and meteorological monitoring |
| Solar Radiation | W/m² | PV monitoring, solar resource assessment, crop growth analysis |
| Sunshine Duration | h | Solar energy evaluation and agricultural climate analysis |
| Rainfall Intensity | mm/h | Rainfall monitoring, hydrology and irrigation management |
| Wind Speed | m/s | Weather monitoring, safety warning and environmental analysis |
| Wind Direction | ° | Wind field analysis, weather stations and environmental monitoring |
| Industry | Application |
|---|---|
| Smart Agriculture | Irrigation control, crop monitoring, greenhouse monitoring, field microclimate monitoring |
| Solar Energy | PV plant weather monitoring, solar radiation monitoring, sunshine duration analysis |
| Automatic Weather Stations | Compact weather stations, remote weather networks and meteorological monitoring |
| Environmental Monitoring | Urban climate monitoring, industrial park monitoring and environmental observation networks |
| Hydrology | Rainfall monitoring, watershed monitoring, reservoir and river basin projects |
| Transportation | Road, bridge, highway, airport and port weather monitoring |
| Industrial IoT | Factory environment monitoring, remote data collection and industrial automation |
| Research Projects | Meteorological research, agricultural research and environmental data collection |
| Traditional Solution | 7-in-1 Compact Weather Sensor |
|---|---|
| Multiple independent sensors are required | One integrated sensor provides multiple weather parameters |
| Complex wiring and installation | Simplified wiring and faster installation |
| Mechanical wind cups and wind vane may wear over time | Ultrasonic wind measurement with no moving parts |
| Separate solar radiation and rainfall devices may be needed | Solar radiation, sunshine duration and rainfall intensity are integrated |
| More mounting accessories and higher labor cost | Compact structure reduces mounting and labor requirements |
| More failure points in field operation | Integrated design improves system reliability |
| Higher maintenance workload for remote sites | Lower maintenance requirements and fewer field visits |
The 7-in-1 Compact Weather Sensor supports standard industrial communication protocols, making it easy to integrate into weather stations, data acquisition systems, SCADA platforms, IoT gateways and cloud monitoring systems.
| Compatible System | Description |
|---|---|
| PLC | Industrial automation and control systems |
| RTU | Remote telemetry and field monitoring systems |
| Data Logger | Weather data collection, storage and transmission |
| SCADA | Centralized monitoring and industrial data management |
| IoT Gateway | Remote data transmission and cloud platform connection |
| Cloud Platform | Online data visualization, alarm management and project monitoring |
| Automatic Weather Station | Compact weather monitoring station and field observation system |
Weather station manufacturers
System integrators
Solar EPC contractors
Photovoltaic monitoring solution providers
Agricultural technology companies
Environmental monitoring companies
Hydrological monitoring project companies
Smart city infrastructure providers
Industrial automation companies
OEM and private label distributors
Government weather and environmental monitoring projects
The sensor supports pole mount and mast mount installation. Its compact structure reduces field installation time, simplifies wiring and improves project deployment efficiency.
| Application | Recommended Installation Height |
|---|---|
| Agriculture Monitoring | 2~3 m |
| Solar Power Plant | 2~5 m |
| Standard Weather Station | 10 m |
| Environmental Monitoring | 3~10 m |
| Transportation Weather Monitoring | According to project requirements |
Customized cable length
Customized connector type
OEM logo service
Private label service
Project-based configuration
Communication protocol documentation
Modbus register map support
Bulk order support
System integration support
It measures air temperature, relative humidity, atmospheric pressure, solar radiation, sunshine duration, rainfall intensity, wind speed and wind direction. These parameters are commonly used in weather stations, agriculture, solar power plants and environmental monitoring projects.
Solar radiation data helps evaluate available solar energy, analyze PV power generation performance and compare actual output with expected performance. It is an important parameter for solar power plant operation and energy forecasting.
Sunshine duration helps evaluate solar resource conditions, crop growth environments and local climate characteristics. It is useful for agriculture, solar energy assessment and meteorological research.
Ultrasonic wind measurement has no moving mechanical parts. Compared with traditional cup-and-vane wind sensors, it reduces mechanical wear, maintenance requirements and failure risks, making it suitable for long-term outdoor and remote monitoring applications.
Yes. The sensor provides temperature, humidity, rainfall, solar radiation, wind and pressure data for irrigation management, crop protection, greenhouse monitoring and field microclimate analysis.
Yes. It is suitable for PV plant weather monitoring, solar radiation monitoring, sunshine duration analysis, environmental data collection and power generation performance evaluation.
One integrated sensor reduces the need for multiple independent devices, separate mounting brackets, additional cables and complex wiring. This helps reduce hardware cost, installation labor and long-term maintenance expenses.
The sensor supports RS485 Modbus RTU, SDI-12 and ASCII communication protocols. These protocols are commonly used in weather stations, RTUs, data loggers, SCADA systems and IoT monitoring platforms.
Yes. The compact design, IP66 protection and low-maintenance ultrasonic wind measurement make it suitable for remote weather stations, solar farms, agricultural fields, hydrological stations and environmental monitoring networks.
The sensor requires low maintenance. The ultrasonic wind measurement system has no rotating cups, bearings or wind vanes. Regular inspection mainly depends on local dust, rainfall, snow or environmental conditions.
Yes. With RS485 Modbus RTU, SDI-12 and ASCII support, the sensor can be integrated with PLCs, RTUs, data loggers, SCADA systems, IoT gateways and cloud monitoring platforms.
Yes. The product supports a heating module option. The standard power consumption is 0.6W, and power consumption with the heating module is approximately 21W.
Yes. Communication protocol documents and Modbus register maps can be provided to support software development, system integration and project commissioning.
Yes. OEM logo customization, private label service and project-based configuration support are available for distributors, system integrators and bulk project customers.
Whether you are building an automatic weather station, smart agriculture system, solar monitoring station, environmental monitoring network, hydrological monitoring project or industrial IoT platform, the 7-in-1 Compact Weather Sensor provides comprehensive weather data, easy integration, low maintenance and long-term outdoor reliability.
Contact us today for datasheets, pricing, OEM solutions and project support.
