Specialized AWS
7-in-1 Compact Weather Sensor integrates temperature, humidity, atmospheric pressure, ultrasonic wind speed, wind direction, radar rainfall intensity and light intensity monitoring in one IP66-rated device. Supports RS485 Modbus RTU and SDI-12 for agriculture, hydrology, environmental monitoring and smart weather stations.
Tel/WhatsApp:+8615367865107
Email:Arvin@niubol.com +Nearly 100 partner companies in more than 75 countries. We are committed to providing high-quality, practical products to meet your needs and help you solve problems. Our products comply with international standards and are certified with ISO, CE and RoHS.Product Details
Professional Ultrasonic Weather Sensor with Non-Contact Radar Rainfall Monitoring for Agriculture, Hydrology, Environmental Monitoring and Smart Weather Stations

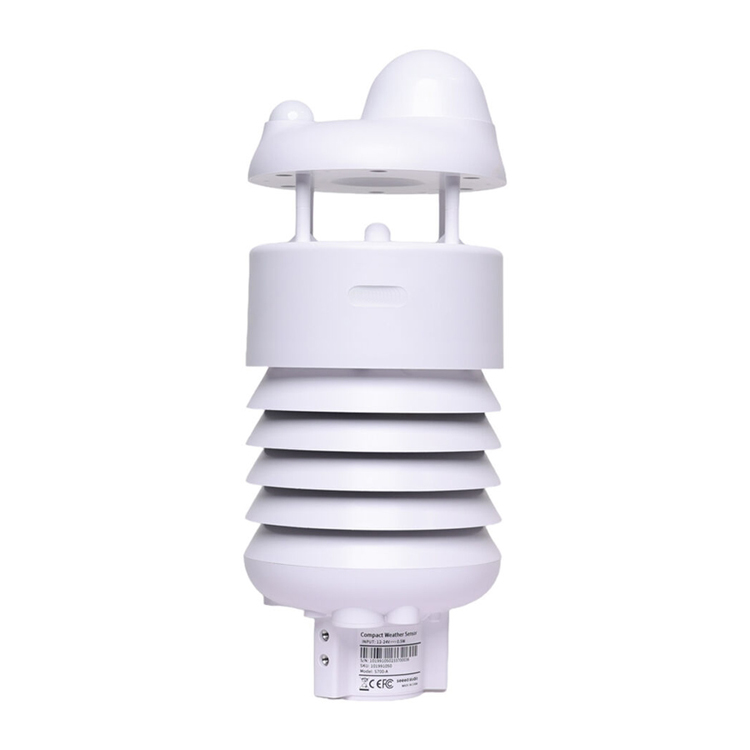

A 7-in-1 Compact Weather Sensor with Radar Rain Gauge is an integrated meteorological monitoring device that measures air temperature, relative humidity, atmospheric pressure, ultrasonic wind speed, ultrasonic wind direction, radar rainfall intensity and light intensity in one compact housing.
Unlike traditional tipping bucket rain gauges, the radar rainfall measurement design uses non-contact technology. It helps reduce mechanical wear, clogging risks and maintenance workload, making the sensor suitable for unattended outdoor monitoring stations and long-term environmental observation projects.
With IP66 protection, RS485 Modbus RTU and SDI-12 communication, and a wide operating range from -40°C to +85°C, this sensor is suitable for automatic weather stations, smart agriculture, hydrological monitoring, flood warning systems, environmental monitoring networks and industrial IoT applications.
The 7-in-1 Compact Weather Sensor with Radar Rain Gauge provides multiple weather parameters from a single device. It combines ultrasonic wind measurement, radar rainfall monitoring, light intensity measurement and standard meteorological sensing into one compact sensor, reducing the need for multiple separate instruments.
For project customers, system integrators and procurement teams, this integrated design helps simplify installation, reduce wiring complexity, shorten commissioning time and lower long-term maintenance costs.
The sensor is especially useful for projects where rainfall data, wind data and environmental data are required together, such as hydrological monitoring stations, agricultural irrigation systems, road weather monitoring, urban drainage monitoring and remote weather networks.
Traditional tipping bucket rain gauges use mechanical moving parts. In outdoor environments, they may be affected by dust, leaves, insects, blockage, mechanical wear and regular maintenance requirements.
The integrated radar rainfall sensor uses non-contact measurement technology, helping reduce mechanical failure risks and improving reliability for long-term unattended monitoring.
The sensor measures wind speed and wind direction using ultrasonic technology. It has no rotating cups, no wind vane and no bearings, reducing mechanical wear and field maintenance needs.
One device measures temperature, humidity, pressure, wind speed, wind direction, rainfall intensity and light intensity. This reduces sensor quantity, mounting structures, cable requirements and installation workload.
Radar rainfall measurement and ultrasonic wind measurement both reduce reliance on mechanical moving parts. This makes the sensor suitable for remote sites where regular maintenance is difficult or expensive.
The sensor supports RS485 Modbus RTU and SDI-12 communication, making it suitable for data loggers, RTUs, PLCs, SCADA systems, IoT gateways and cloud monitoring platforms.
The IP66-rated enclosure, -40°C to +85°C operating temperature and 0~100%RH working humidity range support long-term outdoor use in demanding environments.
7 weather parameters integrated into one compact sensor.
Non-contact radar rainfall intensity measurement.
Ultrasonic wind speed and wind direction measurement.
Light intensity monitoring up to 200,000 Lux.
Temperature, humidity and atmospheric pressure monitoring.
RS485 Modbus RTU and SDI-12 communication support.
12V~24V DC power supply.
24V heating power option for cold environments.
IP66-rated weatherproof enclosure.
Suitable for automatic weather stations and remote monitoring networks.
Low maintenance design for unattended outdoor installations.
Easy integration with PLC, RTU, SCADA, data logger and IoT gateway systems.
| Category | Parameter | Specification |
|---|---|---|
| General Specifications | Measured Parameters | Air Temperature, Relative Humidity, Atmospheric Pressure, Wind Speed, Wind Direction, Rainfall Intensity, Light Intensity |
| Rainfall Measurement Technology | Radar Rainfall Measurement | |
| Wind Measurement Technology | Ultrasonic Wind Measurement | |
| Communication Protocol | RS485 Modbus RTU / SDI-12 | |
| Power Supply | 12V~24V DC / 24V Heating Power | |
| Cable Length | 3 m | |
| Operating Environment | -40°C ~ +85°C, 0 ~ 100%RH | |
| Protection Rating | IP66 | |
| Air Temperature | Measuring Range | -40°C ~ +85°C |
| Accuracy | ±0.1°C | |
| Resolution | 0.01°C | |
| Relative Humidity | Measuring Range | 0 ~ 100%RH |
| Accuracy | ±1.5%RH | |
| Resolution | 0.01%RH | |
| Atmospheric Pressure | Measuring Range | 300 ~ 1250 hPa |
| Accuracy | ±50 Pa | |
| Resolution | 10 Pa | |
| Wind Speed | Measuring Range | 0 ~ 60 m/s Standard, 0 ~ 75 m/s Extended, Maximum 80 m/s |
| Accuracy | ±0.3 m/s (≤10 m/s), ±3% (10 ~ 50 m/s), ±5% (>50 m/s) | |
| Resolution | 0.1 m/s | |
| Wind Direction | Measuring Range | 0 ~ 360° |
| Accuracy | ±3.0° | |
| Resolution | 0.1° | |
| Rainfall Intensity | Measuring Range | 0 ~ 300 mm/h |
| Accuracy | ±10% | |
| Resolution | 0.01 mm/h | |
| Light Intensity | Measuring Range | 0 ~ 200,000 Lux |
| Accuracy | ±5% Reading | |
| Resolution | 5 Lux | |
| Physical Specifications | Weight | Approx. 2 kg |
| Installation | Pole Mount / Mast Mount |
| Parameter | Unit | Typical Use |
|---|---|---|
| Air Temperature | °C | Climate monitoring, agriculture, environmental observation |
| Relative Humidity | %RH | Greenhouse control, crop protection, environmental monitoring |
| Atmospheric Pressure | hPa / Pa | Weather trend analysis and meteorological monitoring |
| Wind Speed | m/s | Weather monitoring, wind safety warning and environmental analysis |
| Wind Direction | ° | Wind field analysis, weather stations and environmental monitoring |
| Rainfall Intensity | mm/h | Rainfall monitoring, hydrology, flood warning and drainage monitoring |
| Light Intensity | Lux | Agriculture, smart city, environmental and lighting condition monitoring |
| Industry | Application |
|---|---|
| Automatic Weather Stations | Compact weather stations, remote weather networks and meteorological observation |
| Smart Agriculture | Irrigation control, crop monitoring, greenhouse monitoring and field microclimate analysis |
| Hydrology | Rainfall monitoring, flood warning, watershed monitoring and drainage monitoring |
| Environmental Monitoring | Urban climate monitoring, industrial park monitoring and environmental observation networks |
| Smart City | Urban drainage, road weather monitoring and infrastructure environmental sensing |
| Transportation | Road, bridge, highway, airport and port weather monitoring |
| Industrial IoT | Factory environment monitoring, remote data collection and industrial automation |
| Research Projects | Meteorological research, agricultural research and environmental data collection |
| Traditional Solution | 7-in-1 Compact Weather Sensor with Radar Rain Gauge |
|---|---|
| Separate sensors are required for wind, rainfall, temperature, humidity and light | One integrated sensor provides seven weather parameters |
| Tipping bucket rain gauges may require regular cleaning and maintenance | Radar rainfall measurement reduces mechanical wear and blockage risks |
| Mechanical wind sensors have rotating cups and wind vanes | Ultrasonic wind measurement has no moving mechanical parts |
| Complex wiring and more mounting accessories | Simplified wiring and compact installation |
| More components increase possible failure points | Integrated design improves overall system reliability |
| Higher maintenance workload for remote projects | Lower maintenance requirements and fewer site visits |
| Longer installation and commissioning time | Faster deployment for project teams and system integrators |
The 7-in-1 Compact Weather Sensor with Radar Rain Gauge supports standard industrial communication protocols, making it easy to integrate into weather stations, data acquisition systems, SCADA platforms, IoT gateways and cloud monitoring systems.
| Compatible System | Description |
|---|---|
| PLC | Industrial automation and control systems |
| RTU | Remote telemetry and field monitoring systems |
| Data Logger | Weather data collection, storage and transmission |
| SCADA | Centralized monitoring and industrial data management |
| IoT Gateway | Remote data transmission and cloud platform connection |
| Cloud Platform | Online data visualization, alarm management and project monitoring |
| Automatic Weather Station | Compact weather monitoring station and field observation system |
Weather station manufacturers
System integrators
Agricultural technology companies
Environmental monitoring companies
Hydrological monitoring project contractors
Flood warning system providers
Smart city solution providers
Transportation weather monitoring projects
Industrial automation companies
OEM and private label distributors
Government weather and environmental monitoring projects
The sensor supports pole mount and mast mount installation. Its compact structure reduces field installation time, simplifies wiring and improves project deployment efficiency.
| Application | Recommended Installation Height |
|---|---|
| Agriculture Monitoring | 2~3 m |
| Hydrological Rainfall Monitoring | According to project requirements |
| Standard Weather Station | 10 m |
| Environmental Monitoring | 3~10 m |
| Transportation Weather Monitoring | According to project requirements |
Customized cable length
Customized connector type
OEM logo service
Private label service
Project-based configuration
Communication protocol documentation
Modbus register map support
Bulk order support
System integration support
It measures air temperature, relative humidity, atmospheric pressure, wind speed, wind direction, rainfall intensity and light intensity. These parameters are commonly used in automatic weather stations, agricultural monitoring, hydrological projects and environmental monitoring systems.
Radar rainfall sensors use non-contact measurement technology and contain no tipping bucket mechanism. Compared with traditional tipping bucket rain gauges, radar rainfall measurement helps reduce mechanical wear, blockage risks and maintenance workload.
Yes. Because radar rainfall measurement does not rely on mechanical tipping parts, it is suitable for unattended weather stations, remote agricultural fields, hydrological monitoring points and environmental monitoring networks.
Yes. Rainfall intensity data is valuable for flood warning systems, watershed monitoring, drainage monitoring and hydrological risk assessment projects.
Ultrasonic wind measurement has no rotating cups, no wind vane and no bearings. It reduces mechanical wear and is suitable for long-term outdoor operation with lower maintenance requirements.
Yes. It provides temperature, humidity, rainfall, wind and light intensity data for irrigation management, crop protection, greenhouse monitoring and field microclimate analysis.
Light intensity data can be used for agricultural growth analysis, greenhouse control, smart city monitoring, environmental observation and lighting condition assessment.
The sensor supports RS485 Modbus RTU and SDI-12 communication protocols. These interfaces are commonly used in weather stations, RTUs, data loggers, SCADA systems and IoT monitoring platforms.
Yes. With RS485 Modbus RTU and SDI-12 support, the sensor can be integrated with PLCs, RTUs, data loggers, SCADA systems, IoT gateways and cloud monitoring platforms.
Yes. The sensor has an IP66 protection rating and operates in environments from -40°C to +85°C with 0~100%RH humidity conditions.
The sensor is designed for low maintenance. Radar rainfall measurement and ultrasonic wind measurement reduce mechanical wear and help minimize routine maintenance requirements.
Yes. The sensor can be used in solar-powered remote monitoring stations when combined with a suitable data logger, power management module and battery system.
Yes. The product supports 24V heating power for applications in cold or freezing environments.
Yes. Communication protocol documents and Modbus register maps can be provided to support software development, system integration and project commissioning.
Yes. OEM logo customization, private label service and project-based configuration support are available for distributors, system integrators and bulk project customers.
Whether you are building an automatic weather station, smart agriculture system, hydrological monitoring station, flood warning system, environmental monitoring network or industrial IoT platform, this 7-in-1 Compact Weather Sensor with Radar Rain Gauge provides integrated weather data, easy installation, low maintenance and reliable outdoor performance.
Contact us today for datasheets, pricing, OEM solutions and project support.
