Specialized AWS

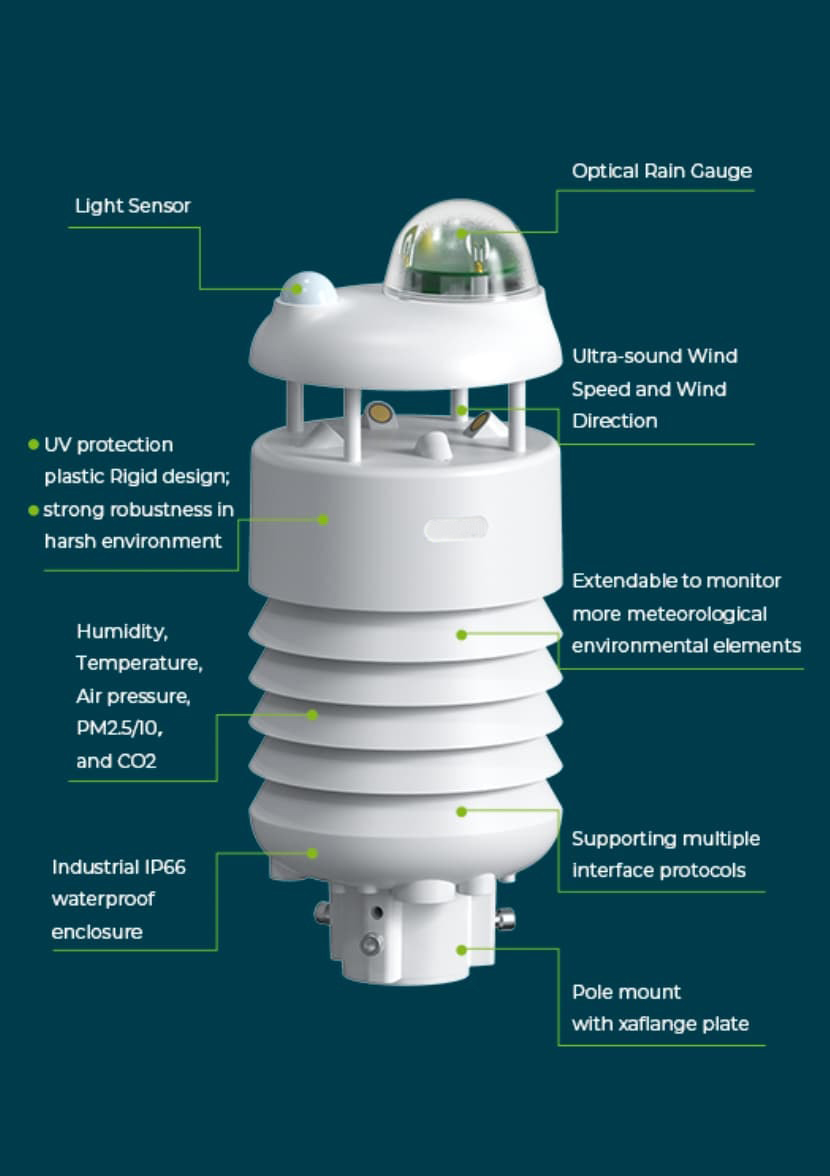

7-in-1 Compact Weather Sensor integrates air temperature, humidity, atmospheric pressure, ultrasonic wind speed, wind direction, optical rainfall intensity and light intensity monitoring in one IP66-rated device. Supports RS485 Modbus RTU and SDI-12 for weather stations, smart agriculture and environmental monitoring projects.
Tel/WhatsApp:+8615367865107
Email:Arvin@niubol.com +Nearly 100 partner companies in more than 75 countries. We are committed to providing high-quality, practical products to meet your needs and help you solve problems. Our products comply with international standards and are certified with ISO, CE and RoHS.Product Details
Integrated Ultrasonic Weather Sensor with Optical Rainfall and Light Intensity Monitoring for Agriculture, Weather Stations, Environmental Monitoring and Industrial IoT Projects
A 7-in-1 Compact Weather Sensor is an integrated meteorological monitoring device that measures air temperature, relative humidity, atmospheric pressure, ultrasonic wind speed, ultrasonic wind direction, optical rainfall intensity and light intensity in one compact housing.
It is designed for automatic weather stations, smart agriculture, environmental monitoring, transportation weather monitoring, hydrological projects, industrial IoT systems and remote weather observation networks.
Compared with traditional weather monitoring systems that require multiple independent sensors, this compact sensor helps reduce wiring complexity, mounting accessories, installation time and long-term maintenance costs.
The 7-in-1 Compact Weather Sensor provides reliable weather data from a single integrated device. It combines ultrasonic wind measurement, optical rainfall monitoring, light intensity sensing and standard meteorological measurements, making it suitable for professional outdoor monitoring projects.
The ultrasonic wind measurement system has no rotating cups, no wind vane and no bearings, helping reduce mechanical wear and maintenance requirements. The optical rainfall measurement design supports rainfall intensity monitoring without the traditional tipping bucket structure.
With IP66 protection, RS485 Modbus RTU and SDI-12 communication, 12V~24V power supply and a wide operating temperature range from -40°C to +85°C, this sensor is suitable for long-term outdoor deployment in harsh environments.
One compact sensor measures temperature, humidity, pressure, wind speed, wind direction, rainfall intensity and light intensity. This reduces the need for multiple sensors and simplifies overall system design.
The sensor uses optical rainfall measurement technology to monitor rainfall intensity. Compared with traditional mechanical rain gauges, it helps reduce mechanical maintenance and is suitable for compact weather station applications.
The wind speed and wind direction are measured using ultrasonic technology. With no moving parts, the sensor reduces bearing wear, mechanical failure and regular field maintenance.
Light intensity data is useful for agriculture, greenhouse control, smart city monitoring, environmental observation and general weather condition analysis.
RS485 Modbus RTU and SDI-12 communication protocols make the sensor easy to connect with data loggers, RTUs, PLCs, SCADA systems, IoT gateways and cloud monitoring platforms.
The IP66-rated enclosure, -40°C to +85°C operating temperature and 0~100%RH working humidity range support long-term outdoor operation in demanding environments.
7 meteorological parameters integrated into one compact sensor.
Measures air temperature, humidity, pressure, wind speed, wind direction, rainfall intensity and light intensity.
Ultrasonic wind speed and wind direction measurement with no moving parts.
Optical rainfall intensity monitoring.
Light intensity measurement up to 200,000 Lux.
RS485 Modbus RTU and SDI-12 communication support.
12V~24V DC power supply.
24V heating power option for cold environments.
IP66-rated weatherproof enclosure.
Suitable for automatic weather stations and remote monitoring networks.
Low maintenance design for long-term outdoor applications.
Easy integration with PLC, RTU, SCADA, data logger and IoT gateway systems.
| Category | Parameter | Specification |
|---|---|---|
| General Specifications | Measured Parameters | Air Temperature, Relative Humidity, Atmospheric Pressure, Wind Speed, Wind Direction, Rainfall Intensity, Light Intensity |
| Rainfall Measurement Technology | Optical Rainfall Measurement | |
| Wind Measurement Technology | Ultrasonic Wind Measurement | |
| Communication Protocol | RS485 Modbus RTU / SDI-12 | |
| Power Supply | 12V~24V DC / 24V Heating Power | |
| Cable Length | 3 m | |
| Operating Environment | -40°C ~ +85°C, 0 ~ 100%RH | |
| Protection Rating | IP66 | |
| Air Temperature | Measuring Range | -40°C ~ +85°C |
| Accuracy | ±0.1°C | |
| Resolution | 0.01°C | |
| Relative Humidity | Measuring Range | 0 ~ 100%RH |
| Accuracy | ±1.5%RH | |
| Resolution | 0.01%RH | |
| Atmospheric Pressure | Measuring Range | 300 ~ 1250 hPa |
| Accuracy | ±50 Pa | |
| Resolution | 10 Pa | |
| Wind Speed | Measuring Range | 0 ~ 60 m/s Standard Range, 0 ~ 75 m/s Extended Range, Up to 80 m/s Survival Range |
| Accuracy | ±0.3 m/s (≤10 m/s), ±3% (10 ~ 50 m/s), ±5% (>50 m/s) | |
| Resolution | 0.1 m/s | |
| Wind Direction | Measuring Range | 0 ~ 360° |
| Accuracy | ±3.0° | |
| Resolution | 0.1° | |
| Rainfall Intensity | Measuring Range | 0 ~ 200 mm/h |
| Accuracy | ±10% | |
| Resolution | 0.2 mm/h | |
| Light Intensity | Measuring Range | 0 ~ 200,000 Lux |
| Accuracy | ±5% Reading | |
| Resolution | 5 Lux | |
| Physical Specifications | Weight | Approx. 2 kg |
| Installation | Pole Mount / Mast Mount |
| Parameter | Unit | Typical Use |
|---|---|---|
| Air Temperature | °C | Climate monitoring, agriculture, environmental observation |
| Relative Humidity | %RH | Greenhouse control, crop protection and environmental monitoring |
| Atmospheric Pressure | hPa / Pa | Weather trend analysis and meteorological monitoring |
| Wind Speed | m/s | Weather monitoring, wind safety warning and environmental analysis |
| Wind Direction | ° | Wind field analysis, weather stations and environmental monitoring |
| Rainfall Intensity | mm/h | Rainfall monitoring, irrigation management and hydrological applications |
| Light Intensity | Lux | Agriculture, smart city, environmental and lighting condition monitoring |
| Industry | Application |
|---|---|
| Automatic Weather Stations | Compact weather stations, remote weather networks and meteorological observation |
| Smart Agriculture | Irrigation control, crop monitoring, greenhouse monitoring and field microclimate analysis |
| Environmental Monitoring | Urban climate monitoring, industrial park monitoring and environmental observation networks |
| Hydrology | Rainfall monitoring, watershed monitoring and water resource projects |
| Smart City | Urban weather monitoring, lighting condition monitoring and infrastructure sensing |
| Transportation | Road, bridge, highway, airport and port weather monitoring |
| Industrial IoT | Factory environment monitoring, remote data collection and industrial automation |
| Research Projects | Meteorological research, agricultural research and environmental data collection |
| Traditional Solution | 7-in-1 Compact Weather Sensor |
|---|---|
| Separate sensors are required for wind, rainfall, temperature, humidity and light | One integrated sensor provides seven weather parameters |
| Complex wiring and more mounting accessories | Simplified wiring and compact installation |
| Mechanical wind sensors have rotating cups and wind vanes | Ultrasonic wind measurement has no moving mechanical parts |
| Traditional rainfall devices may require more field maintenance | Optical rainfall monitoring helps reduce mechanical maintenance |
| More components increase possible failure points | Integrated design improves overall system reliability |
| Higher maintenance workload for remote projects | Lower maintenance requirements and fewer site visits |
| Longer installation and commissioning time | Faster deployment for project teams and system integrators |
The 7-in-1 Compact Weather Sensor supports standard industrial communication protocols, making it easy to integrate into weather stations, data acquisition systems, SCADA platforms, IoT gateways and cloud monitoring systems.
| Compatible System | Description |
|---|---|
| PLC | Industrial automation and control systems |
| RTU | Remote telemetry and field monitoring systems |
| Data Logger | Weather data collection, storage and transmission |
| SCADA | Centralized monitoring and industrial data management |
| IoT Gateway | Remote data transmission and cloud platform connection |
| Cloud Platform | Online data visualization, alarm management and project monitoring |
| Automatic Weather Station | Compact weather monitoring station and field observation system |
Weather station manufacturers
System integrators
Agricultural technology companies
Environmental monitoring companies
Hydrological monitoring project contractors
Smart city solution providers
Transportation weather monitoring projects
Industrial automation companies
OEM and private label distributors
Government weather and environmental monitoring projects
The sensor supports pole mount and mast mount installation. Its compact structure reduces field installation time, simplifies wiring and improves project deployment efficiency.
| Application | Recommended Installation Height |
|---|---|
| Agriculture Monitoring | 2~3 m |
| Rainfall Monitoring | According to project requirements |
| Standard Weather Station | 10 m |
| Environmental Monitoring | 3~10 m |
| Transportation Weather Monitoring | According to project requirements |
Customized cable length
Customized connector type
OEM logo service
Private label service
Project-based configuration
Communication protocol documentation
Modbus register map support
Bulk order support
System integration support
It measures air temperature, relative humidity, atmospheric pressure, wind speed, wind direction, rainfall intensity and light intensity. These parameters are commonly used in automatic weather stations, agricultural monitoring, hydrological projects and environmental monitoring systems.
Optical rainfall measurement can monitor rainfall intensity without a traditional tipping bucket structure. It helps reduce mechanical maintenance and is suitable for compact integrated weather monitoring applications.
Ultrasonic wind measurement has no rotating cups, no wind vane and no bearings. It reduces mechanical wear and is suitable for long-term outdoor operation with lower maintenance requirements.
Yes. It provides temperature, humidity, rainfall, wind and light intensity data for irrigation management, crop protection, greenhouse monitoring and field microclimate analysis.
Light intensity data can be used for agricultural growth analysis, greenhouse control, smart city monitoring, environmental observation and lighting condition assessment.
Yes. The integrated design, IP66 enclosure, ultrasonic wind measurement and industrial communication protocols make it suitable for unattended weather stations and remote environmental monitoring sites.
The sensor supports RS485 Modbus RTU and SDI-12 communication protocols. These interfaces are commonly used in weather stations, RTUs, data loggers, SCADA systems and IoT monitoring platforms.
Yes. With RS485 Modbus RTU and SDI-12 support, the sensor can be integrated with PLCs, RTUs, data loggers, SCADA systems, IoT gateways and cloud monitoring platforms.
Yes. The sensor has an IP66 protection rating and operates in environments from -40°C to +85°C with 0~100%RH humidity conditions.
The sensor is designed for low maintenance. Ultrasonic wind measurement has no moving parts, and the compact integrated structure reduces the number of separate field devices.
Yes. The sensor can be used in solar-powered remote monitoring stations when combined with a suitable data logger, power management module and battery system.
Yes. The product supports 24V heating power for applications in cold or freezing environments.
Yes. Communication protocol documents and Modbus register maps can be provided to support software development, system integration and project commissioning.
Yes. OEM logo customization, private label service and project-based configuration support are available for distributors, system integrators and bulk project customers.
Whether you are building an automatic weather station, smart agriculture system, rainfall monitoring station, environmental monitoring network or industrial IoT platform, this 7-in-1 Compact Weather Sensor provides integrated weather data, easy installation, low maintenance and reliable outdoor performance.
Contact us today for datasheets, pricing, OEM solutions and project support.
