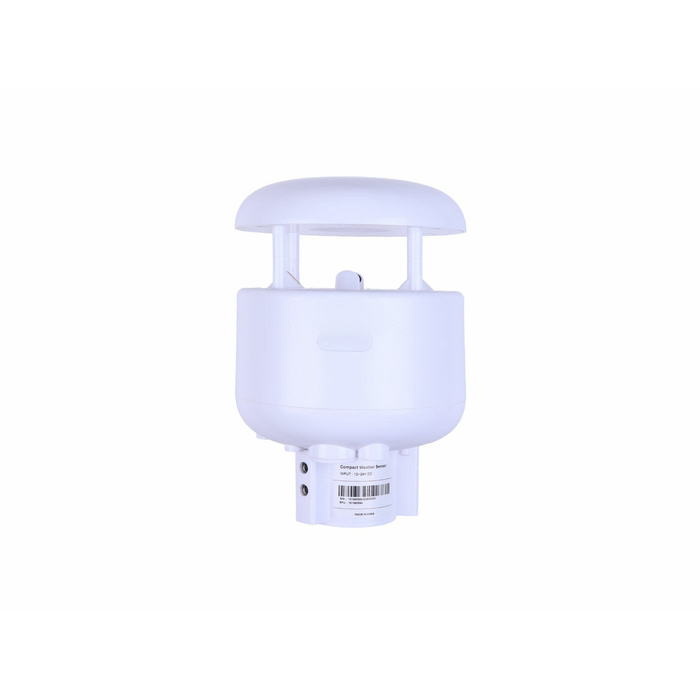

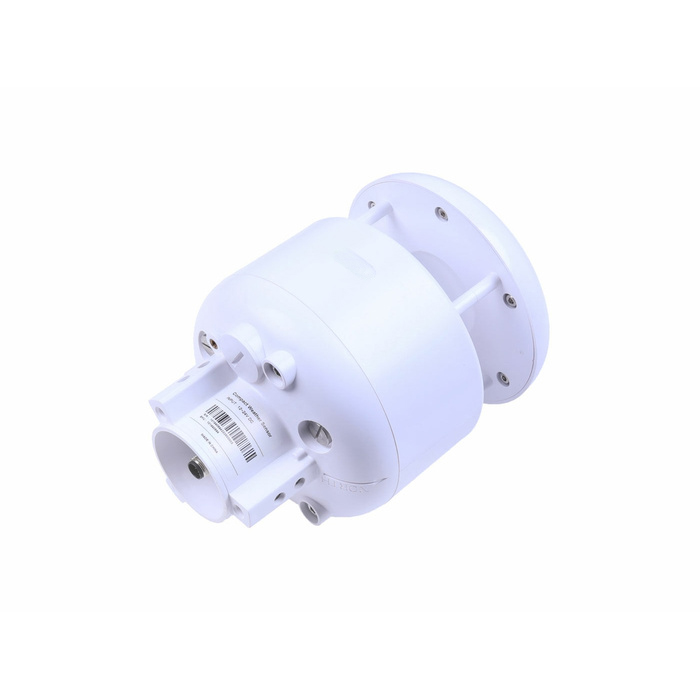

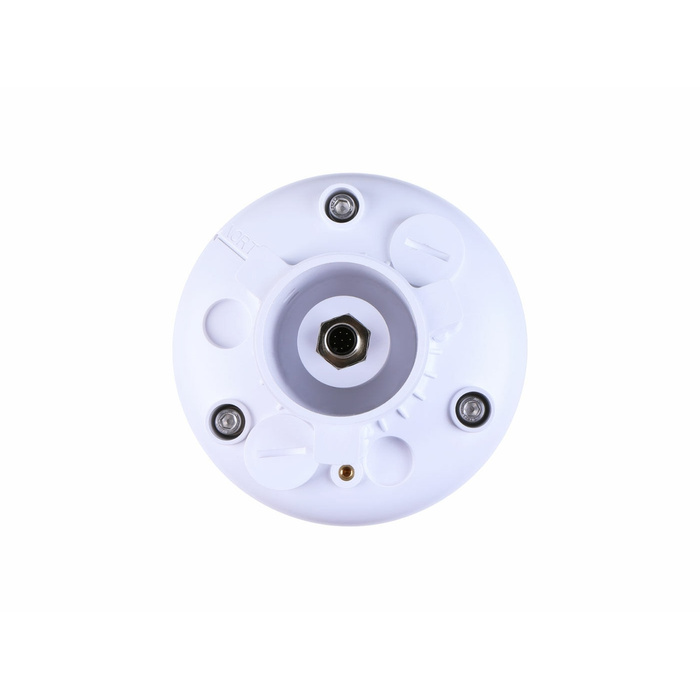

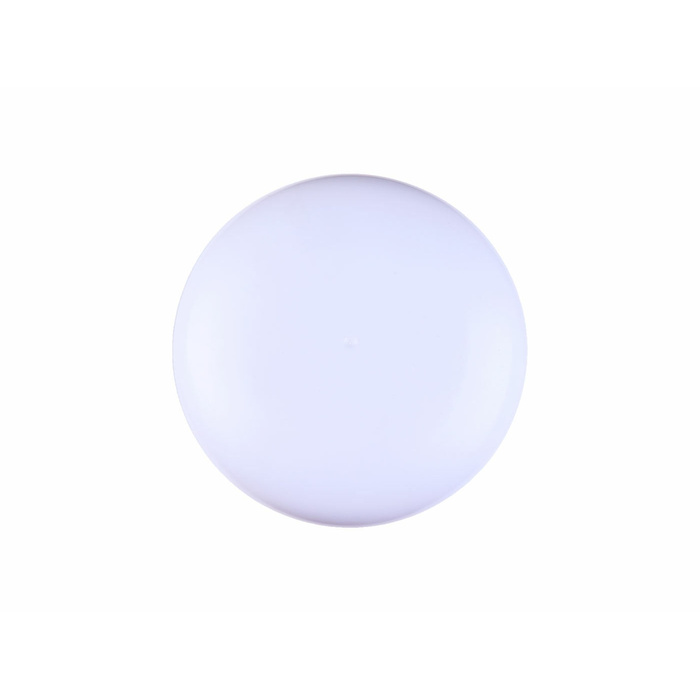

Ultrasonic Wind Speed and Direction Sensor

The Ultrasonic Wind Speed and Direction Sensor is a professional meteorological instrument designed to provide accurate real-time wind speed and wind direction measurement without moving mechanical parts.    Using advanced ultrasonic technology, the sensor delivers reliable wind data with fast response, high stability, and low maintenance requirements.

It is suitable for automatic weather stations, wind power projects, solar power plants, smart agriculture, highway weather monitoring, airport meteorological systems, marine monitoring, and industrial environmental monitoring applications.

Ultrasonic Wind Speed and Direction Sensor Key Features

• Measures wind speed and wind direction in one compact sensor

• Ultrasonic measurement technology with no moving parts

• Maintenance-free design for long-term outdoor use

• High accuracy and fast response for real-time wind monitoring

• Supports RS485 Modbus-RTU and SDI-12 communication protocols

• Industrial-grade IP66 protection for harsh environments

• Wide operating temperature range from -40°C to +85°C

• Suitable for weather stations, renewable energy, agriculture, and environmental monitoring

Why Choose an Ultrasonic Wind Sensor?

Typical Applications

Automatic Weather Stations

Used for professional meteorological observation, climate monitoring, and real-time weather data collection.

Wind Power Monitoring

Provides wind speed and direction data for wind resource assessment, wind farm monitoring, and turbine safety systems.

Solar Power Plants

Suitable for photovoltaic power stations and solar tracker control systems that require reliable environmental wind data.

Smart Agriculture

Helps monitor field microclimate conditions for irrigation management, crop protection, and precision agriculture.

Transportation and Airport Monitoring

Provides real-time wind information for highway safety, bridge monitoring, airport meteorology, and transportation management.

Marine and Coastal Monitoring

Suitable for ports, coastal stations, offshore platforms, and marine weather monitoring systems.

Ultrasonic Wind Speed and Direction Sensor Technical Specifications

Ultrasonic Wind Speed and Direction Sensor Working Principle

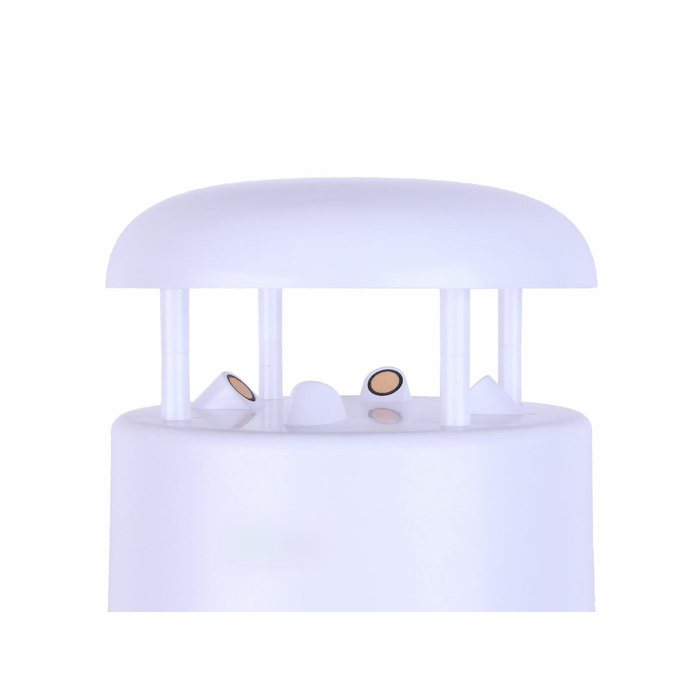

The sensor measures wind speed and wind direction by transmitting ultrasonic pulses between multiple transducers.    When wind passes through the sensor, it changes the travel time of ultrasonic signals.    The internal algorithm calculates these time differences and converts them into accurate wind speed and wind direction data.

Since the measurement is based on ultrasonic sound waves rather than mechanical rotation, the sensor provides faster response, better durability, and higher long-term reliability.

System Integration

The Ultrasonic Wind Speed and Direction Sensor can be easily integrated with various monitoring and control systems, including:

• Automatic weather stations

• Environmental monitoring systems

• Solar monitoring systems

• Wind resource assessment systems

• Smart agriculture platforms

• Industrial control systems

• RTU, PLC, and SCADA systems

• IoT gateways and cloud monitoring platforms

FAQ

1. What is an ultrasonic wind speed and direction sensor?

An ultrasonic wind speed and direction sensor measures wind data using ultrasonic sound waves.    It has no moving parts, offering higher reliability and lower maintenance compared with traditional mechanical wind sensors.

2. What is the difference between an ultrasonic anemometer and a cup anemometer?

A cup anemometer uses rotating cups to measure wind speed, while an ultrasonic anemometer uses sound waves.    Ultrasonic sensors usually provide faster response, less maintenance, and longer service life.

3. Can the sensor be used with a weather station?

Yes. The sensor supports RS485 Modbus-RTU and SDI-12 protocols, making it compatible with most weather station data loggers and environmental monitoring systems.

4. Is this sensor suitable for solar power plants?

Yes. It can be used in photovoltaic power stations and solar tracker control systems to provide real-time wind data.

5. Can the sensor work in rain, snow, and harsh weather?

Yes. With IP66 protection and a wide operating temperature range, the sensor is designed for long-term outdoor use in rain, snow, dust, fog, and high-humidity environments.

6. What communication protocols does the sensor support?

The sensor supports RS485 Modbus-RTU and SDI-12 communication protocols.

7. What is the maximum wind speed the sensor can withstand?

The sensor can measure wind speeds up to 75 m/s and withstand gusts up to 80 m/s.

8. Does the sensor require regular maintenance?

No. The ultrasonic design contains no moving mechanical parts, so it requires minimal routine maintenance.

9. Can the sensor be powered by a solar system?

Yes. Its low power consumption makes it suitable for solar-powered weather stations and remote monitoring installations.

10. How accurate is the wind direction measurement?

The wind direction accuracy is ±3.0°, with a resolution of 0.1°.

How to Select the Right Wind Sensor

When choosing a wind speed and direction sensor, consider the following factors:

• Measurement range

• Wind speed and wind direction accuracy

• Communication protocol compatibility

• Power supply requirements

• Installation environment

• Long-term maintenance cost

• System integration requirements

For most weather station, renewable energy, environmental monitoring, smart agriculture, and industrial monitoring projects, ultrasonic wind sensors provide an excellent balance of accuracy, reliability, and maintenance-free operation.

Request a Quote

Looking for a reliable ultrasonic wind speed and direction sensor for your project?    NiuBoL Technologies provides professional wind monitoring solutions for weather stations, renewable energy projects, environmental monitoring networks, industrial applications, and smart agriculture systems.

Contact us for product pricing, technical consultation, OEM/ODM customization, bulk order discounts, and project-based solutions.
