8-in-1 Soil Sensor Portable Type-C/USB Soil Multi-Parameter Tester & Analyzer Product Overview: Definition & Core Value

What is the NiuBoL Soil Multi-Parameter Tester & Analyzer?

The NiuBoL 8-in-1 Soil Sensor Soil Multi-Parameter Analyzer is a high-precision, multifunctional portable device specifically designed for soil environmental monitoring. It can be connected to the user’s Android or HarmonyOS smartphone (requires compatibility with version 4.3 and below) to measure eight key soil parameters in real time and rapidly:

• Soil temperature & Soil moisture (volumetric water content) & Soil EC (electrical conductivity) & Soil salinity &NPK

With its excellent measurement accuracy, good stability, and simple operation, this product has become an ideal tool in the fields of water-fertilizer integration, environmental monitoring, and scientific research.

Innovative Technology: In-Depth Working Principle Analysis

Multi-Parameter Integrated Measurement Principle

This analyzer adopts integrated sensor technology to achieve multi-parameter measurement:

Temperature & Moisture: Temperature is typically measured using thermistors or semiconductor chips; moisture is measured using Frequency Domain Reflectometry (FDR) or Time Domain Reflectometry (TDR) principles by detecting the soil dielectric constant, thereby calculating the volumetric water content.

EC & Salinity: Measures the electrical conductivity of the soil solution to reflect the total concentration of soluble salt ions. Soil salinity value (mg/L) is closely related to electrical conductivity (μS/cm) and can usually be converted.

Nitrogen, Phosphorus, Potassium (NPK) Content: 【Important Note】 NiuBoL soil NPK sensor essentially measures soil electrical conductivity. The manufacturer obtains an empirical, theoretical value by multiplying the measured conductivity value by coefficients based on nitrogen, phosphorus, and potassium content in conventional soil. Due to differences in field soil and environment, the NPK values provided by this sensor are for guidance reference only, not precise laboratory measured values.

pH Value: Uses a dedicated pH composite electrode to measure the hydrogen ion concentration in the soil solution via the potential difference method, thereby obtaining the soil acidity/alkalinity.

Product Structure Analysis & Technical Specifications

Hardware Structure

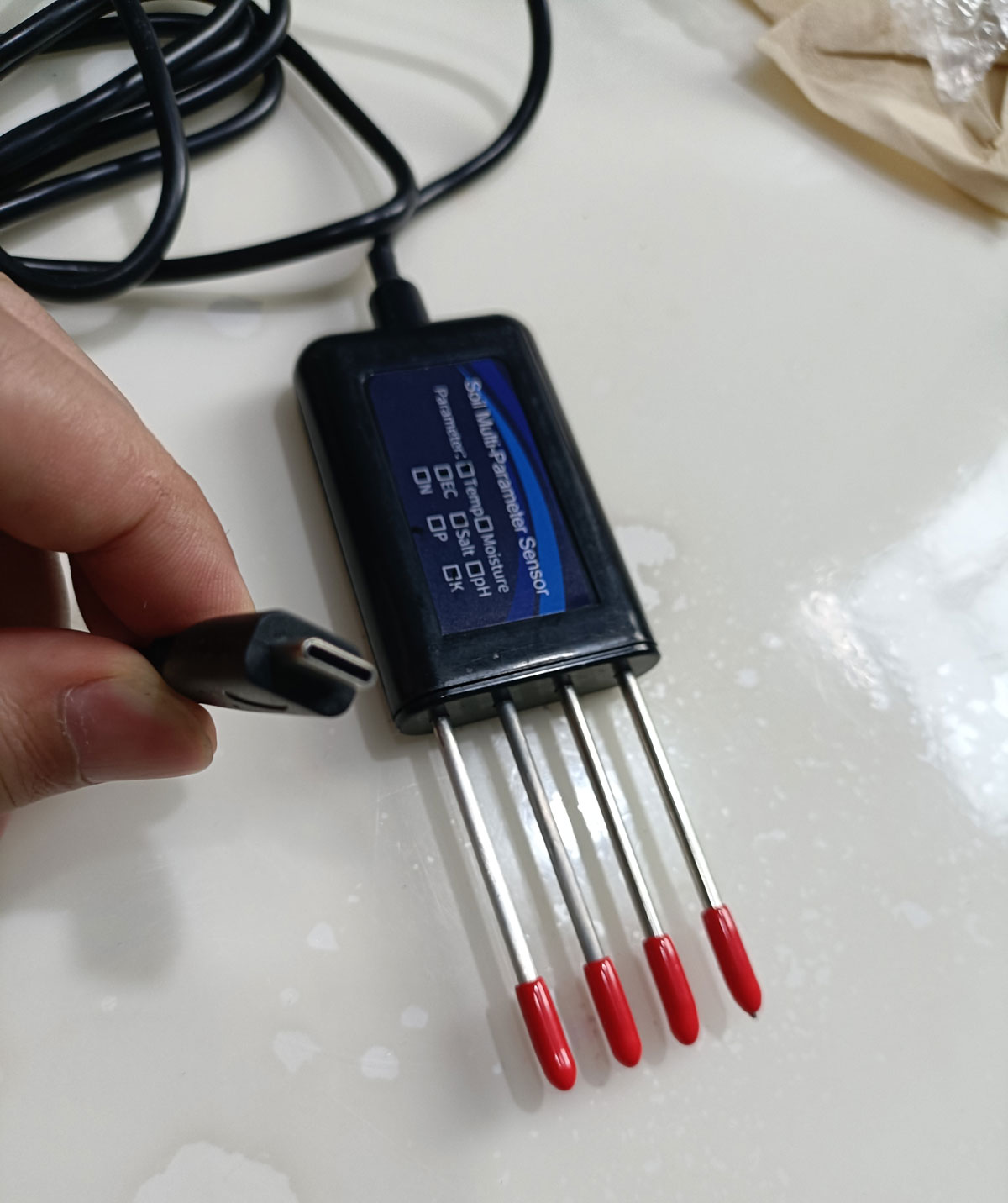

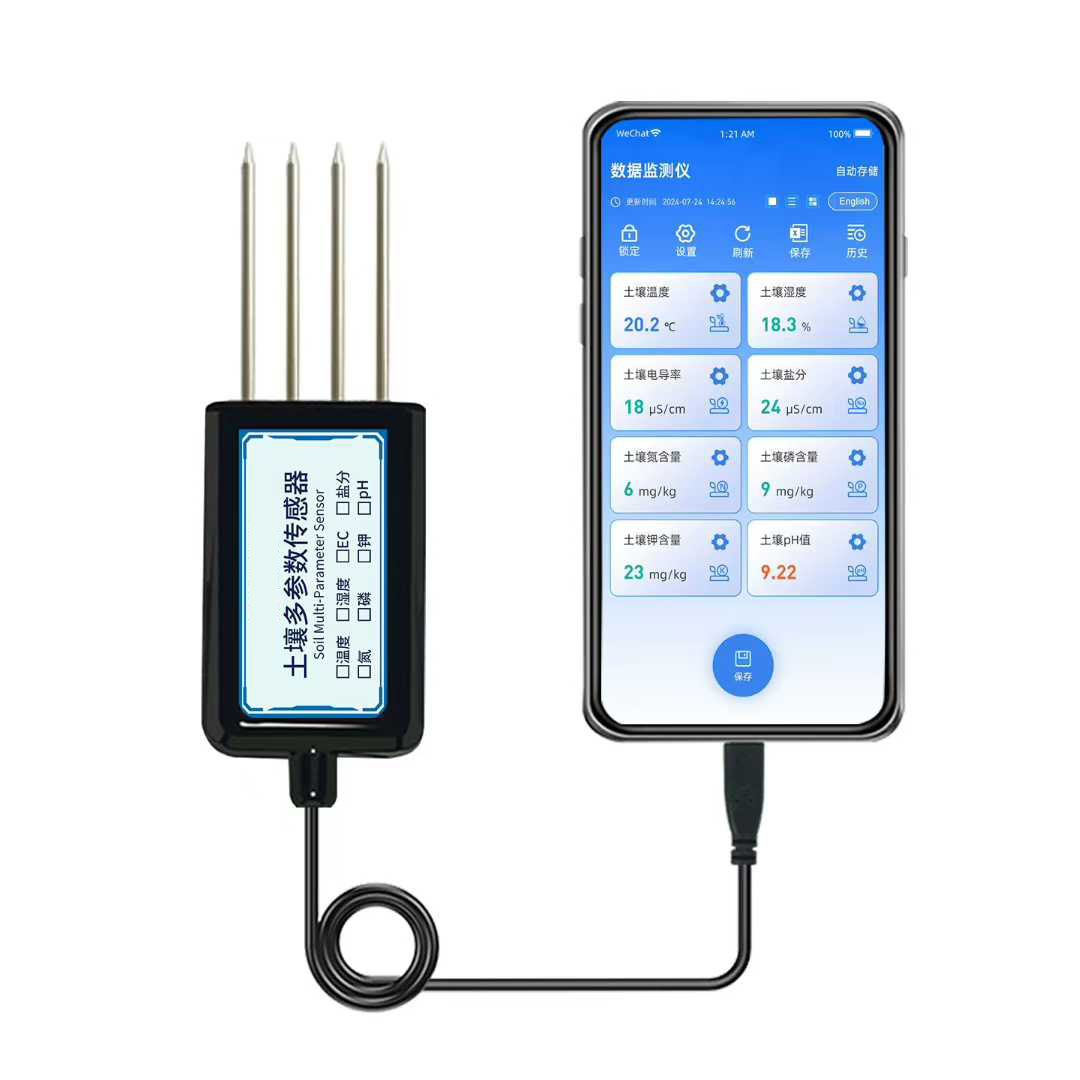

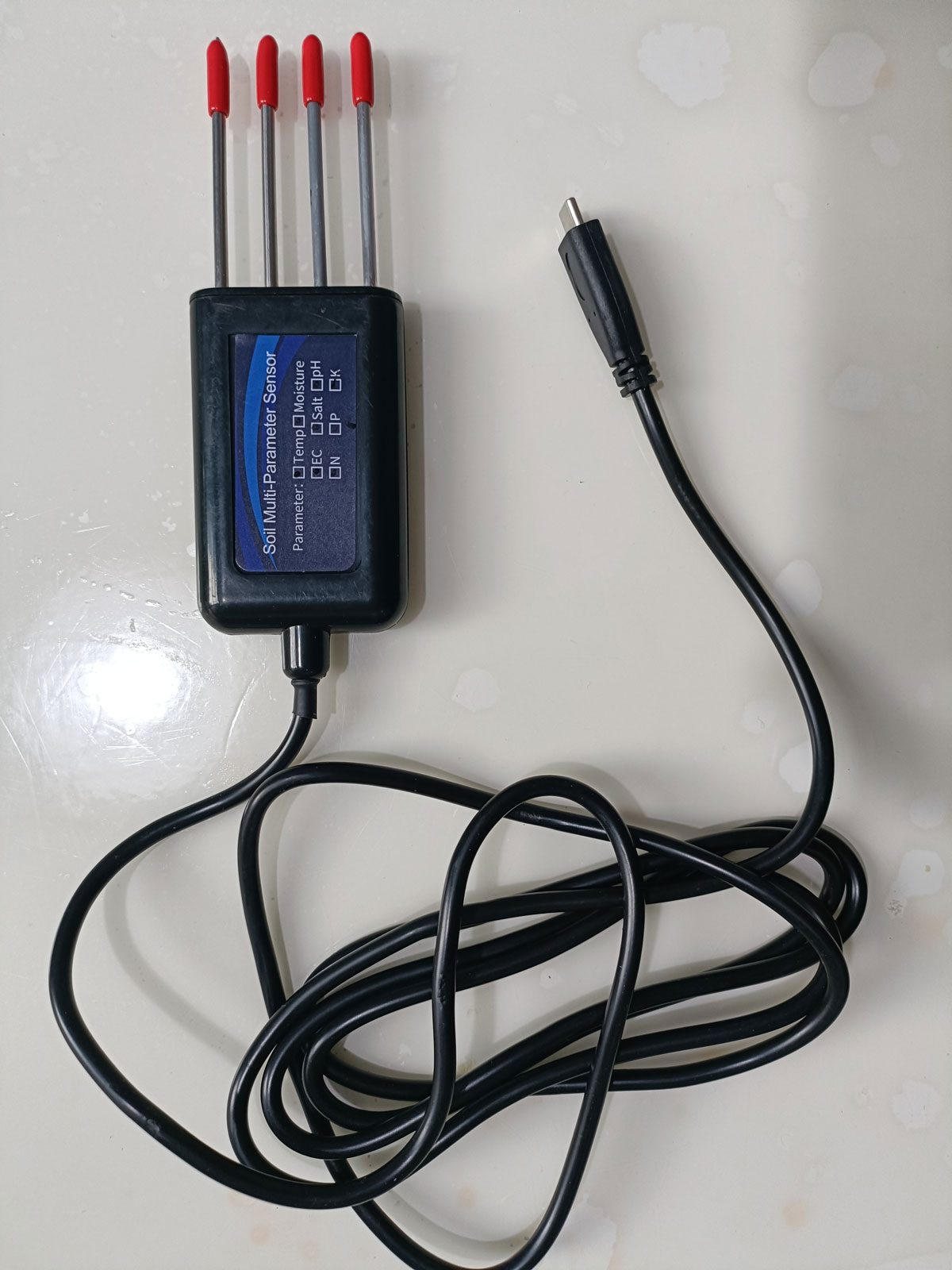

The analyzer consists of a sensor probe and a data connection module. The sensor probe typically contains multiple metal needles for insertion into the soil for measurement. The data connection module connects to the phone’s charging port via wired connection.

Software Functions

The accompanying free mobile APP is powerful and user-friendly:

• Data acquisition & configuration: Real-time display of eight parameters, supports parameter calibration and configuration

• Data management: Supports data storage, historical data query, Excel data export function

• Visualization analysis: Provides curve charts for easy tracking of data trends

• Geographic information: Built-in GPS positioning function to record measurement location information

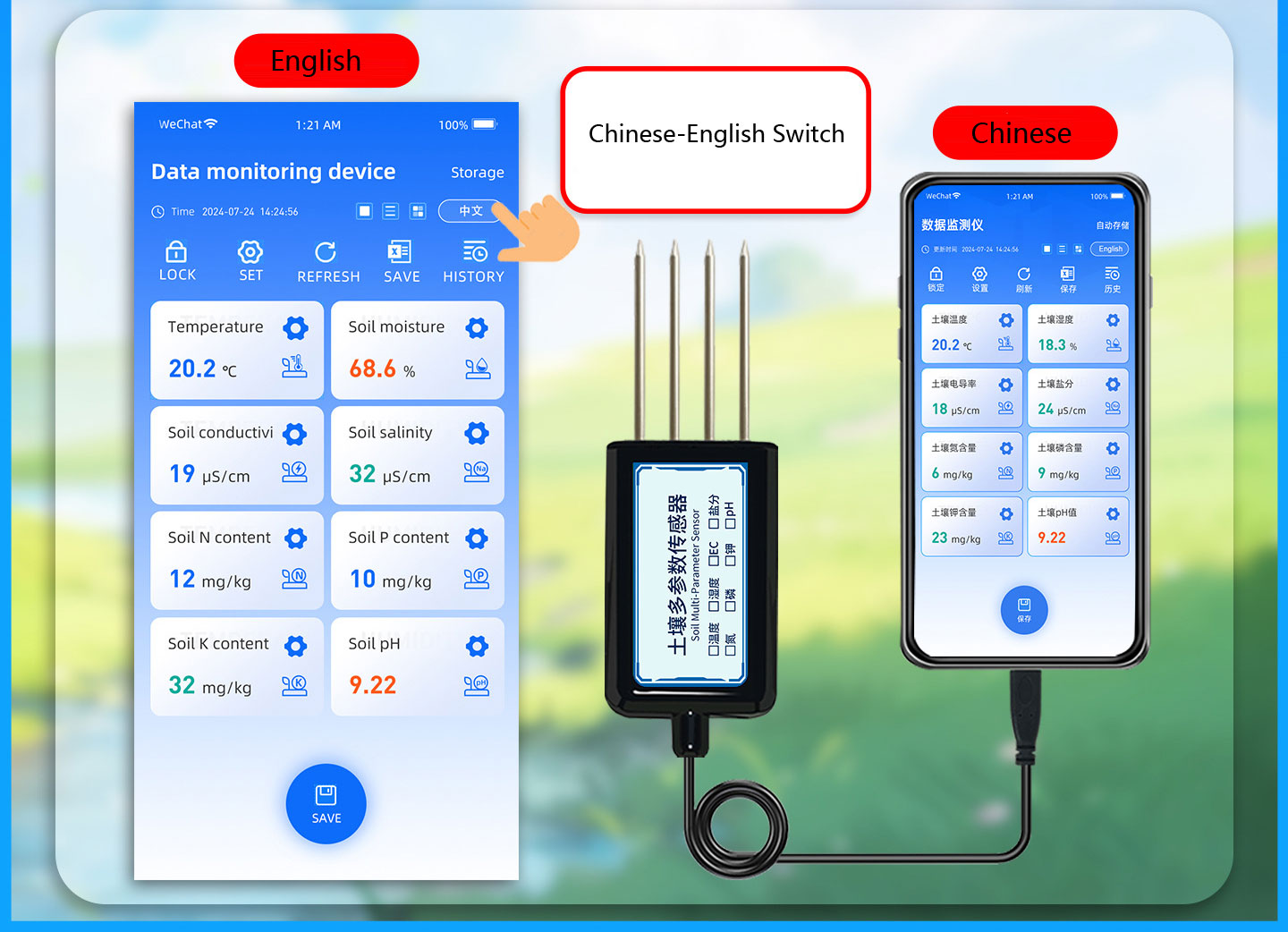

• User experience: Supports Chinese/English language switching

• Automatic update: APP automatically detects and updates to the latest version upon startup

Core Technical Specifications

User Guide: Measurement, Installation & Standards

Measurement Method: Data Acquisition Process

• Phone compatibility check: Ensure your smartphone is Android or HarmonyOS version 4.3 or below. Not compatible with Apple iOS or HarmonyOS 5.0 and above.

• APP download & installation: Scan the QR code on the product label or user manual to download the APP.

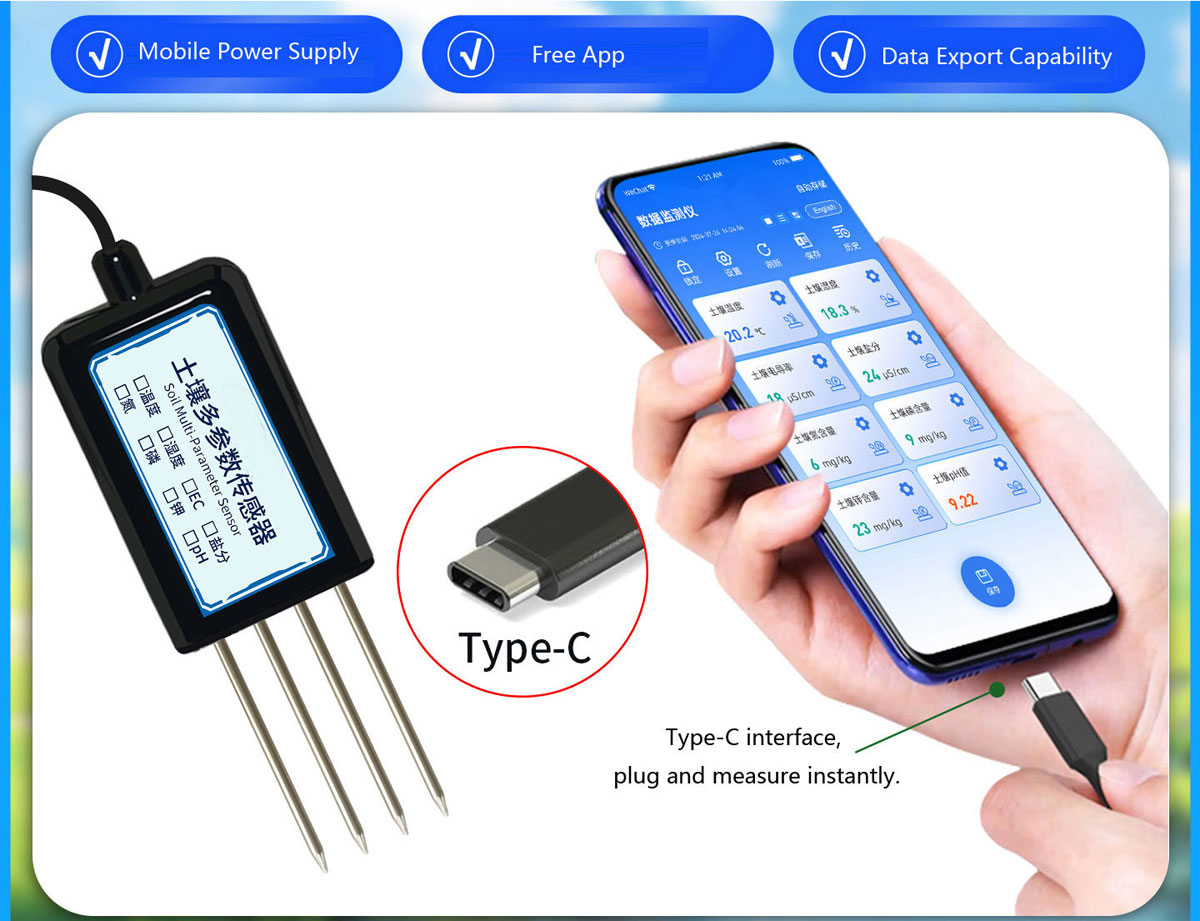

• Connect the sensor: Insert the sensor plug into the phone’s charging port.

• Enable OTG (if necessary): If there is no response, the phone may have disabled OTG by default. Go to phone “Settings”, search for “OTG” and enable it manually.

• Soil measurement: After successful connection, fully insert the sensor probe into the soil for measurement, or choose long-term buried monitoring.

Installation Standards & Precautions

The sensor is a precision instrument. To ensure measurement accuracy and extend service life, please follow these standards:

• Avoid corrosion and high heat: Installation location should be away from chemical corrosion environments, high-voltage power sources, and heat sources.

• Storage environment: Store the sensor in a dry, ventilated room temperature environment.

• Do not disassemble: The sensor is precision equipment; do not disassemble it yourself to avoid irreversible damage.

• Probe insertion depth: Ensure the sensor probe is fully inserted into the soil to be measured for valid and accurate data.

• Packaging inspection: Before use, check that the packaging is intact and the sensor specifications match the purchased model.

Common Fault Troubleshooting & Solutions

Application Scenarios: Driving Precision Agriculture

The NiuBoL Soil Multi-Parameter Analyzer, with its comprehensiveness and portability, has become a key tool for improving efficiency and reducing costs across multiple industries.

• Precision agriculture & water-fertilizer integration

• Greenhouse & facility agriculture

• Environmental & meteorological monitoring

• Grassland & pasture management

• Scientific experiments & teaching

• Rapid soil testing

Customer FAQ

Q: Which phone systems are compatible with the NiuBoL Soil Multi-Parameter Analyzer?
A: Compatible with Android and HarmonyOS 4.3 and below smartphones. Not compatible with Apple iOS devices or HarmonyOS 5.0 and above.

Q: What soil parameters can this device measure?
A: One-stop measurement of eight parameters: soil temperature, soil moisture, soil EC, soil salinity, available nitrogen, available phosphorus, available potassium, and soil pH.

Q: Why no response after connecting the device to the phone?
A: Most common cause is disabled OTG function. Go to phone settings, search for 'OTG' and enable it manually.

Q: Are NPK measurement values completely consistent with laboratory data?
A: Not completely. The sensor’s NPK values are theoretical reference values calculated from soil conductivity using empirical coefficients. Due to complex soil composition, they are mainly used for rapid, on-site trend judgment, not precise laboratory analysis.

Q: How to handle if my phone cannot install the APP?
A: Some domestic phones (Huawei, Xiaomi, OPPO, VIVO) block non-official installations. Disable “Pure Mode” or “Security Guardian” or allow “one-time installation authorization” according to the model.

Q: Which languages does the APP support?
A: Supports switching between Chinese and English.

Q: How deep does the probe need to be inserted during measurement?
A: To ensure measurement accuracy, the sensor probe must be fully inserted into the soil to be measured.

Q: Can the sensor be buried in soil for long-term use?
A: Yes. The sensor supports long-term burial monitoring, but avoid chemical corrosion and high-heat environments.

Q: Can APP data be exported?
A: Yes, the APP supports data storage and export as Excel files.

Q: What is the warranty period?
A: The product comes with a one-year warranty. Free repair or replacement for faults caused by sensor quality issues within 12 months from shipment (excluding man-made damage excluded).

Conclusion: Elevate Your Agricultural Competitiveness

The NiuBoL Soil Multi-Parameter Analyzer is a soil environmental monitoring solution that combines high precision, high efficiency, and high portability. It eliminates the time-consuming and complex pain points of traditional soil testing, allowing one-stop rapid measurement of soil temperature, moisture, fertilizer, salinity, and pH through a mobile phone APP. Whether you are engaged in greenhouse planting, water-fertilizer management, or scientific research, the NiuBoL analyzer is your powerful tool for achieving refined crop management, improving resource utilization efficiency, and ultimately enhancing agricultural output and competitiveness.

8-in-1 Soil Sensor Portable Type-C/USB Soil Multi-Parameter Tester & Analyzer Data Sheet

8-in-1 Soil Sensor Portable Type-C/USB Soil Multi-Parameter Tester & Analyzer.pdf
