Anemometers in Construction Site Safety Monitoring

Fortifying High-Altitude Safety: The "Wind Guardian" at Construction Sites — The Ultimate Guide to Anemometer Applications

Abstract: The Indispensable "Wind Eye"

> Core Insight: At high-risk construction sites such as skyscrapers, bridges, and tower cranes, wind speed is a critical hazard that can trigger major accidents. Traditional reliance on human judgment no longer meets modern safety demands. Anemometers, as core tools for "real-time wind monitoring and instant safety warnings," transform uncontrollable natural wind forces into manageable data metrics, serving as the "wind guardian" that protects high-altitude workers and large equipment.

 I. Types of Anemometers: Choosing the Right "Professional Wind Meter" for Construction Sites

Construction environments are complex and variable, requiring highly durable and interference-resistant equipment. Specialized anemometers are divided into two main categories, each with distinct applications:

 1. Mechanical (Three-Cup) Anemometers: High Durability and Cost-Effectiveness

 2. Ultrasonic Anemometers: High Precision and Low Maintenance

 II. Working Principle: How Wind Speed Data is Precisely Quantified

Regardless of type, the core logic of anemometers is to "capture the physical effects of wind and convert them into quantifiable wind speed data," transforming "wind sensation" into precise wind speed values (m/s).

 Mechanical (Three-Cup) Anemometers: Rotation to Pulse Signals

1. Wind-Driven Rotation: Wind drives the three cups to rotate, with rotational speed linearly proportional to wind speed.

2. Signal Conversion: A Hall sensor or optical encoder at the base of the rotating shaft converts rotational speed into pulse signals.

3. Data Calculation: An integrated microprocessor (MCU) calculates the actual wind speed (m/s) based on pulse frequency, using a "wind speed-rotation calibration curve."

 III. Core Application Value: Four Dimensions of Safety Monitoring and Integrated Control

Anemometers at construction sites serve not only as monitoring tools but also as "safety warning systems" and "integrated controllers."

 1. Protecting High-Altitude Workers: Preventing Falls

- Risk Threshold: Wind speeds above 6 m/s can cause workers to lose balance; above 10 m/s, there is a risk of falling.

- Anemometer Role: Real-time monitoring with audible and visual warnings, providing time for worker evacuation.

- Success Case: A project set a "wind speed >10 m/s emergency shutdown" threshold, successfully evacuating 20 high-altitude workers 8 minutes before a strong wind event. For bridge basket operations, platforms automatically lock when wind speeds exceed 8 m/s, prohibiting movement.

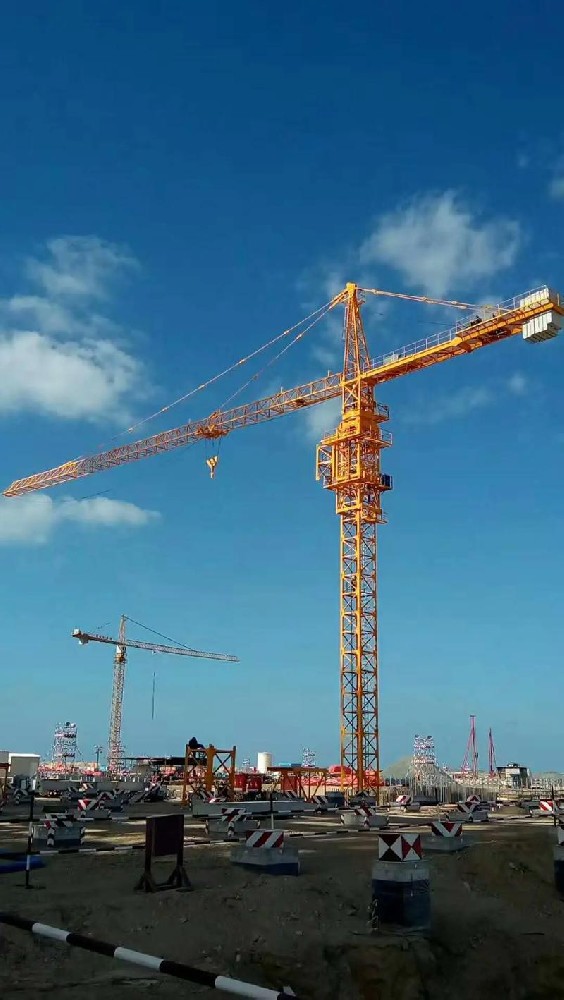

 2. Safeguarding Large Equipment: Preventing Tower Crane Overturns

- Risk Threshold: Tower cranes and similar equipment experience increased swaying above 10 m/s, with overturning risks above 15 m/s.

- Anemometer Role: Integrates with crane control systems for tiered operational restrictions.

- Tiered Control Example:

  - 6 m/s < Wind speed ≤ 10 m/s: Crane load capacity reduced to 50%, rotation prohibited.

  - Wind speed > 10 m/s: Crane automatically aligns the jib with the wind direction (minimizing wind exposure), cuts power, and halts operations.

- Impact: Prevents equipment damage, reducing maintenance costs by 80%.

 3. Regulating Temporary Structures: Preventing Scaffolding Collapse

- Risk Threshold: Ground-based scaffolding is safe up to ~10 m/s, cantilever scaffolding up to ~8 m/s.

- Anemometer Role: Guides reinforcement or dismantling of temporary structures.

- Management Process Example:

  - Wind speed > 8 m/s: Workers remove scaffold boards and safety nets to reduce wind exposure.

  - Before typhoon arrival: Real-time wind speed monitoring prompts preemptive dismantling of cantilever scaffolding.

- Impact: Prevents scaffolding collapse, avoiding direct losses and downtime worth hundreds of thousands of yuan.

 IV. Conclusion: The Essential Tool for Smart Construction Site Safety

Anemometers effectively address the "precision gap" and "real-time gap" in traditional safety management. Through an integrated design of "monitoring-warning-control," they establish the first line of defense for high-altitude safety at construction sites.

In modern smart construction sites, anemometers have evolved from "optional equipment" to an "indispensable standard tool," ensuring the safety of personnel and equipment while significantly enhancing the scientific rigor and efficiency of construction safety management.
