Laser Snow Depth Sensor: For Meteorological Station Monitoring and Road Traffic Safety

Laser Snow Depth Sensor: High-Precision Automated Snowfall Monitoring Solution

Technology Empowers Precise Meteorology: In-Depth Analysis of NiuBoL Laser Snow Depth Sensor

In an era of increasingly frequent extreme weather, accurate monitoring of snowfall is crucial for traffic safety assurance, water resource allocation, and agricultural disaster prevention and mitigation. Traditional contact-based measurements or simple ultrasonic measurements are often limited by environmental temperature fluctuations, strong wind interference, and discontinuous data issues.

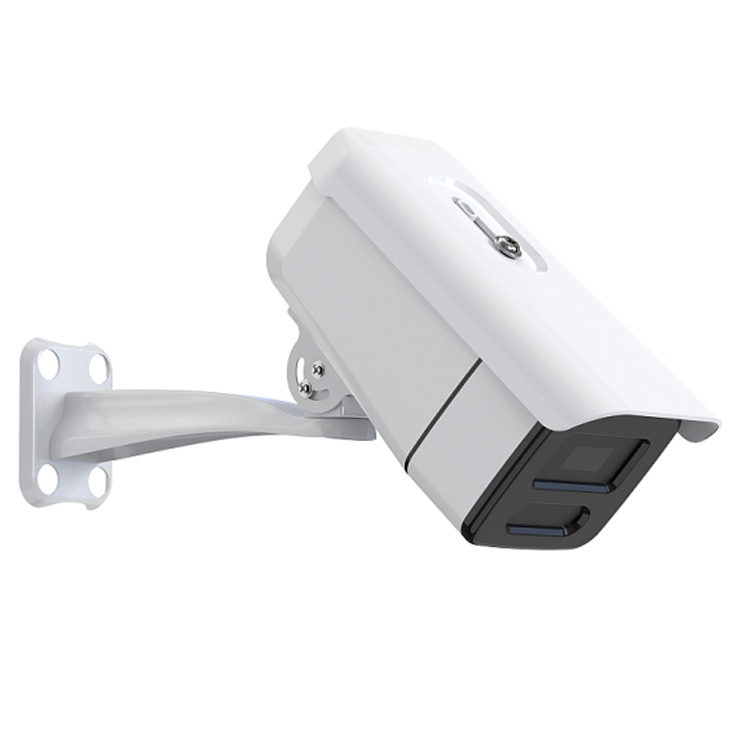

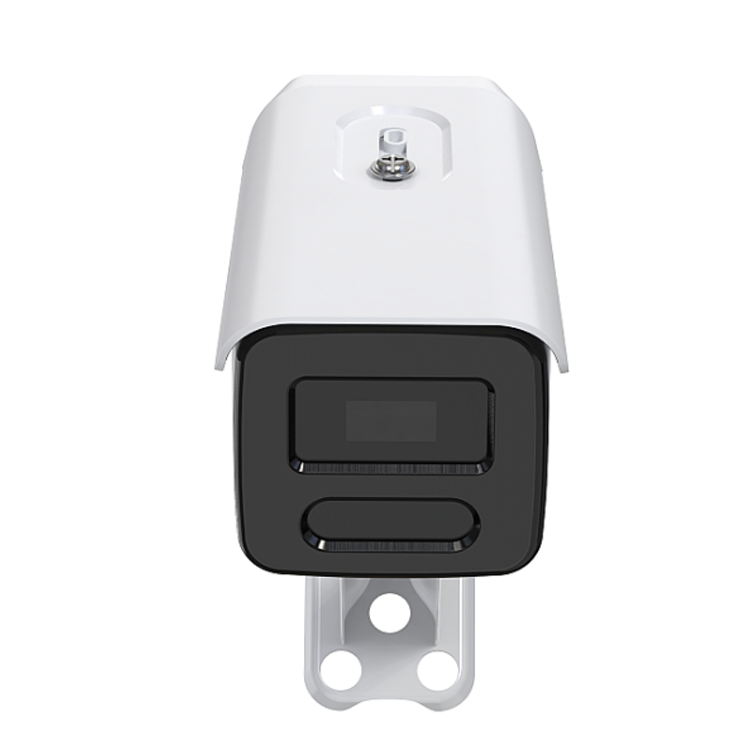

The NiuBoL laser snow depth sensor completely addresses these challenges through advanced phase-method laser ranging principles. As a new-generation digital snow depth measurement instrument, it not only maintains stable output in blizzard conditions but also provides reliable reference observation data support for “automatic snow depth observation” projects through intelligent algorithms and hardware optimization.

Core Technical Advantages and Product Features of the Laser Snow Depth Sensor

1. Phase-Method Laser Ranging: Millimeter-Level Observation Accuracy
Unlike ordinary pulse-based measurements, NiuBoL employs phase-method laser ranging technology. This technique calculates distance by measuring the phase difference generated during laser signal propagation, achieving an extremely high measurement accuracy of ±1mm. Even during minor snowfall stages, it can capture subtle thickness changes.

2. Intelligent Tilt Compensation and Simplified Installation
During actual installation, minor bracket offsets or ground slopes often cause measurement errors. The NiuBoL laser snow depth sensor has a built-in high-precision tilt angle sensor that automatically measures and compensates for tilt in real time. This means no tedious physical leveling calibration is required during installation, greatly shortening on-site commissioning time.

3. Self-Healing Guarantee in Extreme Low Temperatures: Automatic Heating Function
For extreme environments in high-cold regions, the device is equipped with an intelligent temperature control system. When the ambient temperature falls below the set threshold, the sensor automatically activates the internal heating module. This not only prevents frost and ice buildup on the laser window but also addresses the temperature stability of the laser itself through temperature compensation technology, ensuring normal operation even at -40°C.

4. High Protection Rating and Long Service Life
Designed with IP65 protection rating, the rugged and durable housing effectively resists UV aging, acid rain corrosion, and wind-sand impact, specifically built for long-term outdoor observation tasks.

Main Technical Specifications Table of the Laser Snow Depth Sensor

To facilitate system selection by integrators and research users, the following table lists the detailed parameters of the NiuBoL laser snow depth sensor:

Multi-Scenario Applications of the Laser Snow Depth Sensor: Safeguarding Public Safety and Industry Efficiency

The application of NiuBoL laser snow depth sensors has extended beyond pure meteorological research, penetrating multiple key nodes of social operation:

• Road Traffic Safety: Deployed at highway hubs, bridges, and snow-prone sections to provide real-time road snow depth feedback, offering decision-making basis for traffic police departments on road closures or snow removal.

• Civil Aviation Airport Monitoring: Precisely monitors runway snow accumulation to ensure aircraft takeoff and landing safety and optimize snow removal scheduling.

• Agricultural Production Monitoring: Snow serves as a “natural cover” for crops; snow depth monitoring assesses overwintering soil moisture and potential snow disaster risks.

• Roof Load Safety: Installed on the roofs of large-span industrial plants and sports venues to prevent structural damage caused by excessive snow accumulation.

System Integration and Data Collaboration for Laser Snow Depth Sensor

NiuBoL provides complete ecosystem support. The laser snow depth sensor can serve as an independent terminal connected to PLC or computers via RS485 interface, and it also supports seamless integration with NiuBoL meteorological station systems:

• Intuitive Display: Supports connection to outdoor LED large screens for real-time snow depth warning release.

• Cloud Management: Data can be uploaded to NiuBoL’s free cloud platform, allowing users to view historical curves and download data reports via mobile phone or PC.

• Heterogeneous Compatibility: Standard Modbus protocol ensures easy docking with mainstream data collectors on the market.

• “Sensor + Collector + Cloud”: The laser snow depth sensor can interconnect with NiuBoL multi-element meteorological station acquisition boxes via RS485 bus.

• Wireless Expansion: For difficult wiring scenarios, supports customized 4G/5G data transmission modules to wirelessly push snow depth data directly to the management center, eliminating the need for long-distance on-site cabling.

FAQ

Q1: What are the advantages of laser snow depth sensors compared to ultrasonic snow depth sensors?
A1: Ultrasonic sensors are susceptible to large interference from sound velocity affected by temperature and air density changes. NiuBoL laser sensors, based on laser phase method, offer higher accuracy (±1mm), are unaffected by wind speed or air pressure, and provide stronger penetration and better observation continuity for complex snowfall patterns (such as heavy blizzards).

Q2: Why can’t my device connect to the computer or host computer?
A2: Please first check: 1. Whether the COM port selection is correct; 2. Whether the 485 to USB driver is installed; 3. Whether the baud rate and device address match the manual (factory default address is usually 1); 4. Whether the A and B lines are reversed. It is recommended to set the host polling interval above 200ms.

Q3: Will the device produce erroneous data due to obstruction during heavy snowfall?
A3: NiuBoL has optimized the measurement algorithm. Although extreme blizzards may momentarily block the optical path, the sensor has built-in filtering logic and only updates when data is continuously stable. Single anomalous fluctuations are effectively suppressed by the algorithm, ensuring the output reflects true ground snow depth.

Q4: What are the installation height requirements for the sensor?

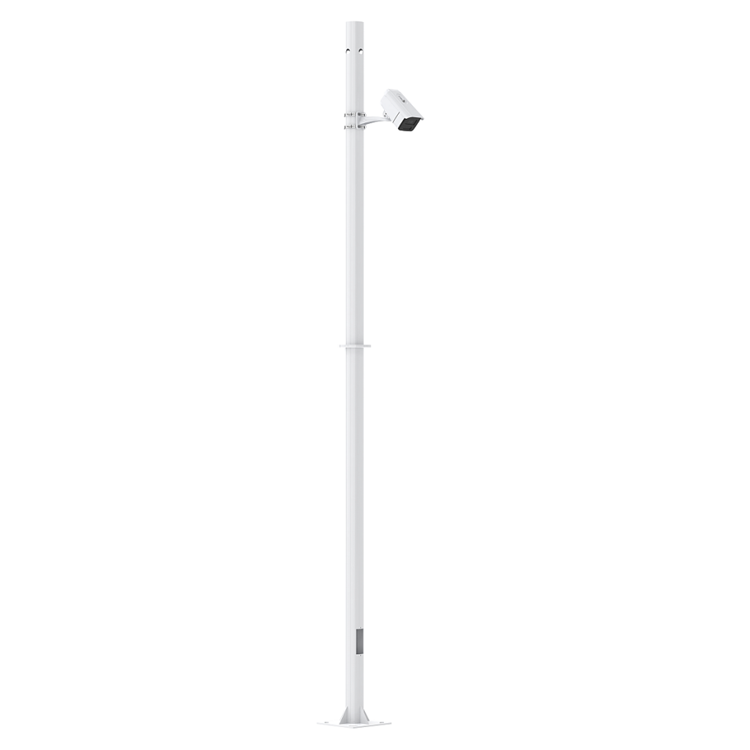

A4: The device has a range of 0.05 to 2.5 meters. During installation, ensure the sensor is vertically downward or within the allowable tilt range. The installation height should be slightly higher than the historical maximum snow depth in the area and avoid obstructions directly below.

Q5: Is the heating function always on?
A5: No. To save energy and extend service life, the device has a built-in temperature sensor. The heating module only activates automatically when the ambient temperature falls below the preset safety threshold, effectively balancing power consumption and functional requirements.

Q6: How to maintain the device for long-term use?
A6: Focus on protecting the optical lens. Regularly check the laser emission aperture for dust, spider webs, or bird droppings. Do not wipe the lens with rough cloth; use dedicated optical wiping cloth or lens paper.

Q7: What is the difference between line spot and point spot?
A7: The line spot (3mm × 150mm) provides more averaged and representative values when measuring rough or uneven snow surfaces, reducing data jumps caused by minor pits on the snow surface.

Q8: Does it support customized communication protocols?
A8: The device outputs standard Modbus-RTU protocol with strong versatility. For special customizations, please contact the NiuBoL technical support team.

Maintenance Instructions and Precautions

To ensure long-term stable operation of the NiuBoL laser snow depth sensor, please follow these guidelines:

• Personal Safety Warning: The laser is Class II. Although within the safe range, never look directly into the laser beam with eyes, and never use it as a safety emergency stop device.

• Surface Protection: Do not apply paint or attach covering materials to the sensor housing, as this may cause abnormal heat dissipation or affect the accuracy of the tilt sensor.

• Line Protection: For long-distance transmission, it is recommended to install 485 signal boosters and 120Ω terminating resistors, and use shielded twisted-pair cables to resist complex electromagnetic interference environments.

Summary

The NiuBoL laser snow depth sensor is not just a measurement tool but an important milestone in the automation of meteorological observation. With its high precision from phase-method laser technology, convenience of automatic compensation, and polar-level environmental tolerance, it provides “visible, accurately measurable, and fast-transmitted” snowfall data for various industries.

Whether building a national automatic meteorological observation network or optimizing smart city traffic management systems, NiuBoL is a trustworthy partner you can rely on.
