Soil Moisture Sensor Installation and Lifetime

Soil moisture sensors are devices used to monitor the moisture content of the soil, and their principle of operation is usually based on the sensor's measurement of the soil's dielectric constant. The dielectric constant of the soil is closely related to the moisture content of the soil, so the moisture content of the soil can be deduced by measuring the dielectric properties of the sensor.

Soil Moisture Sensor Lifetime

The lifetime of a soil moisture sensor is affected by a number of factors, including:

1. Sensor quality: Higher quality sensors have more durable components that can withstand harsher environmental conditions and will therefore last longer.

2. Environmental conditions: The climate, temperature, humidity, soil type, etc. of the sensor's location can affect its life. For example, extreme temperature changes may accelerate the deterioration of the sensor.

3. Installation and Maintenance: Proper installation and use of proper maintenance procedures can significantly extend the life of the sensor.

4. Frequency of use: Sensors that are used frequently may wear out more quickly than those that are used occasionally.

In general, soil moisture sensors may last anywhere from three to five years. Some high-quality sensors can continue to operate for more than five years when properly installed and maintained.

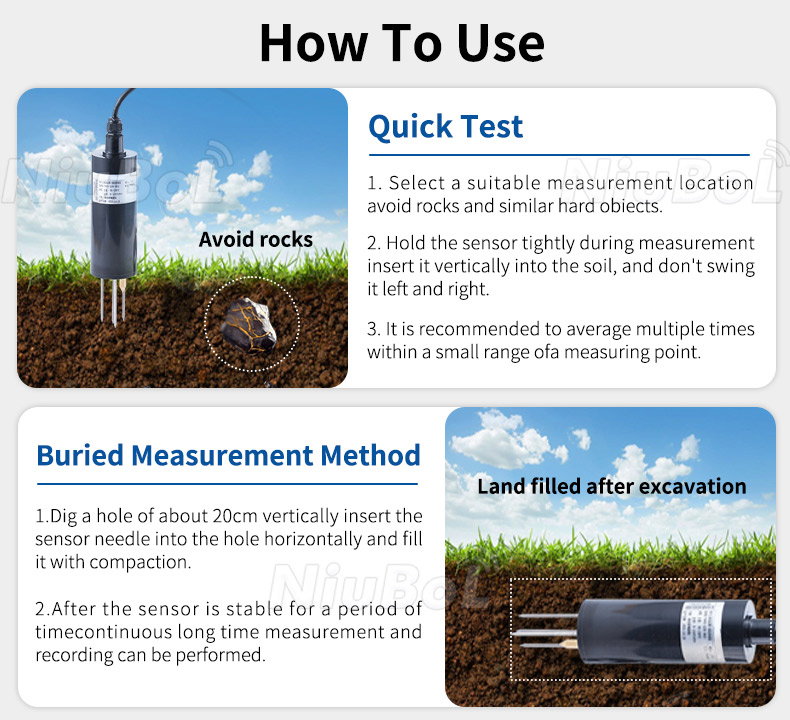

Soil Moisture Sensor Installation

Proper installation of a soil moisture sensor is critical to obtaining accurate data. Installation steps typically include:

1. Selecting a suitable location: The sensor should be installed in a location that is representative of the soil moisture conditions in the area of interest. Typically, this means avoiding upland areas, drainage ditches, or low-lying areas.

2. Sensor calibration: Prior to installation, the sensor should be calibrated to ensure that it gives accurate readings.

3. Soil Preparation: Prior to sensor installation, it may be necessary to dig a suitable hole to ensure that the sensor can be placed smoothly at the desired depth and in close contact with the soil.

4. Installation of the sensor: Place the sensor in the hole according to its specific instructions and make sure it is in full contact with the soil.

5. Protective measures: To protect the sensor from physical damage and environmental factors, it may be necessary to use a protective sleeve or cover.

6. Connecting cables: Connect the output of the sensor to a data acquisition system or logger.

7. Testing: After installation, testing should be performed to verify that the sensor readings are accurate.

Soil Moisture Sensor Maintenance

Regular maintenance is important to ensure the accuracy of the sensor and to prolong its life. This may include:

 Periodically checking the sensor and connections for damage.

 Checking that the protective sleeve or cover is still effective.

 Recalibrate the sensor if its readings begin to deviate from the normal range.

 Removing blockages around the sensor to maintain good contact between the soil and the sensor.

With proper installation and proper maintenance, you can ensure that your soil moisture sensor will provide reliable data over time.

Soil Moisture Temperature sensor data sheet

NBL-S-THR-Soil-temperature-and-moisture-sensors-Instruction-Manual-V4.0.pdf
