NBL-PHG-406 Online pH Sensor Glass Electrode Method RS-485 Modbus-RTU for Industrial IoT Water Quality Monitoring RS-485

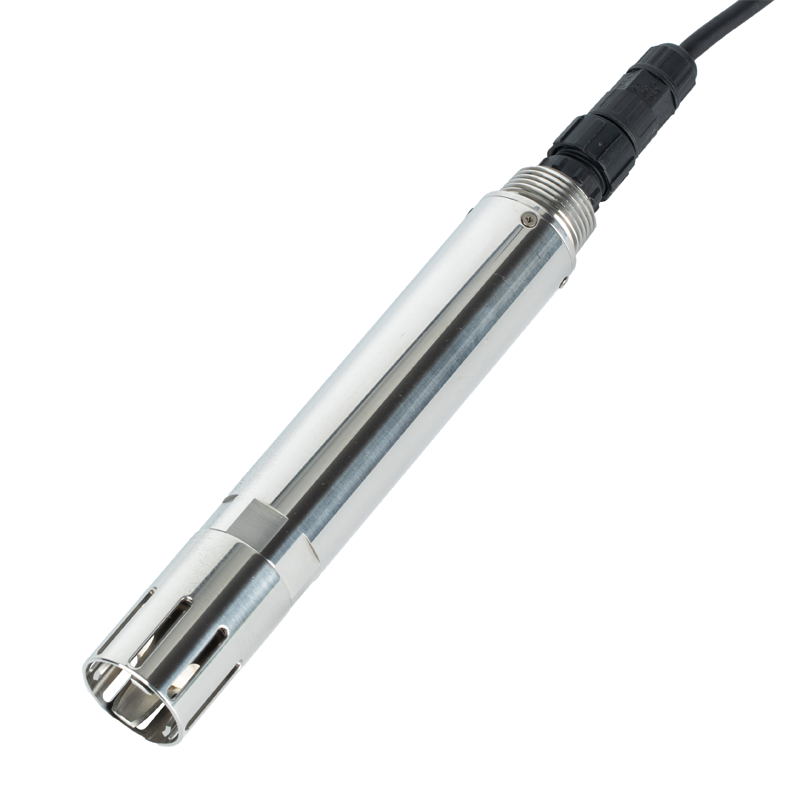

NBL-PHG-406 Online pH Sensor: Long-Life, High-Stability Industrial-grade pH Online Monitoring Solution

In wastewater treatment, chemical production, environmental water quality monitoring and acid-base neutralization processes, pH fluctuations often lead to process loss of control, equipment corrosion or excessive discharge. Traditional pH electrodes have fast reference liquid seepage, short lifespan and are easily interfered with, resulting in high maintenance costs. The NiuBoL NBL-PHG-406 online pH sensor adopts the glass electrode method and is equipped with a patented microporous salt bridge reference system. The reference liquid seeps out extremely slowly under at least 100KPa pressure, lasting more than 20 months, effectively extending electrode life. The dual high-impedance differential amplifier design gives the sensor strong anti-interference capability and fast response speed. The sensor is easy to install and maintain, and is particularly suitable for system integrators and engineering contractors to build reliable online water quality monitoring systems, effectively solving the industry pain points of short lifespan, large drift and complex integration in traditional pH sensors.

Core Advantages

• Ultra-Long Life and High Stability: The patented reference system allows reference liquid seepage to last more than 20 months, doubling electrode life with small drift, suitable for long-term online operation.

• Strong Anti-Interference and Fast Response: Dual high-impedance differential amplifier design provides strong anti-interference capability, response time T90＜30s and high measurement accuracy.

• Easy Integration and Reliable Protection: Natively supports RS-485 Modbus/RTU protocol, optional 4-20 mA output, IP68 protection rating, 3/4NPT installation interface, suitable for various industrial environments.

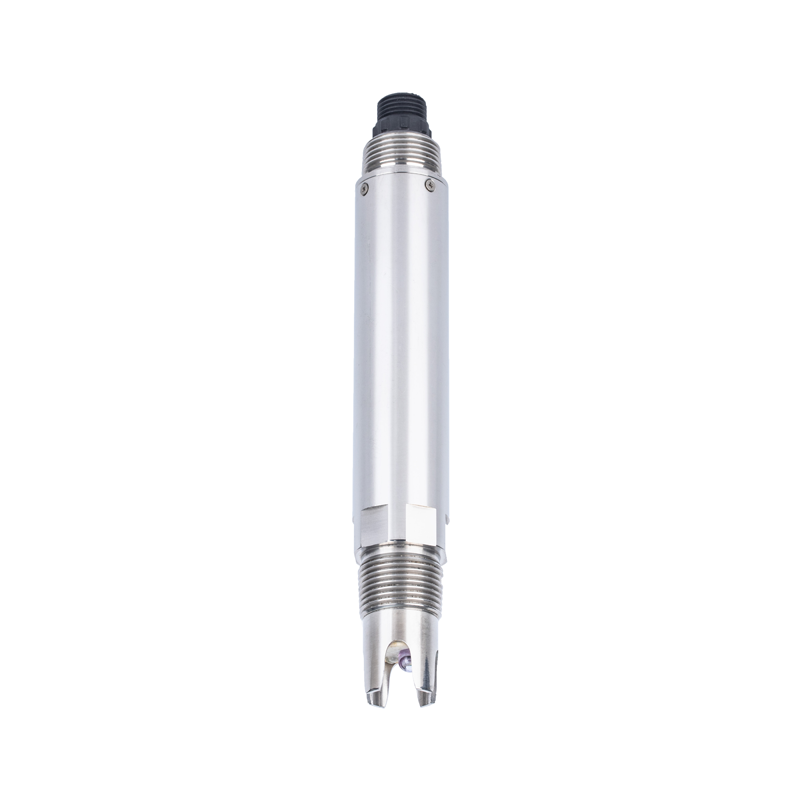

NBL-PHG-406 Online pH Sensor Product Overview

The NiuBoL NBL-PHG-406 online pH sensor is a digital sensor developed for continuous online monitoring of pH value in industrial sites, designed based on the glass electrode method principle. The sensor has a built-in high-precision Pt1000 temperature sensor that realizes automatic temperature compensation, ensuring accurate and reliable measurement results under different temperature conditions.

The sensor provides two housing material options: POM+ABS engineering plastic (NBL-PHG-406-A) and POM+316L stainless steel (NBL-PHG-406-S), which can meet the needs of different corrosive media. The standardized RS-485 Modbus/RTU protocol allows direct connection to third-party devices such as PLC, DCS, industrial control computers, paperless recorders or touch screens, greatly simplifying system integration work. For system integrators, it provides a stable and reliable data interface; for engineering contractors, it reduces on-site wiring difficulty and long-term maintenance costs, ensuring the monitoring system operates stably under complex working conditions. The product has undergone 72-hour aging testing and strict quality inspection, and has high reliability upon leaving the factory.

NBL-PHG-406 Online pH Sensor Key Technical Advantages

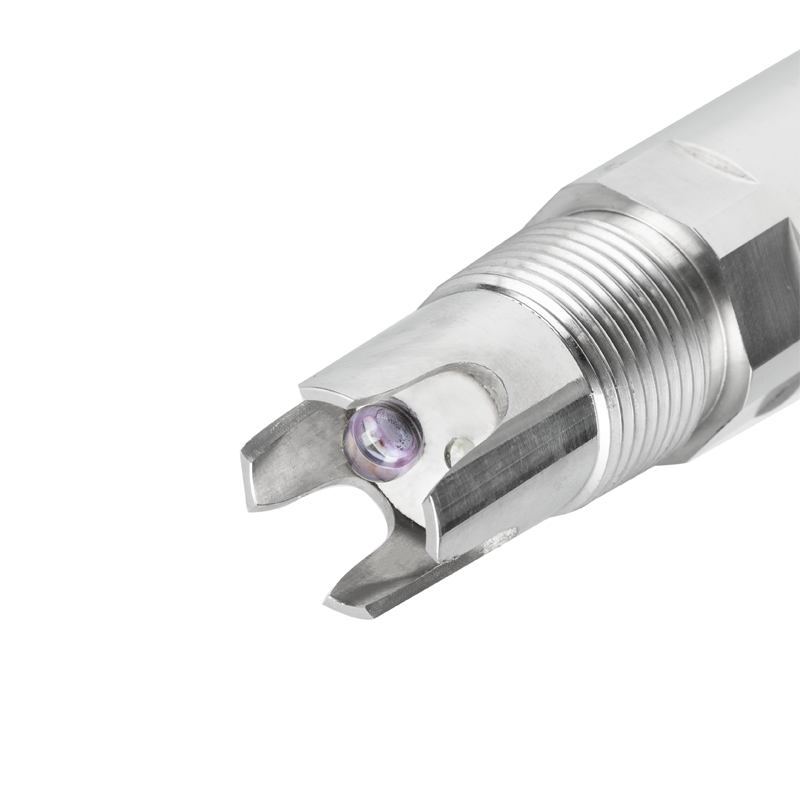

1. Patented Reference System and Long-Life Design
   The patented pH electrode is adopted, and the internal reference liquid seeps out extremely slowly through the microporous salt bridge under at least 100KPa (1Bar) pressure, with positive seepage time exceeding 20 months. This stable reference system significantly extends electrode service life, reduces costs and downtime caused by frequent replacement, and maintains measurement stability.

2. High Anti-Interference Measurement Circuit
   Built-in dual high-impedance differential amplifier effectively suppresses electromagnetic interference and signal noise, with fast response speed and reliable measurement data. Even in strong electromagnetic environments or complex industrial sites, the sensor can still output stable and accurate pH values.

3. Rugged and Durable Hardware Configuration
   - Two housing materials are available: POM+ABS (lightweight and corrosion-resistant) or POM+316L stainless steel (higher corrosion resistance), adapting to different media.
   - Protection rating IP68, supports long-term submerged installation.
   - Installation interface is 3/4NPT pipe thread, convenient for submerged, pipeline or tank installation.
   - Standard 5-meter 5-core twisted shielded cable, supports customized length with strong anti-interference capability.

4. Intelligent Communication and Low Power Consumption Integration
   Supports RS-485 Modbus/RTU protocol, with stable and reliable communication, easy to seamlessly integrate with various host computer systems. Optional 4-20 mA analog output meets the needs of different control systems. Power consumption is only 0.2W@12V, and the low-energy design is suitable for distributed monitoring stations.

5. Convenient Calibration and Maintenance
   Uses two-point calibration method (zero point + slope), completed with standard buffer solutions (pH 6.86, 4.00, 9.18). Daily maintenance only requires cleaning with distilled water and soaking in electrode storage solution. Glass membrane dirt can be cleaned with dilute hydrochloric acid. The sensor is calibrated at the factory and random calibration is not recommended unless necessary.

These technical advantages enable the NBL-PHG-406 to perform excellently in long-term operation and significantly reduce operation and maintenance costs of engineering projects.

NBL-PHG-406 Online pH Sensor Technical Specifications

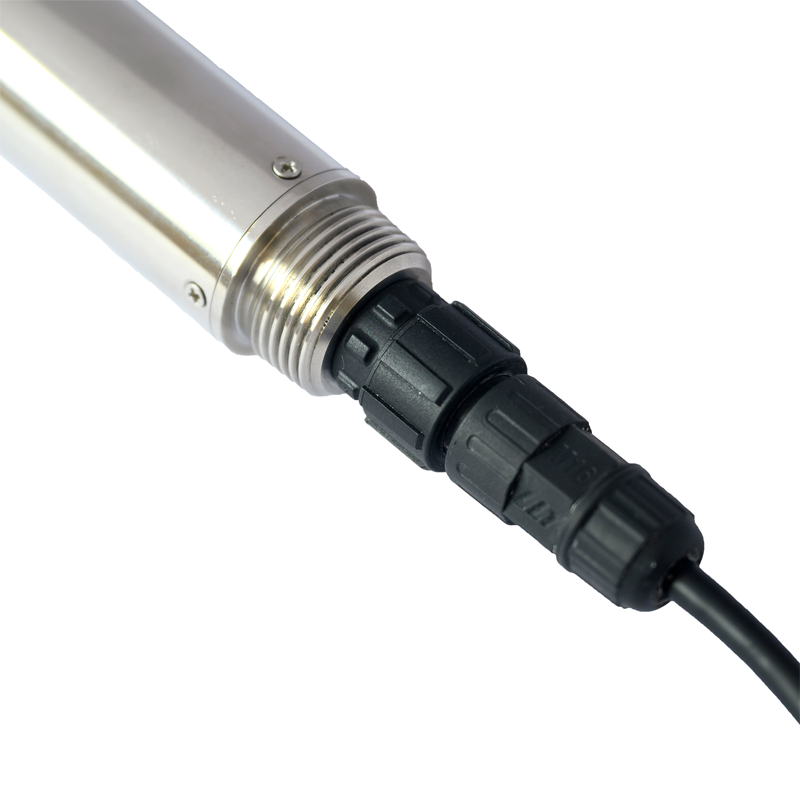

Note: The sensor connector is M16-5-core waterproof male connector, and the cable is 5-core twisted shielded wire. During installation, the sensor must be tilted at least 15° or more; inversion or horizontal installation is not allowed.

NBL-PHG-406 Online pH Sensor Application Scenarios

1. Municipal Wastewater Treatment and Industrial Wastewater Treatment: Real-time monitoring of pH value in aeration tanks, neutralization tanks and outlets to optimize dosing control and ensure discharge meets environmental protection standards.

2. Chemical and Pharmaceutical Production Processes: Monitoring pH value in acid-base neutralization reactions and crystallization processes to ensure process stability and product quality.

3. Environmental Water Quality and Surface Water Monitoring: Used for online pH monitoring in natural water bodies such as rivers, lakes and reservoirs to support environmental quality assessment.

4. Food & Beverage and Fermentation Industry: Monitoring pH value in fermentation tanks, cleaning liquids and products to control the production process.

5. Power Plant Circulating Cooling Water and Boiler Feed Water: Preventing equipment corrosion caused by abnormal pH and extending equipment life.

6. Papermaking, Printing & Dyeing and Textile Industry: Real-time control of pH changes in production wastewater to assist wastewater treatment process regulation.

Installation and Wiring Guide

Installation requirements: Use submerged installation with 3/4NPT pipe thread interface. During installation, the sensor must not be inverted or placed horizontally and must be tilted at least 15° or more to ensure the glass electrode fully contacts the measured solution and the reference liquid seeps out normally. One-third of the sensor should be inserted into the measured solution.

Electrical Connection: Use 5-core twisted shielded cable with the following wiring definition:

• Red wire: Power positive (12～24V DC)

• Black wire: Ground (GND)

• Blue wire: RS-485 A

• White wire: RS-485 B

• Yellow wire: 4-20 mA current output (optional, leave floating if not in use)

Before powering on, please carefully check the wiring sequence. All wiring points must undergo waterproof treatment. User cables should have certain corrosion resistance. During long-term immersion or exposure, proper protection is required.

FAQ

Q1: What are the main advantages of NBL-PHG-406 compared with ordinary industrial pH electrodes?

A: The patented microporous salt bridge reference system allows reference liquid seepage to last more than 20 months, significantly extending electrode life, with higher stability and lower maintenance frequency.

Q2: What system integration does the sensor support?

A: Natively supports RS-485 Modbus/RTU protocol and can be directly connected to devices such as PLC, DCS, industrial control computers, paperless recorders or touch screens. Optional 4-20 mA output is available.

Q3: How to perform two-point calibration?

A: Use pH 6.86 buffer solution for zero point and pH 4.00 or pH 9.18 buffer solution for slope according to acidic or alkaline conditions. After the value stabilizes for 3～5 minutes, complete calibration through Modbus commands.

Q4: What are the precautions during installation?

A: The sensor must not be inverted or installed horizontally and must be tilted at least 15° or more. During measurement, one-third of the electrode should be inserted into the solution to avoid drying of the glass membrane or contamination with impurities.

Q5: What is the sensor maintenance frequency?

A: Daily cleaning with distilled water and drying with filter paper; store in 3mol/L potassium chloride solution when not in use. Glass membrane deposits can be cleaned with dilute hydrochloric acid. Recalibration is required when errors occur after long-term use.

Q6: Is it suitable for highly corrosive media?

A: Yes. The NBL-PHG-406-S type uses 316L stainless steel housing with stronger corrosion resistance, suitable for corrosive solutions such as acids, alkalis and salts.

Q7: How is the temperature compensation function realized?

A: Built-in Pt1000 temperature sensor realizes automatic temperature compensation to ensure stable measurement accuracy under different temperature environments.

Q8: What about the product warranty and after-sales?

A: One-year warranty service is provided from the date of sale (excluding improper use). If there are calibration, installation or technical problems, please contact the NiuBoL technical support team for professional guidance.

Summary and Cooperation Invitation

The NiuBoL NBL-PHG-406 online pH sensor provides a stable, reliable and easy-to-integrate professional solution for industrial pH online monitoring with the patented long-life reference system as the core, combined with dual high-impedance differential amplifier anti-interference design, IP68 strict protection and standardized Modbus communication protocol. It not only extends sensor service life and reduces maintenance costs but also helps engineering projects achieve precise process control and compliant discharge.

If you are planning wastewater treatment system upgrades, chemical process automation transformation, environmental online monitoring platforms or industrial water quality control projects, please feel free to contact the NiuBoL technical team. We can provide detailed technical materials, integration solution consultation, on-site installation guidance and stable supply assurance. Contact us immediately to obtain the complete product manual or apply for prototype testing, and work with NiuBoL to build an efficient and reliable industrial IoT water quality monitoring system, making precise pH monitoring the solid foundation of your engineering projects.
