Greenhouse Monitoring System

Application Background

Modern greenhouse agriculture requires precise control of temperature, humidity, light, CO₂, and ventilation to ensure healthy and stable crop growth. However, traditional greenhouses rely on manual inspections and experience-based adjustments, which lead to several issues:

- Temperature and humidity fluctuations: During high-temperature seasons, up to 30% of leaves may turn yellow, and yield decreases by 10–15%.

- Inaccurate light/CO₂ control: Excessive or insufficient light affects photosynthesis efficiency, and fluctuating CO₂ levels cause unstable growth.

- Low labor efficiency: A 50-acre greenhouse requires 3-4 workers per day for inspections, with an annual labor cost of about 100,000 RMB.

- High energy waste: Fans, heaters, and supplemental lighting consume a lot of electricity, resulting in energy consumption exceeding standards by 10–15%.

- Lack of data support: Environmental abnormalities are detected with delays, and management decisions rely on experience.

Niubol Greenhouse Monitoring System integrates temperature, humidity, light, and CO₂ sensors, along with intelligent fans, heaters, IoT cloud platforms, and mobile apps, to fully automate greenhouse environment monitoring and control. This enables managers to remotely monitor the greenhouse and precisely manage crop growth.

 Issues Faced:

- Environmental fluctuations leading to unstable crop growth

Temperature/humidity/light/CO₂ instability leads to uneven fruit development, and yield fluctuations can reach 15–20%.

- Low labor efficiency and high costs

Inspection cycles are long, requiring multiple workers daily, and labor costs are high with a higher error rate.

- Significant energy waste

Fans, heaters, and supplemental lights running for extended periods lead to energy consumption exceeding standards by 10–15%.

- Lack of data-driven decision-making

Traditional management systems cannot monitor crop growth data in real time, and decisions rely on experience.

- Delayed response to abnormalities

Temperature, humidity, light, or CO₂ anomalies are not detected and handled quickly, leading to higher risks of crop losses.

 Greenhouse Monitoring System Overview

Goals:

- Precisely control the greenhouse environment to ensure healthy and balanced crop growth

- Reduce labor costs and energy consumption

- Drive data-driven management to support scientific decision-making

- Enable remote monitoring and early warning of abnormalities

Core Technology & Niubol Products Alignment

Key Components of Greenhouse Monitoring System

- Temperature & Humidity Sensors: Monitor air and soil temperature and humidity, with threshold alarms.

- Light/CO₂ Sensors: Monitor light intensity and CO₂ concentration to optimize photosynthesis.

- Smart Fans, Heaters, and Shade Systems: Automatically adjust the greenhouse environment based on sensor data.

- Data Collectors (Niubol Gateway): Connect all devices and upload data in real time.

- Cloud Platform & Analytical Algorithms: Analyze data, forecast trends, and generate automatic control strategies.

- Mobile App: Real-time monitoring, remote control, historical data reports, and anomaly alert push notifications.

Wind Speed Sensor	Atmospheric Temperature Humidity pressure Sensor	illumination sensor	Tipping bucket rain gauge sensor	Leaf Wetness Sensor
CO2 Sensor	PAR Sensor	3-in-1 Soil Temperature Humidity EC Sensor	Soil Moisture Temperature sensor	Soil pH sensor

 Greenhouse Monitoring System Implementation Steps

1. Sensor & Equipment Layout

   - Install Niubol soil sensors and atmospheric temperature, humidity, or CO₂ sensors based on greenhouse size and crop row spacing.

   - Ensure sensor height aligns with plant leaves for accurate data.

   - Install smart fans, heaters, and shading devices, connecting them to the Niubol Gateway.

2. System Configuration & Threshold Setting

   - Set temperature and humidity thresholds: Temperature 25–28°C, Humidity 60–70%.

   - Set light threshold: 300–500 μmol/m²/s, CO₂ threshold: 400–800 ppm.

   - Configure automatic control rules, such as triggering fans when the temperature exceeds 28°C.

3. Trial Operation & Debugging

   - Run a 7-day trial, record temperature/humidity/light/CO₂ trends.

   - Adjust device parameters and automation logic to ensure balanced greenhouse conditions.

4. Routine Operation & Monitoring

   - Cloud platform collects data every 5–10 minutes and adjusts fans, heaters, and shading devices automatically.

   - The app pushes anomaly alerts, allowing remote intervention by managers.

   - Weekly review of historical trend reports to optimize long-term management strategies.

5. Exception Handling

   - If environmental parameters exceed thresholds, the system adjusts automatically and pushes notifications to the app.

   - In case of equipment failure, the cloud platform generates troubleshooting suggestions and logs the issue.

   - For long-term trends, the system analyzes causes and provides optimization suggestions.

 System Advantages

- Precise Environmental Control

   - Environment data is updated every 5–10 minutes, automatically adjusting fans, heaters, and shading devices.

   - Leaf yellowing rate reduced by 30%, fruit uniformity increased by 20%.

- Energy Conservation & Emission Reduction

   - Avoid unnecessary device operation, reducing energy consumption by 15–20%.

   - Saves about 2,500–3,000 RMB annually for a 50-acre greenhouse.

- Significant Labor Cost Reduction

   - Reduces inspection personnel by 25%, minimizing the risk of errors.

   - Annual labor cost reduction of about 20,000–30,000 RMB.

- Data-Driven Management for Scientific Decision-Making

   - Analyzing historical data optimizes control strategies and improves long-term yield and quality.

- Anomaly Early Warning & Risk Control

   - Automatic alerts for parameter anomalies reduce the risk of crop loss.

- Flexible & Scalable

   - Supports multiple greenhouses/farms with unified management.

   - Suitable for vegetables, flowers, fruits, and herbs in greenhouses.

- Quantifiable Investment Return

   - A 50-acre greenhouse yields a 20% increase in production, 15% energy savings, and 25% reduction in labor costs.

   - Investment payback period is 12–18 months.

FAQ

Q1:Which greenhouse crops is the system suitable for?

The system is suitable for vegetables, flowers, fruits, and herbs, with optimal environment parameters for each crop.

Q2:Do we need to modify the existing greenhouse structure?

Most greenhouses do not require modifications. Minor structural adjustments can improve airflow and device layout efficiency.

Q3:Is data collection and analysis real-time?

Yes, data is collected every 5–10 minutes, allowing real-time monitoring and remote control by managers.

Q4:How are anomalies handled?

The system automatically adjusts parameters and sends notifications through the app. Managers can quickly diagnose the issue and intervene manually.

Q2:Is system maintenance complicated?

The system requires monthly sensor cleaning, regular equipment inspection, and cloud platform monitoring.

Q6:Does the cloud platform support multi-greenhouse/farm management?

Yes, it allows unified management of all greenhouses and provides an overview of environmental conditions and historical trends.

Q7:What is the investment payback period?

The payback period is approximately 12–18 months, with a 20% increase in production, 15% energy savings, and a 25% reduction in labor costs for a 50-acre greenhouse.

Q8:Do you offer installation and training services?

Yes, Niubol's engineering team handles full installation, debugging, and provides staff training.

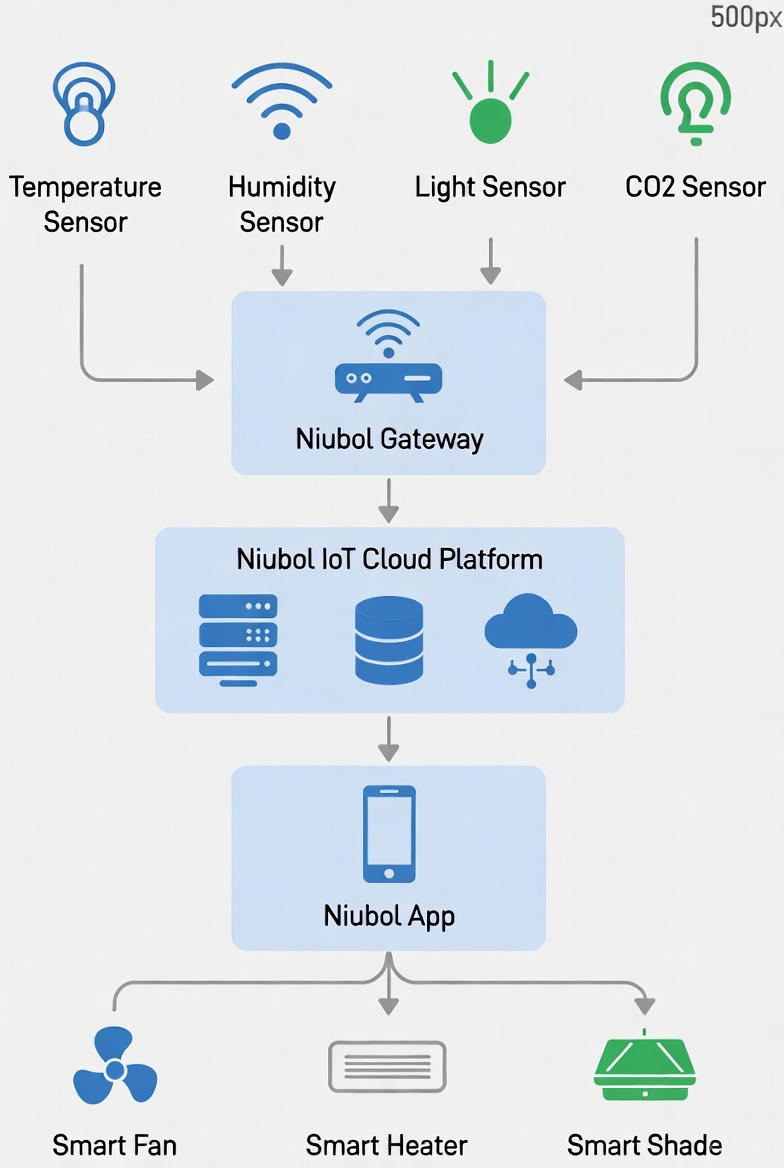

 Data Logic Diagram

Temperature & Humidity/Light/CO₂ Sensors --Niubol Gateway  --Niubol IoT Cloud Platform --Niubol App -Smart Fans/Heaters/Shading Control
