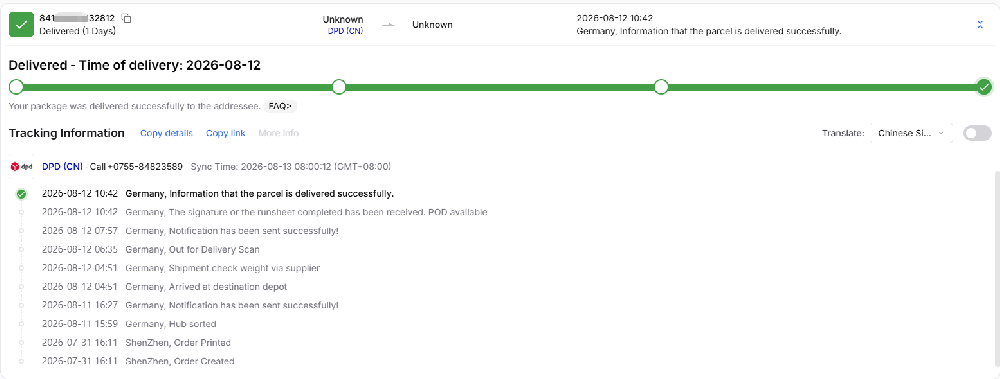

NiuBoL Delivers RS485 Soil Sensors and a Modbus Gateway to Germany

NiuBoL has delivered an integrated soil-monitoring package to Germany consisting of NBL-S-TMC-7 seven-parameter soil sensors and a TG451 IoT gateway. Unlike a handheld inspection order, this package is intended for a wired data path: sensors at field level, RS485 communication, gateway conversion and onward network access.

The ordered system, not just the individual products

The probes measure soil temperature, moisture, conductivity, pH and EC-derived N, P and K reference values. The TG451 provides the connection layer between serial field devices and an IP network. That pairing is useful when a project needs several monitoring points and gateway-based data forwarding.

RS485 and Modbus commissioning points

Multiple sensors can share an RS485 trunk only when each device has a unique Modbus address. Before installation, the integrator should record the address assigned to each physical location. The serial settings must match across the bus, including baud rate, parity, data bits and stop bits. The order data identifies 9600 bps for the sensor; the final register map and serial format should be checked against the shipment documentation.

Bus layout matters. Use a daisy chain instead of a star where practical, keep A/B polarity consistent, provide a common reference where required, and apply termination according to cable length and site noise. Soil probes may be IP68, but the gateway is an indoor/cabinet device with IP30 protection. It belongs in a dry enclosure with suitable grounding, surge protection and service access.

What should be tested before the system goes online?

A sensible factory or bench test polls each sensor separately, changes its address, then connects the devices to the same bus. The gateway should be tested for Modbus RTU to Modbus TCP conversion using the actual register addresses. Finally, disconnect and restore sensor power to confirm that the gateway and host recover without manual reconfiguration.

• Confirm that each sensor responds only at its assigned address.
• Read all required registers and verify units, byte order and signed values.
• Document the mapping between sensor address and installation point.
• Test network addressing, firewall rules and the chosen polling interval.
• Record behavior after RS485 disconnection, gateway restart and network loss.

Measurement limits that belong in the project record

The NBL-S-TMC-7 product page specifies a temperature range of -40 to 80 degrees C, moisture range of 0-100%, conductivity range of 0-10,000 microS/cm, NPK display range of 0-2,000 mg/kg and pH range of 0-10. As with the portable model, the NPK channels are derived from EC using empirical factors. They are appropriate for comparison and trend monitoring, not a replacement for laboratory nutrient analysis.

Delivery status and next engineering stage

After receipt, site acceptance should verify probe placement, cable routing, sensor addresses, gateway mapping, data continuity and enclosure conditions. NiuBoL can provide the sensor and gateway documentation needed by the PLC, SCADA or platform engineer.

Project and product FAQ

Q1: Can multiple NBL-S-TMC-7 sensors use the same RS485 port?

Yes, if the bus design and power budget are suitable and each sensor has a unique address. Confirm the maximum bus length, cable type, termination and polling interval for the actual site.

Q2: Does the TG451 automatically understand every Modbus device?

No. The serial parameters and register mapping must be configured and tested. Modbus compatibility defines the transport, but it does not remove the need to map each register and engineering unit.

Q3: Can the gateway be installed outdoors beside the probes?

Not without a suitable enclosure. The sensors are rated IP68, while the quoted TG451 has IP30 protection and should be mounted in a dry cabinet with controlled wiring and surge protection.

Q4: What must be supplied for a repeat quotation?

Provide the sensor configuration, cable lengths, supply voltage, gateway network method, cellular band if required, protocol destination, cabinet scope and delivery postcode.

Q5: How should the project be accepted?

Record live values from every configured address, verify Modbus TCP mapping, test recovery after power and network interruptions, inspect probe locations and retain the final address/register schedule.

Summary

This Germany delivery is a multi-point monitoring system rather than a stand-alone sensor sale. RS485 probes supply field measurements; the TG451 provides the gateway layer. The engineering value depends on address planning, register mapping, cabinet protection and recovery testing. Those details should be settled in the RFQ and acceptance record, not left until the probes are already buried.
