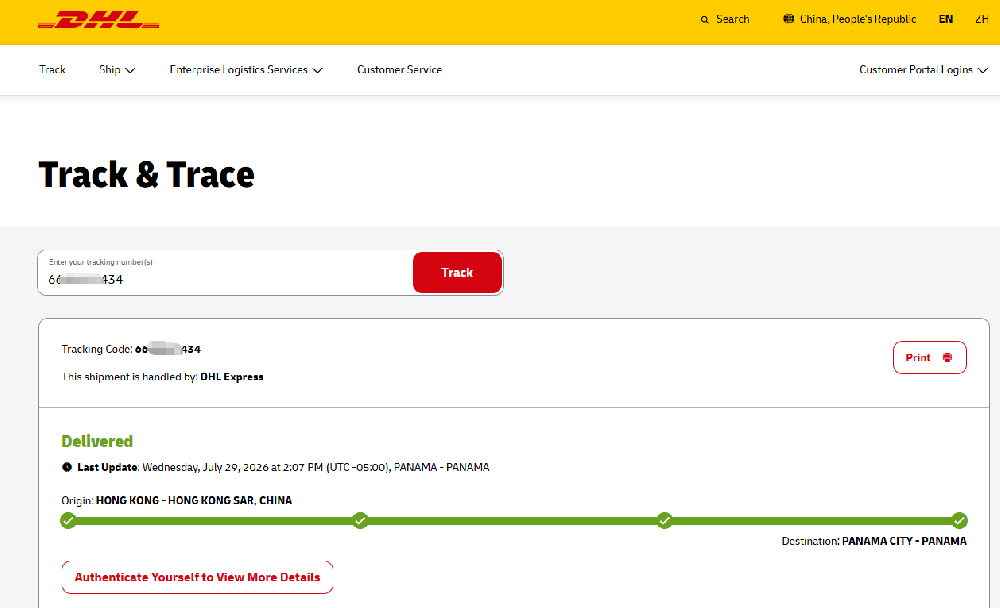

NiuBoL 8-in-1 Soil Testing Equipment Delivered to Panama for Field Surveys

NiuBoL NBL-S-TMC-8C portable 8-in-1 soil testing equipment has been delivered to Panama. The equipment supports mobile field checks across survey locations and gives project teams a consistent way to record soil conditions without carrying a separate data logger.

What the Panama order included

Each tester combines a soil probe, multi-interface adapter and mobile application workflow. The order covers soil temperature, volumetric moisture, EC, salinity, available N, P and K, and pH. It is designed for direct use with compatible Android or supported HarmonyOS devices through USB rather than as a permanently wired station.

A practical field verification method

Acceptance should go beyond confirming that values appear on the screen. Place the probe in a well-mixed soil volume at a controlled depth, allow the readings to stabilize, remove it, then repeat the measurement nearby. The purpose is not to demand identical last digits. It is to identify large variation caused by poor contact, a damaged connector or a different application setting.

After the repeatability check, test separate locations using a written method. Record depth, moisture condition, sampling time and any irrigation or fertilizer event. In loose or stony soil, pre-forming an insertion hole can help protect the probe, but the final contact must remain firm along the sensing area.

Field measurement results and interpretation

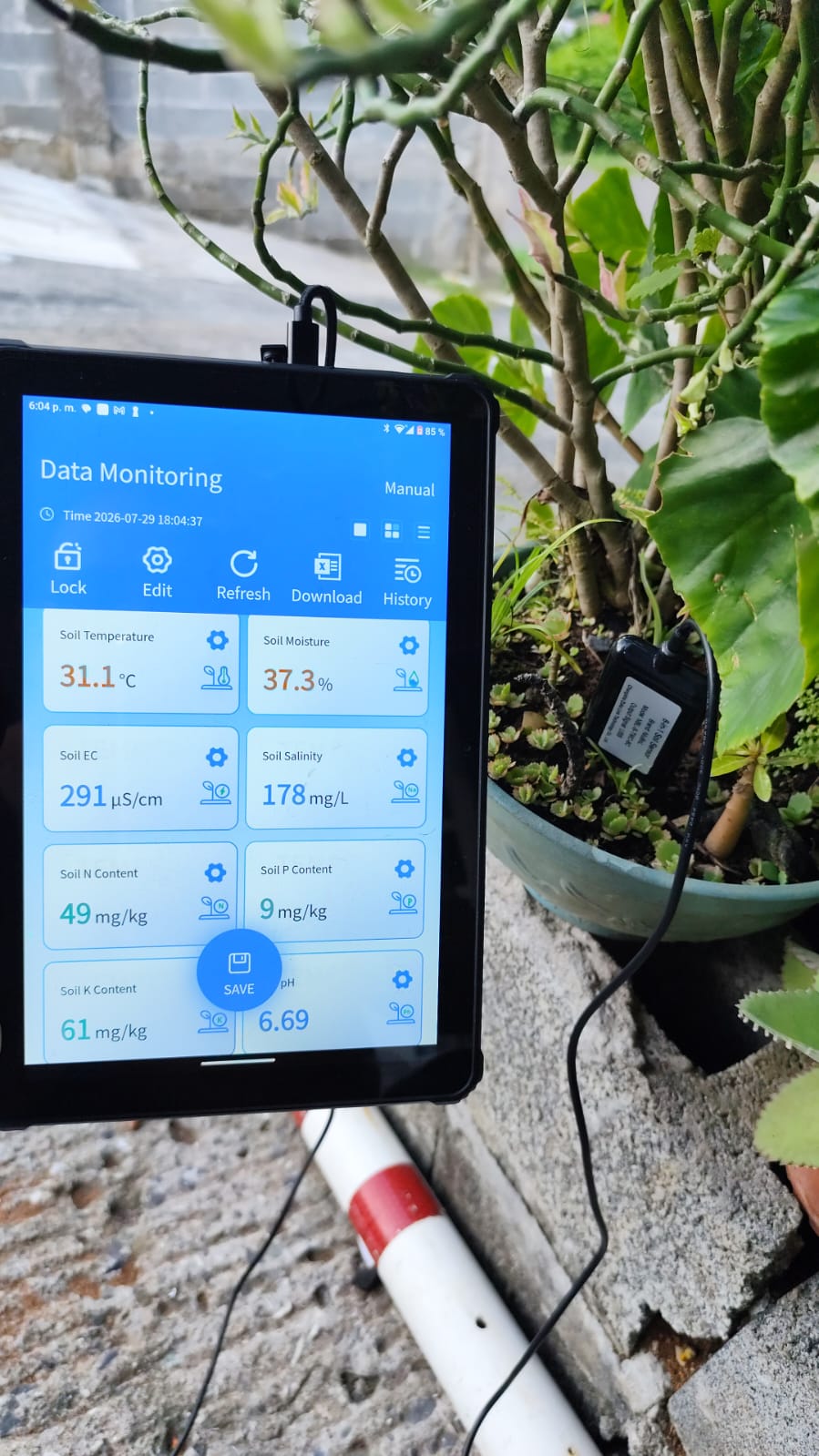

At a field sampling point, the instrument displayed 31.1 degrees C, 37.3% moisture, 291 microS/cm EC, 178 mg/L salinity, pH 6.69, and N, P and K values of 49, 9 and 61 mg/kg. These readings should be interpreted as site-specific spot data; they do not establish field-wide soil uniformity or long-term sensor drift.

A purchaser checking the instrument should focus first on repeatability under the same soil condition. A site manager comparing different plots should focus on a consistent sampling method. Those are different tests and should not be mixed in the same acceptance sheet.

Where portable testing adds value

• Pre-irrigation checks across several greenhouse beds before adjusting watering duration.
• Relative EC and salinity screening after fertigation or in areas with suspected salt accumulation.
• Teaching and agronomy demonstrations where live values and exported records are needed on site.
• Reconnaissance before selecting fixed sensor locations for a later RS485 monitoring system.

When to specify a different architecture

A portable USB tester is not the right endpoint when data must arrive automatically every few minutes, trigger a pump, or feed a remote dashboard. That scope needs an industrial soil sensor with suitable power, RS485/Modbus RTU communication, cable protection, a data logger or gateway, and a defined upload path. The portable units can still be used as survey tools alongside that system.

Project and product FAQ

Q1: How should field repeatability be checked?

Use the same homogeneous soil volume, equal insertion depth and the same stabilization time for repeated measurements. Investigate large differences before field deployment.

Q2: How should separate survey locations be compared?

Use a written sampling method and record depth, moisture condition, time and recent irrigation or fertilizer events. Site comparisons are only useful when the sampling conditions are documented.

Q3: Can the tester control irrigation equipment?

Not directly in this portable USB configuration. Automated control requires a fixed sensor output, controller logic and commissioned relay or valve interfaces.

Q4: How should NPK readings be used?

Use them for relative screening and trend comparison under consistent soil and sampling conditions. Confirm nutrient decisions with laboratory methods where accuracy is contractually or agronomically important.

Q5: What affects the quoted price?

Connector and adapter set, destination, freight method, documentation, packaging and any requirement for fixed RS485 sensors affect the quotation. Request a current project quote rather than relying on a past unit price.

Summary

The Panama shipment supports a simple field workflow: connect, insert, record, compare and export. For procurement teams, the useful next step is to define whether the equipment will remain a survey tool or form part of a later fixed monitoring network; NiuBoL can then separate the portable and RS485 scopes in the quotation.
