Soil Moisture and Weather Data for Farm Management

Time:2024-05-19 11:37:09 Popularity:1957

Quick Answer: Soil moisture and weather data support different parts of a farm decision. Soil probes show water conditions at selected depths and locations; weather observations help explain atmospheric demand and rainfall. Combine them with irrigation and crop records to decide when to inspect, irrigate or investigate a fault. Neither a single moisture percentage nor a weather forecast is a complete irrigation prescription.

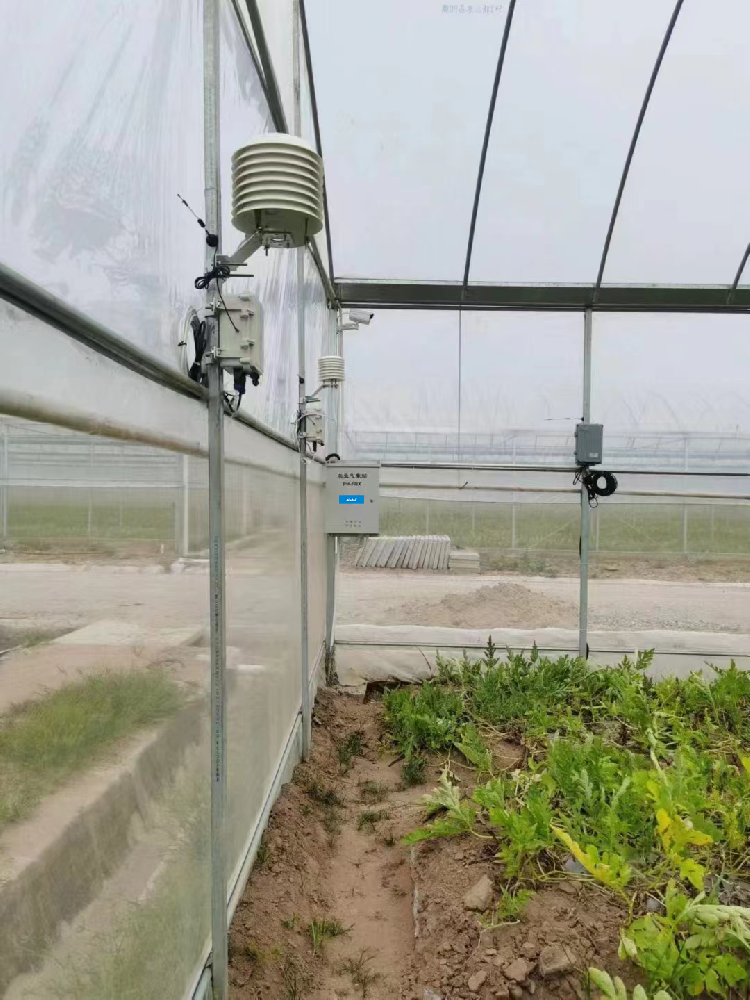

Environmental sensors installed beside a crop bed inside a greenhouse

Start with a decision the farm can act on

A useful monitoring project might answer whether yesterday's irrigation reached the active root zone, whether two management blocks dry at different rates, or whether a rainfall event reduced the next irrigation requirement. Those are testable tasks. A promise to predict yield merely by connecting sensors to a dashboard is not a sufficient project objective.

For open-field crop monitoring, identify the crop, soil differences, rooting pattern and irrigation method. For greenhouse water management, distinguish the covered crop environment from outdoor weather. Rain outside a greenhouse does not necessarily enter the growing bed, and outdoor radiation or humidity should not be treated as the conditions around the crop canopy without an appropriate relationship or local measurements.

Choose one or two operational questions for an initial block. Record the present practice, who makes the decision and what independent observation will check the result. This gives the farm a practical basis for evaluating additional equipment without attributing every change in crop performance to the new sensors.

Read soil moisture and weather data on the same timeline

A dielectric soil probe estimates volumetric water content in the soil around its sensing volume. A reading of 25% is not 25% of the water available to the crop. Interpretation depends on soil water retention and the root zone. A shallow wet layer can coexist with a drier lower layer, particularly after a short irrigation event.

Weather observations describe a different process. Air temperature, humidity, wind and suitable radiation measurements can support an estimate of reference evapotranspiration when used in the required calculation. Rainfall measures water collected at the gauge, not automatically the amount stored in the crop root zone. Keep these quantities separate when arranging the dashboard and reports.

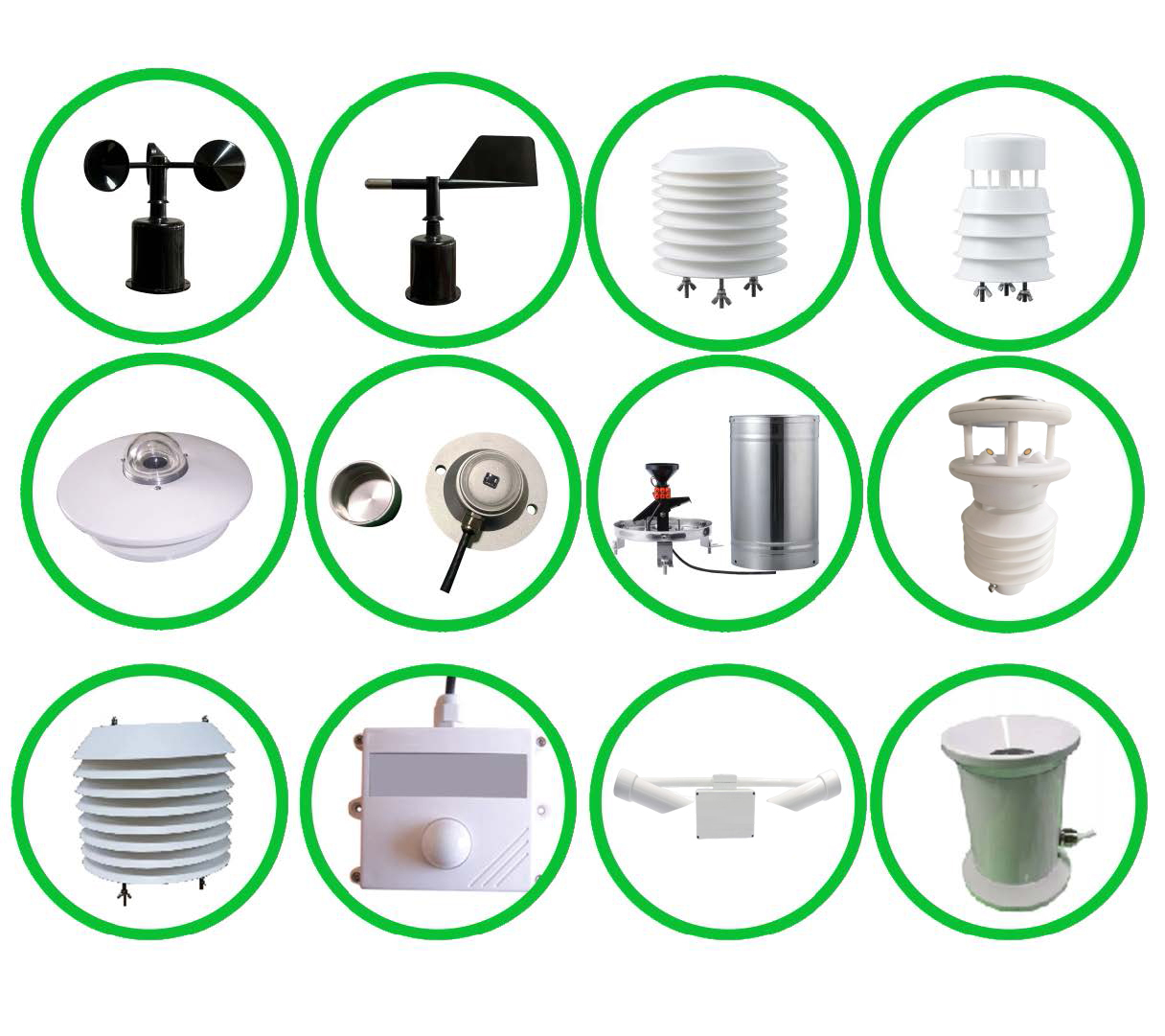

Weather and environmental sensor options for a configured farm monitoring system

Farm sensor data integration also requires matching time. Store acquisition timestamps and use a consistent time zone for soil observations, rainfall and irrigation events. Keep cumulative rain counters distinguishable from interval totals. Otherwise, an apparent soil response may be assigned to the wrong irrigation cycle, or a counter reset may look like negative rainfall.

Use root-zone response to evaluate irrigation

Place probes to represent the decision area rather than the easiest cable route. Different soil types or irrigation sectors may need separate observation points. In drip irrigation, distance from an emitter affects wetting; near an alley or wheel track, compaction can affect the local result. Record the probe depth and position so that changes can be interpreted later.

A shallow probe can indicate initial wetting, while a suitably located deeper probe can help assess whether the wetting front reaches a lower observation depth. Neither reading alone measures the whole root profile. Decide the relevant depths from the crop and soil investigation, rather than assigning every crop the same two installation depths.

A water-content change can be expressed as a water-depth equivalent only when it represents a defined layer. In an illustrative calculation, a uniform increase from 0.20 to 0.24 m3/m3 across 0.30 m of soil equals 12 mm of additional stored water: 1000 x 0.04 x 0.30. A point reading does not establish that the entire layer changed uniformly. This distinction is consistent with the root-zone water accounting in FAO guidance on soil water availability.

Let weather explain demand, not override the soil observation

Reference evapotranspiration is an atmospheric-demand calculation for a reference surface. It is not automatically the crop's actual water use or the next irrigation depth. The FAO Penman-Monteith framework uses defined weather inputs and exposure conditions. Crop development, water stress and local management still affect interpretation.

Do not substitute illuminance in lux for the radiation input simply because both values respond to sunshine. Nor should wind measured in a sheltered crop aisle be treated as an open reference observation without assessment. If evapotranspiration is part of the project, specify the calculation and required inputs before selecting the station's channel list.

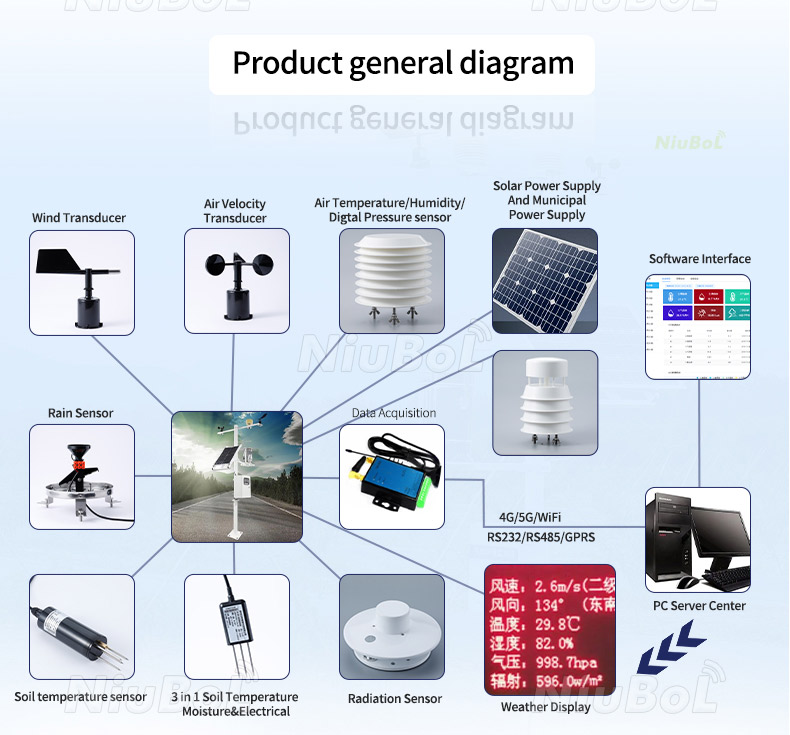

Agricultural monitoring diagram with weather instruments and soil measurement channels

Forecast rainfall can inform planning, but an unverified forecast is not water already stored in the soil. When the event occurs, inspect the gauge, soil response and field condition. Runoff, interception, drainage and spatial rainfall differences can all prevent gauge rainfall from becoming equivalent root-zone recharge.

What different observations justify

ObservationUseful next checkDecision to avoid making from that observation alone
Surface probe rises quickly; lower probe barely changesCheck event duration, probe contact and wetting pattern at the selected depths.Declaring the complete root zone adequately irrigated.
Rain gauge records an event but covered beds stay dryConfirm whether rain can reach the crop and inspect irrigation availability.Subtracting outdoor rain directly from greenhouse irrigation.
One block dries faster than anotherCompare soil, crop cover, depth, emitter placement and irrigation records.Calling the difference a sensor fault without a field check.
Weather demand increases while soil readings are unchangedCheck observation age, depth and soil buffering over the relevant period.Assuming either immediate crop stress or a failed probe.
Irrigation is commanded but no expected wetting occursCheck actual flow, valve operation, emitter delivery and measurement timing.Treating a controller command as proof that water reached the crop.

Match the soil probe to the collector

The NiuBoL NBL-S-THR is one soil temperature and moisture option for a configured system. Its soil-temperature measurement span and its operating-environment rating are different specifications. The collector, connectors and any display also have their own limits; the probe's IP68 rating does not extend to every assembled component.

ItemNBL-S-THR configurationProject consequence
Soil moisture0-100%; resolution 0.1%; specified accuracy +/-3%Confirm the applicable test conditions and assess the site's soil response.
Soil temperature-50 to +100 degrees C; resolution 0.1 degrees C; accuracy +/-0.5 degrees CDo not confuse measurement span with the ambient operating limit.
Power and consumption12-24 VDC; approximately 0.3 WInclude all probes, collector and communication loads in the power design.
Output versionsRS485 or 4-20 mA, or 0-5 VSpecify the ordered interface and match the collector input.
Analog loading4-20 mA load at or below 250 ohms; 0-5 V load at or above 1 kilohmCheck input loading rather than assuming any analog input will suit.
Environment and protection-40 to +80 degrees C operating environment; IP68 probeCheck cable joints and other equipment independently.

For RS485 acquisition, use the exact sensor protocol, address and scaling. A compatible port is only the electrical starting point. An analog version needs the correct engineering range and supply arrangement. Ask the supplier to identify the delivered cable length, jacket suitability and connection method for burial, outdoor exposure or machinery routes instead of assuming those details from an enclosure rating.

Keep greenhouse and open-field interpretation separate

A covered growing area may need indoor air and soil measurements even when an outdoor station is nearby. Ventilation, shade, irrigation and the growing medium change the crop environment. Use the outdoor record as context, not as a substitute for the measurements that the operating decision actually needs.

Environmental monitoring equipment installed among greenhouse crops

Root-zone irrigation decisions should be tied to the soil or substrate in use. Moisture from one medium should not inherit another medium's action threshold without assessment. Record changes in growing media, probe placement and irrigation hardware. Otherwise, a comparison across seasons can combine a genuine management change with a measurement-location change.

Moisture and weather channels also do not directly measure a fertiliser requirement. A conductivity channel, if present, measures an electrical property and needs its own interpretation. Nutrient management may require water analysis, soil or tissue testing and the crop programme. Avoid generating a nutrient dose from water content alone.

Run a pilot that tests decisions, not just connectivity

For soil moisture irrigation evaluation, select a representative block and observe complete wetting and drying cycles. Log when irrigation actually runs, the delivered volume where measured, rainfall, maintenance and any interruptions. Review the expected response with the farm team before enabling automatic control.

Check the assembled system using a real irrigation event: did the correct block receive water, did the records arrive with the correct time, and could staff distinguish a failed channel from a genuine dry reading? Inspect installation contact and compare selected observations with an appropriate independent field method. Pouring water around a probe merely to obtain a wet response is not a site validation.

Automation needs separate limits for operating time, water availability and invalid data, set under the irrigation designer's procedure. A cloud notification is not a pump protection device. Keep safe manual access and confirm actual delivery feedback where the control task requires it.

Compare operating outcomes over suitable conditions before expanding. Weather, crop stage, disease, management and soil differences can confound a simple before-and-after yield comparison. Use the pilot to establish whether the data improved a defined decision and what further coverage is needed; do not promise a fixed water-saving percentage or payback period without measured evidence.

Specify the next phase from the pilot findings

A useful enquiry to NiuBoL identifies crop and soil, observation depths, irrigation sectors, power and communication availability, and the decisions the farm intends to support. Request an itemised weather station and acquisition configuration with compatible soil channels. Include data export, installation support and recurring service scope when comparing offers.

Expansion should follow the differences that matter. Add observation points where soil or irrigation behaviour differs, not simply at uniform map intervals. Keep the data accessible to the people making irrigation decisions, including a way to recognise late records and obtain the history needed for a review after the event.

Examples of agricultural and outdoor monitoring installations

Project Decision FAQ

Q1. Can one moisture probe control an entire farm?

Only if its observation genuinely represents the area and decision, which must be assessed. Different soils, depths, crops or irrigation sectors can behave differently. Begin with a representative pilot and add coverage where the operating evidence justifies it.

Q2. Should rainfall be deducted directly from the irrigation schedule?

Not without checking effective entry to the root zone. Gauge rainfall can differ from stored soil water because of runoff, interception and drainage. Covered crops may receive none of the measured outdoor rain.

Q3. Is a soil moisture percentage a universal irrigation threshold?

No. Interpret it against the soil or substrate, rooting pattern and crop requirements. Establish the site's wetting and drying behaviour before setting action points, and verify that the probe remains representative.

Q4. Can temperature, humidity and light alone provide reference evapotranspiration?

Not necessarily. Specify the method and its required inputs, including appropriate radiation and wind information where required. Lux is not interchangeable with solar radiation, and missing inputs need a justified method rather than an undocumented default.

Q5. What demonstrates that the irrigation system actually worked?

Combine operating records with delivery evidence such as flow and the observed soil response. A valve command alone does not establish delivery. Check the correct sector and timing before attributing a missing response to the probe.

Q6. What should be included in the monitoring budget?

Include probes, weather instruments, collector, power, mounting, communication, installation, data access and servicing. Price a defined coverage and decision scope. Yield gains and water savings should be evaluated from the pilot, not inserted as guaranteed returns.

Summary

Soil moisture and weather data become useful when linked to a specific farm decision and checked against actual irrigation and crop conditions. Observe the relevant root-zone depths, distinguish atmospheric demand from stored water, and keep field and greenhouse assumptions separate. A tested pilot provides a sound basis for selecting NiuBoL equipment and deciding where monitoring coverage should expand.
