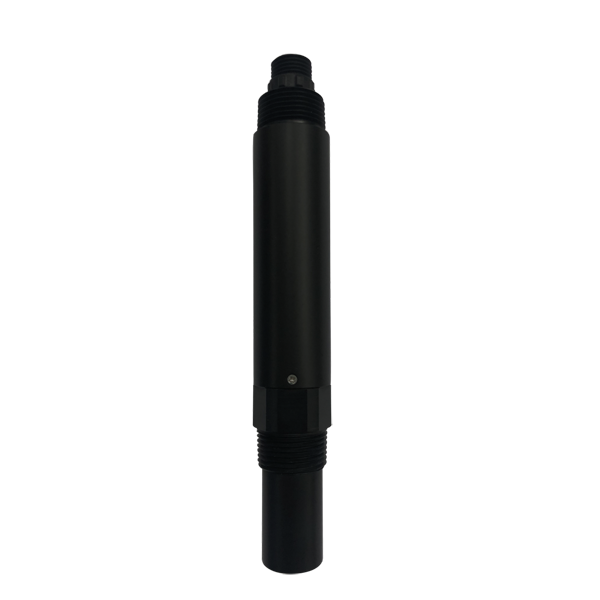

NBL-DDM-406-A Conductivity Sensor: For Industrial Water Treatment, Drinking Water Monitoring and Surface Water

Full-Range Precise Control: NiuBoL NBL-DDM-406-A Online Digital Conductivity Sensor

— High Anti-Interference Performance and Ultimate Integration Convenience, Redefining Industrial Water Quality Monitoring

In industrial circulating water, tap water pipe networks and wastewater treatment systems, conductivity (EC) is a key indicator for measuring water purity and total dissolved solids (TDS). However, traditional analog signal sensors often suffer from signal attenuation over long distances, environmental electromagnetic interference, and frequent manual maintenance, causing integrators to face long debugging cycles and later data jumps.

NiuBoL NBL-DDM-406-A has been deeply optimized for these industry pain points. As a digital and intelligent online transmitter, it encapsulates a high-precision sensing unit and an industrial-grade processing chip in a rugged IP68 housing, directly outputting standard digital signals to provide a "rock-solid" data foundation for your automation control system.

Digital Lossless Transmission: Adopts RS485 Modbus RTU protocol with extremely strong anti-interference capability, supporting signal transmission up to kilometers without distortion.

Extreme Environmental Adaptability: IP68 protection rating, fearless of long-term submerged operation; built-in Pt1000 compensation algorithm ensures accurate readings in wide-temperature water bodies.

Engineering-Friendly Design: Standard 3/4 NPT thread installation seamlessly connects to pipelines or tanks, greatly shortening on-site construction cycles.

NBL-DDM-406-A Online Conductivity Sensor Product Overview

The NiuBoL NBL-DDM-406-A is an online conductivity analysis instrument designed for long-term online monitoring. It integrates the measuring electrode, temperature sensor and signal conversion module, with a range covering 0～5000 μS/cm, suitable for most industrial and civilian water monitoring scenarios.

For engineering contractors and system integrators, the advantage of the DDM-406-A lies not only in its ±1.5% measurement accuracy, but also in its extremely high interchangeability and compatibility. It can be directly connected to PLC, DCS or cloud gateways without expensive original controllers, significantly reducing system integration costs. With 12～24V DC wide voltage power supply and extremely low power consumption of 0.2W, it is also an ideal supporting component for field solar-powered monitoring stations.

NBL-DDM-406-A Online Conductivity Sensor Core Technical Advantages

1. Excellent Material and Protection Standards
   The sensor wetted parts are made of a combination of high-quality ABS and SUS316L stainless steel (customizable), providing excellent mechanical strength and long-term stability in mildly corrosive industrial wastewater. The overall housing undergoes strict sealing processes to achieve IP68 rating, ensuring the electrode does not leak or damage under underwater high pressure or high humidity environments.

2. Intelligent Automatic Temperature Compensation (ATC)
   Conductivity is highly sensitive to temperature (typically causing about 2% reading deviation per 1℃ change). NiuBoL embeds a high-response Pt1000 temperature sensor inside. Through advanced temperature compensation algorithms, the device automatically corrects the measured value to the 25℃ nominal value, effectively eliminating the impact of seasonal changes or process temperature differences on data.

3. Advanced Signal Processing Algorithms
   The internal control chip has powerful digital filtering functions that can effectively filter stray current interference generated by on-site frequency converters and large water pumps. Through RS485 Modbus RTU communication, integrators can directly read conductivity values and real-time temperature values, avoiding the secondary precision loss of traditional 4-20mA signals during conversion.

4. Simple Calibration and Low-Maintenance Design
   The DDM-406-A supports a simple two-point calibration mode. For applications prone to scaling, its inductive or rugged conventional electrode design (depending on the specific model) allows physical cleaning with soft brushes or fine sandpaper. Due to its highly stable circuit design, the calibration cycle is much longer than similar products, greatly reducing labor costs for later on-site operation and maintenance.

NBL-DDM-406-A Online Conductivity Sensor Technical Specifications

NBL-DDM-406-A Online Conductivity Sensor Typical Application Scenarios

• Municipal Tap Water and Surface Water Monitoring: Used for raw water monitoring in water treatment plants, factory water quality control, and real-time reporting of conductivity in rivers and lakes.

• Industrial Process Water Treatment: Monitoring ion concentration in cooling circulating water to prevent heat exchanger scaling; used for primary filtration monitoring in ultrapure water preparation systems.

• Agriculture and Greenhouse Automation: In water-fertilizer integration systems, precisely adjust nutrient solution ratio by monitoring EC value to ensure stable crop growth environment.

• Boiler Feed Water Monitoring: Real-time online monitoring of boiler feed water and condensate conductivity to prevent boiler scaling and corrosion and extend equipment service life.

Wiring and Installation Guide

Physical Installation Specifications

• Spacing Requirements: To ensure the measurement electric field is not interfered with, please ensure the sensor front end is at least 2cm away from the bottom and side walls of the container.

• Thread Connection: Uses standard 3/4 NPT thread, which can be directly screwed into pipe tees or mounting brackets. During installation, ensure the electrode head is fully immersed in flowing liquid.

Electrical Connection Instructions

NiuBoL sensors use industrial standard 5-core shielded twisted pair wire to ensure signal purity in complex electromagnetic environments:

• Red wire: Power positive (12～24V DC)

• Black wire: Power ground (GND)

• Blue wire: RS485-A

• White wire: RS485-B

• Yellow wire: Current output (connect to the corresponding acquisition port if 4-20mA module is configured; leave floating if not in use)

Safety Tip: Please confirm the wire sequence before powering on. Outdoor wiring points must use waterproof junction boxes, and the shielding layer must be properly handled to enhance lightning protection and anti-interference performance.

FAQ

Q1: Does the NBL-DDM-406-A sensor require a dedicated controller to read data?

A: No. It is a digital intelligent sensor that supports Modbus RTU protocol. You can directly connect it to a general PLC, HMI or IoT gateway with RS485 serial port.

Q2: Why is the reading not zero when measuring in air?

A: In air, due to possible residual moisture on the electrode surface or electrostatic interference, the reading may have slight jumps. It is recommended to perform "zero point calibration" according to the manual: after cleaning and drying, place it in air for 3 minutes and execute the calibration command after the value stabilizes.

Q3: Can the sensor cable be extended? What is the maximum extension length?

A: In theory, RS485 communication can be extended to more than 1000 meters when using high-quality shielded twisted pair. However, in actual engineering, considering voltage drop, it is recommended to provide separate power at the remote end or add a repeater for distances over 200 meters. NiuBoL supports factory-customized cable lengths.

Q4: Can the sensor measure seawater or high-concentration chemicals?

A: This model has a range of 0～5000 μS/cm and is suitable for ordinary freshwater and industrial water. For seawater (high conductivity) or strongly corrosive liquids, please contact the NiuBoL technical team to select a high-range inductive conductivity model.

Q5: How to clean the electrode surface if it is scaled?

A: For conventional electrodes, gently wipe with a soft brush dipped in diluted neutral detergent. For inductive electrodes, fine sandpaper can be used to remove hard deposits without affecting measurement performance.

Q6: Can the Modbus communication address be modified?

A: Yes. Through specific Modbus commands, you can freely modify the sensor's station address (1-247) and baud rate, making it convenient to mount multiple sensors on one bus.

Q7: Why choose Pt1000 instead of the common NTC thermistor?

A: Pt1000 platinum resistor has higher linearity and long-term stability, and is less affected by line resistance in industrial long-distance signal transmission, ensuring extremely high reliability of temperature compensation.

Q8: What does the sensor's IP68 protection rating mean?

A: This means the sensor has passed strict pressure sealing tests and can withstand long-term underwater immersion (usually within 20 meters depth), making it very suitable for submerged installation in sewage tanks.

Conclusion

In the wave of smart water and Industry 4.0, a reliable sensing layer is the cornerstone of the entire system. The NiuBoL NBL-DDM-406-A has become the trusted choice for many water treatment projects worldwide with its industrial-grade quality assurance, minimalist integration logic and extremely low maintenance requirements.

Are you looking for a cost-effective conductivity solution for your next water treatment integration project? Contact NiuBoL experts immediately to obtain exclusive technical support and protocol documents tailored to your project needs.
