NBL-NON-406-S Online Nitrate Nitrogen Sensor: For Drinking Water Monitoring, Groundwater and Agricultural Irrigation

Precise Insight into Water Quality: NiuBoL NBL-NON-406-S Online Nitrate Nitrogen Sensor

— Patented Ion Technology and Digital Integration, Creating an Efficient and Reliable Nitrate Monitoring Solution

In modern water treatment and environmental protection, the content of nitrate nitrogen (NO3-N) is an important indicator for measuring water eutrophication and drinking water safety. However, traditional laboratory sampling analysis has poor real-time performance, while large colorimetric online analyzers face engineering challenges such as complex equipment, consumption of chemical reagents, and high operation and maintenance pressure.

The NiuBoL NBL-NON-406-S nitrate nitrogen sensor provides system integrators with a cost-effective, reagent-free, and digital solution. Based on advanced PVC membrane ion selective electrode (ISE) technology, the sensor can be directly deployed in harsh field and industrial sites, providing second-level response continuous monitoring data.

Patented Stability Structure: Patented reference system and microporous salt bridge design effectively extend electrode life and reduce drift.

Low-cost Operation and Maintenance: Replaceable membrane head design eliminates the need to replace the entire sensor, greatly reducing long-term total cost of ownership (TCO).

Industrial-grade Easy Integration: Standard RS485 digital bus, directly compatible with PLC and cloud monitoring systems, without fear of long-distance transmission interference.

NBL-NON-406-S Online Nitrate Nitrogen Sensor Core Overview

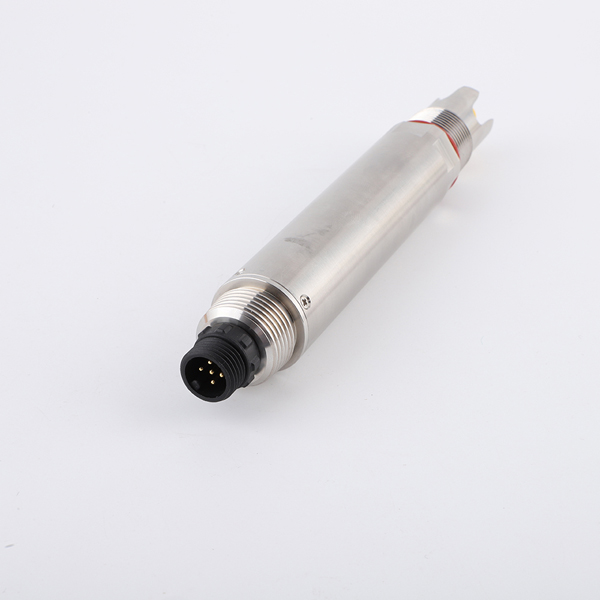

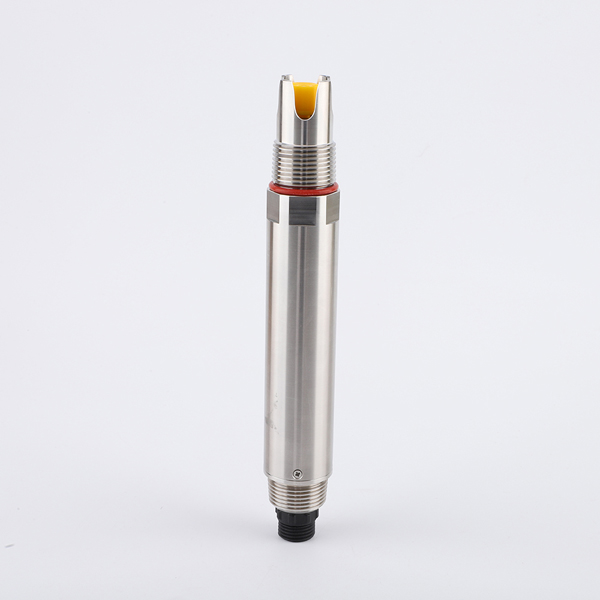

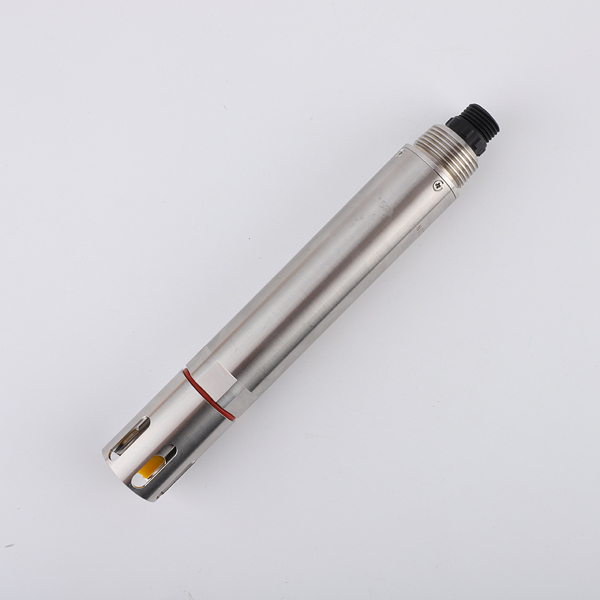

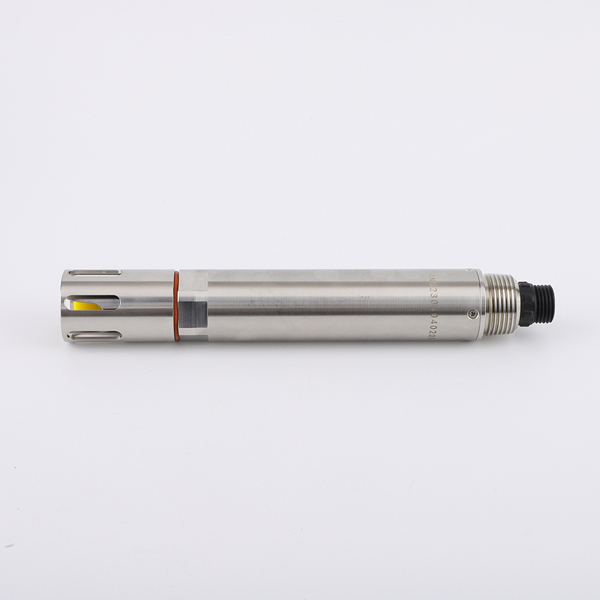

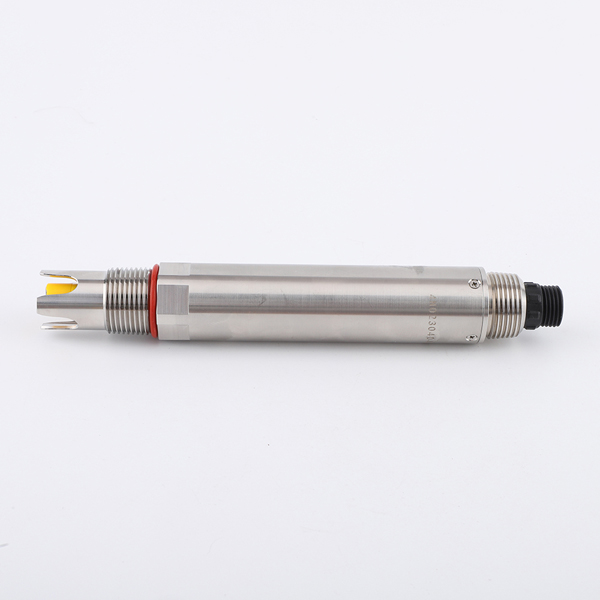

The NiuBoL NBL-NON-406-S is an integrated and digital online nitrate nitrogen analysis sensor. It cleverly encapsulates the nitrate ion selective electrode, Pt1000 temperature compensation unit and signal processing circuit in a rugged industrial-grade housing. The sensor does not require complex sampling pumps or pretreatment systems and can measure nitrate nitrogen content in water in real time through submerged installation.

For engineering contractors, this product solves the problem of traditional instruments being “unaffordable and difficult to integrate”. Its wide voltage power supply of 12-24V DC and extremely low power consumption make it not only suitable for municipal water treatment plants, but also an ideal choice for distributed monitoring projects such as smart agriculture and groundwater automatic stations.

Core Technical Advantages

1. Patented Reference System and Salt Bridge Technology
   The core of the sensor adopts a patented nitrate ion probe, in which the internal reference solution slowly seeps out through the microporous salt bridge under a pressure of not less than 100 KPa (1 Bar). This design ensures long-term stability of the reference potential, effectively resists water head pressure fluctuations and external impurity intrusion, and makes the electrode life significantly better than conventional industrial electrodes on the market.

2. Unique Replaceable Membrane Head Design

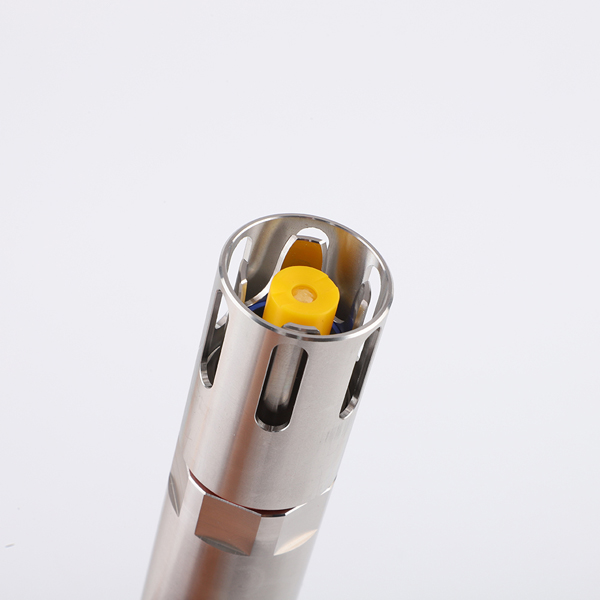

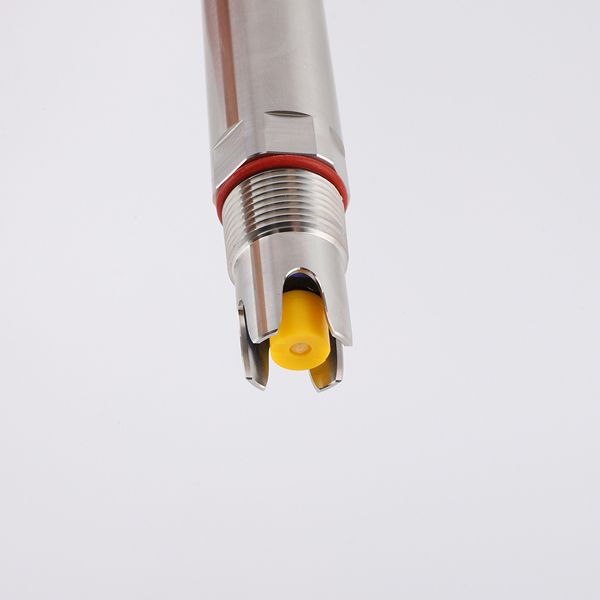

   In ion selective electrode technology, the sensitive membrane is a consumable component. The NBL-NON-406-S adopts an innovative replaceable membrane head architecture. When the sensitive membrane reaches its service life or is accidentally damaged, users only need to replace the front membrane head to complete the repair. This engineering improvement saves customers a lot of equipment renewal costs.

3. Full-range Automatic Temperature Compensation
   The activity of nitrate ions is extremely sensitive to temperature. The sensor has a built-in Pt1000 platinum resistor, combined with NiuBoL’s self-developed compensation algorithm, which can automatically correct potential drift in the 0～40℃ environment. Whether in a low-temperature river channel in the early morning or an irrigation channel in the afternoon, it can output true and stable concentration values.

4. Powerful Digital Anti-interference Capability
   Unlike analog electrodes that output weak potential signals, the NBL-NON-406-S directly outputs RS485 Modbus RTU signals. This means that in complex industrial electromagnetic environments (such as near frequency converters and large water pumps), data transmission still maintains extremely high integrity and accuracy. Integrators no longer need to worry about signal shielding and secondary conversion.

5. Rugged and Durable IP68 Protection Rating
   The housing is made of high-quality PVC and POM materials, with excellent chemical stability and weather resistance. Combined with precise sealing technology, the protection rating reaches IP68, which can withstand long-term underwater immersion and meet the stringent requirements of various field automatic monitoring stations.

NBL-NON-406-S Online Nitrate Nitrogen Sensor Technical Performance Specifications

NBL-NON-406-S Online Nitrate Nitrogen Sensor Typical Application Scenarios

1. Tap Water and Drinking Water Safety: Real-time monitoring of nitrate content in raw water and finished water to prevent nitrate nitrogen exceedance caused by agricultural non-point source pollution and ensure drinking water safety for residents.

2. Smart Agriculture Water and Fertilizer Integration: In automated irrigation systems, real-time monitoring of nitrate nitrogen concentration in soil solution or recycled water to guide precise fertilization and improve nitrogen fertilizer utilization.

3. Groundwater Station Automatic Monitoring: Long-term deployment in groundwater monitoring wells to assess groundwater pollution status and spatial distribution of nitrate.

4. Surface Water Management and Scientific Research: Used for river and lake monitoring to evaluate water self-purification capacity and provide real-time, continuous basic data support for comprehensive water environment management.

Installation and Electrical Connection

Physical Installation Tips

• Angle Control: Horizontal or inverted installation is strictly prohibited. The sensor axis should maintain an angle of ≥15 degrees with the horizontal plane to ensure full contact between the internal reference liquid and the sensitive membrane.

• Pretreatment Requirements: The sensor should avoid direct contact with heavy oil stains or sharp suspended particles to prevent damage to the precision sensitive membrane.

Electrical Connection Instructions

NiuBoL sensors adopt industrial standard wiring definition:

• Red wire: Power positive (12～24V DC)

• Black wire: Power negative (GND)

• Blue wire: RS485-A

• White wire: RS485-B

• Yellow wire: Current output (optional accessory, leave floating if not in use)

Expert Advice: Ion electrode wiring points should be strictly waterproof. It is recommended to use NiuBoL’s matching waterproof sealing kit and regularly check whether the protection bottle at the front end of the electrode contains sufficient activation liquid.

FAQ

Q1: Does the electrode of NBL-NON-406-S require special treatment before use?

A: Yes. New electrodes or electrodes that have been stored for a long time must be immersed in tap water for activation for 24 hours before use to ensure the sensitive membrane enters the optimal working state.

Q2: Which ions will interfere with nitrate nitrogen monitoring?

A: Among common ions, chloride ions (Cl-) and potassium ions (K+) will cause some interference to the electrode. NiuBoL has made partial optimizations in the algorithm, but if the concentration of interfering ions in the water body is abnormally high, it is recommended to contact technical personnel for background evaluation.

Q3: How often does the membrane head need to be replaced?

A: It depends on the on-site water quality. In clean drinking water, the membrane head life can usually reach about 1 year; in complex river channels, it is recommended to check every 6-9 months and decide whether to replace based on calibration results.

Q4: Can the sensor support 4-20mA analog output?

A: Yes. In addition to the standard RS485 output, you can optionally equip a 4-20mA analog module for easy access to traditional recorders or control instruments.

Q5: Why does the measurement result show obvious drift?

A: Please check whether there is biofilm attachment or sediment on the surface of the sensitive membrane. It is recommended to rinse with distilled water and blot dry with filter paper (do not wipe). If it is still inaccurate after cleaning, please perform two-point calibration again.

Q6: What is the pH applicable range of this sensor?

A: The NBL-NON-406-S has a very wide pH applicable range and can work stably between 2.5 ～ 11 pH, covering most natural water bodies and agricultural irrigation scenarios.

Q7: Can the cable length be customized according to on-site conditions?

A: Yes. The standard configuration is 5 meters. We can provide customized shielded cables of 10 meters, 20 meters or even longer to meet the deployment needs of deep wells or long-distance shore stations.

Q8: Where can I find the calibration instructions?

A: The sensor supports remote write command calibration via Modbus protocol. For detailed register addresses and calibration procedures, please refer to the “Modbus Protocol Manual” attached with the sensor or contact your account manager to obtain it.

Conclusion

In the context of increasingly stringent requirements for water resource management and environmental compliance, the NiuBoL NBL-NON-406-S provides reliable underlying hardware support for real-time water quality monitoring with its ion sensing technology and excellent engineering integration.

Are you looking for a nitrate nitrogen monitoring solution for your next drinking water automatic monitoring or efficient fertilization control project? Contact NiuBoL engineering experts immediately to obtain customized quotations and technical documents for your application scenario.

NBL-NON-406-S Online Nitrate Nitrogen Sensor Data Sheet

NBL-NON-406-S Online Nitrate Nitrogen Sensor.pdf
