NBL-TH-406 Online Total Hardness Sensor RS485 Modbus-RTU: Industrial Boiler Makeup Water Monitoring

Real-time Monitoring of Calcium and Magnesium Concentration, Safeguarding Industrial Water Treatment Safety: NiuBoL Digital Total Hardness Monitoring Solution

Patented Electrode Technology Breaks Through Lifespan Bottleneck, Achieving Efficient, Economical and Precise Automated Hardness Analysis

Patented Ion Selective Electrode: Based on microporous salt bridge and pressurized seepage design, the reference system is extremely stable, greatly extending sensor service life.

High-Precision Digital Output: Natively supports RS485 Modbus-RTU protocol, seamlessly connects to PLC and DCS systems with strong anti-interference capability.

Full Environmental Adaptation Design: IP68 high-level protection with built-in automatic temperature compensation (Pt1000), ensuring consistent readings in complex industrial environments.

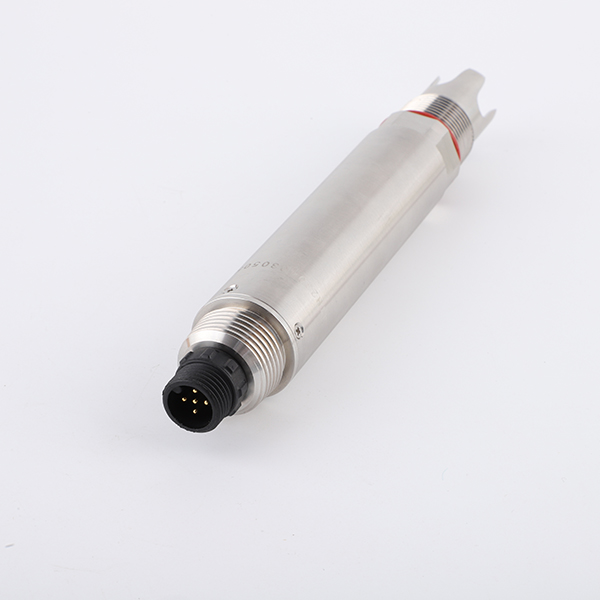

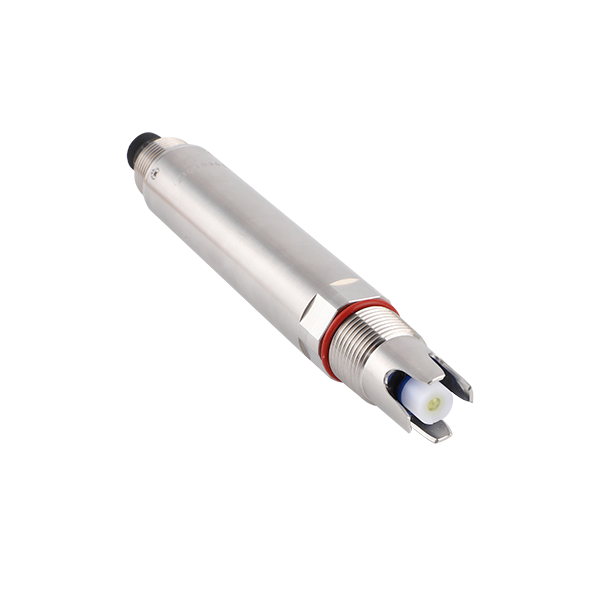

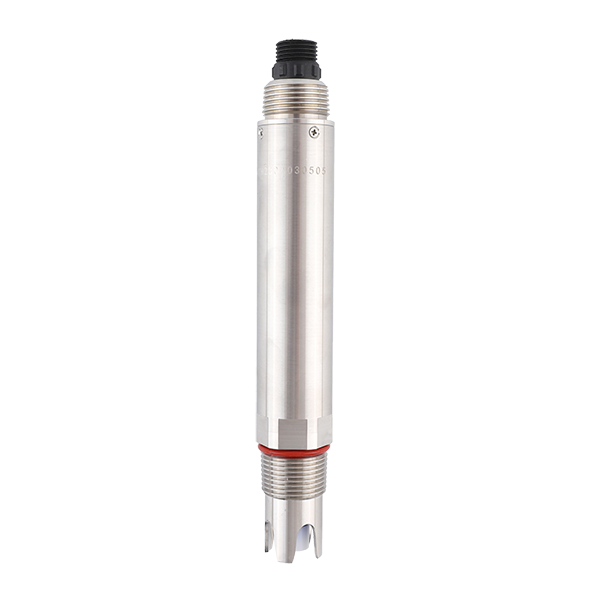

NBL-TH-406 Online Total Hardness Sensor Product Overview

In industrial boiler operation, reverse osmosis membrane protection and cooling circulating water management, fluctuations in total hardness (Total Hardness) are the core cause of equipment scaling, decreased heat exchange efficiency and even safety accidents. Although traditional laboratory titration methods are accurate, they cannot provide real-time response, while conventional industrial electrodes often face the dilemma of short lifespan and large data drift.

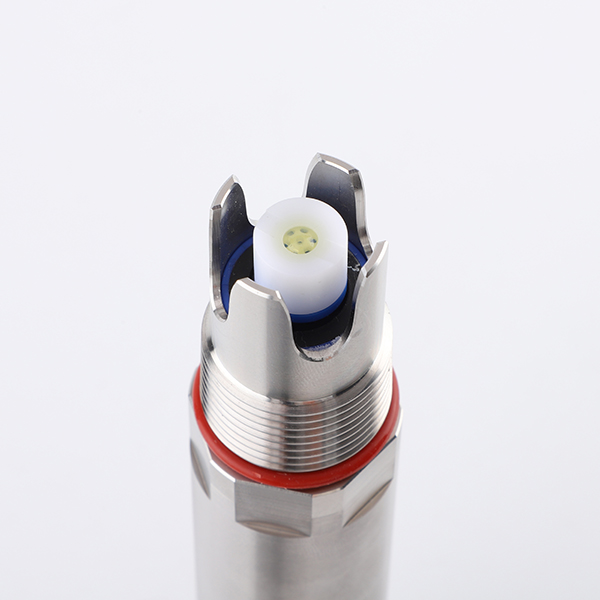

The NiuBoL NBL-TH-406 split-type online total hardness sensor adopts patented calcium and magnesium selective electrode technology based on PVC membrane. Its unique design allows the internal reference solution to seep out in trace amounts under pressurized condition, effectively preventing electrode poisoning and salt bridge blockage. This sensor not only provides system integrators with precise 0.1 mg/L resolution data, but also converts complex chemical analysis into an easy-to-manage industrial data stream through digital integration. It is an ideal component for industrial water quality automation control.

NBL-TH-406 Online Total Hardness Sensor Technical Advantages

1. Patented Electrode Structure: The Cornerstone of Long-term Stability

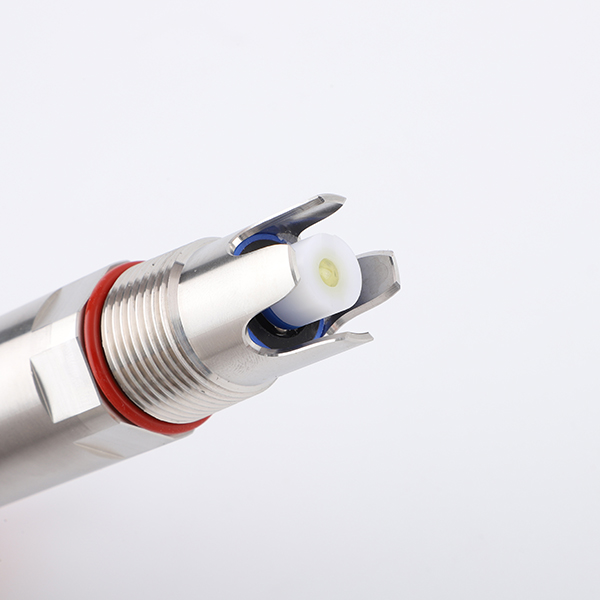

   The core competitiveness of NBL-TH-406 lies in its patented calcium and magnesium ion electrode system. Unlike ordinary industrial electrodes, its internal reference solution slowly seeps out through a microporous salt bridge under at least 100 kPa pressure. This active micro-seepage mechanism ensures highly stable electrode liquid junction potential, effectively resisting external water sample permeation pollution even in pressurized pipelines, thereby making the electrode life far exceed similar products on the market.

2. Digital Integration: RS485 and Modbus Protocol
   In response to the needs of modern industrial IoT, NiuBoL integrates complex signal conditioning circuits inside the sensor. It directly outputs digitized RS485 signals using the universal Modbus-RTU protocol. This not only means the signal transmission distance can reach kilometers without attenuation, but also eliminates the cost of expensive transmitters, allowing engineering contractors to quickly connect it to industrial control computers, paperless recorders or touch screens.

3. Precise Automatic Temperature Compensation (ATC)
   Water hardness measurement is significantly affected by temperature changes. NBL-TH-406 has a built-in high-precision Pt1000 temperature sensor that senses water temperature in real time and performs algorithmic compensation. Whether in high-temperature circulating water in summer or makeup water monitoring in winter, the sensor can automatically lock the true CaCO₃ concentration value with a response time T90 of less than 60 seconds.

4. Rugged Industrial Encapsulation and Protection

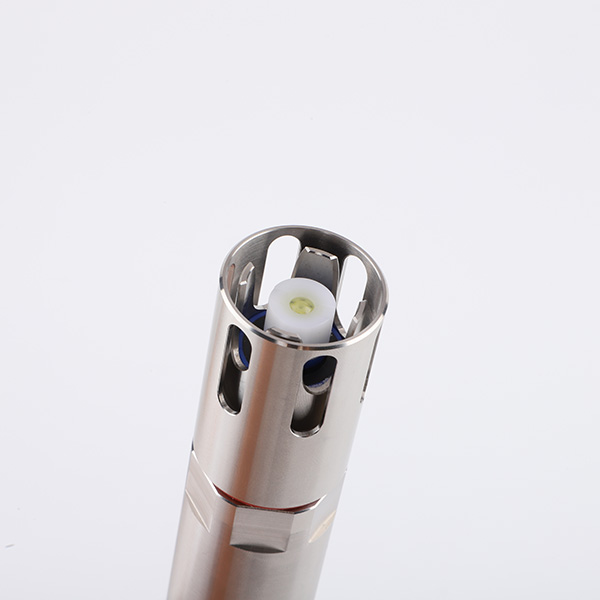

   Material Diversification: Provides two options — POM/ABS (Type A) and POM/316L stainless steel (Type S) — to adapt to environments from ordinary surface water to industrial wastewater with certain corrosiveness.
   High Protection Rating: Reaches IP68 rating, supports deep-water installation and pipeline pressure environments (≤0.2 MPa), fully meeting the stringent requirements of outdoor and industrial sites.

NBL-TH-406 Online Total Hardness Sensor Technical Specifications

NBL-TH-406 Online Total Hardness Sensor Industry Application Scenarios

• Industrial Boiler Makeup Water Monitoring: Real-time monitoring of total hardness in softened water treatment links to prevent insufficiently treated hard water from entering the boiler and causing scaling, significantly improving thermal efficiency and reducing maintenance frequency.

• Reverse Osmosis (RO) System Pretreatment: Real-time monitoring of inlet water hardness to provide digital basis for scale inhibitor dosing and effectively extend the service life of reverse osmosis membranes.

• Circulating Cooling Water Quality Control: Monitoring calcium and magnesium ion concentration in cooling tower circulating water to prevent pipeline blockage caused by excessively high hardness due to water evaporation.

• Environmental Monitoring and Water Treatment Projects: Used as a digital water quality monitoring module in sewage treatment stations and surface water monitoring stations to ensure effluent meets reuse standards for specific industries.

NBL-TH-406 Online Total Hardness Sensor Installation and Wiring Guide

Installation Specification Recommendations

To ensure normal circulation of the internal reference solution and automatic elimination of air bubbles, please strictly observe the following physical installation requirements:

• No Inversion: The sensor must never be installed horizontally or inverted.

• Tilt Angle: Must maintain at least 15° tilt during installation.

• Position Selection: Ensure the electrode sensing surface is fully submerged in the measured water and located in a position with steady flow and no severe mechanical impact.

Electrical Connection Instructions

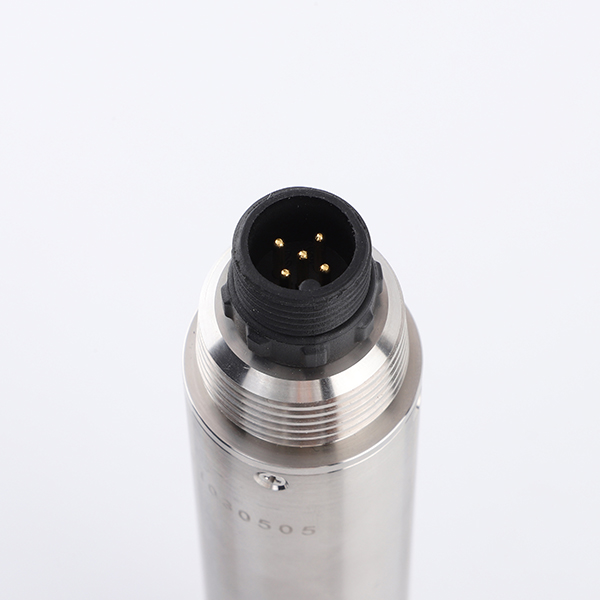

The NBL-TH-406 uses 5-core twisted shielded wire to provide excellent anti-electromagnetic interference performance:

• Red wire: Power positive (12～24V DC)

• Black wire: Power negative (GND)

• Blue wire: RS485-A

• White wire: RS485-B

• Yellow wire: Current output (optional function; insulate and leave floating if not enabled)

Engineering Tip: Due to the humid industrial site environment, all wiring terminals must undergo waterproof sealing treatment. Before powering on, please double-check the wire sequence to avoid reverse connection damaging precision electronic components.

FAQ

Q1: What is the measurement principle of the NiuBoL total hardness sensor?

A: It adopts the calcium and magnesium ion selective electrode (ISE) method. The sensor senses changes in calcium and magnesium ion potential in water through the PVC membrane and converts them into total hardness concentration. It has the advantages of fast response and no need for chemical reagents.

Q2: Why does the sensor require 48 hours of activation treatment?

A: When stored dry, the PVC sensing membrane of the electrode is in an inactive state. Before first use, it must be powered on and soaked in tap water for 48 hours to fully wet the membrane and enter ion exchange equilibrium, ensuring reading accuracy.

Q3: Does this sensor require frequent maintenance?

A: Maintenance is very low. Only regularly check whether there is film attachment or sediment on the measurement end and rinse with distilled water. If measurement deviation occurs, simply perform a simple two-point calibration according to the appendix instructions.

Q4: How long can the electrode be used?

A: The core electrode of this product is a consumable. Due to the patented microporous salt bridge seepage technology, the electrode life under normal use is usually significantly better than ordinary industrial electrodes. We provide a six-month warranty for the electrode.

Q5: Can it measure high-concentration or strong acid-base water bodies?

A: The sensor’s upper range limit is 1000 mg/L, and the pH applicable range is 4～10. Exceeding this range may damage the sensing membrane or cause measurement failure.

Q6: What causes unstable measurement readings?

A: Please check: 1. Whether it is installed with a 15° tilt (air bubble accumulation will interfere with readings); 2. Whether the activation time is sufficient; 3. Whether there is moisture or loose connection at the wiring points.

Q7: How far can the RS485 signal of NBL-TH-406 be transmitted?

A: With qualified shielded twisted pair, the theoretical transmission distance of RS485 can reach 1200 meters, which is very suitable for centralized monitoring in large factories.

Q8: If the electrode fails, must the entire sensor be replaced?

A: No. The sensor adopts a split-type design. When the electrode life is exhausted, only the front electrode part needs to be replaced, which is not only environmentally friendly but also greatly saves later operation and maintenance costs.

Expert Summary and Engineering Integration Suggestions

The NiuBoL NBL-TH-406 online total hardness sensor is an excellent choice in the field of industrial water quality monitoring that balances high performance and economy. Through patented pressurized seepage technology, it successfully solves the problem of ion selective electrodes being easily “poisoned” in industrial sites.

If you are designing an automated dosing system or boiler water early warning platform, or need to understand the specific Modbus command set details, please contact our technical experts immediately. We not only provide sensors, but also provide implementable industrial IoT access solutions to help your project go online quickly and operate stably for a long time!
