NBL-ZS-406-A Water Quality Turbidity Sensor: High-Precision Industrial-grade Online Turbidity Monitoring Equipment

NBL-ZS-406-A Online Turbidity Sensor: High-Precision, Anti-Interference Industrial-grade Turbidity Online Monitoring Solution

In drinking water treatment, wastewater treatment and industrial process water, turbidity is an important indicator for measuring water clarity. Turbidity anomalies often lead to process loss of control, filter blockage or non-compliant discharge. The NiuBoL NBL-ZS-406-A online turbidity sensor adopts the 90° scattered light method principle. It emits a light beam through an infrared LED light source, measures the scattered light intensity in the direction perpendicular to the incident light, and outputs stable and accurate NTU values in real time after linearization processing. The sensor is easy to install and maintain, with strong resistance to external light interference. It is particularly suitable for system integrators and engineering contractors to build reliable online water quality monitoring systems, effectively solving the industry pain points of slow response, susceptibility to light interference and complex integration in traditional turbidity instruments.

Core Advantages

• Strong Anti-Interference and High Stability: Optical fiber structure combined with infrared LED light source effectively resists external light interference, with built-in temperature sensor, small drift and stable long-term operation.

• High Precision and Multi-Range Coverage: Provides three ranges: 0～20.00 NTU, 0～200.0 NTU, 0～1000.0 NTU, with minimum resolution of 0.01 NTU, meeting comprehensive needs from drinking water to high-turbidity wastewater.

• Easy Integration and Strict Protection: Natively supports RS-485 Modbus/RTU protocol, optional 4-20 mA output, IP68 protection rating, supports 20-meter water depth immersion, suitable for various industrial sites.

NiuBoL NBL-ZS-406-A Online Turbidity Sensor Product Overview

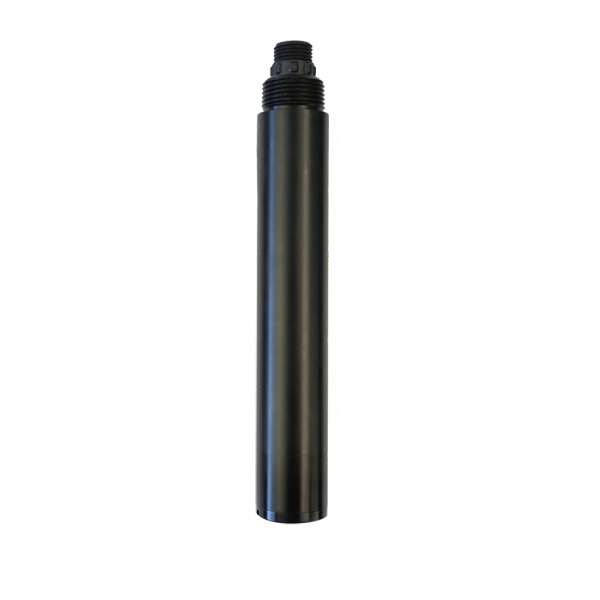

The NiuBoL NBL-ZS-406-A online turbidity sensor is an integrated industrial-grade online turbidity monitoring device designed based on the 90° scattered light measurement principle. When the light beam enters the water sample, turbidity substances in the water cause light scattering. The sensor detects the scattered light intensity in the vertical direction, compares it with internal calibration values, and outputs the final turbidity value after linearization processing.

The sensor requires no reagent consumption, has a response time of T90＜30s, and stable data output. It is widely suitable for engineering projects that require real-time and continuous monitoring of water turbidity. For system integrators, the standardized Modbus protocol allows direct connection to existing PLC, DCS or IoT platforms for seamless data collection and remote monitoring. For engineering contractors, it significantly reduces on-site construction difficulty and later maintenance costs, ensuring that the monitoring system operates stably for a long time under complex water quality conditions. The product has undergone 72-hour aging testing and strict quality inspection, and has high reliability upon leaving the factory.

NBL-ZS-406-A Online Turbidity Sensor Key Technical Advantages

1. Advanced 90° Scattered Light Measurement Technology
   The sensor uses an infrared LED light source with high stability and long service life. The optical fiber structure significantly enhances resistance to external light interference. The built-in Pt1000 temperature sensor realizes automatic temperature compensation to ensure that measurement results are not affected by ambient temperature fluctuations. The 90° scattered light principle complies with international standards and has extremely high sensitivity to fine particles in water.

2. Reliable Hardware Protection Design
   - Housing material uses POM+ABS engineering plastic, lightweight and corrosion-resistant, suitable for long-term immersion in various water bodies.
   - Protection rating IP68, supports maximum 20-meter water depth immersion, and can work stably in harsh underwater environments.
   - Installation method is submerged, with 3/4NPT pipe thread interface, convenient and flexible.
   - Standard 5-meter cable, supports customization of longer lengths to meet different on-site wiring requirements.

3. Intelligent Communication and Low Power Consumption Integration
   Supports RS-485 Modbus/RTU protocol, with stable and reliable communication, easy to seamlessly integrate with various host computer systems. Optional 4-20 mA analog output meets the needs of different control systems. Power consumption is only 0.2W@12V, and the low-energy design is particularly suitable for distributed or remote monitoring stations.

4. Convenient Maintenance and Calibration
   Uses two-point calibration method (zero point + slope), simple operation. Zero point calibration uses zero-turbidity liquid, and slope calibration uses standard turbidity solution. After the value stabilizes for 3～5 minutes, calibration is completed through Modbus commands. It is recommended to regularly check the cleanliness of the measurement window and clean with tap water or a soft cloth with detergent to maintain optimal measurement performance.

These technical features enable the NBL-ZS-406-A to perform excellently in long-term operation and significantly improve the engineering reliability and data accuracy of the water quality monitoring system.

NBL-ZS-406-A Online Turbidity Sensor Technical Specifications

Note: The sensor connector is M16-5-core waterproof male connector, and the cable is 5-core twisted shielded wire.

NBL-ZS-406-A Online Turbidity Sensor Application Scenarios

1. Tap Water Plants and Drinking Water Treatment: Real-time monitoring of filter outlet and clear water tank turbidity to ensure factory water quality meets national drinking water standards.

2. Municipal Wastewater Treatment Plants: Monitoring turbidity in biochemical tanks, sedimentation tanks and outlets to optimize process parameters and ensure compliant discharge.

3. Industrial Wastewater Treatment Systems: Suitable for online turbidity monitoring in wastewater from chemical, papermaking, food, pharmaceutical and other industries to prevent suspended solids exceedance.

4. Surface Water and Environmental Water Body Monitoring: Used for continuous turbidity monitoring in natural water bodies such as rivers, lakes and reservoirs to support environmental quality assessment and pollution early warning.

5. Circulating Cooling Water System: Monitoring turbidity in cooling towers and circulating water to timely detect pollution and protect heat exchange equipment.

6. Swimming Pools and Landscape Water Body Maintenance: Real-time control of water clarity to ensure water quality safety and visual effect.

Installation and Wiring Guide

During installation, adopt submerged installation with 3/4NPT pipe thread interface. Ensure the sensor is at least 5cm away from the side wall and at least 10cm away from the bottom to avoid wall or bottom reflection interference with measurement. Place the sensor vertically in the water body with the measurement end face kept clean.

Electrical Connection: Use 5-core twisted shielded cable with the following wiring definition:

• Red wire: Power positive (12～24V DC)

• Black wire: Ground (GND)

• Blue wire: RS-485 A

• White wire: RS-485 B

• Yellow wire: 4-20 mA current output (optional, leave floating if not in use)

Before powering on, please carefully check the wiring sequence. All wiring points must undergo waterproof treatment. User cables should have certain corrosion resistance. During normal operation, the cable should not be tensioned to prevent internal breakage.

FAQ

Q1: What range options does the NBL-ZS-406-A support?

A: The sensor provides three ranges: 0～20.00 NTU, 0～200.0 NTU, and 0～1000.0 NTU, which can be flexibly selected according to actual water turbidity range to cover application needs from ultra-low turbidity drinking water to high-turbidity wastewater.

Q2: Will external light interfere with measurement results?

A: No. The optical fiber structure design significantly improves resistance to external light interference. The infrared LED light source combined with algorithms ensures stable and reliable data under different lighting conditions.

Q3: How to perform two-point calibration of the sensor?

A: Zero point calibration uses zero-turbidity liquid, and slope calibration uses standard turbidity solution. Keep the sensor measurement end face at least 10cm from the bottom of the beaker. After the value stabilizes for 3～5 minutes, complete calibration through Modbus commands.

Q4: Does the sensor support integration with PLC and SCADA systems?

A: Fully supported. Built-in RS-485 Modbus/RTU protocol allows direct connection to most PLC, DCS, SCADA and IoT platforms. Optional 4-20 mA output meets the needs of analog systems.

Q5: Does the measurement window need frequent cleaning?

A: The cleanliness of the measurement window has a significant impact on accuracy. It is recommended to regularly wipe with tap water or a soft cloth with a small amount of household detergent to maintain long-term stable measurement.

Q6: Can the sensor work normally in seawater or high-salinity environments?

A: The housing uses POM+ABS engineering plastic with IP68 protection rating, featuring good corrosion resistance, and is suitable for seawater, ports and various industrial wastewater environments.

Q7: What about the product warranty and after-sales service?

A: One-year warranty service is provided from the date of sale (excluding improper use). If there are connection problems, cable failures or other technical questions, please contact the NiuBoL technical support team in time.

Q8: Can the sensor’s response time meet real-time monitoring requirements?

A: Yes. T90 response time is less than 30 seconds, allowing quick reflection of changes in water turbidity, suitable for process control that requires dynamic response.

Summary and Cooperation Invitation

The NiuBoL NBL-ZS-406-A Water Quality Turbidity Sensor provides a professional, stable and easy-to-integrate solution for industrial and municipal water quality turbidity online monitoring with 90° scattered light method as the core, relying on optical fiber anti-interference structure, infrared LED high-stability light source, IP68 strict protection and standardized Modbus communication protocol. It not only improves the accuracy and real-time performance of monitoring data but also helps engineering projects effectively reduce operation and maintenance costs and enhance overall system reliability.

If you are planning tap water plant renovation, wastewater treatment upgrade, environmental online monitoring platform or industrial process water quality control projects, please feel free to contact the NiuBoL technical team. We can provide detailed technical materials, integration solution consultation, on-site installation guidance and stable supply assurance. Contact us immediately to obtain the complete product manual or apply for prototype testing, and work with NiuBoL to build an efficient and reliable industrial IoT water quality monitoring system, making precise turbidity monitoring the solid foundation of your engineering projects.
