Solutions

Dust monitoring solutions

Time:2024-10-03 18:11:16 Popularity:80

Dust Monitoring Solutions

I. Program Overview

This dust monitoring solution is designed to realize real-time monitoring and data analysis of dust concentration in the environment by integrating advanced sensor technology, providing scientific and accurate data support for environmental protection, industrial production, construction sites and other fields. The solution combines particulate matter sensors, gas sensors, humidity and temperature sensors, wind speed and direction sensors, and noise sensors to comprehensively monitor and analyze the dust situation and provide powerful support for relevant decision-making.

When designing a comprehensive dust monitoring solution, the system should integrate multiple sensors to ensure all-round monitoring of the environment. The following is a dust monitoring system solution based on the above sensors:

PM2.5 sensor and PM10 sensor dust monitoring system.jpg

 1. System Objectives

- Monitor PM2.5 and PM10 particulate matter concentrations in real time.

- Monitor volatile organic compounds (VOCs) and other harmful gases.

- Record environmental humidity and temperature data.

- Track wind speed and direction to analyze dust dispersion trends.

- Evaluate noise pollution levels.

 2. Dust Monitoring Solution System Architecture

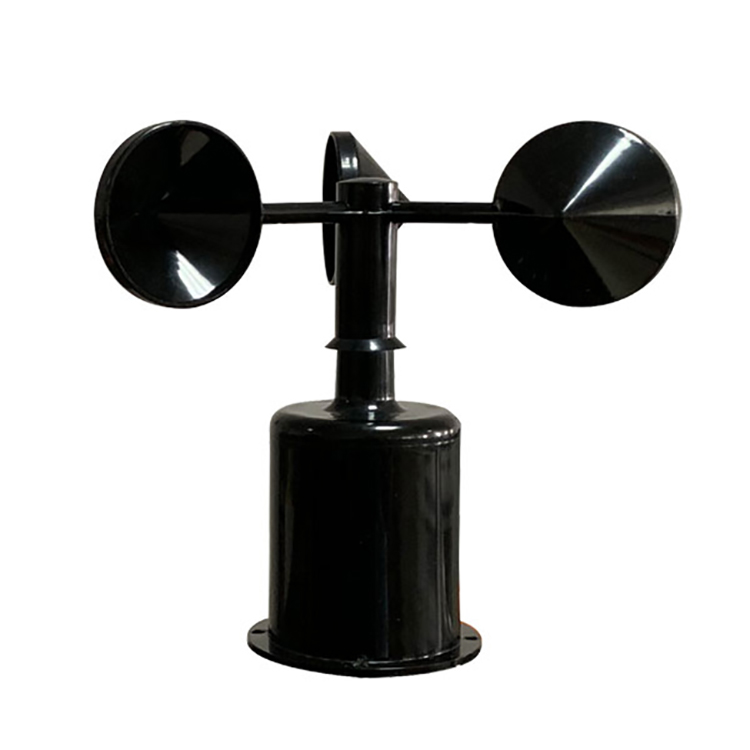

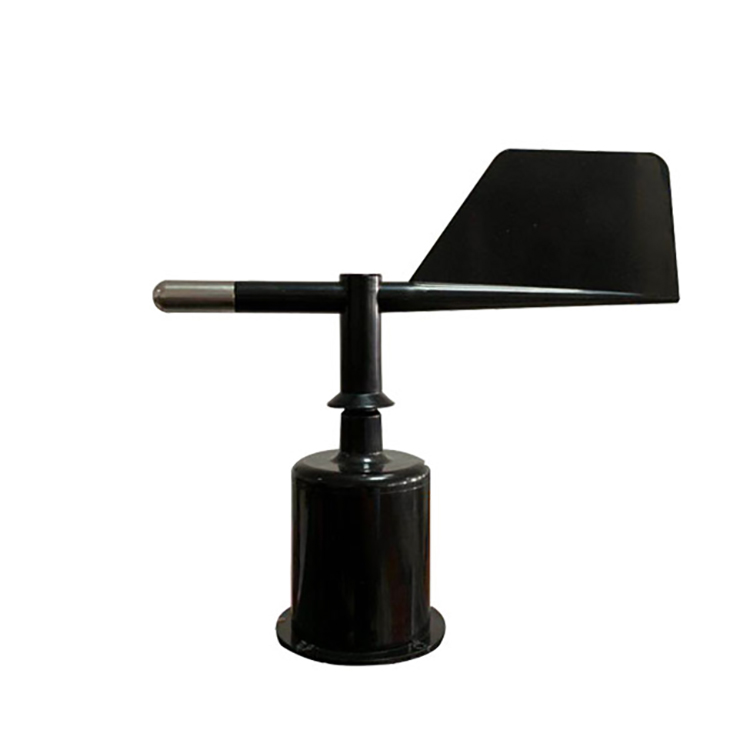

Wind Speed Sensor.jpg Wind direction sensor.jpg Atmospheric Temperature Humidity air pressure Sensor.jpg
Wind Speed sensor Wind direction sensor Atmospheric Temperature Humidity air pressure Sensor
PM2.5/PM10 Integrated Sensor.png Four gas and two dust micro weather station.png Noise sensor.png
PM2.5/PM10 Integrated Sensor Four gas and two dust micro weather station Noise sensor

2.1. Core monitoring unit: contains the following key sensors:

   - Particulate Matter Sensor (e.g. PM2.5/PM10 Sensor): Uses laser scattering technology to measure the concentration of fine particles in the air in real time, providing accurate PM values.

   - Gas sensors: selectively detect VOCs, SO2, NOx, etc. and monitor harmful gas levels using electrochemical or infrared principles.

   - Temperature and humidity sensors: accurately capture changes in temperature and humidity at the site through resistance or capacitance changes as these conditions affect the suspension and settling of particulate matter.

   - Wind Speed and Direction Sensors: Utilizing mechanical or ultrasonic principles, wind speed and direction are monitored in real time to help assess dust dispersion trends.

   - Noise sensors: using sound level meters, monitor and record the noise level of the surrounding environment to assist in assessing the impact of industrial activities on the surrounding environment.

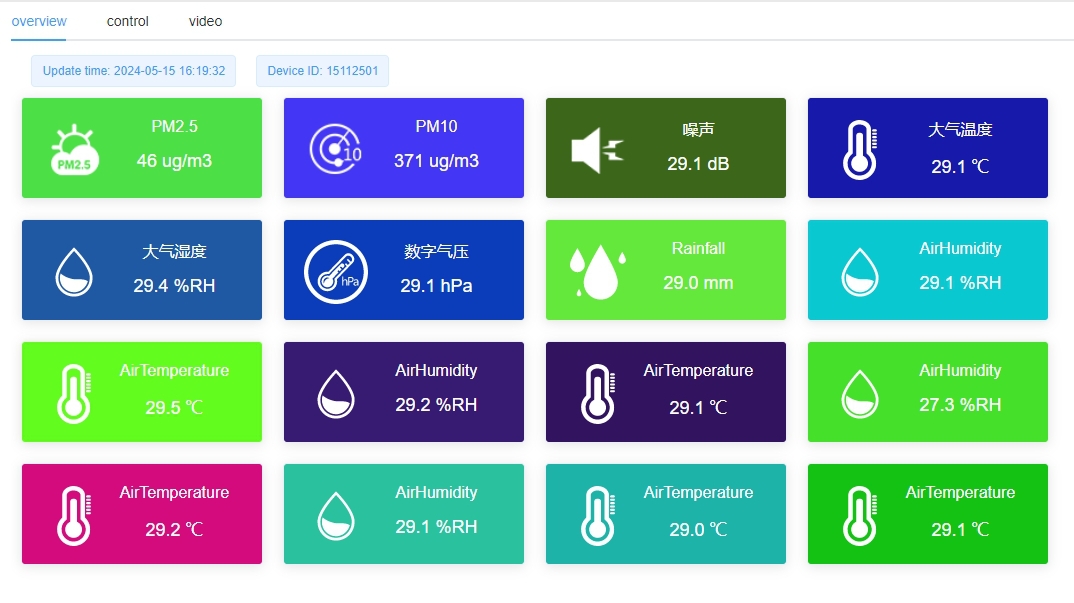

Dust monitoring weather station data.png

2.2. Data acquisition and processing:

   - Real-time data acquisition module, transmits sensor data to the central processor via wired or wireless means (e.g. 4G/5G, Wi-Fi, LoRa, etc.).

   - The data processing platform uses algorithms to analyze the data and realize functions such as threshold alarm and trend prediction.

2.3. Display and alarm system:

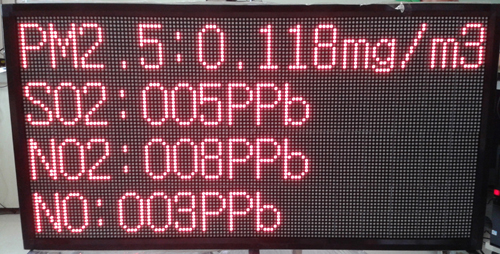

   - The on-site LED screen instantly displays the monitoring data, making it easy for on-site personnel to quickly understand the situation.

   - Through the cloud platform or mobile application, remote users can view the data in real time and receive abnormal alarm information.

2.4. Linkage control:

   - Linkage with environmental protection facilities such as sprinkler system, covering equipment, etc. to automatically start dust reduction measures when the dust concentration exceeds the preset standard.

2.5. Data Analysis and Reporting:

   - Provide data analysis tools to generate air quality reports to support long-term environmental management decisions.

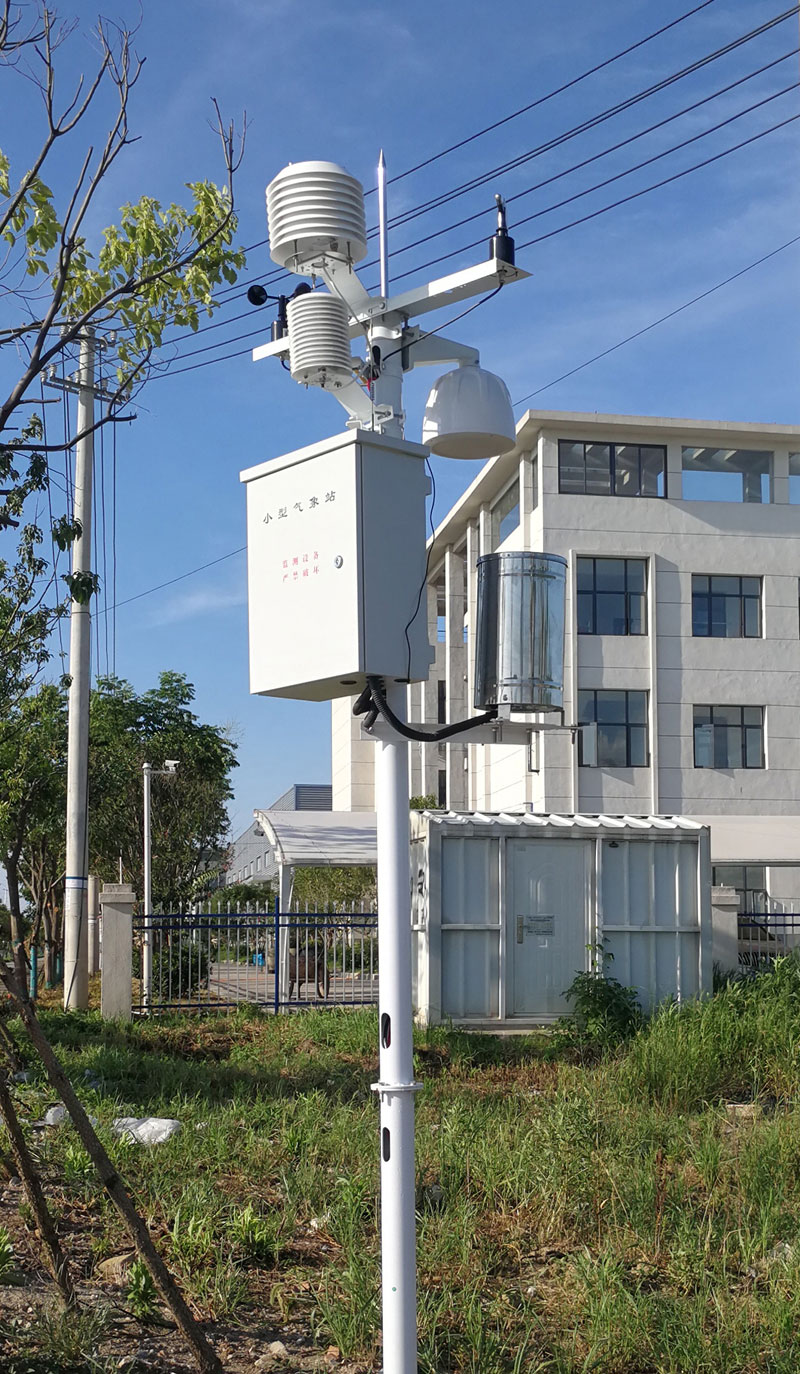

Dust monitoring solutions weather station.jpg

3. Dust Monitoring Solutions Sensor Introduction

3.1. Particulate Matter Sensor:

Function: Used to measure the concentration of particulate matter such as PM2.5 and PM10, reflecting the degree of pollution of tiny particles in the air.

Advantage: High precision, fast response speed, able to monitor the change of particulate matter concentration in real time, providing a basis for the development of dust reduction measures.

- Measuring range: PM2.5: 0-1000μg/m³, PM10: 0-2000μg/m³

- Resolution: 1μg/m³

- Accuracy: ± 10%

3.2. Gas sensor:

Function: Monitor volatile organic compounds (VOCs) and other harmful gases such as sulfur dioxide and nitrogen oxides to assess air quality.

Advantage: With multi-gas monitoring capability, it can detect many kinds of harmful gases at the same time and improve the monitoring efficiency.

- Measuring range: VOCs: 0-10ppm, other gas monitoring ranges can be customized according to requirements

- Response time: ≤30 seconds

Combined air temperature and relative humidity sensor.jpg

3.3. Humidity and temperature sensor:

Function: Monitor humidity and temperature in the environment and analyze their effects on dust propagation.

Advantage: Provide environmental parameter data, which helps to predict the trend of dust spreading more accurately.

- Measuring range: Humidity: 0-100% RH, Temperature: -40°C to +125°C

- Accuracy: Humidity ±2%RH, Temperature ±0.5°C

3.4. Wind speed and direction sensor:

Function: Monitor wind speed and direction to assess the effect of wind on dust dispersion.

Advantage: Real-time access to wind speed and wind direction data, providing a basis for the development of wind and dust control measures.

- Measuring range: wind speed: 0-70m/s, wind direction: 0-360°.

- Accuracy: wind speed ±0.3m/s, wind direction ±3°.

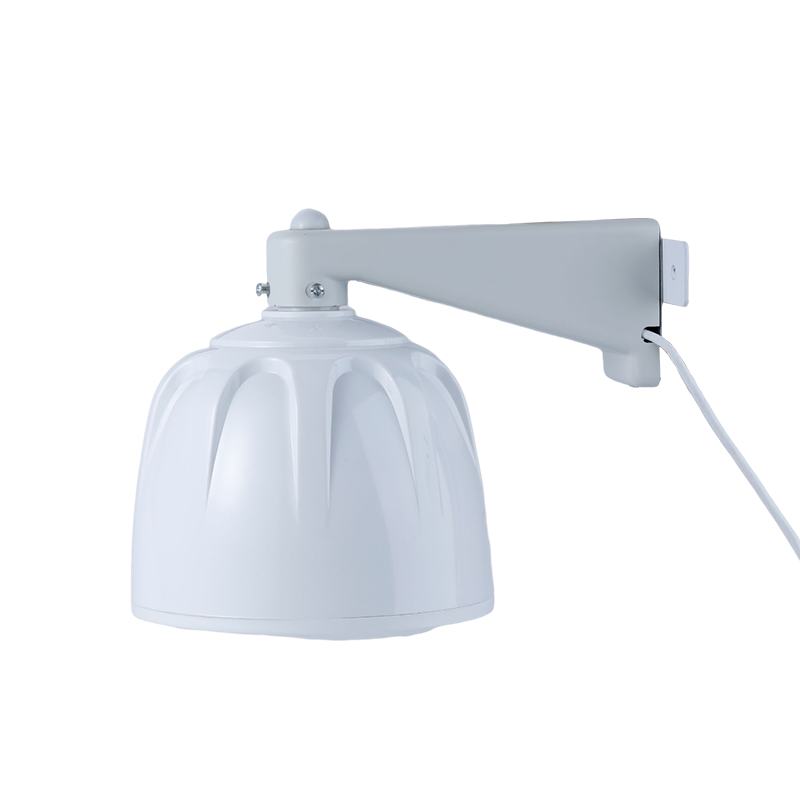

Noise sensor.jpg

3.5. Noise sensor:

Function: Evaluate the noise pollution of dust sources and provide data support for environmental protection and noise control.

Advantage: Able to monitor the noise level in real time, which helps to identify and solve noise pollution problems.

- Measuring range: 30-130dB

- Accuracy: ±1.5dB

 4. Dust Monitoring Solutions system features

- Real-time monitoring: The system provides 24/7 uninterrupted data collection to ensure real-time monitoring.

- Data recording and transmission: automatic recording of monitoring data, support for remote data transmission, easy to manage and analyze.

- Alarm System: The system automatically issues an alarm when the monitored pollutant concentration exceeds the preset threshold.

- Environmental adaptability: All sensors are designed with protection level to adapt to various harsh environments.

- Easy maintenance: Modularized design for easy maintenance and replacement of sensors.

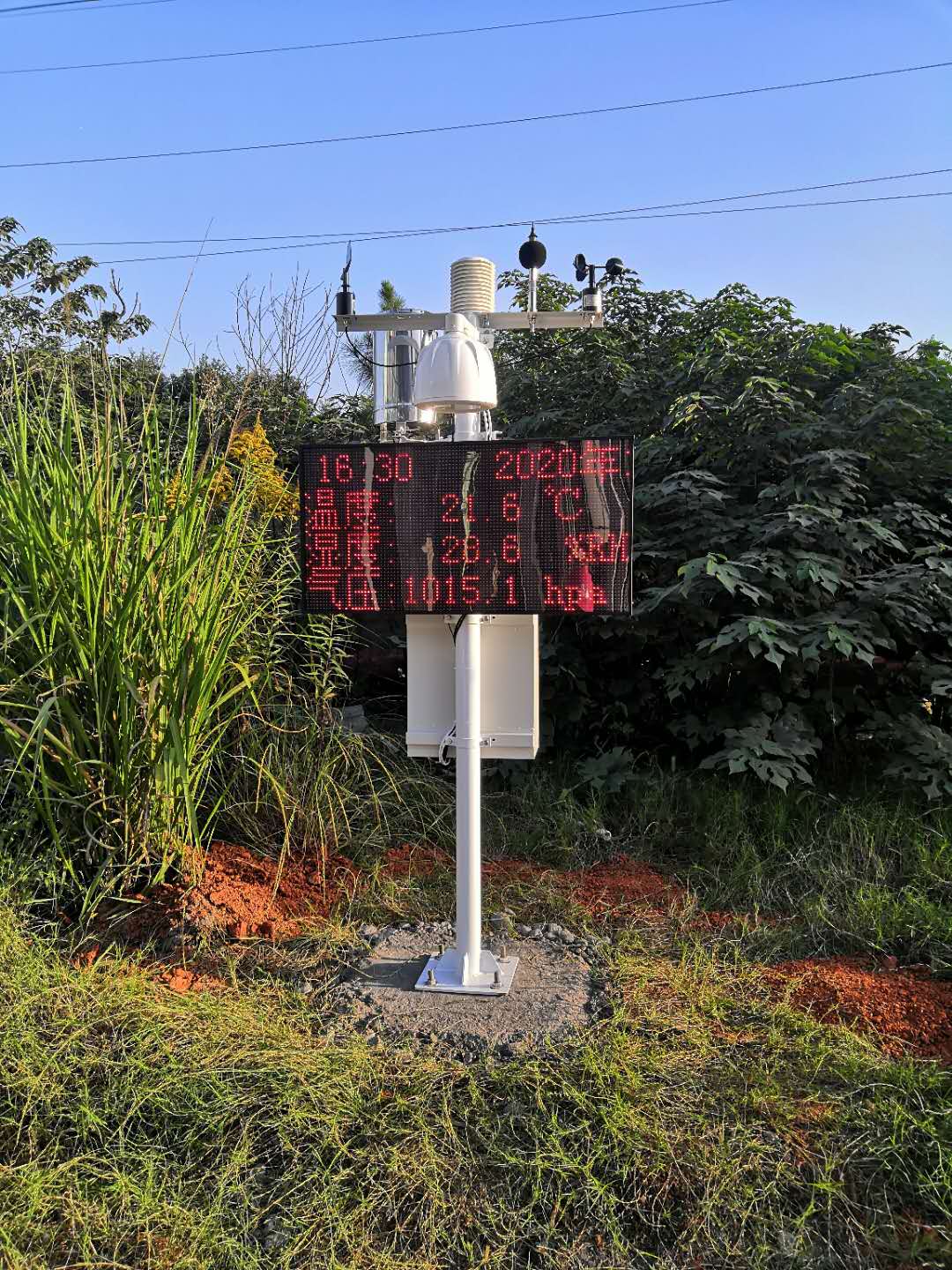

Dust monitoring solutions weather stations.jpg

Second, how to choose the right dust monitoring sensor?

When selecting a suitable dust monitoring sensor, a number of factors need to be considered to ensure the effectiveness and adaptability of the monitoring system. Here are some key points to consider:

1. Accuracy of monitoring requirements:

   - For particulate matter sensors (e.g. PM2.5/PM10): choose a sensor with high accuracy, such as a laser scattering type, to ensure data accuracy. For scientific research or strict regulatory needs, consider certified products such as TSI, DUSTtrak series.

2. Environmental Adaptability:

   - Ensure that the sensor is stable under the expected environmental conditions. For example, industrial grade sensors should be able to withstand extreme temperature and humidity changes.

3. Gas monitoring specificity:

   - Select gas sensors based on the contaminants that may be present. For example, a chemical plant may need to monitor specific VOCs, while urban areas are more concerned with SO2 and NOx.

4. temperature, humidity and meteorological parameters:

   - Choose temperature and humidity sensors with fast response times and high accuracy, as well as meteorological sensors that can accurately measure wind speed and direction, as these parameters affect dust dispersion.

Dust monitoring solutions.jpg

5. Linkage control function:

   - If the system needs to be linked with dust reduction equipment such as fog guns, make sure the sensors support real-time output and fast response.

6. Data transmission and compatibility:

   - Select sensors that support wireless data transmission (e.g. LoRa, 4G/5G, Wi-Fi) for remote monitoring and data integration.

7. maintenance and cost:

   - Consider the maintenance cost and service life of the sensor. Long-term operational stability is as important as ease of maintenance.

8. Certification and Compliance:

   - Verify that the sensor meets national or regional environmental standards and certification requirements, such as CE, FCC, or specific environmental agency certifications.

9. Supplier support and service:

   - Choose a supplier with good technical support and after-sales service in order to get the necessary help in installation, commissioning and subsequent use.

10. Integration and Expandability:

    - Ensure that the selected sensors are easy to integrate into existing or planned monitoring systems and have expansion capabilities to accommodate future needs.

By comprehensively evaluating these factors, you can ensure that the selected sensor not only meets the current monitoring needs, but also to adapt to possible future changes, so as to build an efficient and reliable dust monitoring system.

PM2.5 sensor and PM10 sensor.jpg

Third, Dust Monitoring Solutions application scenarios

1. Environmental protection:

Used for urban environmental monitoring, assessing air quality and formulating environmental policies.

Monitoring emissions in industrial parks to ensure corporate compliance emissions and reduce pollution.

2.Industrial production:

Monitor dust concentration in production workshops to protect employee health and safety.

Evaluate emissions during the production process, optimize the production process and reduce pollution.

3.Construction sites:

Monitor the dust situation in the construction site, formulate dust control measures to reduce the impact of construction on the surrounding environment.

Assess construction noise pollution and formulate noise control measures.

Environmental Monitoring Weather Station.jpg

4.Traffic management:

Monitor the dust situation near traffic arteries and assess the impact of traffic on air quality.

Develop traffic control measures to reduce vehicle emissions and dust pollution.

5.Agricultural Management:

Monitor the dust situation around farmland and assess the impact of soil erosion and dust storms on agricultural production.

Develop agricultural protection measures to reduce soil erosion and dust storms.

Dust Monitoring Solutions advantages

Comprehensive monitoring: integrating a variety of sensors to achieve comprehensive monitoring of dust, gas, humidity, temperature, wind speed, wind direction and noise in the environment.

Real-time monitoring: provide real-time data, timely detection and solution of dust pollution problems.

High-precision Measurement: Adopting high-precision sensors to ensure the accuracy and reliability of monitoring data.

Easy to operate: The system is easy to operate, easy to install and maintain, reducing the cost of use.

Remote monitoring: support remote monitoring and management, improve management efficiency.

Automatic Weather Station Application scenario.jpg

In summary, this dust monitoring solution has a wide range of application prospects and significant advantages, and can provide scientific and accurate data support for environmental protection, industrial production, construction sites and other fields, helping to realize the goals of green development and sustainable development.

Through this dust monitoring solution, we are able to provide customers with comprehensive environmental monitoring services, effectively control and manage dust pollution, and protect the environment and public health.
