Detailed functionality of pH sensors

Introduction

pH sensors are indispensable tools in water quality monitoring and are widely used in environmental monitoring, industrial production, agriculture, aquaculture, and laboratory research. The pH value is a key indicator for measuring the acidity or alkalinity of a solution, which directly affects the chemical properties and suitability of water. When selecting and using pH sensors, it is essential to fully understand their functionality, material selection, chemical compatibility, and applicable scenarios to ensure accurate measurement results and long-term stability. This article will provide a detailed introduction to the functions, features, selection criteria, and usage considerations for pH sensors, offering comprehensive reference for users.

Basic Principle of pH Sensors:

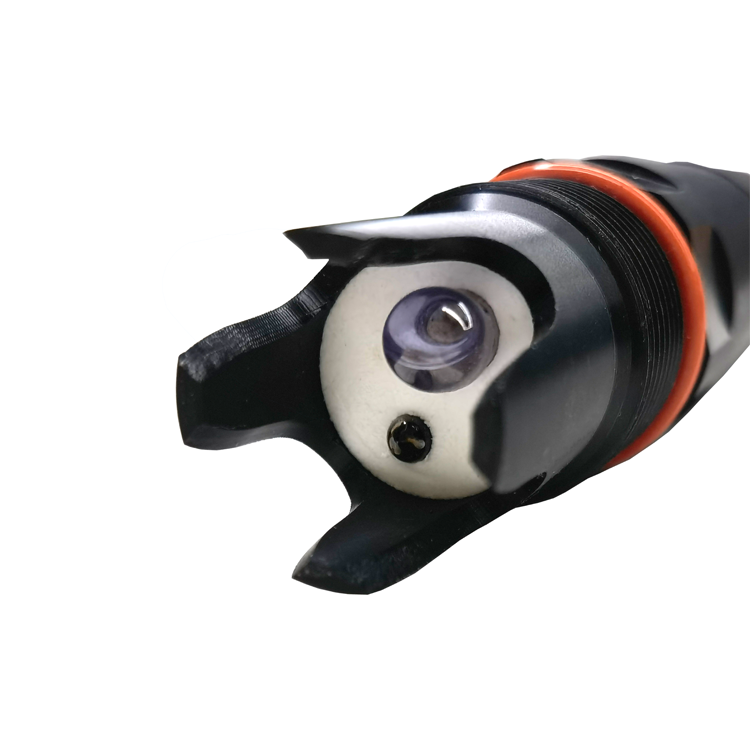

pH sensors typically work based on electrochemical principles, measuring the concentration of hydrogen ions (H⁺) in a solution to determine its acidity or alkalinity. A typical pH sensor consists of the following core components:

- Measuring Electrode: Typically a glass electrode filled with reference solution (e.g., KCl), which reacts with H⁺ ions in the solution through a sensitive membrane to produce a potential difference.

- Reference Electrode: Provides a stable reference potential, usually using an Ag/AgCl electrode, in conjunction with a salt bridge (such as saturated KCl solution), forming a potential difference with the measuring electrode.

- Signal Processing Unit: Amplifies the weak electrical signal generated by the electrodes and converts it into a pH value, typically output as a digital or analog signal.

- Temperature Compensation Module: Since pH measurements are affected by temperature, modern pH sensors usually integrate temperature sensors to achieve automatic temperature compensation.

The pH value measurement range typically spans from 0 to 14, corresponding to strongly acidic, neutral, and strongly alkaline environments. The sensor's accuracy generally ranges from ±0.01 to ±0.1 pH units, depending on the design and calibration quality of the equipment.

Main Functions of pH Sensors:

pH sensors are not only used to measure the acidity or alkalinity of solutions but also have various functional characteristics that make them suitable for different scenarios. The main functions of pH sensors include:

1. High-Precision Measurement: pH sensors can provide high-precision pH measurements, suitable for laboratory analysis, industrial process control, and other scenarios requiring accurate data. High-end pH sensors, with automatic calibration and temperature compensation, can control measurement errors within ±0.01 pH units.

2. Wide Temperature Range Adaptability: Different pH sensors can operate in environments ranging from low temperatures (0°C) to high temperatures (up to 100°C or higher). Glass electrodes are suitable for high-temperature environments, while polymer electrodes are better suited for moderate and low-temperature conditions.

3. Chemical Compatibility: pH sensors, depending on material selection, can be used in various chemical environments. Glass electrodes are chemically inert and suitable for highly corrosive solutions, while polymer electrodes are more suitable for non-corrosive or mildly corrosive environments.

 4. Waterproof and Shockproof Design: Many pH sensors feature waterproof sealing designs, making them suitable for long-term submersion in water (such as water quality monitoring stations). Sensors with polymer housings have strong shock resistance, making them ideal for outdoor or vibration-prone environments.

5. Automatic Temperature Compensation (ATC): pH values are significantly affected by temperature. Modern pH sensors often integrate temperature sensors to monitor solution temperature in real-time and automatically correct pH readings, ensuring accurate measurements.

6. Multiple Output Methods: pH sensors support multiple signal output methods, such as analog signals (4-20 mA), digital signals (RS485, Modbus), or wireless transmission, facilitating integration with data acquisition systems or IoT platforms.

7. Long-Term Stability and Self-Cleaning Function: Some high-end pH sensors are equipped with self-cleaning features (such as ultrasonic cleaning or jet cleaning) to reduce accumulation of debris on the electrode surface, extend the service life, and ensure long-term stability.

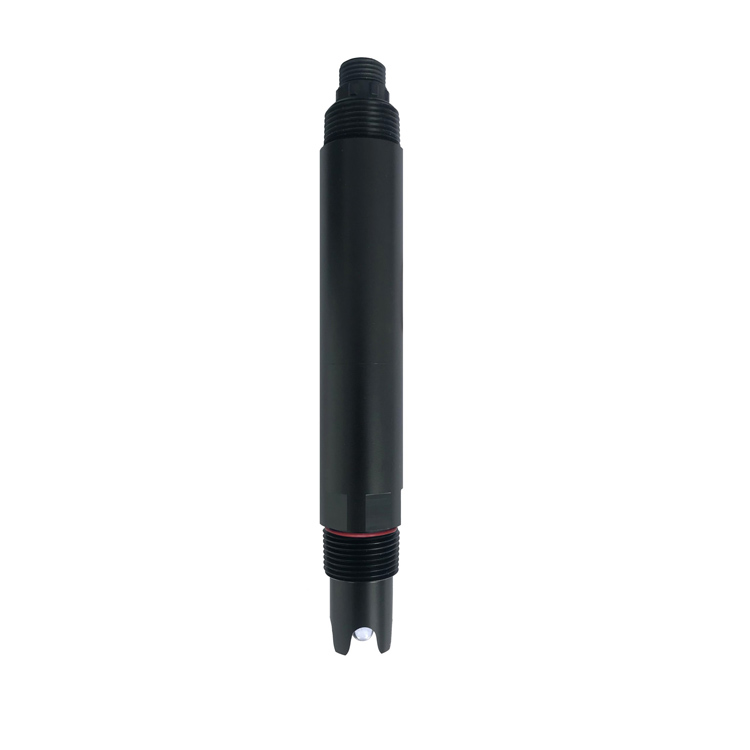

Material Selection for pH Sensors:

The performance and applicability of a pH sensor are largely determined by the materials used in its construction. Key factors to consider when selecting materials include:

- Measuring Temperature Range:

    - Polymer Materials (e.g., Epoxy Resin, Plastic): Suitable for medium to low-temperature environments (0-60°C), cost-effective, and commonly used in laboratories or general water quality monitoring.

    - Glass Materials: Suitable for high-temperature environments (up to 100°C or higher), widely used in industrial processes or high-temperature sterilization.

- Chemical Composition of Solutions:

    - Polymer Electrodes: Not suitable for solutions containing high concentrations of inorganic acids, bases, or organic solvents, as these may corrode the polymer materials.

    - Glass Electrodes: Due to their chemical inertness, glass electrodes can resist strong acids (e.g., sulfuric acid, nitric acid), strong bases (e.g., sodium hydroxide), and saline solutions, making them ideal for chemical laboratories or industrial wastewater monitoring.

- Waterproof Performance: pH sensors often need to be immersed in solutions for extended periods, requiring excellent waterproof performance. An IP68 protection rating is commonly chosen to ensure the sensor can operate underwater without leakage.

- Shock Resistance:

    - Polymer Shell: Has high mechanical strength and can absorb impacts, making it suitable for outdoor or high-vibration environments.

    - Glass Shell: More fragile and susceptible to mechanical shock, making it suitable for laboratory or fixed installation scenarios.

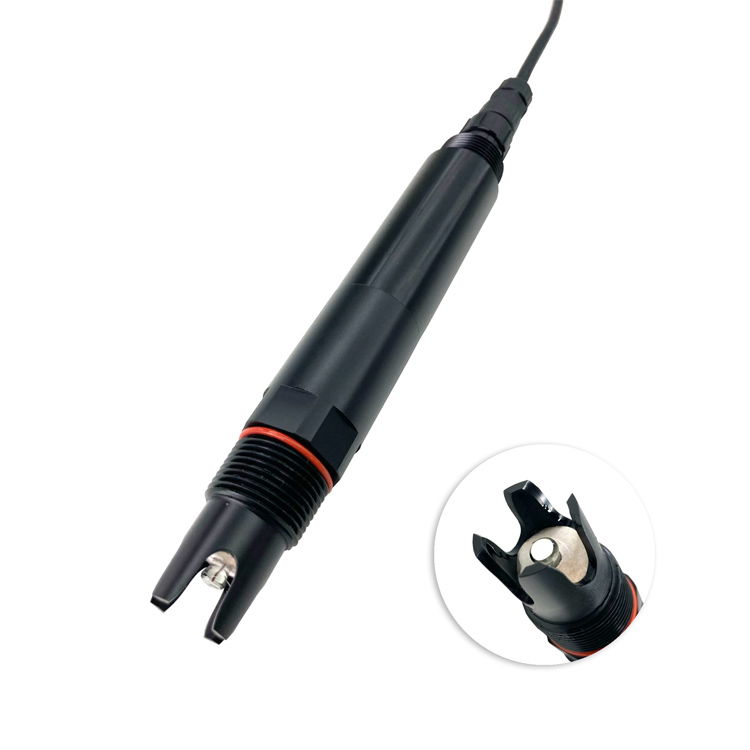

Chemical Compatibility of pH Sensors:

Chemical compatibility is a critical consideration when selecting a pH sensor. Key points include:

- Limitations of Polymer Electrodes: Polymer-based pH electrodes (e.g., epoxy resin or plastic shells) may degrade in solutions containing strong acids, bases, or organic solvents. For example, prolonged exposure to concentrated sulfuric acid or organic solvents may cause material aging or failure. When choosing polymer electrodes, confirm the chemical composition of the solution and consult compatibility tables.

- Advantages of Glass Electrodes: Glass is highly inert and resistant to corrosion by most chemicals, making it ideal for measuring strong acids (e.g., sulfuric acid, nitric acid), strong bases (e.g., sodium hydroxide), or saline solutions. Glass electrodes are the preferred choice in highly corrosive environments.

- Special Environment Considerations: In some specific environments (such as solutions containing fluoride), glass electrodes may be corroded, and special electrodes with anti-fluoride coatings should be selected. Additionally, for solutions with high turbidity or suspended particles, sensors with self-cleaning functions should be used to prevent electrode contamination.

Considerations for Selecting and Using pH Sensors:

1. Accuracy Requirements:

    Laboratory analysis typically requires high-precision sensors (±0.01 pH units), while industrial or field monitoring may accept medium precision (±0.1 pH units). Choose based on application scenarios, balancing precision and cost.

2. Calibration and Maintenance:

    pH sensors need to be regularly calibrated with standard buffer solutions (e.g., pH 4.01, 7.00, 10.01) to ensure measurement accuracy.

    The electrode surface should be cleaned regularly to avoid biofilm or precipitate buildup, which can affect measurement results.

    For long-term storage, glass electrodes should be immersed in KCl solution to maintain the activity of the sensitive membrane.

3. Environmental Adaptability:

    Ensure that the temperature and pressure ranges of the sensor are compatible with the application environment.

    For outdoor use, prioritize sensors with high waterproof and dustproof ratings (e.g., IP68).

4. Installation and Integration:

    Choose the appropriate installation method (e.g., immersion, flow-through, or insertion type) to match the monitoring system.

    Ensure compatibility between the sensor and data acquisition system interfaces (e.g., supporting Modbus or 4-20 mA output).

Application Scenarios of pH Sensors:

pH sensors are widely used in the following fields:

- Environmental Monitoring: Monitoring the pH of rivers, lakes, and oceans to assess water pollution and ecological health.

- Water Treatment: In drinking water treatment, wastewater treatment, and industrial effluent treatment, real-time monitoring of pH helps optimize the treatment process.

- Agriculture and Aquaculture: Monitoring the pH of irrigation water or aquaculture systems to optimize crop growth or aquatic life conditions.

- Industrial Production: In industries like chemicals, pharmaceuticals, and food processing, controlling the pH of reactions ensures product quality.

- Laboratory Research: Providing high-precision pH data for chemical, biological, and environmental science research.

Future Development:

With advancements in material science and microelectronics, the performance of pH sensors will continue to improve. Future development trends include:

1. Miniaturization and Integration: Developing smaller sensors that integrate multiple parameters (e.g., pH, temperature, conductivity) to reduce equipment size and cost.

2. Intelligent Sensors: Combining AI algorithms to develop pH sensors with self-diagnosis and auto-calibration functions, improving measurement accuracy and ease of use.

3. Enhanced Durability: Using new anti-corrosion materials and self-cleaning technologies to extend sensor life in harsh environments.

Conclusion:

pH sensors, as a core tool for water quality monitoring, cover a wide range of functions including high accuracy measurement, wide temperature adaptability, chemical compatibility and long-term stability. When choosing pH sensors, it is necessary to consider the materials, chemical compatibility, accuracy requirements and application environments to ensure that their performance meets the actual needs. Through proper selection and maintenance, pH sensors can play an important role in environmental monitoring, industrial production and scientific research, providing reliable data support for water quality management.
