Dissolved Oxygen Sensors: Working Principles & Applications

Quick Answer

Dissolved oxygen sensors measure the amount of molecular oxygen dissolved in water. Dissolved oxygen is commonly reported in milligrams per liter (mg/L) or as a percentage of oxygen saturation.

DO monitoring is important in aquaculture, wastewater treatment, rivers, lakes, reservoirs, industrial water systems and environmental research. Dissolved oxygen measurements help operators assess oxygen availability, biological treatment conditions and changes in aquatic environments.

The main dissolved oxygen sensor technologies include polarographic, galvanic and optical fluorescence-based measurement. Each uses a different physical or electrochemical principle and has different requirements for calibration, maintenance and system integration.

What Is Dissolved Oxygen in Water?

Dissolved oxygen refers to oxygen molecules present in water. Oxygen enters water through exchange with the atmosphere, mixing and photosynthetic activity. It can be consumed by aquatic organisms, microorganisms and chemical or biological reactions.

The concentration of dissolved oxygen depends on several environmental conditions, particularly water temperature, salinity, atmospheric pressure and oxygen consumption.

Dissolved oxygen concentration should be interpreted according to the specific water environment. There is no single DO value that represents suitable conditions for every aquatic species, biological treatment process or industrial application.

Main Types of Dissolved Oxygen Sensors

Dissolved oxygen sensors are commonly divided into electrochemical and optical measurement technologies. Electrochemical sensors include polarographic and galvanic designs, while optical sensors use oxygen-dependent changes in luminescence.

1. Polarographic Dissolved Oxygen Sensor Working Principle

A polarographic dissolved oxygen sensor uses an electrochemical cell containing electrodes, electrolyte and an oxygen-permeable membrane.

A polarization voltage is applied between the electrodes. Oxygen diffuses through the membrane and undergoes an electrochemical reduction reaction at the cathode, generating a measurable current.

Under suitable operating conditions, the measured current is related to the oxygen available at the electrode and can be converted into a dissolved oxygen value through calibration and compensation.

Main Components

A typical polarographic DO probe includes a cathode, counter electrode, electrolyte, oxygen-permeable membrane and electronic signal-processing circuit.

Different instruments may use different electrode materials and electrolyte compositions. Their operating voltages and maintenance procedures must follow the individual sensor specifications.

Measurement Considerations

Polarographic sensors require suitable polarization before measurement. Since oxygen is consumed at the sensing electrode, water movement and membrane diffusion characteristics may influence the measurement.

Regular membrane inspection, electrolyte maintenance and calibration may be necessary, depending on the sensor model and operating environment.

2. Galvanic Dissolved Oxygen Sensor Working Principle

A galvanic dissolved oxygen sensor also uses an electrochemical cell and an oxygen-permeable membrane. However, its electrode materials create a spontaneous electrochemical reaction without requiring an externally applied polarization voltage.

Oxygen diffuses through the membrane and participates in a reduction reaction at the cathode. The resulting electrical current is related to the oxygen concentration under the sensor's operating conditions.

Although the galvanic sensing cell does not require an external polarization voltage, a complete galvanic DO meter may still require electrical power for its display, signal processing, data logging or communication functions.

Galvanic Sensor Maintenance

Galvanic sensing elements may require periodic replacement of electrolyte, membranes and consumable electrode components.

Measurement stability can be influenced by membrane fouling, electrode condition, water movement and temperature. Calibration and maintenance requirements depend on the actual sensor construction.

3. Optical Dissolved Oxygen Sensor Working Principle

An optical dissolved oxygen sensor measures oxygen using luminescence quenching. It includes a light source, an oxygen-sensitive optical sensing layer, a photodetector and electronic signal-processing components.

The light source excites a luminescent material in the sensing layer. The material emits light, and dissolved oxygen affects the intensity, lifetime or phase characteristics of this emitted light.

The instrument analyzes the optical response and uses calibration data and relevant compensation to calculate the dissolved oxygen measurement.

Excitation Light → Oxygen-Sensitive Layer → Luminescence Quenching → Optical Detection → DO Calculation

Advantages of Optical DO Measurement

Optical DO sensors do not consume oxygen during measurement and do not require electrolyte or electrochemical polarization.

They are therefore well suited to many continuous monitoring applications where reduced routine maintenance is desirable. Optical measurements also avoid the oxygen-consumption-related flow dependence of traditional electrochemical probes.

However, optical sensing caps still require appropriate cleaning, calibration or verification and eventual replacement. Fouling, sensor-cap aging and environmental conditions can affect measurement quality.

Optical vs Electrochemical Dissolved Oxygen Sensors

The appropriate dissolved oxygen measurement technology depends on maintenance requirements, water conditions, instrument performance and installation constraints.

Measurement accuracy and response time depend on the specific instrument. Neither optical nor electrochemical technology should be assigned a universal accuracy specification without model-specific technical data.

NiuBoL Online Fluorescence Dissolved Oxygen Sensor

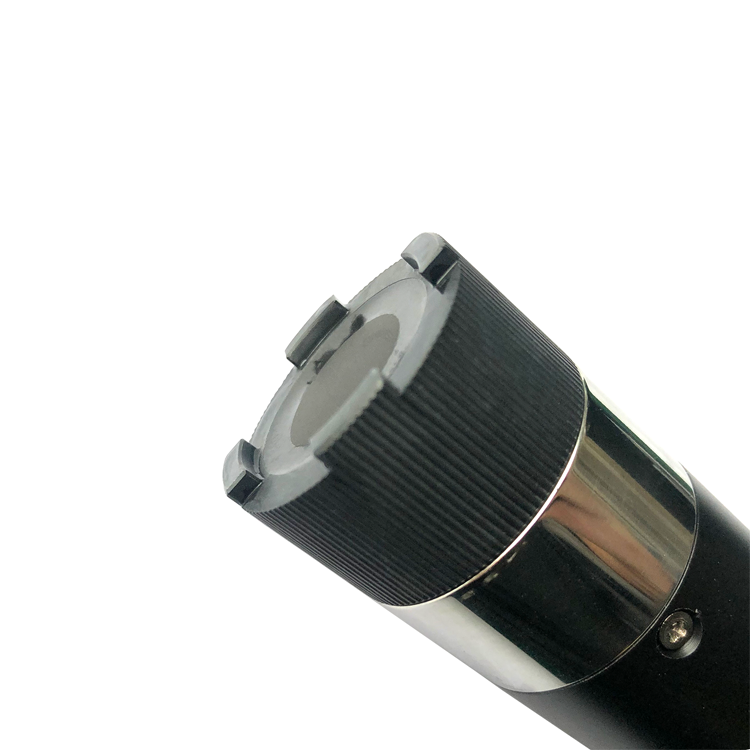

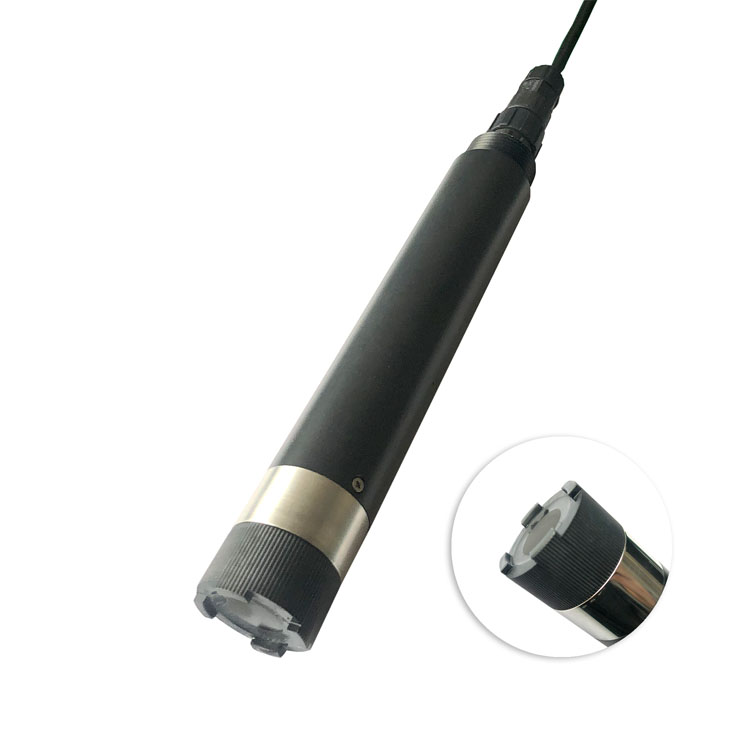

The NBL-WQ-DO Online Fluorescence Dissolved Oxygen Sensor uses optical fluorescence quenching for continuous dissolved oxygen measurement in water.

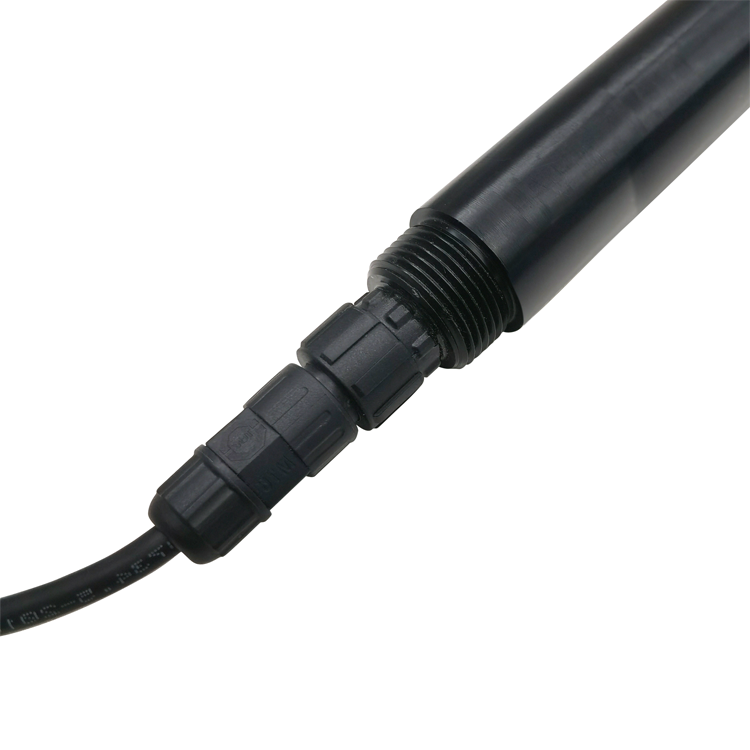

It provides RS485 Modbus RTU communication and can be connected to compatible PLCs, RTUs, data loggers and water quality monitoring systems.

These specifications apply to the NBL-WQ-DO configuration and should not be treated as general specifications for every dissolved oxygen sensor.

Factors Affecting Dissolved Oxygen Measurements

Reliable dissolved oxygen measurement requires correct calibration and consideration of the water environment.

Temperature, salinity and atmospheric pressure influence oxygen saturation and the relationship between measured oxygen response and reported dissolved oxygen concentration. The available compensation methods depend on the sensor design and configuration.

Optical cap contamination, membrane fouling, sediment accumulation and aging sensing components can also affect measurement quality.

For continuous monitoring, the installed probe should remain properly immersed and positioned where the measurements represent the required water conditions.

Applications of Dissolved Oxygen Sensors

Dissolved oxygen sensors are used in environmental, agricultural and industrial water systems where oxygen availability or concentration affects operating decisions.

Dissolved Oxygen Sensors in Aquaculture

Aquaculture systems use dissolved oxygen measurements to assess whether sufficient oxygen is available for the cultured species.

Oxygen requirements vary by species, age, stocking density, water temperature and operating conditions. The appropriate DO operating range should therefore be determined for the specific aquaculture application.

DO sensors can provide measurements to a monitoring system or aeration controller. Automatic aeration requires suitable controller logic, actuators and safety arrangements.

Dissolved Oxygen Sensors in Wastewater Treatment

Dissolved oxygen monitoring is important in biological wastewater treatment because oxygen availability affects aerobic microbial activity.

Online DO measurements can be used by a compatible treatment-control system to support aeration management and evaluate changes in process conditions.

Appropriate DO control targets depend on the treatment process, biological loading, equipment configuration and operating objectives. The sensor measures oxygen concentration; blower control requires additional control equipment and logic.

Dissolved Oxygen Sensor Installation and Maintenance

Online dissolved oxygen sensors should be installed in a location where the water conditions are representative of the monitoring objective.

For immersion installations, position the probe to avoid direct mechanical impact, excessive sediment accumulation and damage to the sensing cap or membrane.

Maintenance and calibration requirements depend on the sensor technology and the water conditions.

Cleaning and calibration intervals should be determined by the selected instrument and the actual water environment. A fixed interval should not automatically be applied to all dissolved oxygen sensors.

RS485 Dissolved Oxygen Sensor System Integration

Digital dissolved oxygen sensors can be integrated into industrial or environmental monitoring systems using suitable communication interfaces.

The NBL-WQ-DO provides RS485 Modbus RTU communication. A compatible PLC, RTU, data logger or gateway can read the measurement data according to its Modbus register definition.

DO Sensor → RS485 Modbus RTU → PLC / RTU / Data Logger → 4G / Ethernet / Supported Network → SCADA / Cloud / Private Server

RS485 is a local communication interface. Remote network transmission, data storage, alarms and automated process control require compatible additional equipment and software.

For system integration, confirm the required power supply, Modbus communication settings, sensor addresses, register mapping, cable lengths and data acquisition intervals.

NBL-WQ-DO Dissolved Oxygen Sensor Manual

For model-specific technical specifications, installation, calibration and RS485 communication information, refer to the NBL-WQ-DO instruction manual.

NBL-WQ-DO Online Dissolved Oxygen Sensor User Manual (PDF)

Dissolved Oxygen Monitoring with NiuBoL

NiuBoL provides online fluorescence dissolved oxygen sensors for aquaculture, wastewater treatment, rivers, reservoirs and environmental water quality monitoring.

For a wider range of instruments, see the Water Quality Sensors category.

For product selection and quotation, provide the water type, expected DO measurement range, accuracy requirements, operating temperature, installation conditions, cable length, output interface, quantity and receiving PLC, data logger or IoT gateway.

For remote monitoring projects, also specify whether local data storage, 4G communication, cloud monitoring, SCADA or integration with a private server is required.

Project Decision FAQ

Q1. What does a dissolved oxygen sensor measure?

A1. A dissolved oxygen sensor measures the amount of molecular oxygen dissolved in water, commonly reported in mg/L or as a percentage of oxygen saturation.

Q2. What are the main types of dissolved oxygen sensors?

A2. The main types are polarographic, galvanic and optical dissolved oxygen sensors. Polarographic and galvanic sensors use electrochemical reactions, while optical sensors use luminescence quenching.

Q3. How does an optical dissolved oxygen sensor work?

A3. An optical DO sensor illuminates an oxygen-sensitive sensing layer and measures how dissolved oxygen changes its luminescence response. The instrument processes this response to calculate dissolved oxygen.

Q4. What is the difference between galvanic and polarographic DO sensors?

A4. A polarographic sensing cell requires an applied polarization voltage, while a galvanic sensing cell produces a spontaneous electrochemical reaction. Both measure oxygen using electrode reactions.

Q5. Does an optical dissolved oxygen sensor consume oxygen?

A5. No. Optical DO sensors do not consume oxygen during measurement, unlike conventional electrochemical sensing cells.

Q6. Do dissolved oxygen sensors need calibration?

A6. Yes. Calibration or periodic verification is required according to the sensor technology, operating environment and application requirements.

Q7. Does the NBL-WQ-DO support RS485 Modbus?

A7. Yes. The NBL-WQ-DO uses RS485 Modbus RTU communication for connection to compatible PLCs, RTUs, data loggers and gateways.

Q8. Can dissolved oxygen sensors control aeration equipment?

A8. Dissolved oxygen sensors provide measurement data. Automatic aeration control requires a compatible controller, control logic and suitable blower or aeration equipment.

Summary

Select dissolved oxygen sensors by measurement principle, service requirements and the installed water conditions. Retain suitable reference checks and verify the receiving system separately. For a NiuBoL configuration review, provide the expected oxygen range, installation conditions and required interface.
