Water Hardness and Conductivity: Why EC Cannot Verify Softening

Quick Answer

Water hardness and conductivity measure different properties. Hardness is mainly associated with calcium and magnesium and is commonly reported as mg/L CaCO3 equivalent. Conductivity reflects the electrical behavior of all contributing ions. There is no universal conductivity-to-hardness conversion: an EC sensor can track ionic changes, but it cannot independently verify residual hardness after a sodium-cycle softener.

Why a conductivity reading cannot identify hardness

Calcium and magnesium contribute to conductivity, but so do sodium, chloride, sulfate and other ions. Waters with similar conductivity can therefore have different hardness. Conversely, replacing hardness-producing ions with sodium can reduce hardness without producing the conductivity reduction an operator might expect.

This distinction is decisive in industrial procurement. If the acceptance requirement is residual hardness after softening, an online EC channel does not become a hardness analyzer by changing the PLC's displayed unit to ppm. Select a suitable hardness determination for that requirement and use conductivity for the separate ionic-condition information it provides.

Read hardness classifications as descriptions, not process limits

One commonly used classification describes hardness as soft at 0-60 mg/L as CaCO3, moderately hard at 61-120, hard at 121-180 and very hard above 180. The Maryland Geological Survey hardness explanation provides that convention and describes sodium ion exchange. Other classification systems exist; these bands are not boiler-feedwater acceptance criteria.

There is no general basis for labeling water below 25 mg/L as universally high-quality drinking water or water above 60 mg/L as unsuitable for every application. Process requirements depend on equipment and treatment design. A hardness label does not establish corrosion risk, scaling tendency or drinking-water suitability by itself.

Temporary or carbonate hardness and noncarbonate hardness describe chemical relationships that are useful in treatment discussions. They should not be reduced to an instruction to boil any hard water to make it acceptable. Industrial softening and scale management require appropriate water chemistry and equipment-specific criteria.

Use calcium and magnesium results when calculating hardness

For a conventional calcium-and-magnesium calculation, approximate hardness in mg/L as CaCO3 = 2.5 x calcium in mg/L + 4.1 x magnesium in mg/L. The coefficients express equivalent CaCO3 contributions; they are not conductivity conversion factors.

For example, assumed laboratory results of 40 mg/L calcium and 12 mg/L magnesium give approximately 2.5 x 40 + 4.1 x 12 = 149.2 mg/L as CaCO3. This is an illustrative calculation, not a measured NiuBoL project result. The input concentrations and their analytical quality determine whether the calculated result is suitable for the task.

Health Canada's operational-parameter guidance explains the equivalent-concentration approach and notes differences between hardness classifications. For process acceptance, agree the required reporting method, units and detection capability rather than inferring a limit from a descriptive class.

What changes after sodium-cycle softening?

A sodium-cycle ion-exchange softener replaces calcium and magnesium with sodium. It changes the ionic composition rather than removing all dissolved ions. Conductivity may remain substantial after successful softening. A stable EC reading is therefore not, by itself, evidence that the softener failed or that its outlet hardness is acceptable.

To investigate suspected breakthrough, take a suitable hardness measurement at the defined outlet and record the softener's operating state. Review regeneration timing, bypass or blending paths and whether the sample represents the outlet after the intended flushing period. Keep conductivity as a separate trend; do not adjust its scaling until it agrees with a hardness test.

By contrast, a membrane or demineralization process changes ionic content in a different way. EC can be useful for that process duty, but hardness removal and total salt reduction remain distinct questions. A proposed EC-to-hardness relationship must be validated for a stable, defined water composition and must not be assumed valid after source or treatment changes.

Select the measurement for the decision

EDTA titration is a conventional hardness method, but its useful range, endpoint, interferences and sample handling must suit the requirement. Do not assume that any field kit can verify a very low residual-hardness limit. Equally, an ion-selective electrode for one ion is not automatically a complete total-hardness determination.

Where the NBL-WQ-EC belongs

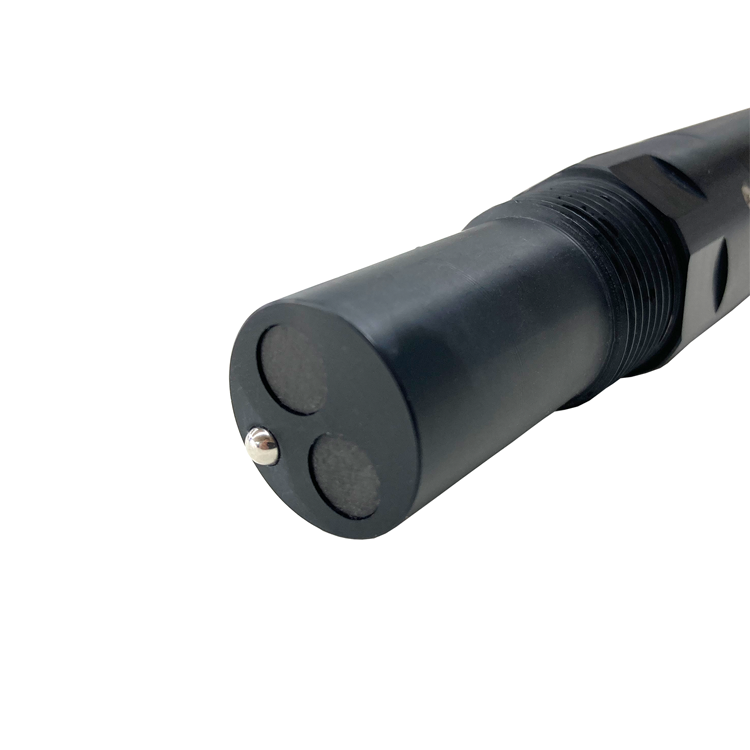

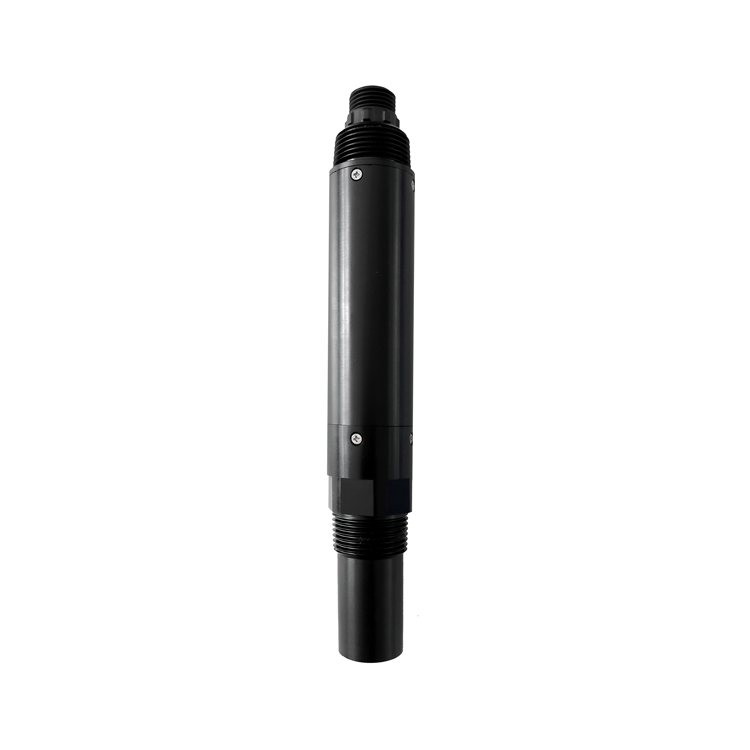

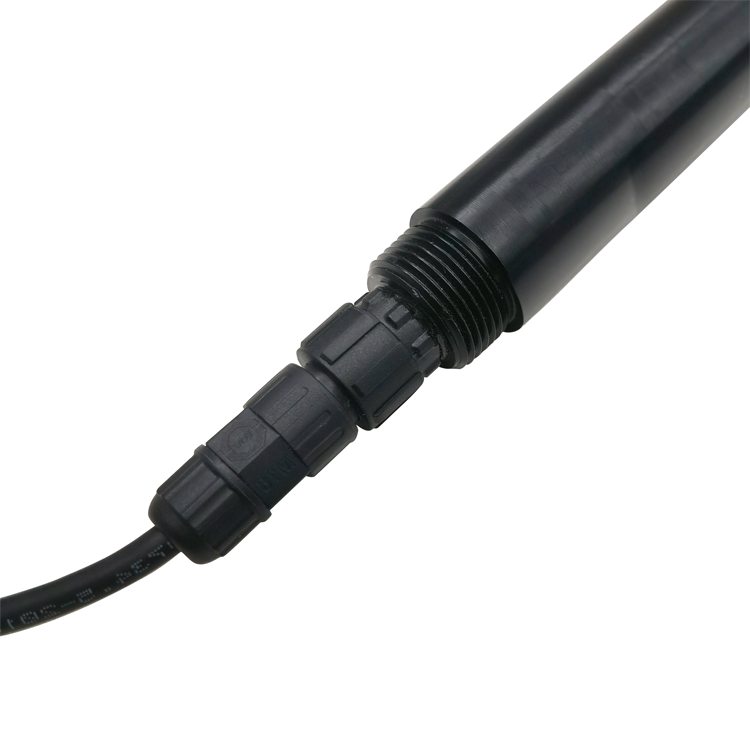

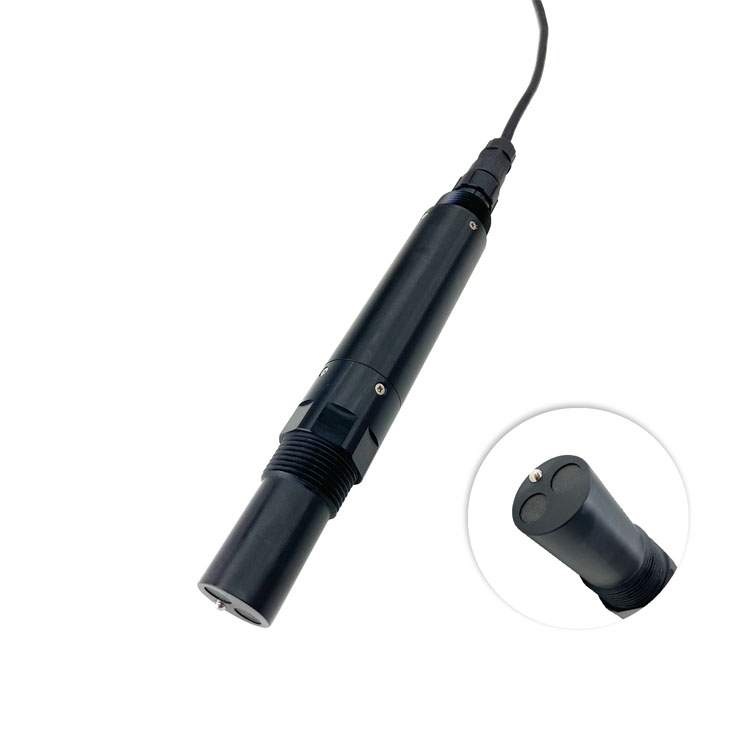

The NiuBoL NBL-WQ-EC conductivity sensor provides EC and temperature information through RS485 Modbus RTU, with supported TDS conversion in selected configurations. Its TDS coefficient is not a hardness coefficient. The sensor should be selected and labeled as an EC instrument even when installed beside a softener.

For the 0-5000 uS/cm range, +/-1% full scale corresponds to +/-50 uS/cm. A requirement to distinguish much smaller EC changes deserves review of the selected range and comparison method. This error expression cannot be converted into a universal hardness error in mg/L.

Commission the EC channel and hardness test separately

At the PLC, RTU or data logger, verify the instrument's range-dependent register scaling. Keep uS/cm and mS/cm distinct: 1 mS/cm equals 1000 uS/cm. Record whether the result is temperature-compensated and the reference used. Comparing an uncompensated reading with a compensated result can create an apparent treatment change.

Check the EC response with a suitable conductivity standard and the selected procedure. Validate the hardness determination independently with its own appropriate reference and actual-water samples. A correlation observed during a short trial should retain its water-source and treatment boundaries, not be promoted into a universal conversion.

For a quotation, send the actual EC range and the separate hardness requirement, sample temperature and pressure, water composition, installation arrangement and receiving system. NiuBoL can assess the EC configuration. If a dedicated hardness determination is required, specify that duty explicitly rather than assuming it is included in a conductivity probe.

Conductivity Sensor Data Sheet

NBL-DDM-206 Online Water Quality Conductivity Sensor.pdf

Project Decision FAQ

Q1. Can conductivity be converted directly to water hardness?

Not with a universal ratio. Conductivity includes contributions from ions that do not dominate hardness. Any empirical relationship requires validation for a defined water composition and should be reassessed when that composition changes.

Q2. Why can softened water still have a high EC reading?

Sodium-cycle softening replaces calcium and magnesium with sodium rather than removing all ions. Verify residual hardness with the appropriate method and interpret EC as a separate property.

Q3. Does the TDS value from an EC probe represent hardness?

No. It is an EC-based estimate using a conversion coefficient. It does not independently measure calcium or magnesium and should not be relabeled as mg/L CaCO3 hardness.

Q4. Can a soft-water classification serve as a boiler acceptance limit?

No. Descriptive hardness bands do not replace equipment-specific feedwater requirements. Agree the required residual hardness and a measurement method capable of checking it at that level.

Q5. What must be included in a calculated hardness result?

Use suitable calcium and magnesium concentrations, state their units and the equivalent-CaCO3 calculation, and retain the analytical information. Do not insert EC or TDS into that calculation as if it were a calcium concentration.

Q6. Should a project always select the widest EC range?

No. Cover credible excursions while retaining useful performance near normal operation. Because the NBL-WQ-EC accuracy is expressed as a percentage of full scale, unnecessarily widening the range increases the corresponding absolute tolerance.

Q7. What should be checked when EC and hardness results disagree?

First confirm that they are being interpreted as different properties. Then review units, temperature basis, sample location, softener state and each method's quality checks. Disagreement is not a reason to alter EC scaling to mimic hardness.

Summary

Water hardness and conductivity are related through ionic composition but are not interchangeable measurements. Use an appropriate hardness determination for calcium-and-magnesium requirements and EC for its own process duty. Clear channel labels and separate acceptance checks prevent a correctly functioning conductivity sensor from being used for the wrong decision.
